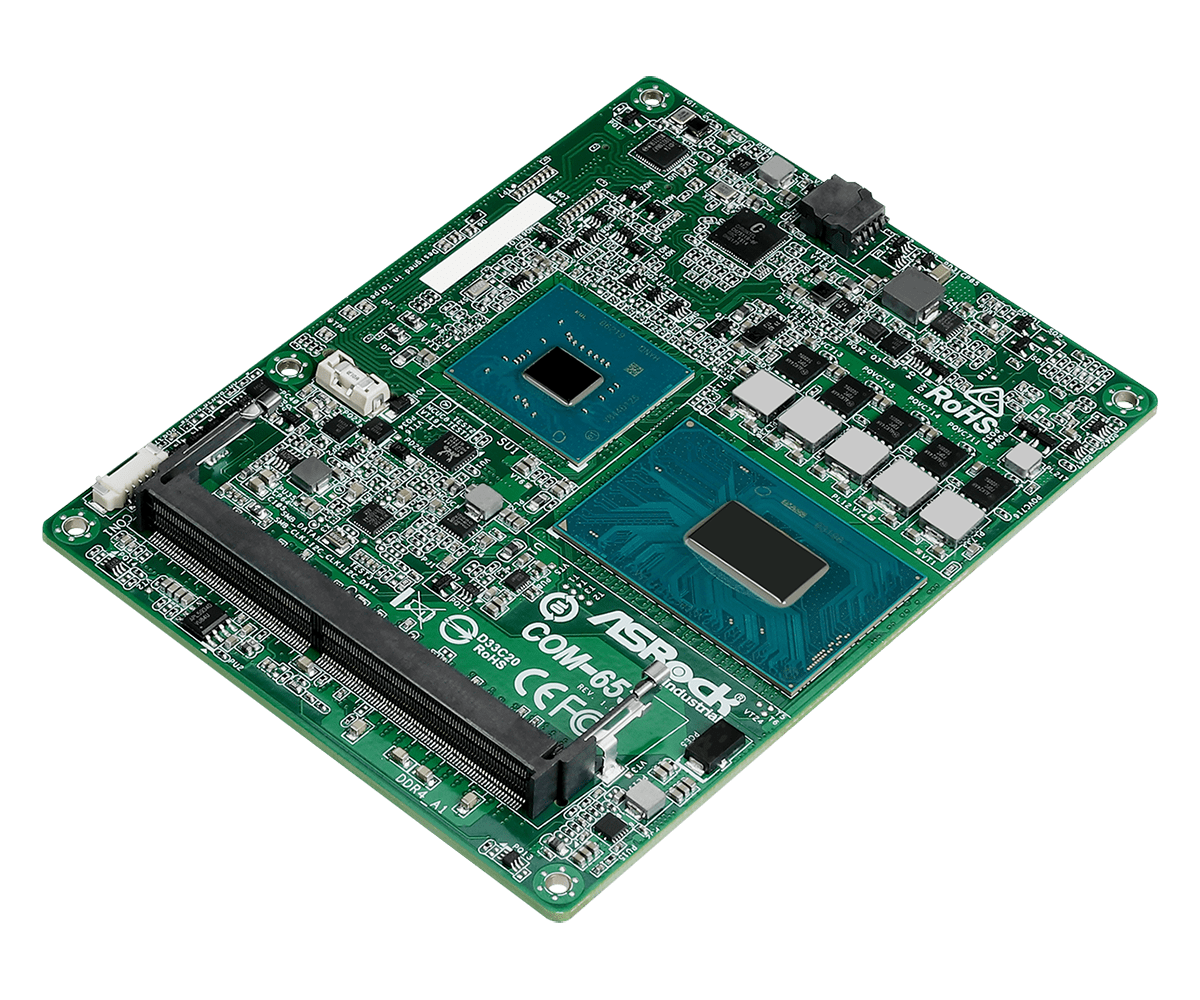

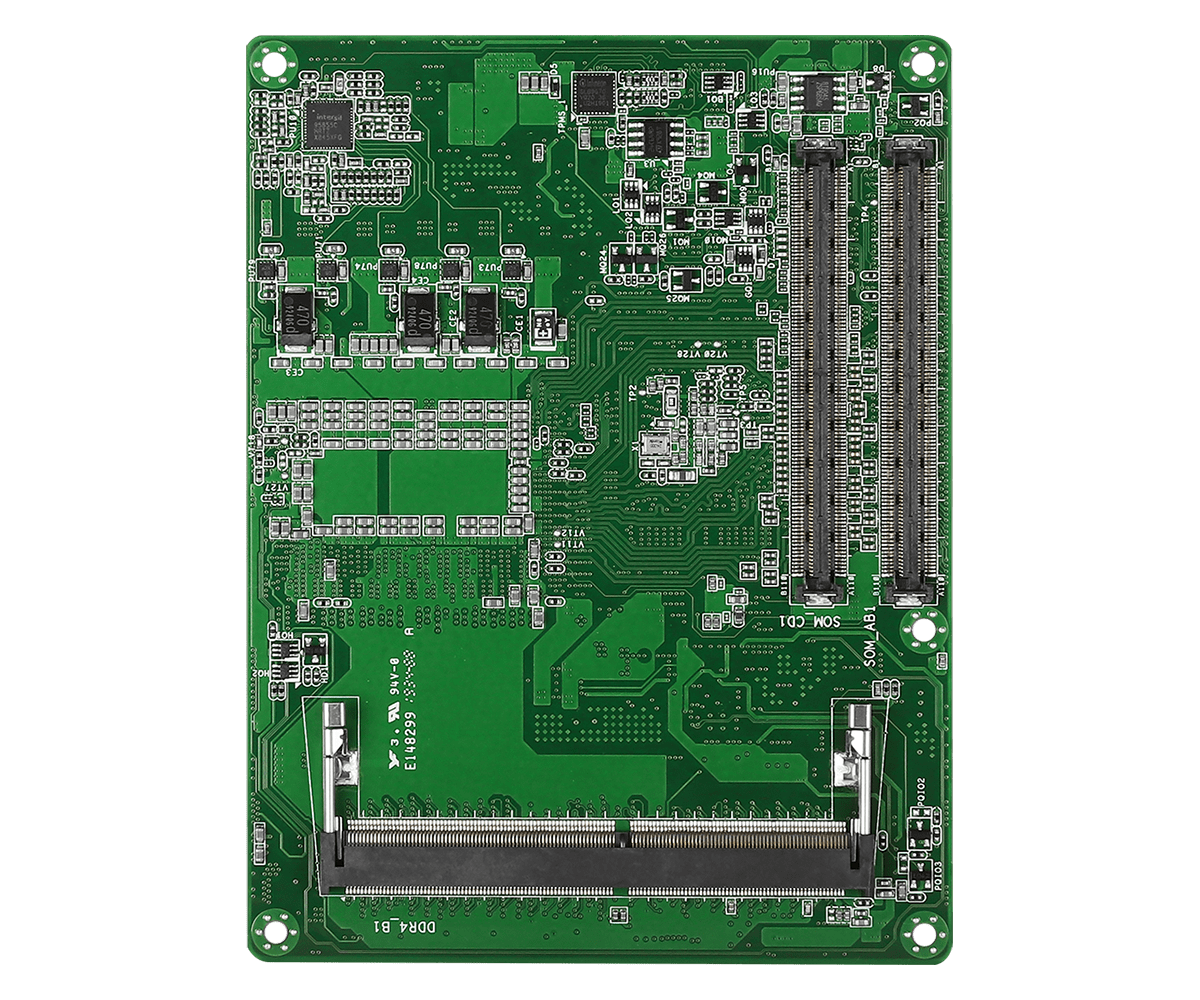

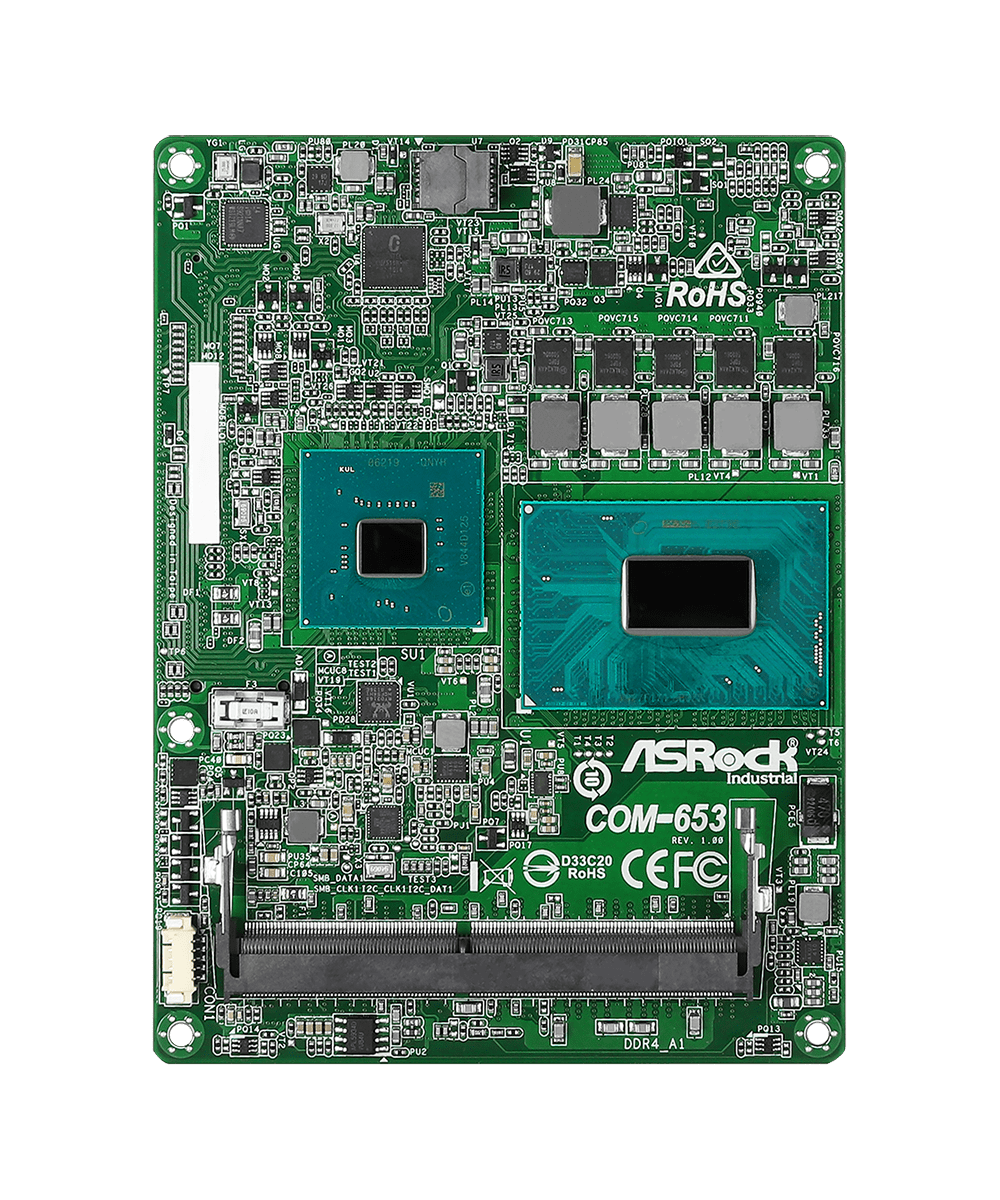

COM-653 COM Express Motherboard

  • Intel® 8th & 9th Generation Intel® Core™ Processor
  • 2 x 260-pin SO-DIMM up to 32GB DDR4 2666 MHz (16GB per DIMM)
  • 4 x USB 3.1 Gen1, 8 x USB 2.0, 4 x SATA3
  • 1 x Intel 1 Gigabit LAN
  • Supports triple display, 3 x DDI, 1 x eDP or LVDS
  • TPM 2.0 onboard IC
  • Supports Intel® vPro, AMT, RAID 0/1/5/10
  • ATX: 12V±5%/5Vsb±5%
  • AT: 12V±5%
Datasheet
Specification

Form Factor

Dimensions COM Express Basic Size (4.92-in x 3.74-in)

Processor System

CPU COM Express Type 6 Module with Intel® 8th Generation Intel® Core™ Processor
-COM-653P ( i7-8850H, 6C, 2.6G, 45W )
-COM-653M ( i5-8400H, QC, 2.5G, 45W )
-COM-653V ( i3-8100H, QC, 3G, 45W )
-COM-653VR (i3-9100HL, QC, 1.6G, 25W)
Chipset Intel® QM370
BIOS AMI SPI 128 Mbit

Memory

Technology Dual Channel DDR4 2400 MHz
Capacity 32 GB (16 GB per DIMM)
Socket 2 x 260-pin SO-DIMM

Graphics

Controller Intel® UHD Graphics 630
HDMI HDMI 1.4b
Max resolution up to 4096 x 2160@ 24Hz
DisplayPort DisplayPort 1.2, DP++
Max resolution up to 4096 x 2304@60Hz
VGA Max resolution up to 1920 x 1200@60Hz
LVDS Dual channel 24 bit up to 1920 x 1200@60Hz
eDP eDP 1.4 Max resolution up to 3840 x 2160@60Hz
DVI Max resolution up to 4096 x 2304@60Hz
MultiDisplay Triple Display

Expansion Slot

PCIe 1 x PCIe x16 (Gen3)
1 x PCIe x8 (Gen3)

Ethernet

Controller/ Speed COM-653P/ COM-653M: 1 x Intel® I219LM with 10/100/1000 Mbps, supports AMT/vPro
COM-653V: 1 x Intel® I219V with 10/100/1000/Mbps

Front I/O

HDMI 3 DDI ports support DVI/HDMI/DP
VGA 1 (optional)
DisplayPort 3 DDI ports support DVI/HDMI/DP
USB 4 x USB 3.1 (Gen1), 8 x USB2.0
DVI 3 DDI ports support DVI/HDMI/DP
LVDS 1 (shared with eDP)
eDP 1 (shared with LVDS)
GPIO(Phoenix) 4 x GPI, 4 x GPO

I/O

Serial Port Two UART Ports (SoC)

Storage

SATA 4 x SATA3 (6Gb/s)
RAID Intel® SATA RAID 0/1/5/10

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR ATX: 12V±5%/5Vsb±5%
AT: 12V±5%
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 60ºC
Storage Temp -40° C – 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

Others

TPM TPM 2.0 onboard IC

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

Support

OS:

Description OS Date Download
Description [Beta] Intel Management Engine driver ver:1909.12.0.1236 OS Win 10 x 64 Date 2020-05-08 Download
Description [Beta] SATA Floppy Image ver:16.0.1.1018_PV OS Win 10 x 64 Date 2020-05-08 Download
Description [Beta] INF driver ver:10.1.18019.8144-Public OS Win 10 x 64 Date 2020-05-08 Download
Description [Beta] VGA driver ver:25.20.100.6617 OS Win 10 x 64 Date 2020-05-08 Download
Description [Beta] Intel Serial IO driver ver:30.100.1915.1_PV OS Win 10 x 64 Date 2020-05-08 Download
Description [Beta] Intel Wireless Lan driver ver:20.50.0.4 OS Win 10 x 64 Date 2020-05-08 Download
Description [Beta] Intel Lan driver ver:23.5.2 OS Win 10 x 64 Date 2020-05-08 Download
Description [Beta] Realtek high definition audio driver ver:8519_FF00 OS Win 10 x 64 Date 2020-05-08 Download

The format of our documents are in PDF files. If you have not installed Adobe Acrobat Reader, please get it from Adobe.

Description Language Date Download
Description RAID Installation Guide Language English Date 2020-11-02 Download
Description Jumpers and headers setting guide Language English Date 2020-05-06 Download
