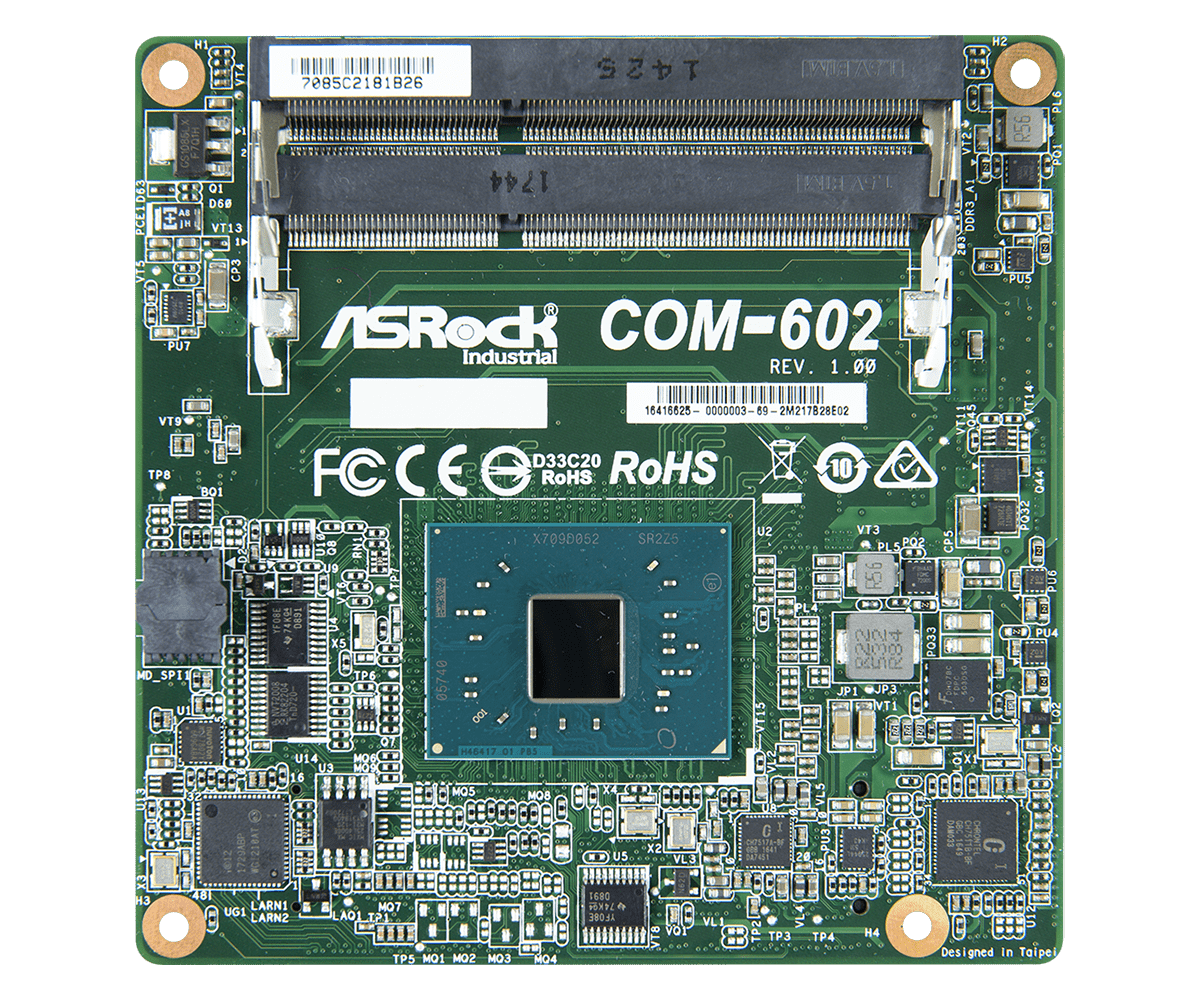

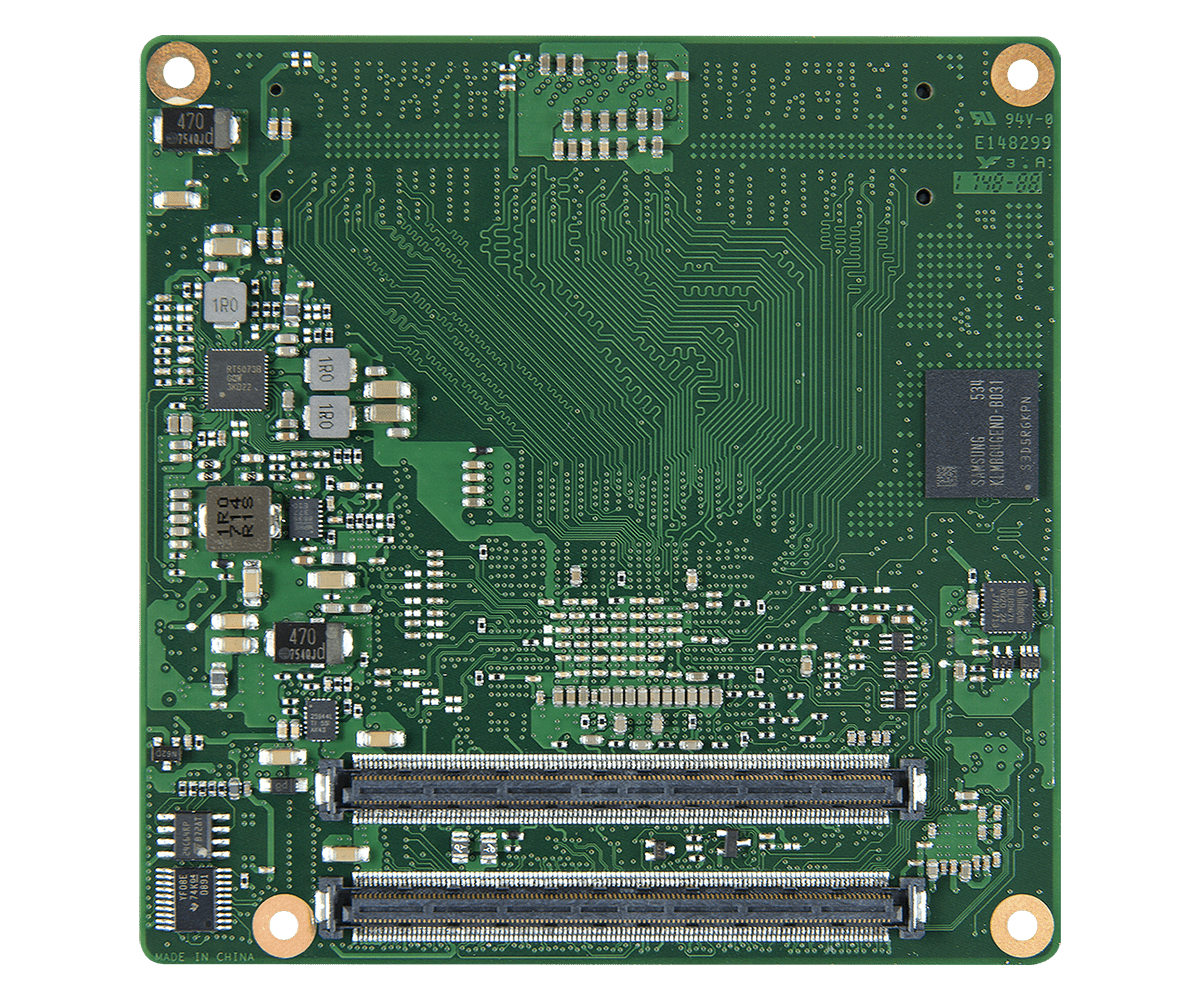

COM-602 COM Express Motherboard

  • Intel® Atom™ N4200 & Pentium™ and Celeron™ N Series Processors
  • Supports Dual Channel DDR3L 1866 non-ECC up to 8GB
  • 32G EMMC (optional)
  • 1 x HDMI, 1 x Displayport, 1 x eDP, 1 x LVDS, 1 x VGA
  • 2 xUSB 3.0, 8 x USB 2.0, 2 x SATA3, 2 x COM
  • 5 x PCIe x1, 1 x PCIe x4 Slot + 1 PCIE x 1 (Optional), 1 x PCIe x1 (Giga Lan)
  • 1 x Intel LAN i210IT, 1 x Intel LAN i210AT
  • 1 x TPM Header
  • ATX (Vin 4.75-20V, Vsb 4.75-5.25V)
  • AT (Vin 4.75-20V)
Datasheet
Specification

Form Factor

Dimensions COM Express Compact Size (3.74-in x 3.74-in)

Processor System

CPU BGA1296 for Intel® Apollo Lake SoC

Memory

Technology Dual Channel DDR3L 1866 MHz
Capacity 8 GB
Socket 2 x SO-DIMM

Graphics

Controller Intel® Gen9 Graphics DX 11/12, OGL4.3/4.4, support 2 x DDI, 1 x eDP
MultiDisplay Triple Display

Expansion Slot

PCIe 6 x PCIe x1 Lane

Ethernet

Controller/ Speed LAN1: 1 x Intel I210IT with 10/100/1000 Mbps
LAN2: 1 x Intel® I210AT with 10/100/1000 Mbps

Internal Connector

USB 2 x USB 3.0/ 8 x USB2.0
GPIO 4 x GPI + 4 x GPO
COM 2(RX/TX only)
TPM Optional TPM2.0

Storage

SATA 2 x SATA3 (6.0 Gb/s)

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR ATX (Vin 4.75-20V, Vsb 4.75-5.25V)
Power On AT (Vin 4.75-20V)

Environment

Operating Temp 0ºC ~ 60ºC
Storage Temp -40° C – 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
