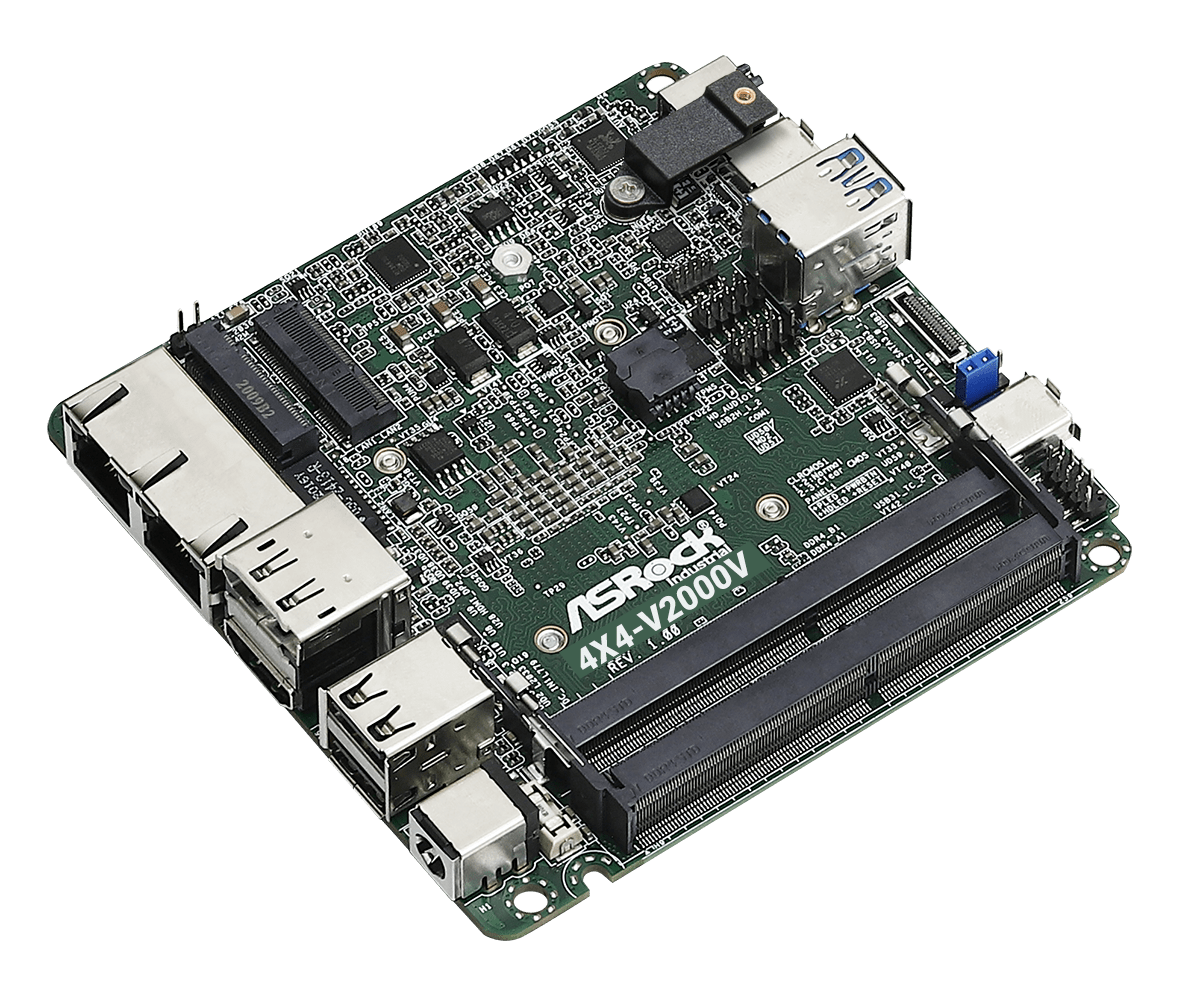

4X4-V2000V 4X4 Motherboard
- AMD Ryzen™ Embedded V2516
- 2 x 260-pin non-ECC/ECC SO-DIMM DDR4 3200 MHz , up to 64GB (32GB per DIMM)
- 4 x USB 3.2 Gen2, 4 x USB 2.0, 1 x M.2 Key M, 1 x M.2 Key E, 1 x COM, 1 x SATA3
- 1 x Realtek 1 Gigabit LAN, 1 x Realtek 2.5 Gigabit LAN
- Supports Quad display, 1 x HDMI 2.0a, 3 x DP 1.2a (2 from Type C)
- TPM 2.0 onboard IC
- 12V~19V DC-In
Overview
Specification
Processor System
| CPU | V2516, 6C, Max Speed up to 3.95GHz |
|---|---|
| Chipset | SoC |
| BIOS | AMI SPI 128 Mbit |
Form Factor
| Dimensions | 4X4 (4.09-in x 4.02-in x 1.4-in, 10.4 cm x 10.2 cm x 3.6 cm) |
|---|
Memory
| Technology | Dual Channel DDR4 3200 MHz |
|---|---|
| Capacity | 64GB (32 GB per DIMM) |
| Socket | 2 x 260-pin SO-DIMM |
Graphics
| Controller | AMD Radeon™ Graphics |
|---|---|
| HDMI | HDMI 2.0a Max resolution up to 4096x2160@60Hz |
| DisplayPort | DisplayPort 1.2a, DP++ Max resolution up to 4096x2160@60Hz |
| MultiDisplay | Max 4 display (Included 2 outputs from Type C) |
Expansion Slot
| M.2 | 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 for Wireless |
|---|
Audio
| Interface | Realtek ALC233, High Definition Audio. |
|---|
Ethernet
| Controller/ Speed | LAN1: Realtek RTL8125BG with 10/100/1000/2500 Mbps LAN2: Realtek R8111EPV (DASH) with 10/100/1000 Mbps |
|---|---|
| Connector | 2 x RJ-45 |

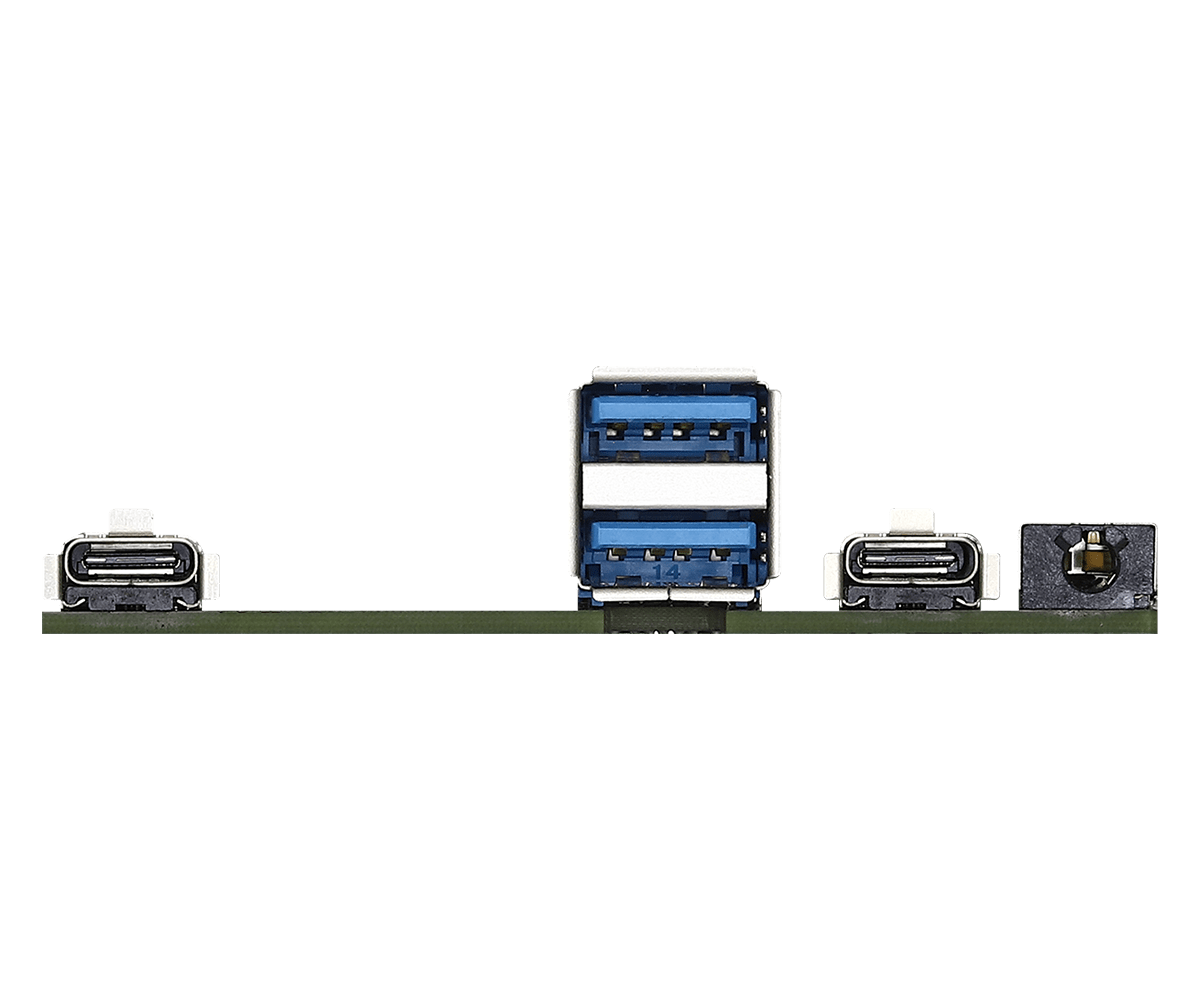

Front I/O
| USB | 2 x USB 3.2 Gen2 (Type A) 2 x USB 3.2 Gen2 (Type C, Supports DP1.2a display output) |
|---|---|
| Audio | 1 (headphone & microphone jack) |

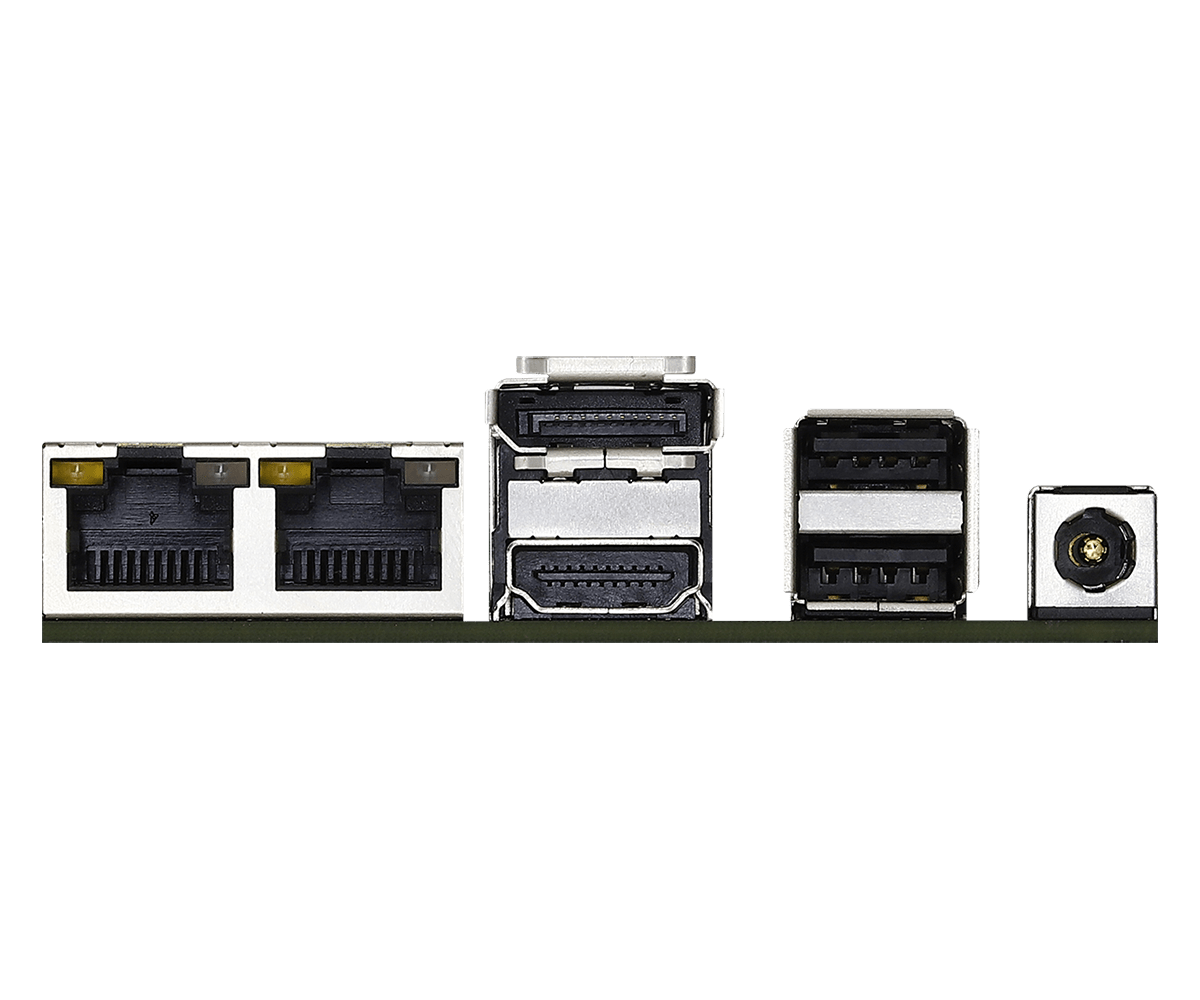

Rear I/O
| HDMI | 1 x HDMI 2.0a |
|---|---|
| DisplayPort | 1 x DP 1.2a |
| Ethernet | 1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN |
| USB | 2 x USB 2.0 |
| DC Jack | 1 |
Internal Connector
| USB | 2 x USB 2.0 (1 x 2.54 pitch header) |
|---|---|
| COM | 1 x COM (RS-232/422/485) |
| TPM | TPM 2.0 onboard IC |
Storage
| M.2 | 1 x M.2 (KEY M, 2242/2260/2280) with PCIe Gen3 x4 and SATA3 for SSD *M.2 Key M 2280(Supported by bracket) |
|---|---|
| SATA | 1 x SATA3.0 (6.0 Gb/s) |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments 0,1,2....255sec |
Power Requirements
| Input PWR | 12V~19V DC-In Jack |
|---|---|
| Power On | AT/ATX supported -AT: Direct PWR on as power input ready -ATX:Press button to PWR on after power input ready |
Environment
| Operating Temp | -20ºC ~ 70ºC |
|---|---|
| Storage Temp | -40° C ~ 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
Accessories
| Bulk Package | 2 x SCREW M2*2,D=5 (13G020302031AK) 1 x NUT M2 H=3.35mm (13G020271020AK) 1 x NUT M2 H=6.5mm (13G0201950B0AK) 1 x COM Cable (14G000000340AK) 1 x SATA Data/Power Cable (14G000104503AK) |
|---|
Others
| Longivity Support | No |
|---|
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Support
OS:
| Description | Information | OS | Date | Download | |||||
|---|---|---|---|---|---|---|---|---|---|
| Description | VGA driver ver: 251211a-197114C | Information | Size: 1160 Mib |
OS | Win 11 x 64 , Win 10 x 64 | Date | 2026-09-10 | Download | |
| Description | Realtek Lan driver ver: 10.80.50.407 | Information | Size: 4844 Kib |
OS | Win 11 x 64 , Win 10 x 64 | Date | 2026-09-08 | Download | |
| Description | Chipset Driver ver:8.03.13.545 | Information | Size: 57 Mib |
OS | Win 11 x 64 , Win 10 x 64 | Date | 2026-09-08 | Download | |
| Description | HD Audio Driver(10007.1_WHQL) | Information | Size: 77 Mib |
OS | Win 11 x 64 , Win 10 x 64 | Date | 2026-09-07 | Download |
| Version | Update BIOS Under / How to Update | Description | Information | Date | Download | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Version | 1.70 | Update BIOS Under / How to Update | BIOS | Description | Enhance system compatibility | Information | Size: 4535 KiB SHA1: 2E0818DB8A04AD4149984B02E3AF8665F0E2CE57 |
Date | 2025-07-04 | Download | |
| Version | 1.70 | Update BIOS Under / How to Update | Windows | Description | Enhance system compatibility | Information | Size: 5324 KiB SHA1: 00595E0068970D69FA980C11A247052908CD83D7 |
Date | 2025-07-04 | Download | |
| Version | 1.60 | Update BIOS Under / How to Update | BIOS | Description | Support CPU Operating Mode and Fanless Mode | Information | Size: 4534 KiB SHA1: 6C6DD8CE9FBD7AAE6C7D692A1E89F32BB2EE5114 |
Date | 2024-09-20 | Download | |
| Version | 1.60 | Update BIOS Under / How to Update | Windows | Description | Support CPU Operating Mode and Fanless Mode | Information | Size: 5322 KiB SHA1: 52FB988D0EC7499500CBF24EFEA9332F63B21D5C |
Date | 2024-09-20 | Download | |
| Version | 1.50 | Update BIOS Under / How to Update | BIOS | Description | Enhance display compatibility | Information | Date | 2021-11-04 | Download | ||
| Version | 1.50 | Update BIOS Under / How to Update | Windows | Description | Enhance display compatibility | Information | Date | 2021-11-04 | Download | ||
| Version | 1.30 | Update BIOS Under / How to Update | BIOS | Description | 1. Improve system compatibility. 2. Enhance memory compatibility. |
Information | Date | 2021-05-21 | Download | ||
| Version | 1.30 | Update BIOS Under / How to Update | Windows | Description | 1. Improve system compatibility. 2. Enhance memory compatibility. |
Information | Date | 2021-05-21 | Download |
The format of our documents are in PDF files. If you have not installed Adobe Acrobat Reader, please get it from Adobe.
| Description | Language | Date | Download | ||||
|---|---|---|---|---|---|---|---|
| Description | Jumpers and Headers Setting Guide | Language | English | Date | 2021-07-06 | Download | |
| Description | User Manual | Language | English | Date | 2021-03-02 | Download |
