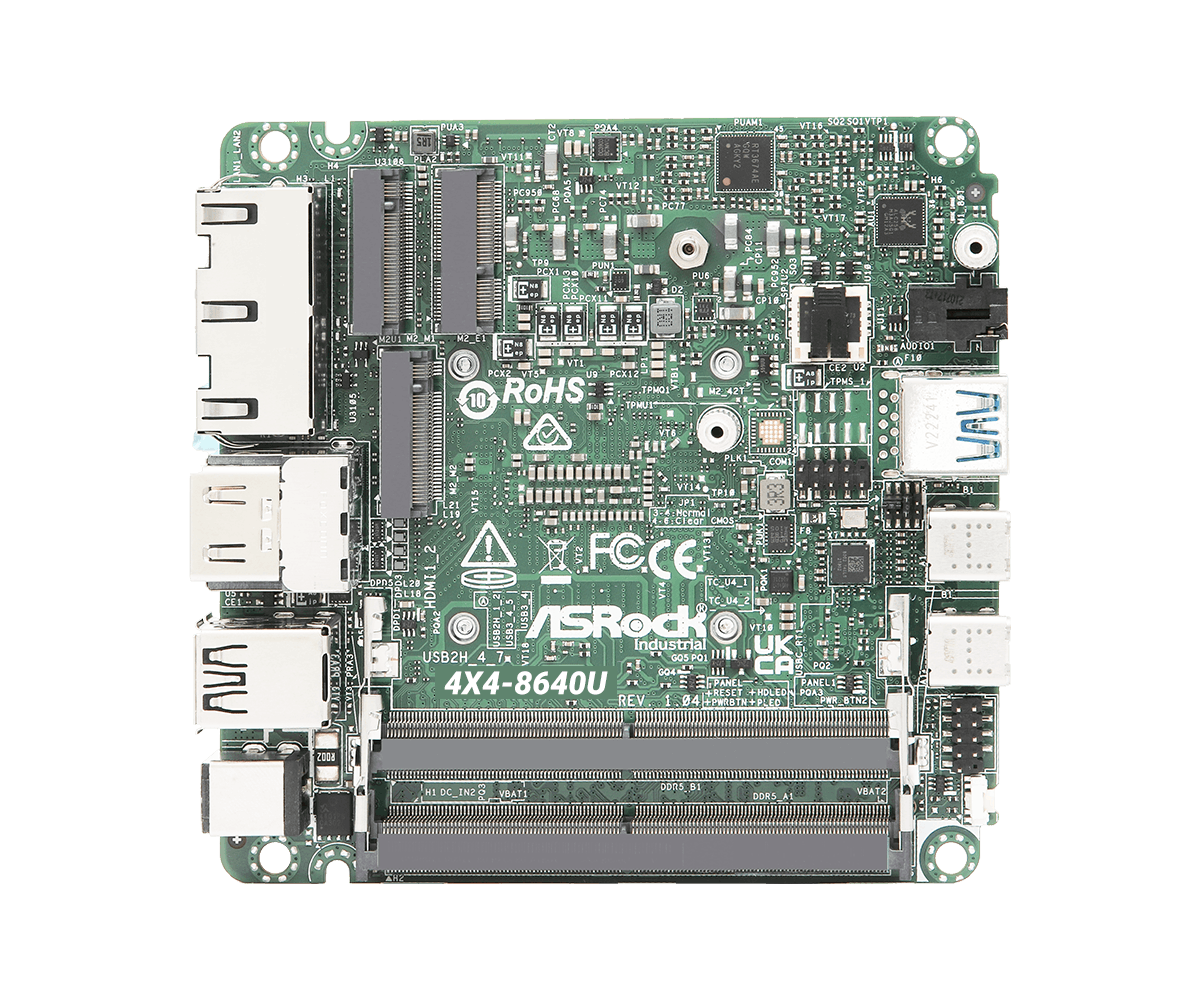

4X4-8640U 4X4 Motherboard
- AMD Ryzen™ 8040U-Series
- 2 x 262-pin SO-DIMM DDR5 5600 MHz, up to 96GB (48GB per DIMM)
- 2 x USB4, 1 x USB 3.2 Gen2, 2 x USB 2.0, 2 x M.2 Key M, 1 x M.2 Key E
- 1 x Realtek Gigabit LAN, 1 x Realtek 2.5 Gigabit LAN
- Supports Quad display, 2 x HDMI 2.1, 2 x DP 1.4a (from Type-C)
- 12V~24V DC-In
Specification
Processor System
| CPU | AMD Ryzen™ 5 8640U (Max Speed up to 4.9GHz) |
|---|---|
| BIOS | AMI SPI 256 Mbit |
Form Factor
| Dimensions | 4X4 (4.09-in x 4.02-in x 1.4-in, 10.4 cm x 10.2 cm x 3.6 cm) |
|---|
Memory
| Technology | Dual Channel DDR5 5600 MHz |
|---|---|
| Capacity | 96GB (48 GB per DIMM) |
| Socket | 2 x 262-pin SO-DIMM |
Graphics
| Controller | AMD Radeon™ Graphics |
|---|---|
| HDMI | HDMI 2.1 Max resolution up to 7680x4320@60Hz |
| DisplayPort | DisplayPort 1.4a Max resolution up to 4096x2160@60Hz |
| MultiDisplay | Max 4 display (included 2 outputs from Type-C) |
Expansion Slot
| M.2 | 1 x M.2 (Key E, 2230) with PCIe Gen4 x1, USB 2.0 for Wireless |
|---|
Audio
| Interface | Realtek ALC256, High Definition Audio |
|---|
Ethernet
| Controller/ Speed | LAN1: Realtek RTL8125BG with 10/100/1000/2500 Mbps LAN2: Realtek RTL8111H with 10/100/1000 Mbps |
|---|---|
| Connector | 2 x RJ-45 |
Front I/O
| USB | 1 x USB 3.2 Gen2 (Type-A) 2 x USB4 (Type-C, 5V/3A, supports DP1.4a display output) |
|---|---|
| Audio | 1 (headphone & microphone jack) |
Rear I/O
| HDMI | 2 x HDMI 2.1 |
|---|---|
| Ethernet | 1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN |
| USB | 2 x USB 2.0 |
| DC Jack | 1 |
Internal Connector
| COM | TTL-3V |
|---|
Security
| TPM | AMD FW TPM |
|---|
Storage
| M.2 | 1 x M.2 (KEY M, 2242/2280) with PCIe Gen4x4 for SSD 1 x M.2 (KEY M, 2242) with PCIe Gen4x4 for SSD |
|---|
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments 0,1,2....255sec |
Power Requirements
| Input PWR | 12V~24V DC-In Jack |
|---|---|
| Power On | AT/ATX supported -AT: Direct PWR on as power input ready -ATX:Press button to PWR on after power input ready |
Environment
| Operating Temp | 0ºC ~ 70ºC |
|---|---|
| Storage Temp | -40° C ~ 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
Accessories
| Gift/Bulk Package | 1 x NUT M2 H=3.35mm (13G020271020AK) 3 x SCREW M2*2,D=5 (13G020302031AK) |
|---|
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
