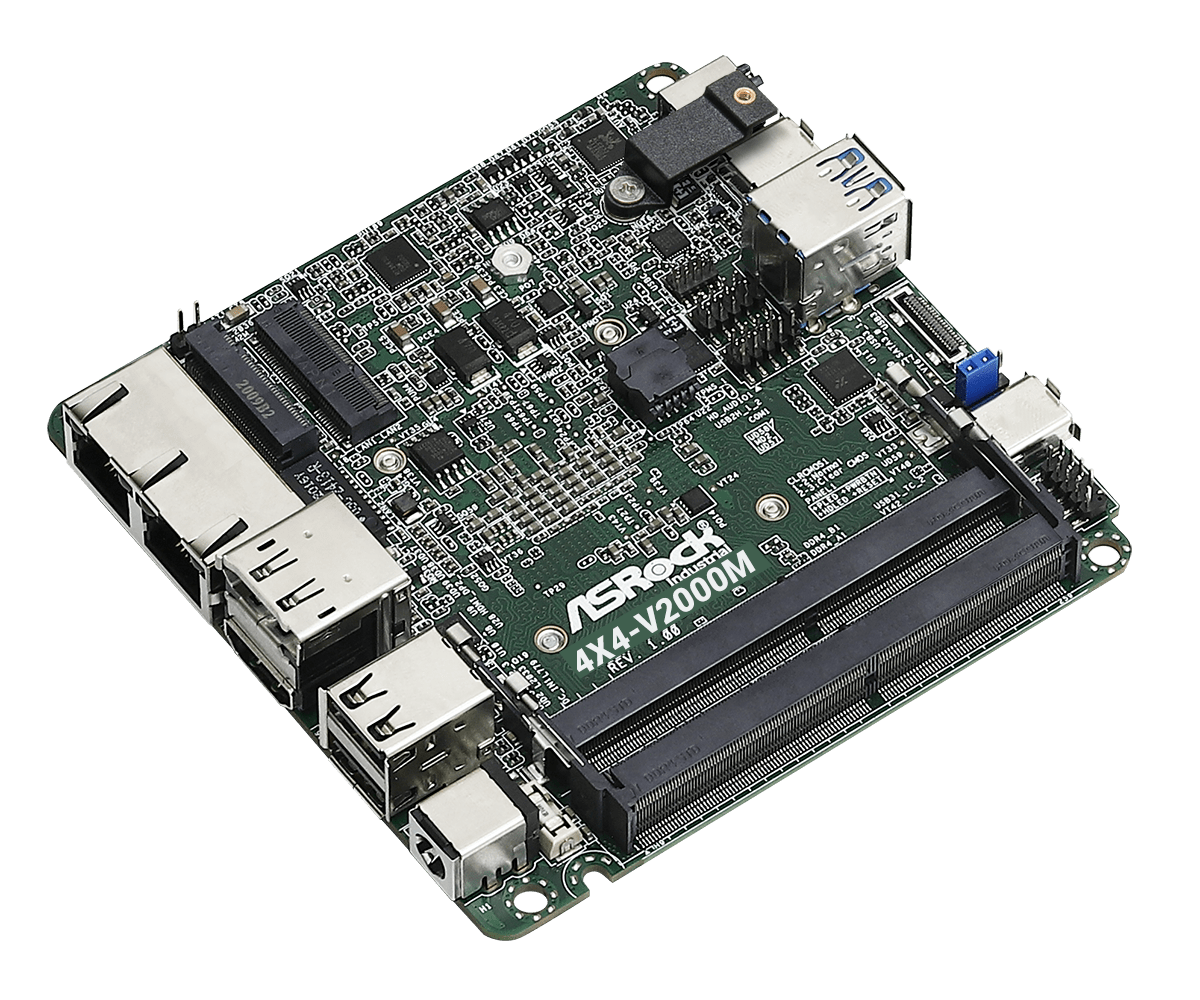

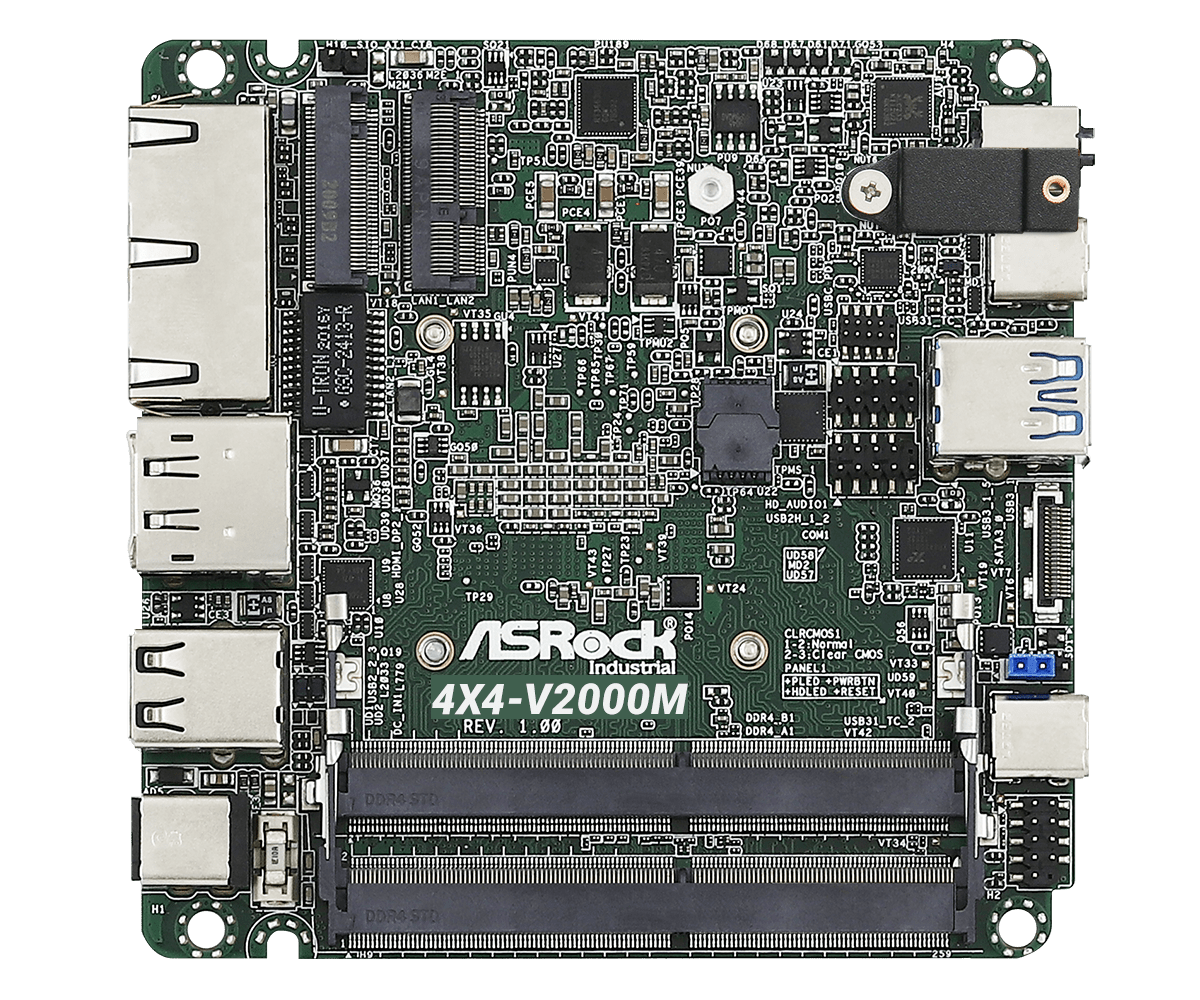

4X4-V2000M 4X4 Motherboard
- AMD Ryzen™ Embedded V2718
- 2 x 260-pin non-ECC/ECC SO-DIMM DDR4 3200 MHz , up to 64GB (32GB per DIMM)
- 4 x USB 3.2 Gen2, 4 x USB 2.0, 1 x M.2 Key M, 1 x M.2 Key E, 1 x COM, 1 x SATA3
- 1 x Realtek 1 Gigabit LAN, 1 x Realtek 2.5 Gigabit LAN
- Supports Quad display, 1 x HDMI 2.0a, 3 x DP 1.2a (2 from Type C)
- TPM 2.0 onboard IC
- 12V~19V DC-In
Overview
Specification
Processor System
| CPU | V2718, 8C, Max Speed up to 4.15GHz |
|---|---|
| Chipset | SoC |
| BIOS | AMI SPI 128 Mbit |
Form Factor
| Dimensions | 4X4 (4.09-in x 4.02-in x 1.4-in, 10.4 cm x 10.2 cm x 3.6 cm) |
|---|
Memory
| Technology | Dual Channel non-ECC/ECC DDR4 3200 MHz |
|---|---|
| Capacity | 64GB (32 GB per DIMM) |
| Socket | 2 x 260-pin SO-DIMM |
Graphics
| Controller | AMD Radeon™ Graphics |
|---|---|
| HDMI | HDMI 2.0a Max resolution up to 4096x2160@60Hz |
| DisplayPort | DisplayPort 1.2a, DP++ Max resolution up to 4096x2160@60Hz |
| MultiDisplay | Max 4 display (Included 2 outputs from Type C) |
Expansion Slot
| M.2 | 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 for Wireless |
|---|
Audio
| Interface | Realtek ALC233, High Definition Audio. |
|---|
Ethernet
| Controller/ Speed | LAN1: Realtek RTL8125BG with 10/100/1000/2500 Mbps LAN1: Realtek R8111EPV with 10/100/1000 Mbps, support DASH function |
|---|---|
| Connector | 2 x RJ-45 |
Front I/O
| USB | 2 x USB 3.2 Gen2 (Type A) 2 x USB 3.2 Gen2 (Type C, Supports DP1.2a display output) |
|---|---|
| Audio | 1 (headphone & microphone jack) |
Rear I/O
| HDMI | 1 x HDMI 2.0a |
|---|---|
| DisplayPort | 1 x DP 1.2a |
| Ethernet | 1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN |
| USB | 2 x USB 2.0 |
| DC Jack | 1 |
Internal Connector
| USB | 2 x USB 2.0 (1 x 2.54 pitch header) |
|---|---|
| COM | 1 x COM (RS-232/422/485) |
| TPM | TPM 2.0 onboard IC |
Storage
| M.2 | 1 x M.2 (KEY M, 2242/2260/2280) with PCIe Gen3 x4 and SATA3 for SSD *M.2 Key M 2280(Supported by bracket) |
|---|---|
| SATA | 1 x SATA3.0 (6.0 Gb/s) |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments 0,1,2....255sec |
Power Requirements
| Input PWR | 12V~19V DC-In Jack |
|---|---|
| Power On | AT/ATX supported -AT: Direct PWR on as power input ready -ATX:Press button to PWR on after power input ready |
Environment
| Operating Temp | -20ºC ~ 70ºC |
|---|---|
| Storage Temp | -40° C ~ 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
Accessories
| Bulk Package | 2 x SCREW M2*2,D=5 (13G020302031AK) 1 x NUT M2 H=3.35mm (13G020271020AK) 1 x NUT M2 H=6.5mm (13G0201950B0AK) 1 x COM Cable (14G000000340AK) 1 x SATA Data/Power Cable (14G000104503AK) |
|---|
Others
| Longivity Support | No |
|---|
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
