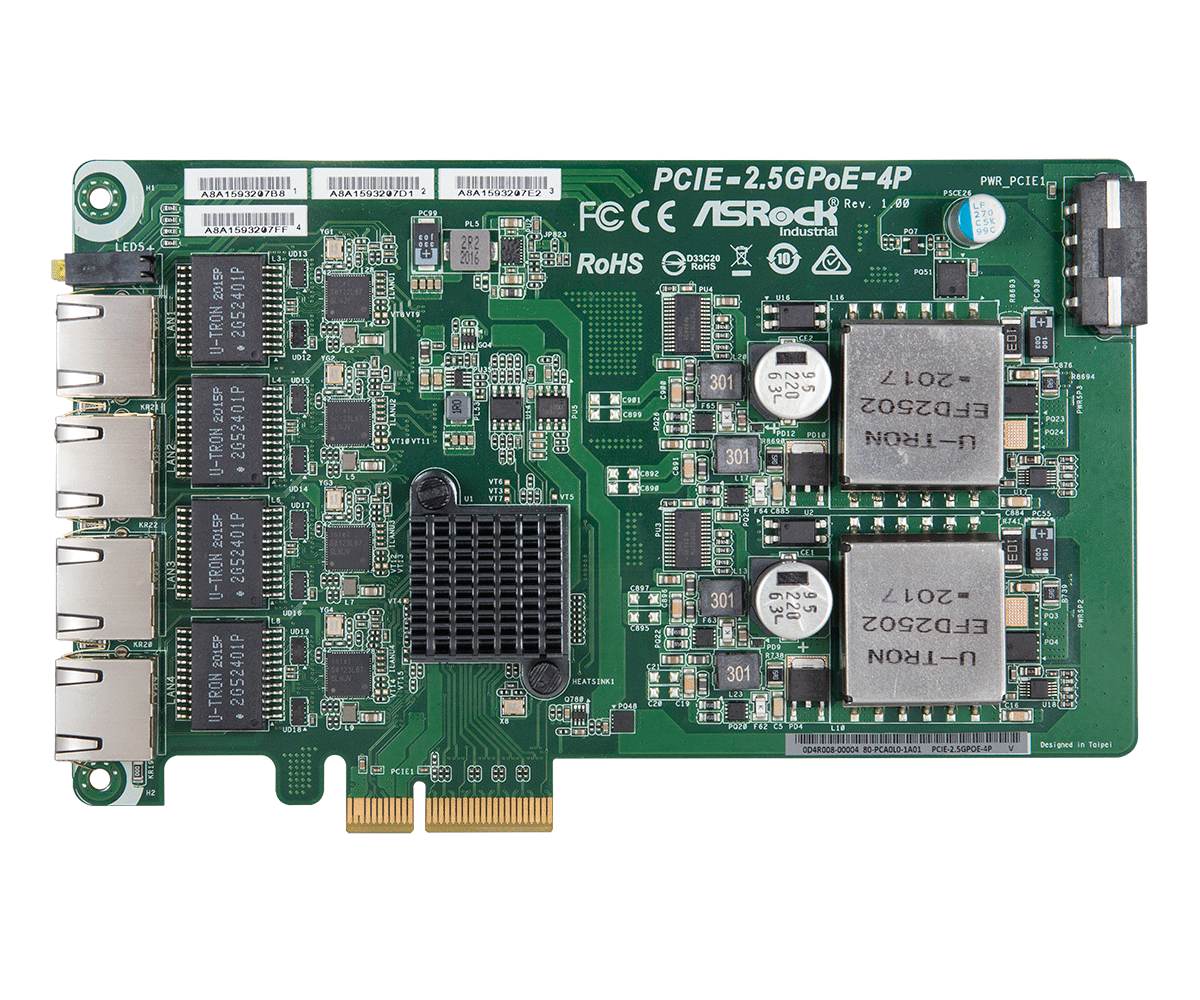

PCIE-2.5GPoE-4P

PCIE-2.5GPoE-4P

  • Intel® Gigabit Ethernet Controllers (up to 2.5GbE)
  • PCI Express® x4 compliant
  • Supports 4 Gigabit Ethernet MAC Controller and PHY ports
  • Supports  4-Pin Power Connector input power boost up to 60W
  • Supports 12V power Connector input power boost up to 15W at 50V DC per PoE port
  • Supports PoE (Power over Ethernet), IEEE 802.3af compliant per PoE port
  • Powered Device (PD) auto detection and classification
  • Supports IEEE 802.3u Auto-Negotiation
產品型錄
產品規格

Form Factor

Function PCIe x4 to Four 2.5G PoE LAN Ports
Dimensions 176 x 111 x 15.1 (W x L x H/mm)

Environment

Operating Temp 0ºC ~ 60ºC
Storage Temp -40° C ~ 85° C

Input Interface

Interface PCI Express 2.0 x4
Power 4-pin +12V Power Connector

Output Interface

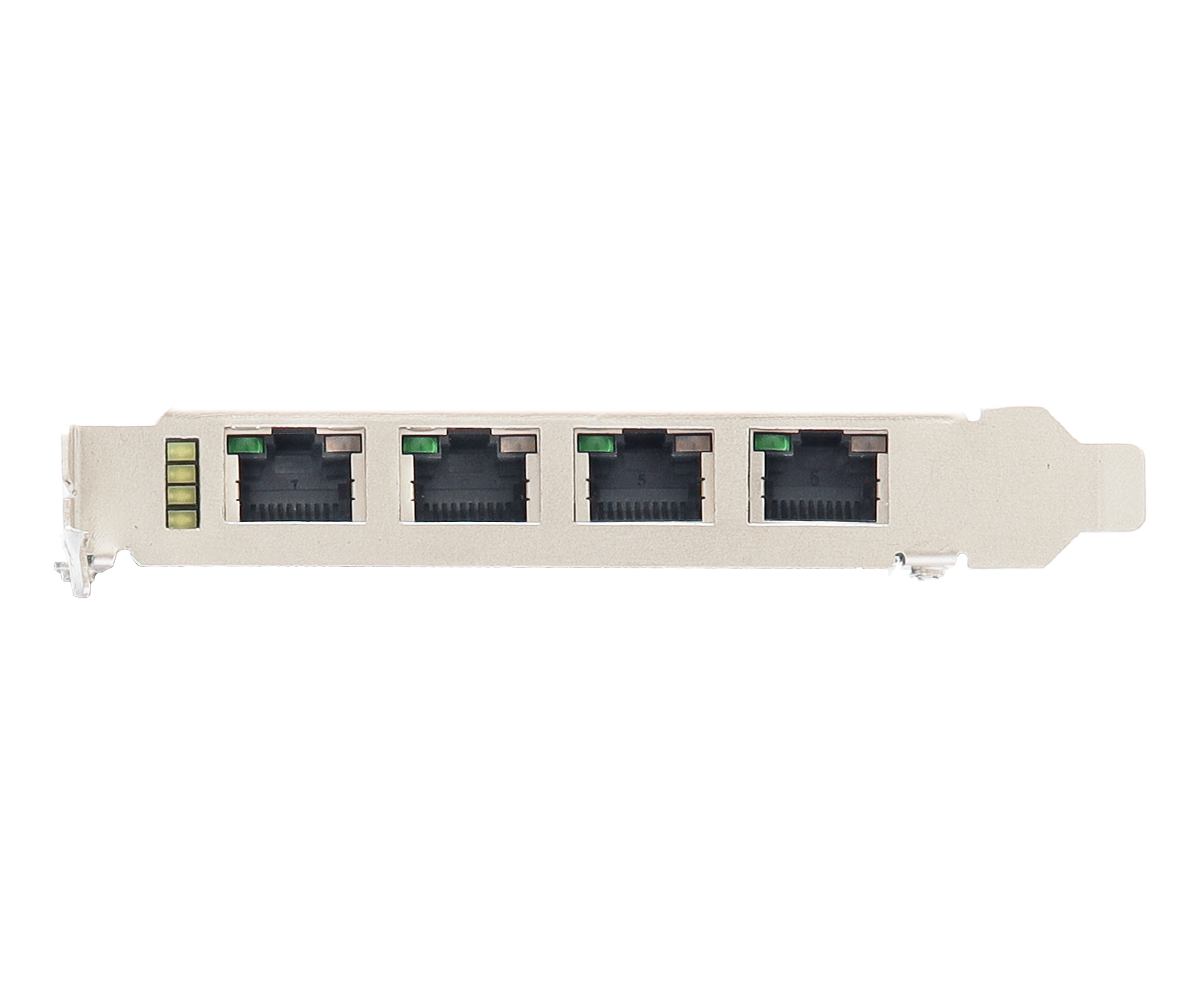

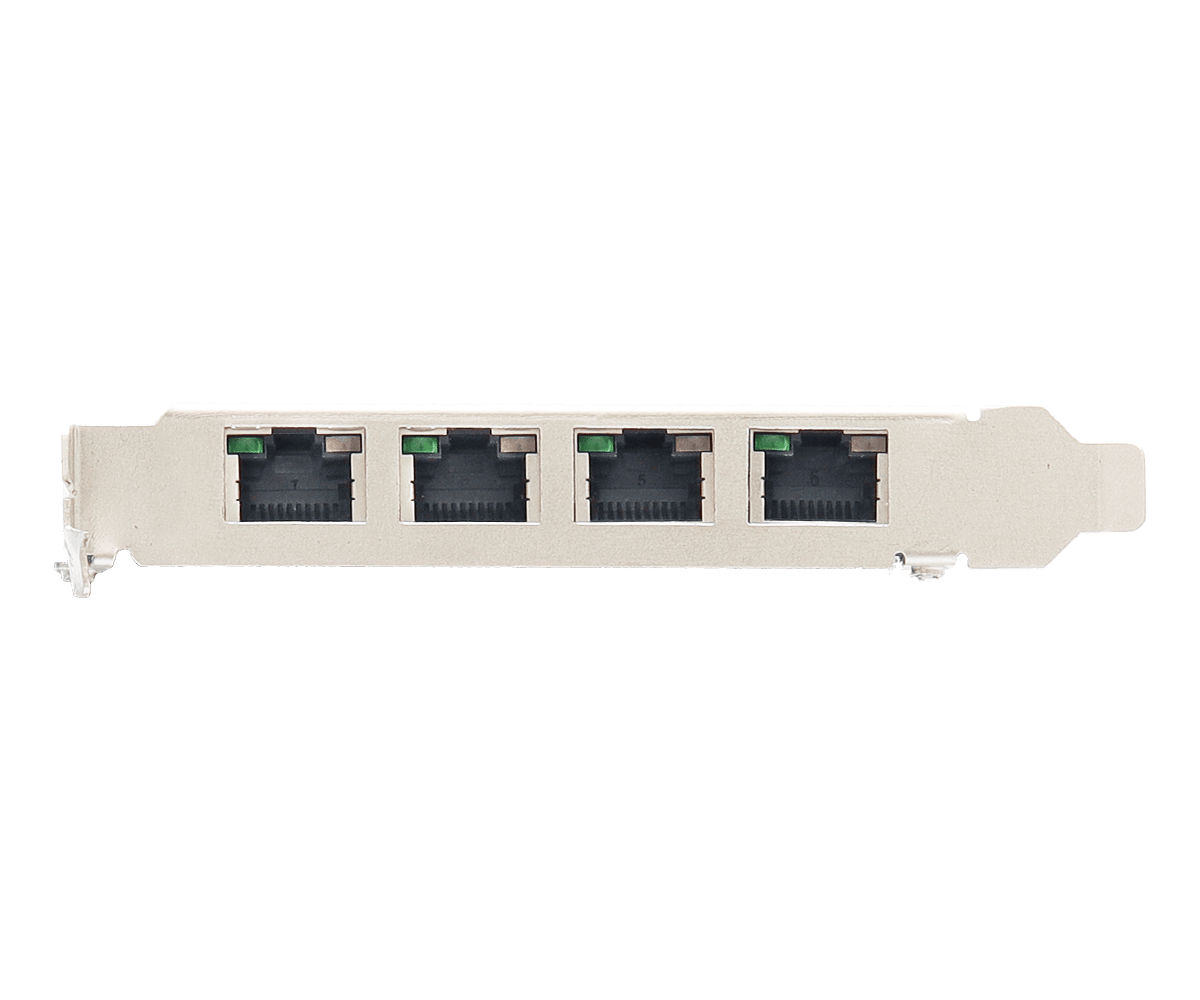

Interface Four 2.5G Ports (RJ45)
Power Totally support up to 60W Power

Controller

Major ICs - Intel i225LM LAN controller
- PCIe switch IC ASMedia ASM2812

Output Connector

Connector Four RJ45 Ethernet Ports

規格更改時恕不預先通知。品牌和產品名稱歸各自公司所有。不保證任何配置與產品實物規格相同。

支援下載

檔案格式為 PDF,如果您沒有安裝 Adobe Acrobat Reader,請至 Adobe下載。

說明 語言 日期 下載
說明 Jumpers and headers setting guide 語言 English 日期 2020-09-28 下載
