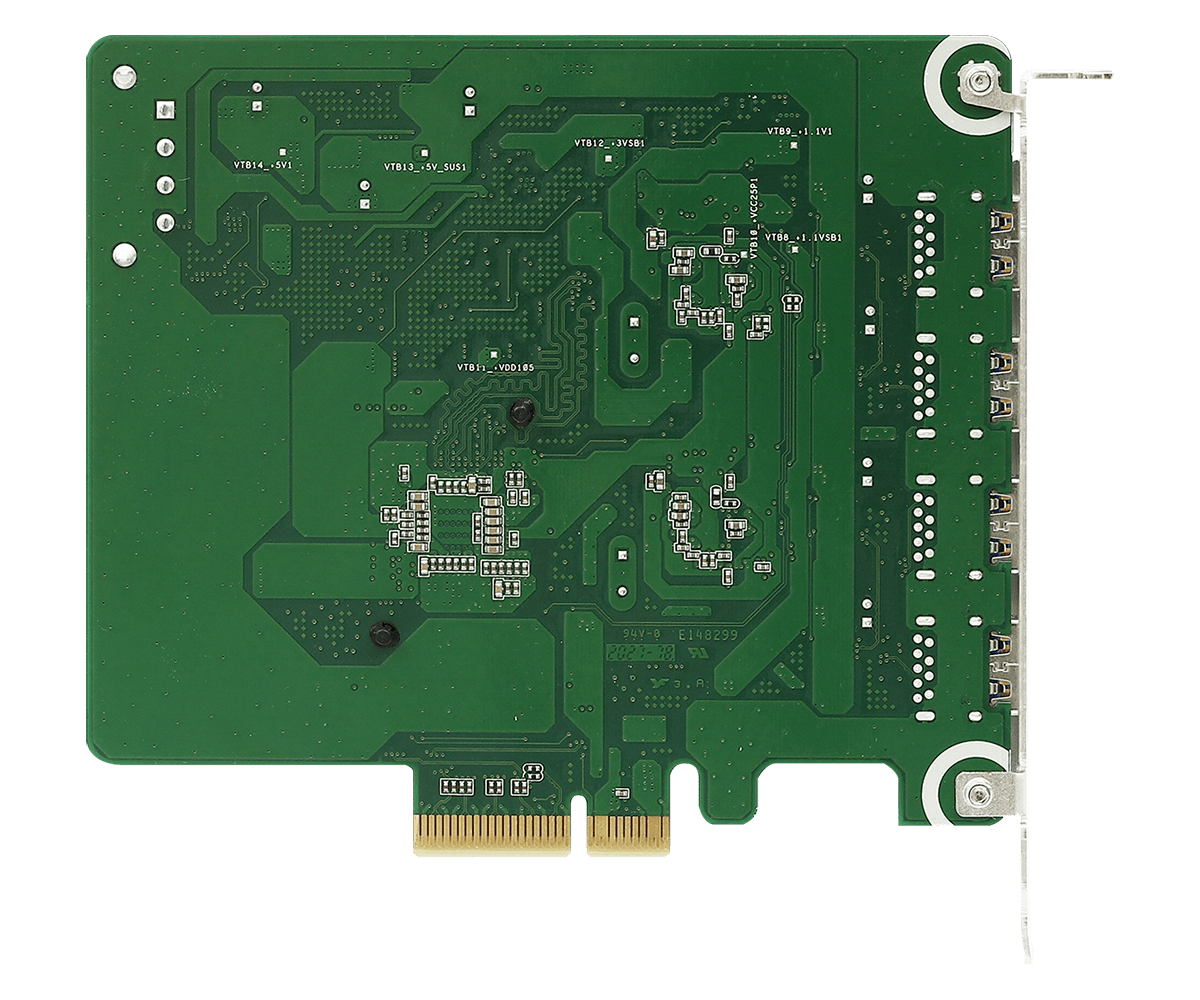

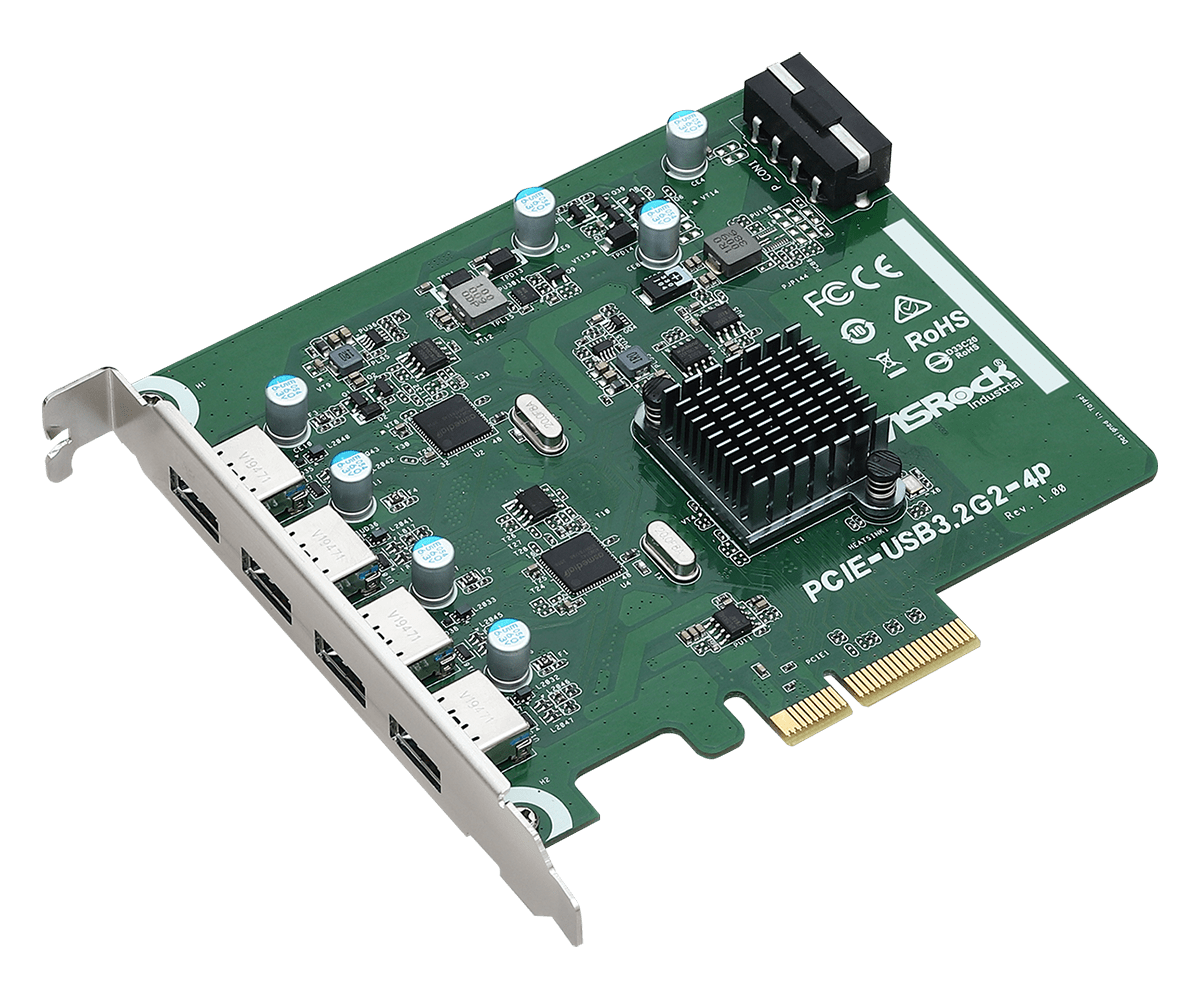

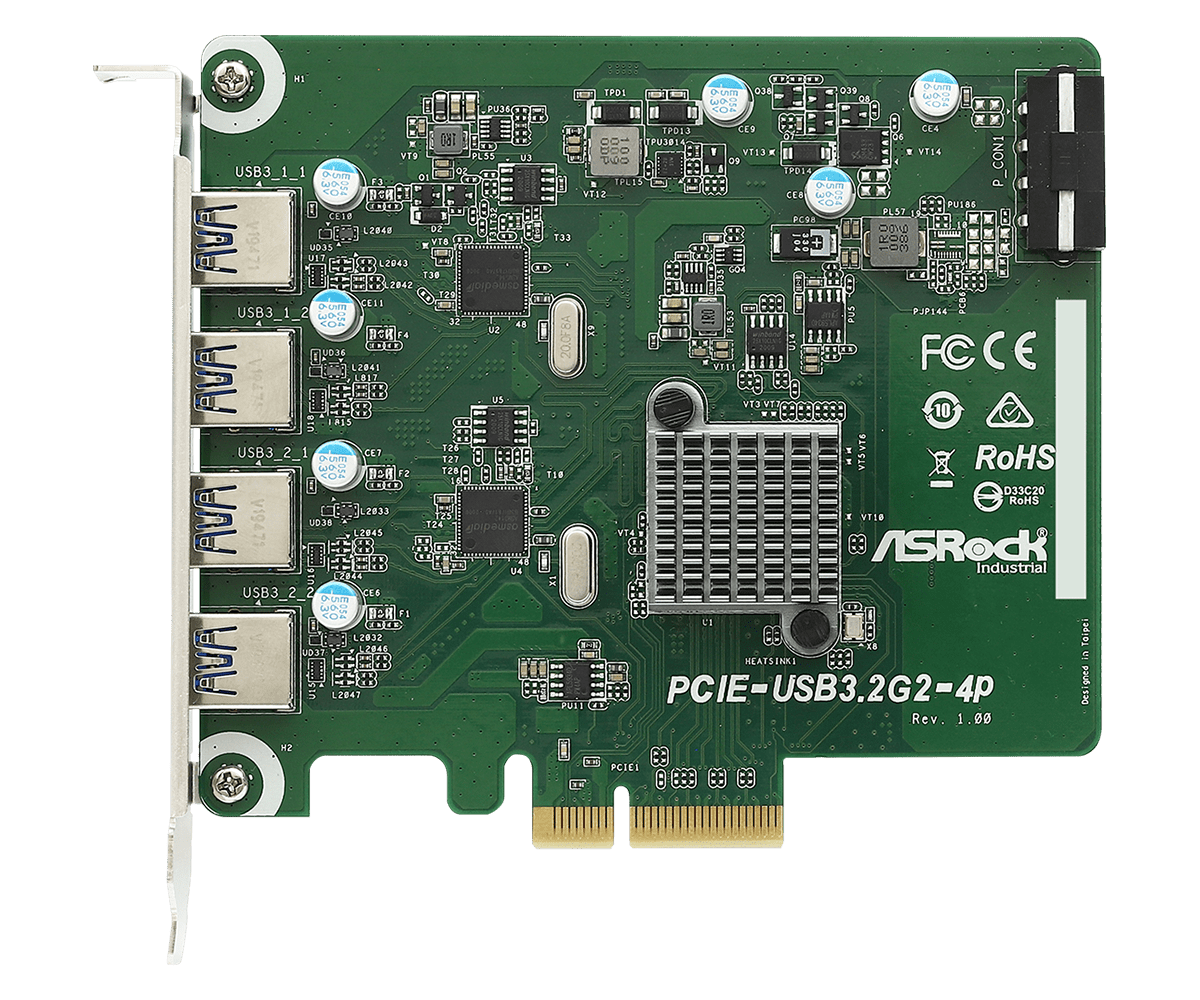

PCIE-USB3.2G2-4P
PCIE-USB3.2G2-4P
PCIE-USB3.2G2-4P
PCIE-USB3.2G2-4P

PCIE-USB3.2G2-4P

  • PCI Express 2.0 x4 Compliant
  • Four Independent USB 3.2 Gen2 Host Controllers
  • Supports Bandwidth 10 Gb/s for Each Port
產品型錄
產品規格

Form Factor

Function PCI Express x4 to 4 USB3.2 Gen2 Ports
Dimensions 123.3 x 111.5 x 17.7 (W x L x H/mm)

Environment

Operating Temp 0ºC ~ 60ºC
Storage Temp -40° C ~ 85° C

Input Interface

Interface PCI Express 3.0 x4

Output Interface

Interface USB3.2 Gen2

Controller

Major ICs ASMedia 3142

Output Connector

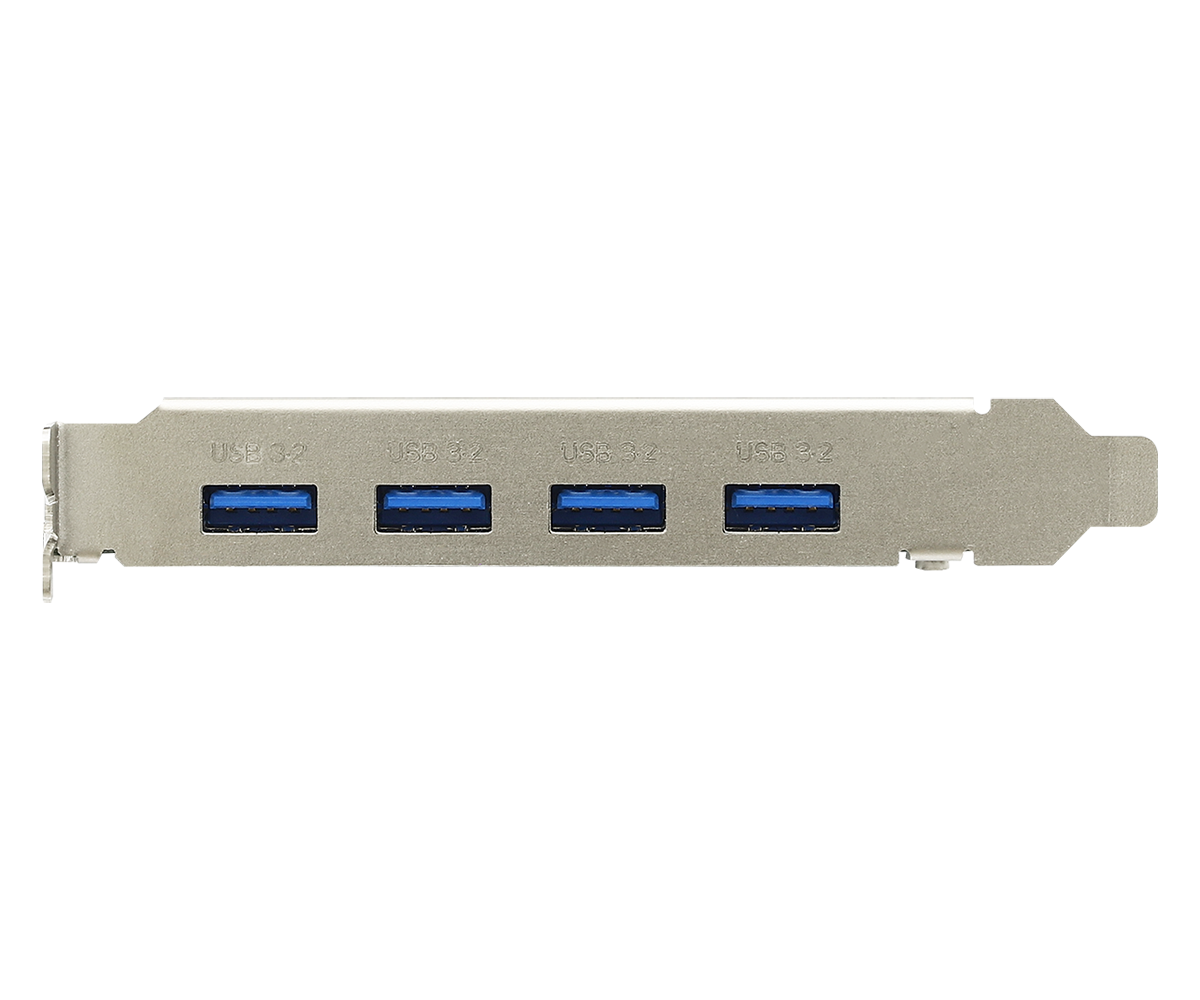

Connector 4 Port USB 3.2 Gen2 Type-A

規格更改時恕不預先通知。品牌和產品名稱歸各自公司所有。不保證任何配置與產品實物規格相同。
