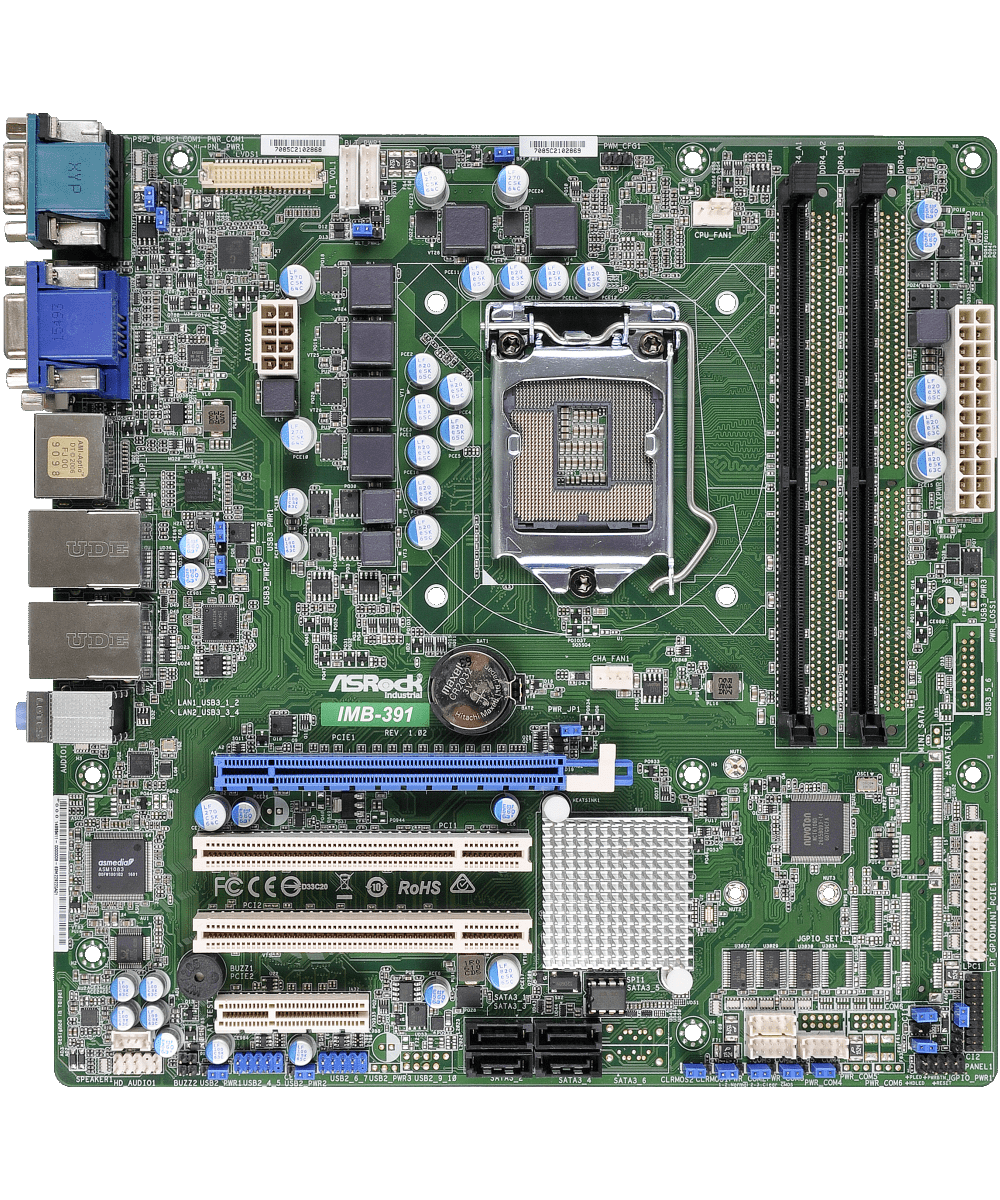

IMB-391 Micro ATX Motherboard

Processor System

CPU	Supports Intel® 7th/ 6th Gen (Kabylake-S/Skylake-S) Core™ Processors
Chipset	Intel® H110
Socket	LGA1151

Form Factor

Dimensions	Micro-ATX (9.6-in x 9.6-in, 24.4 cm x 24.4 cm)

Memory

Technology	Dual Channel DDR4 2133 MHz
Capacity	32GB
Socket	2 x Long-DIMM

Graphics

Controller	Intel® Gen9 Graphics DX 11 / 12, OGL 4.3 / 4.4
HDMI	Supports max resolution up to 4096 x 2160@60Hz
DisplayPort	Supports max resolution up to 4096 x 2160@60Hz
VGA	Max resolution up to 1920 x 1200@60Hz
LVDS	Dual channel 24 bit up to 1920 x 1200@60Hz
DVI	Max resolution up to 1920 x 1200@60Hz
MultiDisplay	Dual Display

Expansion Slot

PCIe	1 x PCIe x16, 2 x PCI, 1 x PCIe x4

Ethernet

Controller/ Speed	LAN1: Intel® I210 with 10/100/1000 Mbps LAN2: Intel® I219V with 10/100/1000 Mbps
Connector	2 x RJ-45

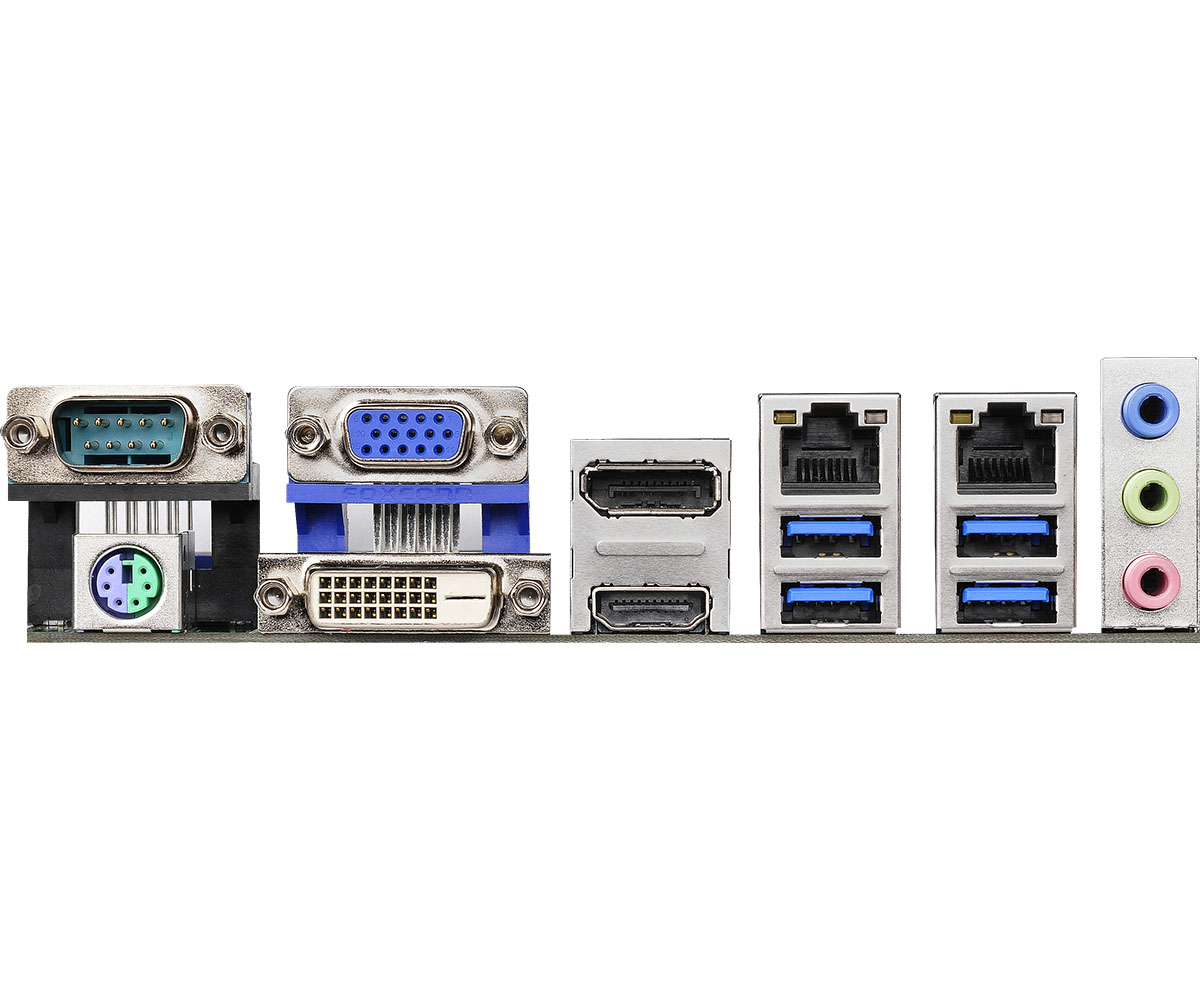

Rear I/O

HDMI	1
DisplayPort	1
VGA	1
DVI	1
Ethernet	2
USB	4 x USB 3.0
Audio	3 (Mic-in, Line-in, Line-out)
COM	COM1 (RS-232/422/485)
PS2	1 x PS/2 combo

Internal Connector

USB	4 x USB 2.0
COM	3 x COM (RS-232)
Parallel	1 (shared with GPIO)
GPIO	8 x GPI, 8 x GPO
TPM	1 x Header
LVDS	1
Speaker Header	1

Storage

SATA	4 x SATA3 (6.0Gb/s)

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	ATX PWR (24+8-pin)
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C – 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Accessories

Gift Package	1 x I/O Shield (13G020401000AK) 2 x SATA Data Cable (14G00010107DAK)
Bulk Package	1 x I/O Shield (13G020401000AK)

規格更改時恕不預先通知。品牌和產品名稱歸各自公司所有。不保證任何配置與產品實物規格相同。
