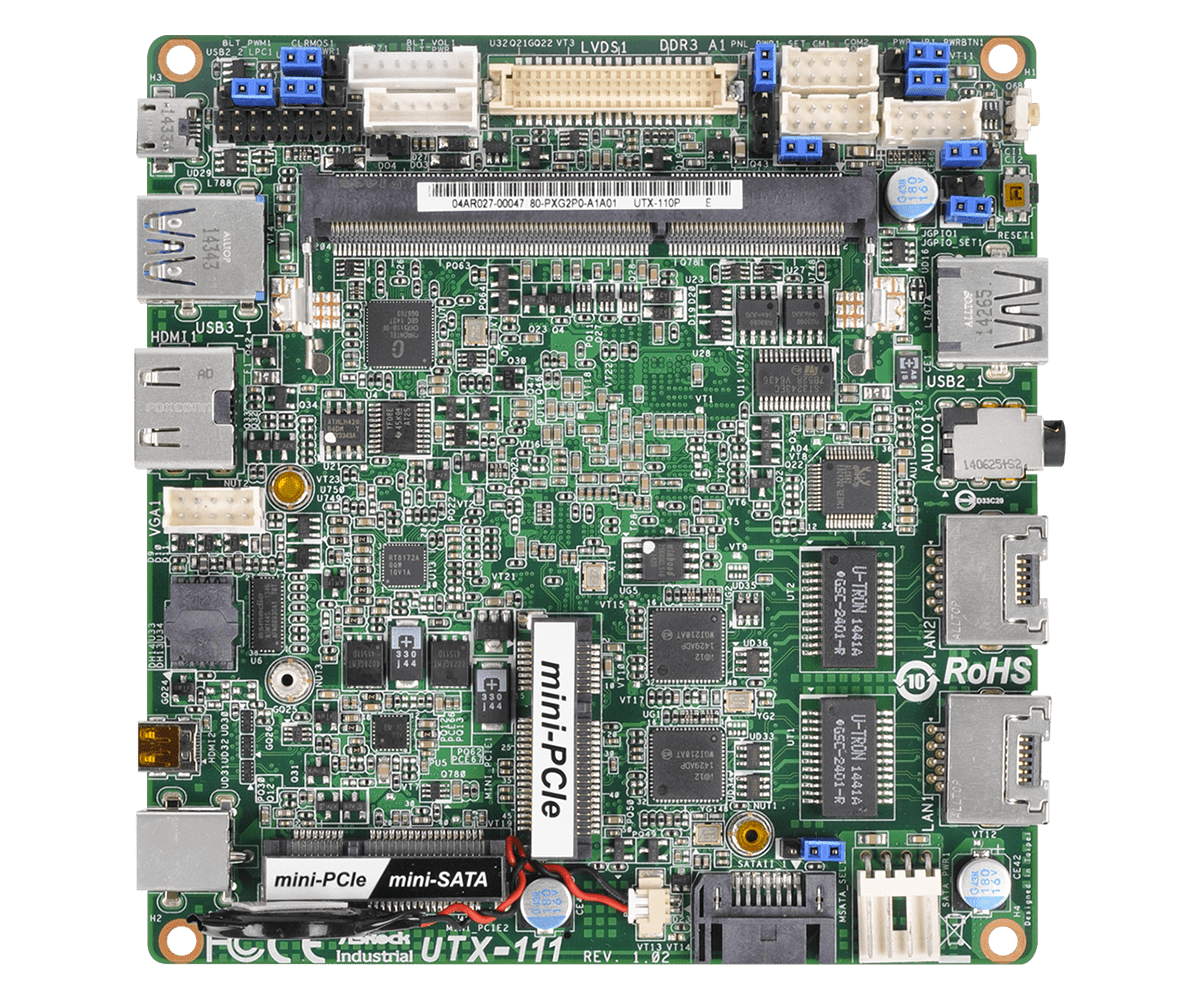

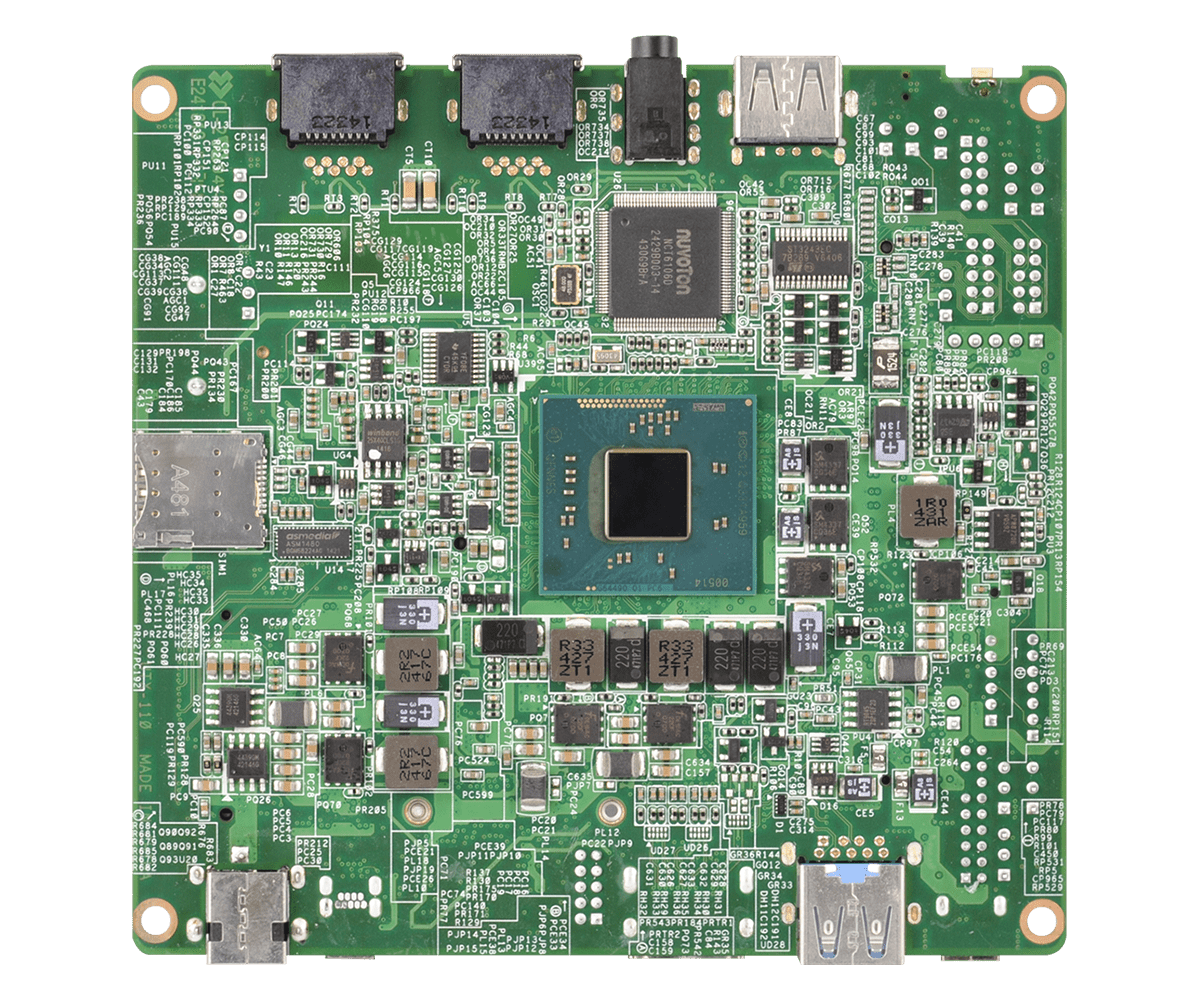

UTX-111 UTX Motherboard

Processor System

CPU	Intel® New AtomTM Baytrail-M/D J1900 / N2930 / N2807 Supports Hyper-Threading Technology
BIOS	UEFI

Form Factor

Dimensions	111.76 x 116.84 mm (10 layer)

Memory

Technology	Single Channel DDR3L 1066 / 1333 MHz SDRAM
Capacity	4 / 8GB
Socket	1 x SO-DIMM

Graphics

Controller	Intel® Gen7 Intel Graphics DX 11*, OGL3.2
HDMI	Supports HDMI 1.4a, max resolution 1920 x 1200
LVDS	Dual channel 24-bit, max resolution 1920 x 1200@60Hz
MultiDisplay	Dual Display
VGA	Supports max. resolution 1920 x 1200

Expansion Slot

mini-PCIe	1 x Full size co-lay with mSATA
SIM Socket	1

Ethernet

Controller/ Speed	2 x Intel 210 with 10/100/1000 Mbps
Connector	2 x RJ-45

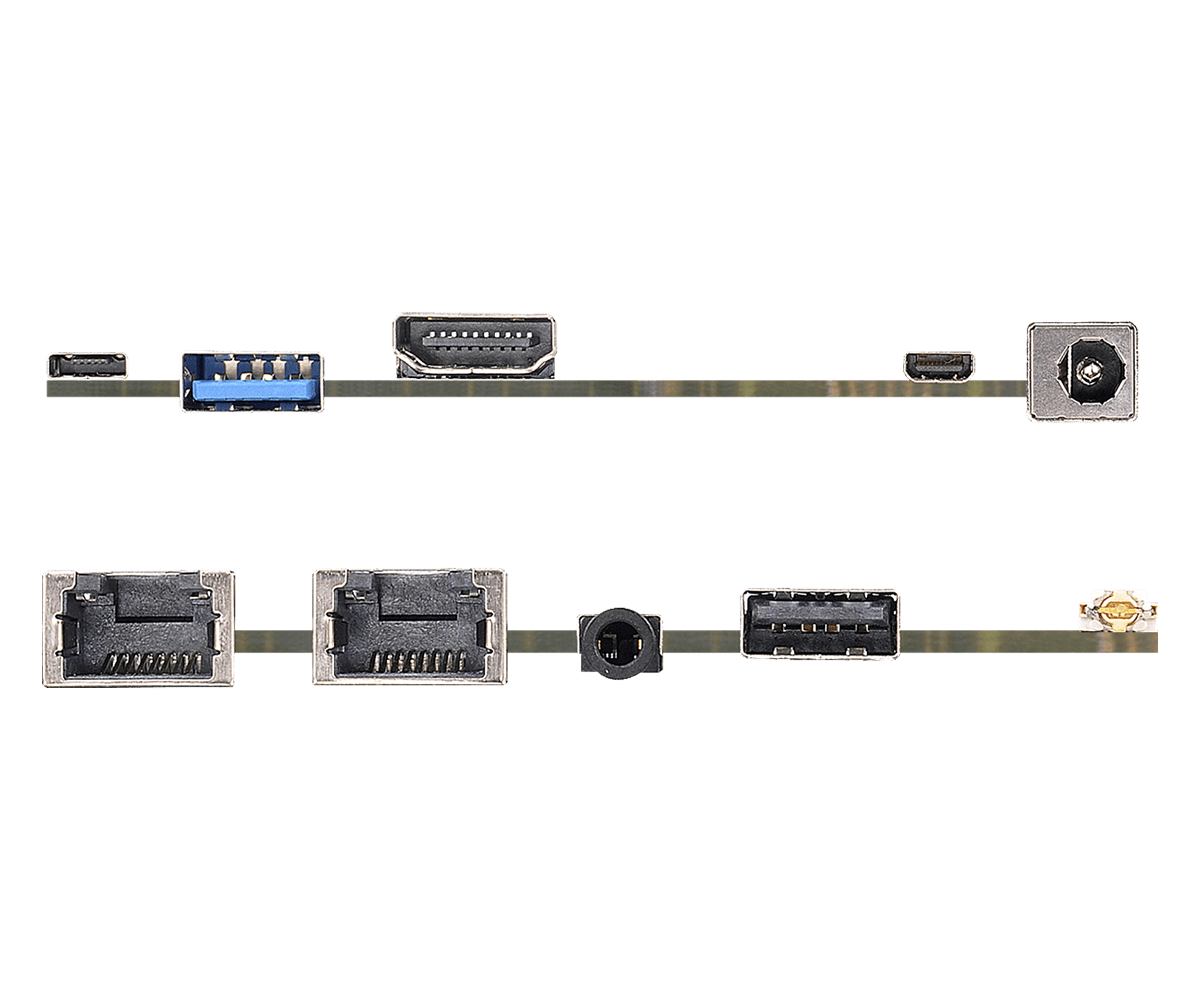

Rear I/O

Ethernet	2
USB	1 x USB 3.0 Compliant , 1 x USB 2.0 Compliant 1 x Micro USB 2.0 SMT type connector
Audio	1 (Line out / Mic out)
HDMI	2 (1 x HDMI, 1 x Micro HDMI)
DC Jack	1

Internal Connector

COM	(RS-232/422/485 x1, RS232 x1) Pin heater 2.0 mm pitch COM1 Pin9 (+5V & +12V)
LVDS	1
GPIO	4 x GPI + 4 x GPO Pin heater 2.0 mm pitch
SATA PWR Output	1
Speaker Header	1
VGA	1 (Pin heater 2.0 mm Pitch)

Storage

SATA	1 x SATA2 (3.0Gb/s)
mSATA	1 (Full Size)

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments 0,1,2....255sec

Power Requirements

Input PWR	12V DC Jack
Power On	AT/ATX supported -AT: Direct PWR on as power input ready -ATX:Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C – 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Accessories

Gift Package	2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x AL PLATE 111.76*116.84mm (13G070251000AK) 1 x COM Cable (14G000000310AK) 1 x SATA Data Cable (14G00010107DAK) 1 x SATA Power Cable (14G000100410AK) 1 x VGA Cable (14G001800100AK)
Bulk Package	2 x SCREW FOR WIFI CARD (13G020305011AK)

规格更改时恕不预先通知。品牌和产品名称归各自公司所有。不保证任何配置与产品实物规格相同。
