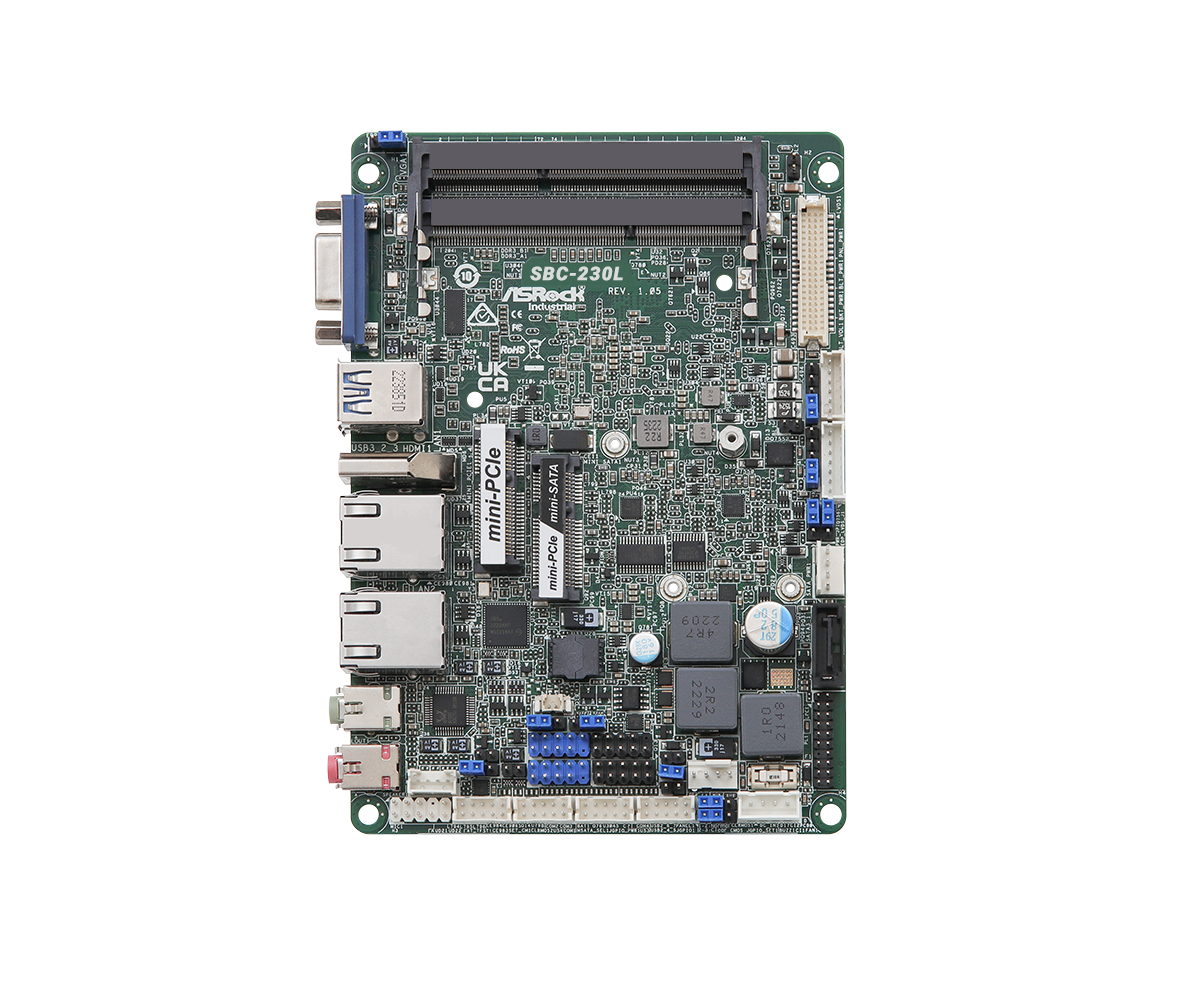

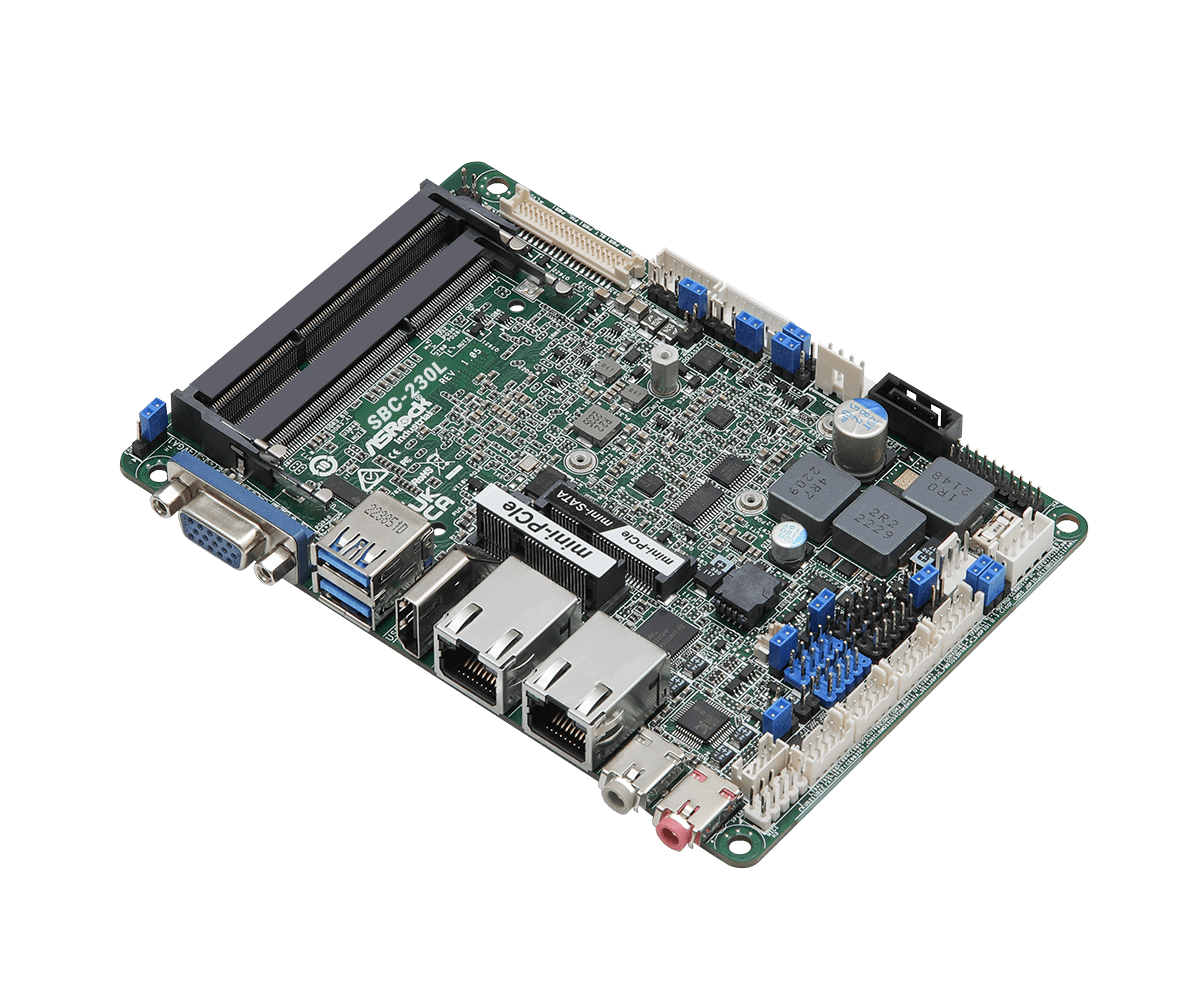

SBC-230L SBC 3.5
- Intel® Apollo Lake/Apollo Lake-I SoC Processors N3350
- 2 x 204-pin SO-DIMM up to 16 GB DDR3L 1866 MHz (8GB per DIMM)
- 2 x USB 3.1 Gen2, 4 x USB 2.0, 1 x Mini-PCIe, 1 x mSATA/Mini-PCIe, 4 x COM, 1 x SATA3
- 2 x Intel 1 Gigabit LAN
- Supports triple display, 1 x HDMI 1.4b, 1 x VGA, 1 x LVDS, 1 x eDP
- TPM Header
- 9~36V DC-In
产品规格
Processor System
| CPU | Intel® Apollo Lake/Apollo Lake-I SoC Processors SBC-230L (N3350, DC, 1.10 GHz, 6W) |
|---|---|
| Chipset | SoC |
| BIOS | AMI SPI 128 Mbit |
Form Factor
| Dimensions | 3.5"SBC (5.8-in x 4.0-in, 14.7 cm x 10.2 cm) |
|---|
Memory
| Technology | Dual Channel DDR3L 1866 MHz |
|---|---|
| Capacity | 16 GB (8GB per DIMM) |
| Socket | 2 x 204-pin SO-DIMM |
Graphics
| Controller | Intel® Gen9 Graphics DX 12 |
|---|---|
| HDMI | HDMI 1.4b Max resolution up to 4096 x 2160@24Hz |
| VGA | Max resolution up to 1920x1200@60Hz |
| LVDS | Dual channel 24 bit up to 1920x1200@60Hz |
| eDP | Max resolution up to 4096x2160@60Hz |
| MultiDisplay | Triple Display |
Expansion Slot
| mini-PCIe | 1 x Full size with PCIe x1 and USB 2.0 |
|---|---|
| mini-PCIe/mSATA | 1 x Full size with USB 2.0 |
Audio
| Interface | Realtek ALC897, High Definition Audio. Line-out,Mic-in |
|---|
Ethernet
| Controller/ Speed | 2 x Intel® I210 with 10/100/1000 Mbps |
|---|---|
| Connector | 2 x RJ-45 |
Rear I/O
| HDMI | 1 x HDMI 1.4b |
|---|---|
| VGA | 1 |
| Ethernet | 2 x 1 Gigabit LAN |
| USB | 2 x USB 3.1 Gen1 |
| Audio | 2 (Mic-in, Line-out) |
Internal Connector
| USB | 4 x USB 2.0 (2x 2.54 pitch header) |
|---|---|
| COM | 1 x COM(RS-232/422/485) 3 x COM(RS-232) |
| GPIO | 4 x GPI, 4 x GPO |
| TPM | TPM Header |
| LVDS | 1 (shared with eDP, switch by BIOS) |
| eDP | 1 (shared with LVDS, switch by BIOS) |
| SATA PWR Output | 1 |
| Speaker Header | 1 |
Storage
| mSATA | 1 x Half size with USB 2.0 colay with Mini-PCIe |
|---|---|
| SATA | 1 x SATA3 (6Gb/s) |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR | 9~36V DC-In |
|---|---|
| Power On | AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
Environment
| Operating Temp | 0ºC ~ 60ºC |
|---|---|
| Storage Temp | -40° C ~ 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
Accessories
| Gift Package | 2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x SINK FOR SBC-230 (13G070347001AI) 1 x COM Cable (14G000000310AK) 1 x SATA Data Cable (14G00010107DAK) 1 x SATA Power Cable (14G000100410AK) 1 x DC-in Cable (14G000600900AK) |
|---|---|
| Bulk Package | 2 x SCREW FOR WIFI CARD (13G020305011AK) |
规格更改时恕不预先通知。品牌和产品名称归各自公司所有。不保证任何配置与产品实物规格相同。
