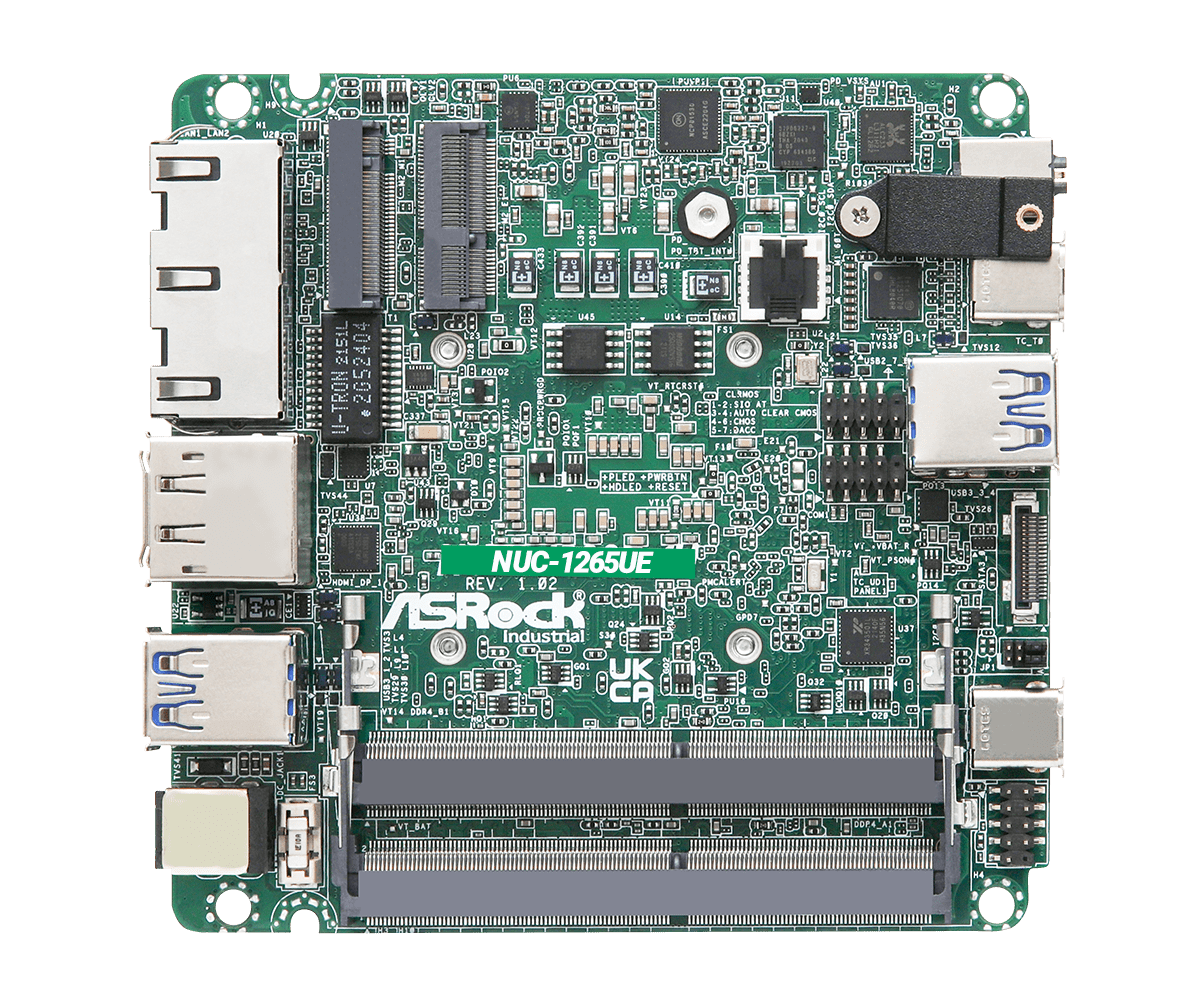

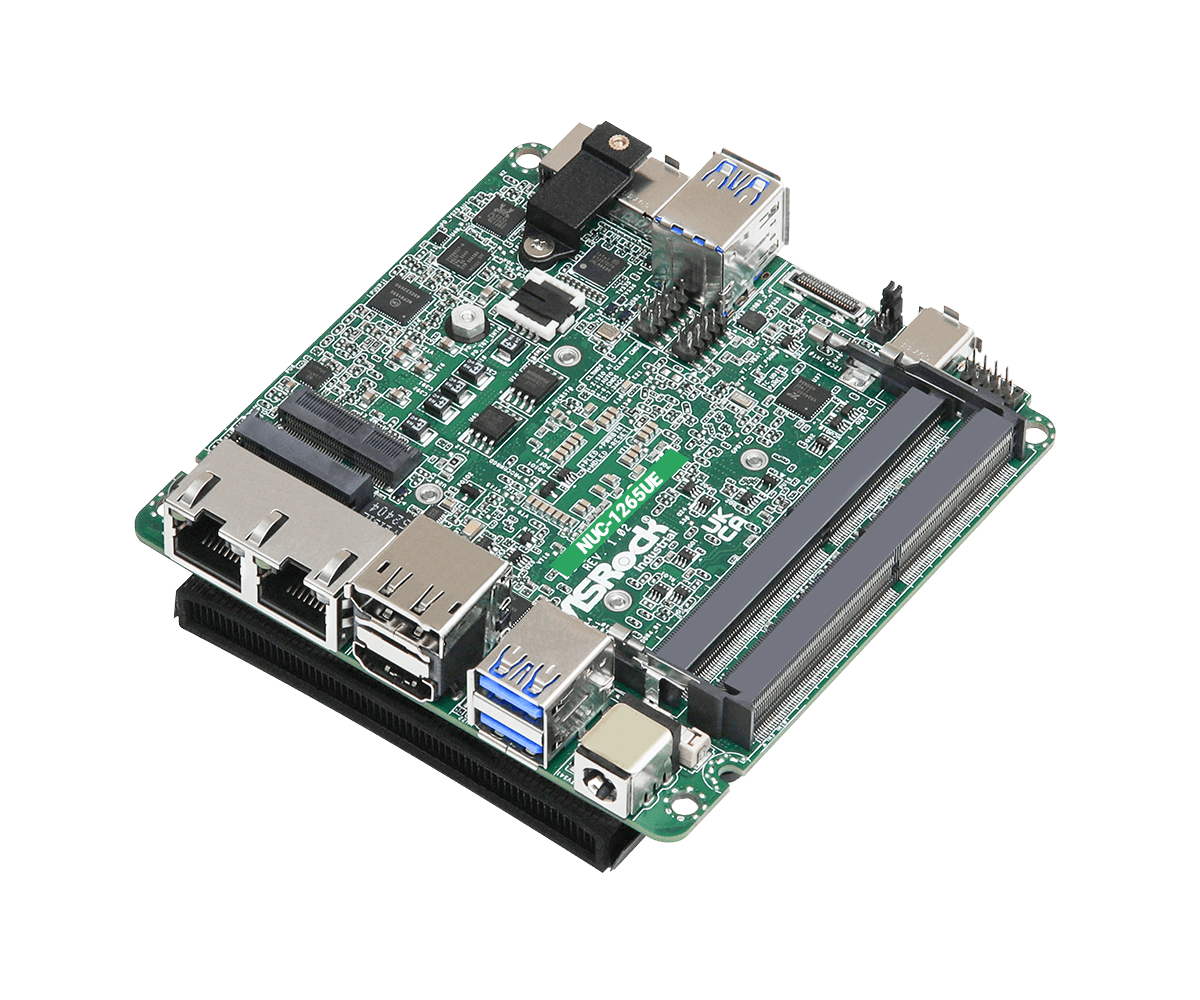

NUC-1265UE NUC Motherboard

  • Intel® 12th Gen (Alder Lake-P) Core™ Processors
  • 2 x 260-pin SO-DIMM DDR4 3200 MHz, up to 64GB
  • 6 x USB 3.2 Gen2, 2 x USB 2.0, 1 x M.2 Key M, 1 x M.2 Key E, 1 x COM, 1 x SATA3
  • 2 x Intel 2.5 Gigabit LAN
  • Supports Quad display, 1 x HDMI 2.0b, 3 x DP 1.4a (2 from Type-C)
  • TPM 2.0 onboard IC
  • Supports Intel® vPro, AMT
  • 12V~19V DC-In
产品型录
产品规格

Form Factor

Dimensions NUC (4.09-in x 4.02-in x 1.5-in, 10.4 cm x 10.2 cm x 3.8 cm)

Processor System

CPU Intel® 12th Gen (Alder Lake-P) Core™ Processors
NUC-1265UE( i7-1265UE, 2P+8E)
Chipset MCP
BIOS AMI SPI 256 Mbit

Memory

Technology Dual Channel DDR4 3200 MHz
Capacity 64GB (32 GB per DIMM)
Socket 2 x 260-pin SO-DIMM

Graphics

Controller Intel® Iris® Xe Graphics
HDMI HDMI 2.0b
Max resolution up to 4096x2160@60Hz
DisplayPort DisplayPort 1.4a, DP++
Max resolution up to 4096x2160@60Hz
MultiDisplay Max 4 display (Included 2 outputs from Type-C)

Expansion Slot

M.2 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless

Audio

Interface Realtek ALC233, High Definition Audio.

Ethernet

Controller/ Speed Intel® I225LM with 10/100/1000/2500 Mbps, supports AMT/vPro
Connector 2 x RJ-45

Front I/O

USB 2 x USB 3.2 Gen2 (Type-A)
2 x USB 3.2 Gen2 (Type-C, Supports DP 1.4a display output)
* USB4™ Compliance Test is pending for certification
* For Thunderbolt support, please refer to support list.
Audio 1 (headphone & microphone jack)

Rear I/O

HDMI 1 x HDMI 2.0b
DisplayPort 1 x DP 1.4a
Ethernet 2 x 2.5 Gigabit LAN
USB 2 x USB 3.2 Gen2 (Type A)
DC Jack 1

Internal Connector

USB 2 x USB 2.0 (1 x 2.00 pitch header)
COM 1 x COM(RS-232/RS-422/RS-485)
TPM TPM 2.0 onboard IC

Storage

M.2 1 x M.2 (KEY M, 2242/2260/2280) with PCIe Gen4 x4 for SSD
*M.2 Key M 2280(Supported by bracket)
SATA 1 x SATA3.0 (6.0 Gb/s)

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR 12V~19V DC-In Jack
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 60ºC
Storage Temp -40° C ~ 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

规格更改时恕不预先通知。品牌和产品名称归各自公司所有。不保证任何配置与产品实物规格相同。

支援下载

操作系统:

说明 操作系统 日期 下载
说明 VGA driver ver:30.0.101.1298_PC 操作系统 Win 11 x 64 , Win 10 x 64 Date 2022-03-21 下载
说明 Intel Serial IO driver ver:30.100.2148.1 操作系统 Win 11 x 64 , Win 10 x 64 Date 2022-03-21 下载
说明 Realtek high definition audio driver ver:9235_FF00 操作系统 Win 11 x 64 , Win 10 x 64 Date 2022-03-21 下载
说明 Intel AX211 Wireless LAN driver ver: 22.110.0.2_G 操作系统 Win 11 x 64 , Win 10 x 64 Date 2022-03-21 下载
说明 Intel Management Engine driver ver:16.0.15.1662_CORP_SW_DCH 操作系统 Win 11 x 64 , Win 10 x 64 Date 2022-03-21 下载
说明 Intel Lan driver ver:27.4 操作系统 Win 11 x 64 , Win 10 x 64 Date 2022-03-21 下载
说明 INF driver ver:10.1.18950.8298 操作系统 Win 11 x 64 , Win 10 x 64 Date 2022-03-21 下载
说明 Intel HID Event Filter ver:2.2.1.386 操作系统 Win 11 x 64 , Win 10 x 64 Date 2022-03-18 下载
版本 更新方式 / 如何更新 说明 日期 下载
版本 1.40 更新方式 / 如何更新 BIOS 说明 1. Enhance system performance
2. Optimize energy consumption
3. Modify Display Audio detection behavior
日期 2022-08-12 下载
版本 1.40 更新方式 / 如何更新 DOS 说明 1. Enhance system performance
2. Optimize energy consumption
3. Modify Display Audio detection behavior
日期 2022-08-12 下载
版本 1.40 更新方式 / 如何更新 Windows 说明 1. Enhance system performance
2. Optimize energy consumption
3. Modify Display Audio detection behavior
日期 2022-08-12 下载
版本 1.20 更新方式 / 如何更新 BIOS 说明 First release 日期 2022-07-26 下载
版本 1.20 更新方式 / 如何更新 DOS 说明 First release 日期 2022-07-26 下载
版本 1.20 更新方式 / 如何更新 Windows 说明 First release 日期 2022-07-26 下载

档案格式为 PDF,如果您没有安装 Adob​​e Acrobat Reader,请至 Adobe下载。

说明 语言 日期 下载
说明 Jumpers and Headers Setting Guide 语言 English 日期 2022-06-14 下载
说明 User Manual 语言 English 日期 2022-03-21 下载
说明 日期 下载
下载 Thunderbolt Support List 日期 2022-04-22 下载
