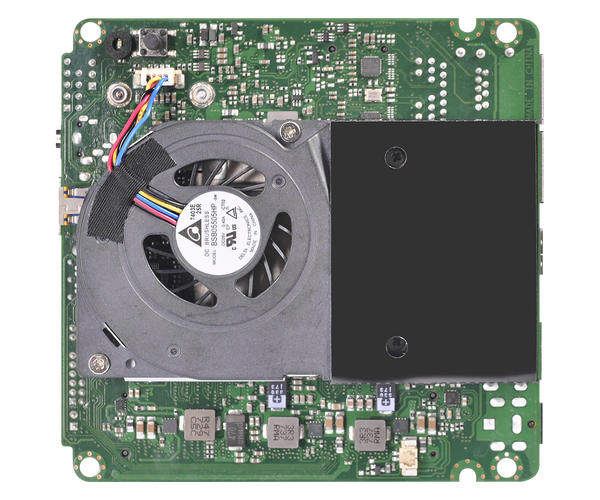

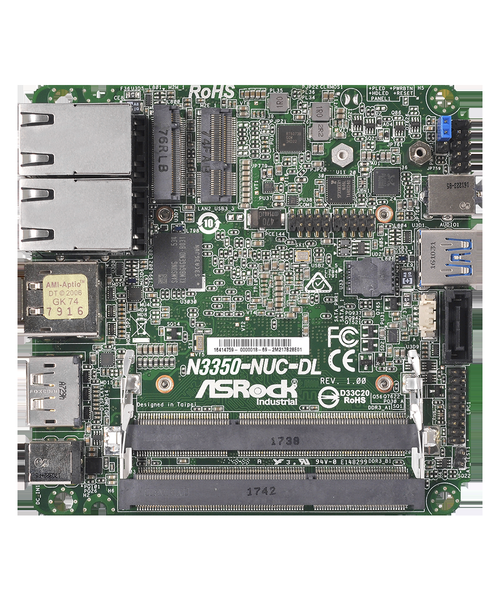

N3350-NUC-DL NUC Motherboard

  • Intel® Apollo Lake SoC Processor
  • 2 x 204-pin SO-DIMM up to 16GB DDR3L 1866 MHz ( 8GB per DIMM )
  • 3 x USB 3.1 Gen1, 2 x USB 2.0, 1 x M.2 Key M, 1 x M.2 Key E, 1 x COM, 1 x SATA3
  • 2 x Realtek 1 Gigabit LAN
  • Supports Triple display, 1 x HDMI1.4b , 2 x DP1.2a
  • TPM 2.0 onboard IC
  • 12V DC-In
产品型录
产品规格

Form Factor

Dimensions NUC(4.09-inx4.02-in)

Processor System

CPU Intel®Apollo Lake Soc Processor N3350, DC, 1.10GHz, 6W
Chipset SoC
BIOS AMI SPI 128 Mbit

Memory

Technology Dual Channel DDR3L 1866 MHz
Capacity 16GB (8 GB per DIMM)
Socket 2 x 204-pin SO-DIMM

Graphics

Controller Intel® Gen9 Graphics DX 12
HDMI HDMI 1.4b
Max resolution up to 4096 x 2160@24Hz
DisplayPort DisplayPort 1.2a , DP++
Max resolution up to 4096x2160@60Hz
MultiDisplay Triple Display

Expansion Slot

M.2 1x Key E(2230)with PCIex1 and USB2.0 for wireless

Audio

Interface Realtek ALC233, High Definition Audio, Line-out, Mic-in

Ethernet

Controller/ Speed 2 x Realtek RTL8111G with 10/100/1000 Mbps
Connector 2 x RJ-45

Front I/O

USB 1 x USB3.1(Gen1)
Audio 1 (Mic-in or Line-out)

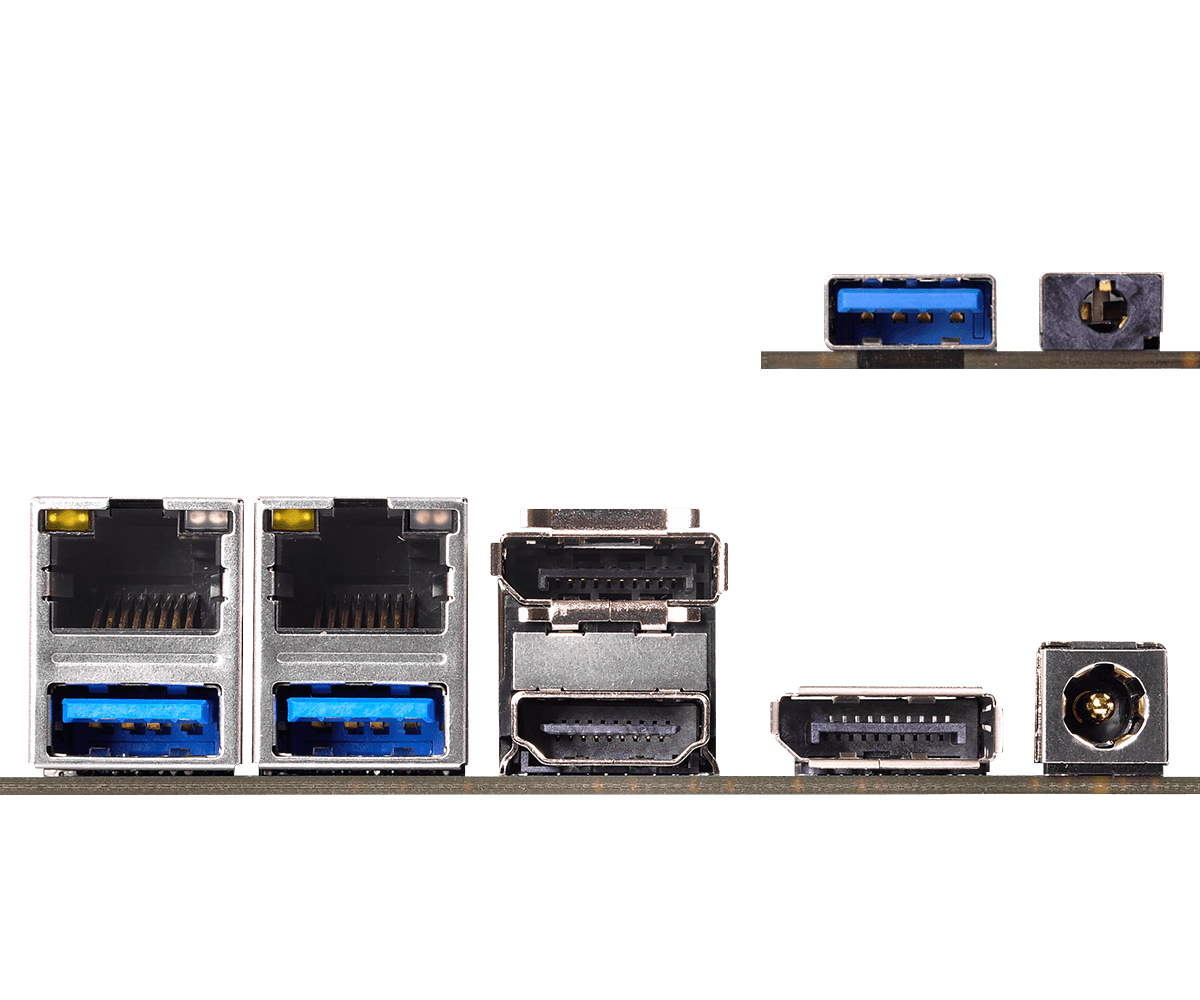

Rear I/O

HDMI 1 x HDMI1.4b
DisplayPort 2 x DP1.2a
Ethernet 2 x 1 Gigabit LAN
USB 2 x USB 3.0
DC Jack 1

Internal Connector

USB 2 x USB2.0 (1 x 2.00 pitch header)
COM 1 x COM (RS232/422/485)
TPM TPM on board IC
SATA PWR Output 1

Storage

M.2 1x Key M(2242/2260) with PCIex4 and SATA3 for SSD
SATA 1 x SATA3 (6Gb/s)

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR 12V DC-in(DC Jack)
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 60ºC
Storage Temp -40° C ~ 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

规格更改时恕不预先通知。品牌和产品名称归各自公司所有。不保证任何配置与产品实物规格相同。

支援下载

操作系统:

说明 操作系统 日期 下载
说明 ASRock 3TB+ Unlocker utility ver:1.1.1 操作系统 Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-08 下载
说明 Intel Serial IO driver ver:30.100.1631.03_PV 操作系统 Win 10 x 64 , Win 10 , Win 8.1 x 64 Date 2020-05-08 下载
说明 Intel Trusted Execution Engine ver:3.1.50.2222 操作系统 Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8 x 64 , Win 7 x 64 Date 2020-05-08 下载
说明 Intel iRMT ver:1.1.50.493 操作系统 Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 7 x 64 Date 2020-05-08 下载
说明 Realtek Lan driver ver:7100 操作系统 Win 7 x 64 Date 2020-05-08 下载
说明 Realtek Teaming driver ver:2.0.3.0 操作系统 Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8 x 64 , Win 7 x 64 , Win 7 Date 2020-05-08 下载
说明 VGA driver ver:24.20.100.6094 操作系统 Win 10 x 64 Date 2020-05-08 下载
说明 Realtek Lan driver ver:8046 操作系统 Win 8.1 x 64 Date 2020-05-08 下载
说明 INF driver ver:10.1.1.34 操作系统 Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 7 x 64 Date 2020-05-08 下载
说明 Realtek high definition audio driver ver:8363_FF00 操作系统 Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 7 x 64 Date 2020-05-08 下载
说明 Realtek Lan driver ver:10018 操作系统 Win 10 x 64 , Win 10 Date 2020-05-08 下载
版本 更新方式 / 如何更新 说明 日期 下载
版本 1.10 更新方式 / 如何更新 BIOS 说明 First released. 日期 2020-05-06 下载

档案格式为 PDF,如果您没有安装 Adob​​e Acrobat Reader,请至 Adobe下载。

说明 语言 日期 下载
说明 Jumpers and headers setting guide 语言 English 日期 2020-05-06 下载
说明 User Manual 语言 English 日期 2020-05-06 下载
