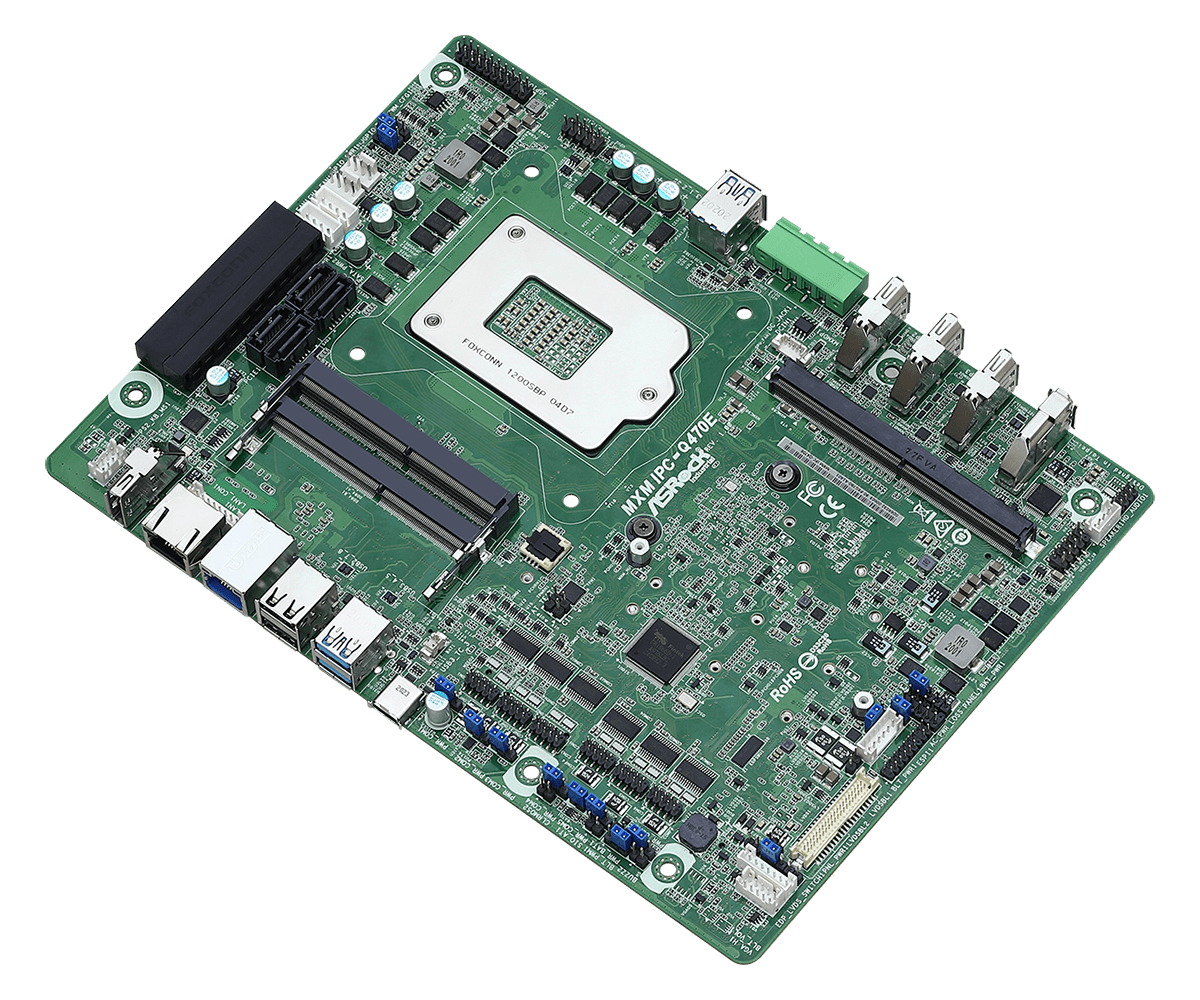

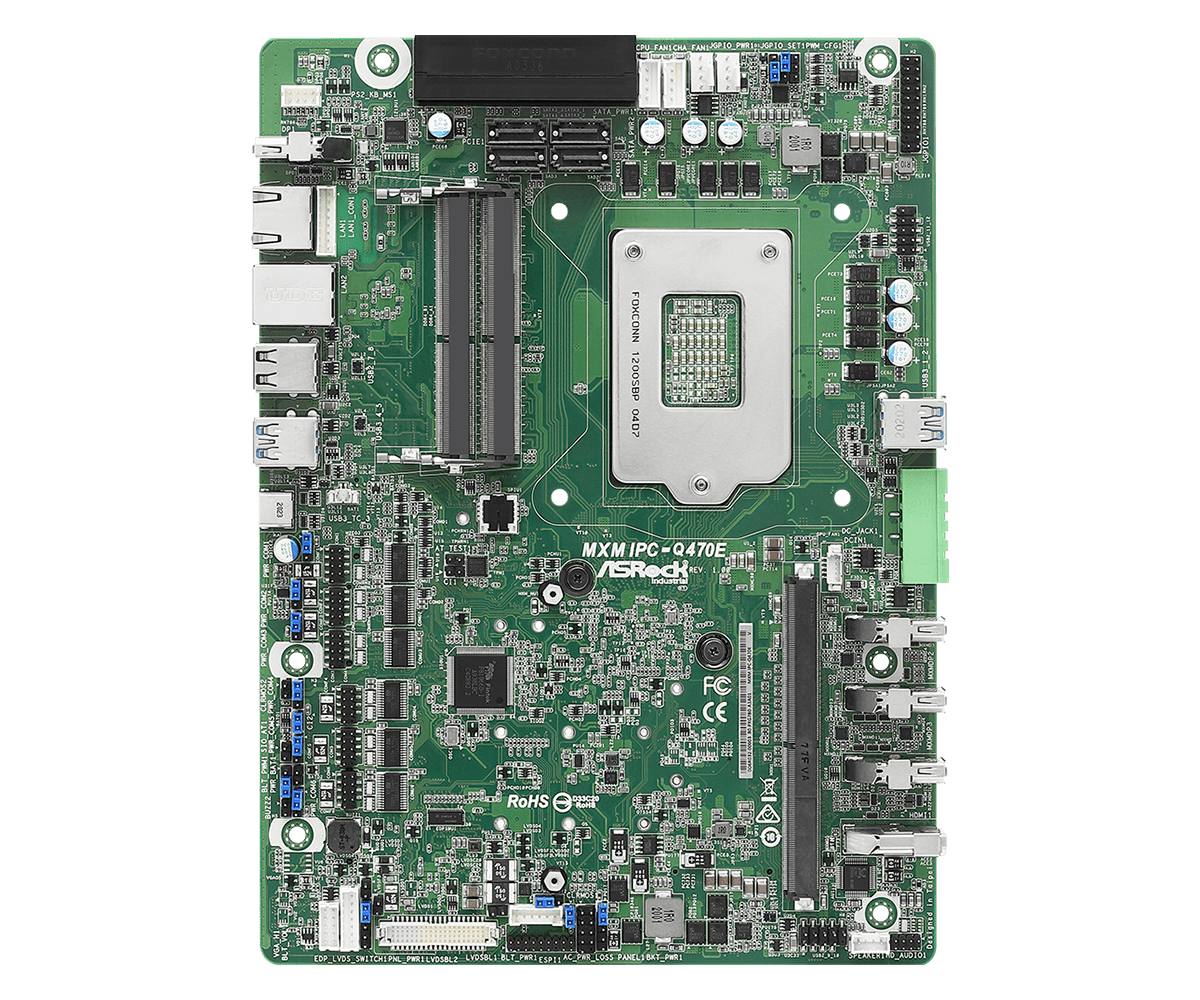

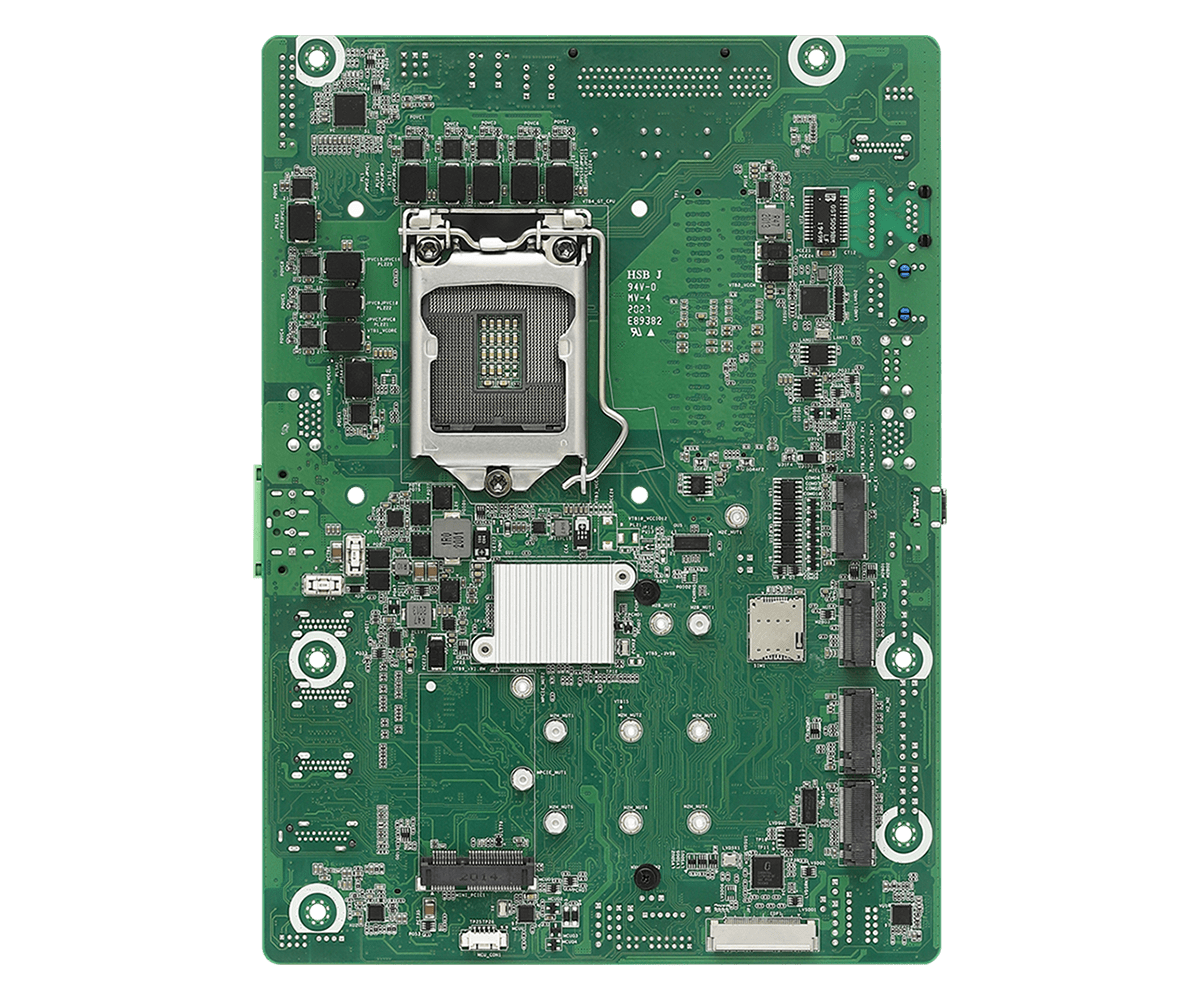

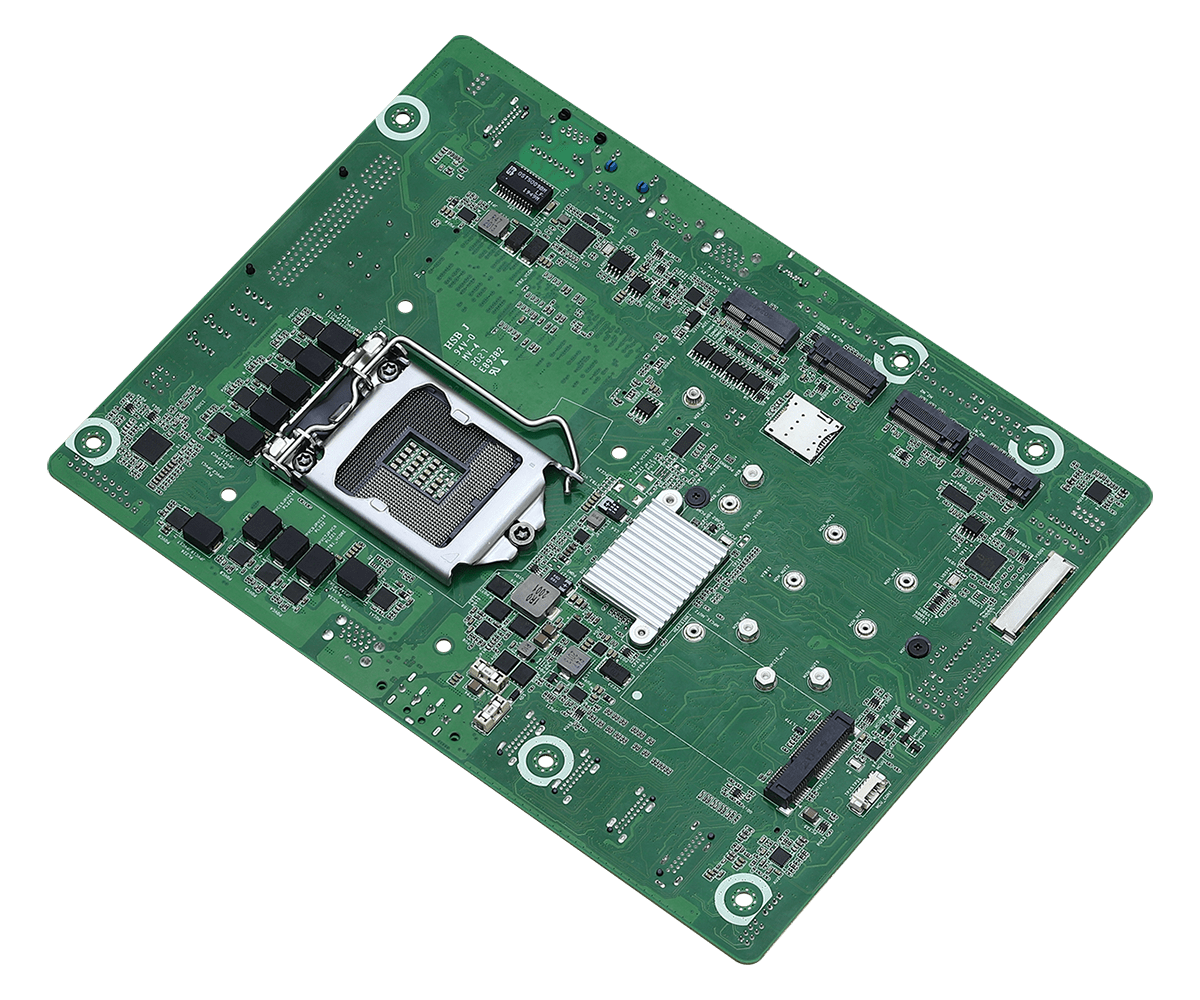

MXM IPC-Q470E Proprietary Motherboard

  • Intel® 10th Gen (Comet lake-S) Core™ Processors with Q470E chipset
  • 2 x 260-pin SO-DIMM, Support Dual Channel DDR4 2933 (i9/i7 CPU) / 2666 (i5/i3 CPU) / 2400 (Pentium/ Celeron CPU), up to 64GB
  • Supports MXM Graphics Card (Type-A or Type-B , Up to 150W)
  • 1 x PCIe x4 Gen3, 1 x mini-PCIe
  • 4 x USB 3.2 Gen1, 1 x USB 3.2 Gen1 (Type-C), 4 x USB 2.0, 1 x M.2 Key E, 2 x M.2 Key M, 1 x M.2 Key B, 6 x COM, 4 x SATA3
  • 1 x Intel 1 Gigabit LAN, 1 x Intel 2.5 Gigabit LAN
  • Support Hepta display, 1 x DP 1.2, 1 x VGA, 1 x eDP 1.4 / LVDS (from CPU) and 3 x DP 1.2, 1 x HDMI 2.0a (from MXM)
  • TPM 2.0 on Board
  • 1 x Intel 1 Gigabit LAN, 1 x Intel 2.5 Gigabit LAN
  • Supports Intel® vPro, AMT, RAID 0/1/5/10
  • 18~26V DC-In wide range DC input with lockable connector (Max power 300W)
产品型录
产品规格

Form Factor

Dimensions 7.0-in x 9.6-in, 17.8 cm x 24.4 cm

Processor System

CPU Intel® 10th Gen (Cometlake-S) Core™ Processors,up to 125 W
Chipset Intel® Q470E
Socket LGA1200
BIOS AMI SPI 256 Mbit

Memory

Technology Dual Channel DDR4 2933 / 2666 / 2400 MHz
- Intel Core i9 / i7 CPUs support DDR4 up to 2933 MHz
- Intel Core i5 / i3 CPUs support DDR4 up to 2666 MHz
- Intel Pentium/Celeron CPU support DDR4 up to 2400 MHz
Capacity 64GB (32GB per DIMM)
Socket 2 x 260-pin SO-DIMM

Graphics

Controller - CPU integrated graphics to support 1 x DP + 1 x VGA + 1 eDP
/ LVDS (Gen9 Intel® Graphics, Support for DirectX 11/12,
OpenCL 2.0)
- Add on MXM Graphic Card (Type B) to support 3 x DP + 1 x HDMI
- NVIDIA® Quadro series P5000, NVIDIA® GeForce GTX 1050 /
1060 / 1070 / 1080
eDP eDP 1.4 Max resolution up to 4096 x 2304 @60Hz
VGA Max resolution up to 1920 x 1200 @60Hz
DisplayPort DisplayPort 1.2 , DP++
Max resolution up to 4096 x 2160 @60Hz
HDMI HDMI 2.0a
Max resolution up to 4096 x 2160 @60Hz
LVDS Dual channel 24 bit up to 1920 x 1200 @60Hz
MultiDisplay Hepta Display

Expansion Slot

M.2 1 x M.2 (Key E, 2230) with PCIe x1 ,USB 2.0 and CNVi for Wireless and BT
1 x M.2 (Key B, 3042 / 3052) with PCIe x1 / USB 3.0 / USB 2.0 and SIM for 4G / 5G
PCIe 1 x PCIe x4 Gen3
SIM Socket 1 x SIM socket connected to M.2 key B
mini-PCIe 1 x Full Size with PCIe x1 and USB 2.0

Audio

Interface Realtek ALC897 HD, High Definition Audio. Line-In / Line-Out / Mic-In
3W audio amplifier supported (Realtek ALC122)

Ethernet

Controller/ Speed LAN1: Intel® I219LM, with 10 / 100 / 1000 Mbps, support AMT / vPro
LAN2: Intel® I225LM with 10 / 100 / 1000 / 2500 Mbps
Connector 2 x RJ-45

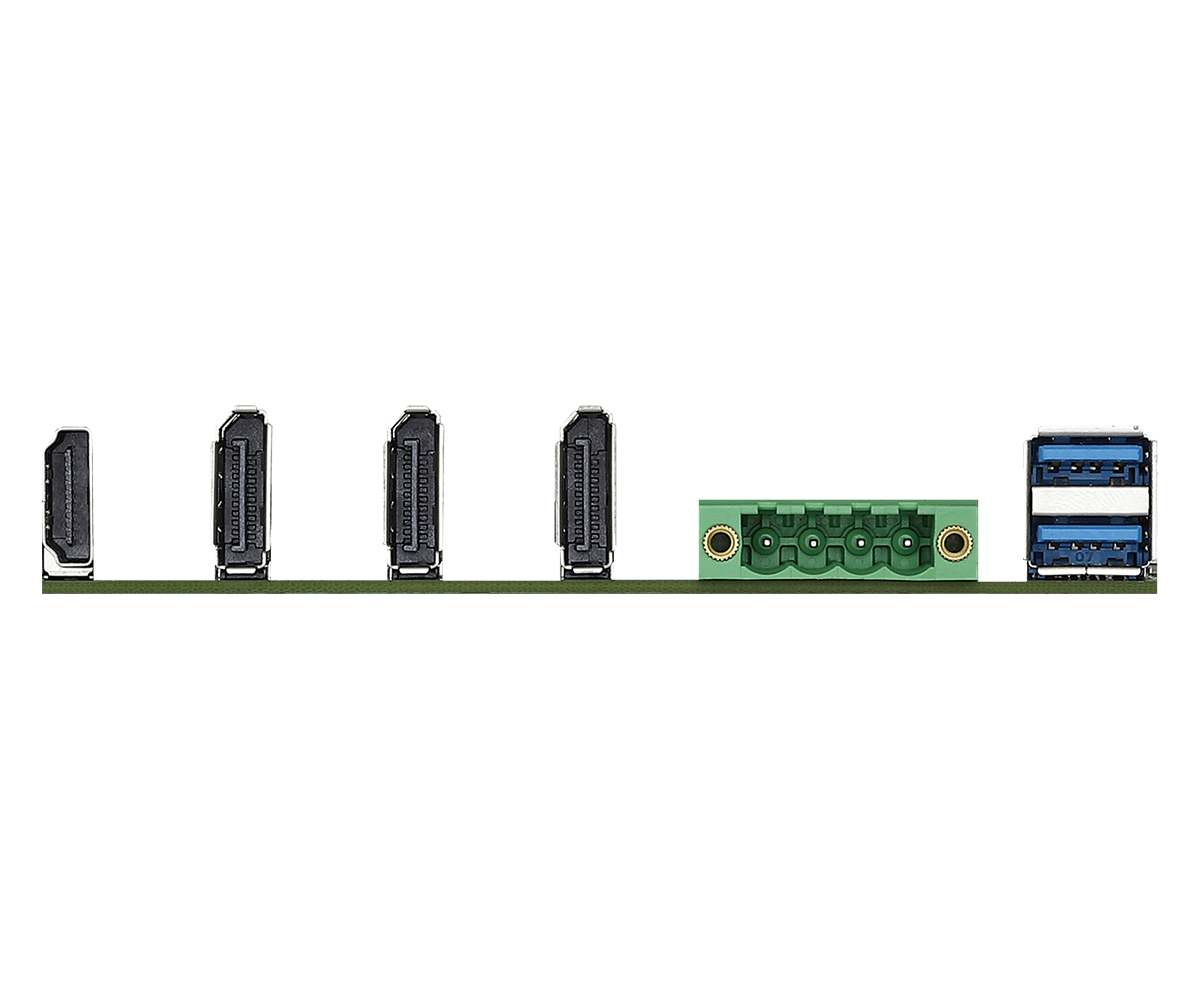

Front I/O

DisplayPort 3 x DP 1.2 from MXM
USB 2 x USB 3.2 (Gen1)
HDMI 1 x HDMI 2.0a from MXM
Power input (Phoenix) Phoenix Contact

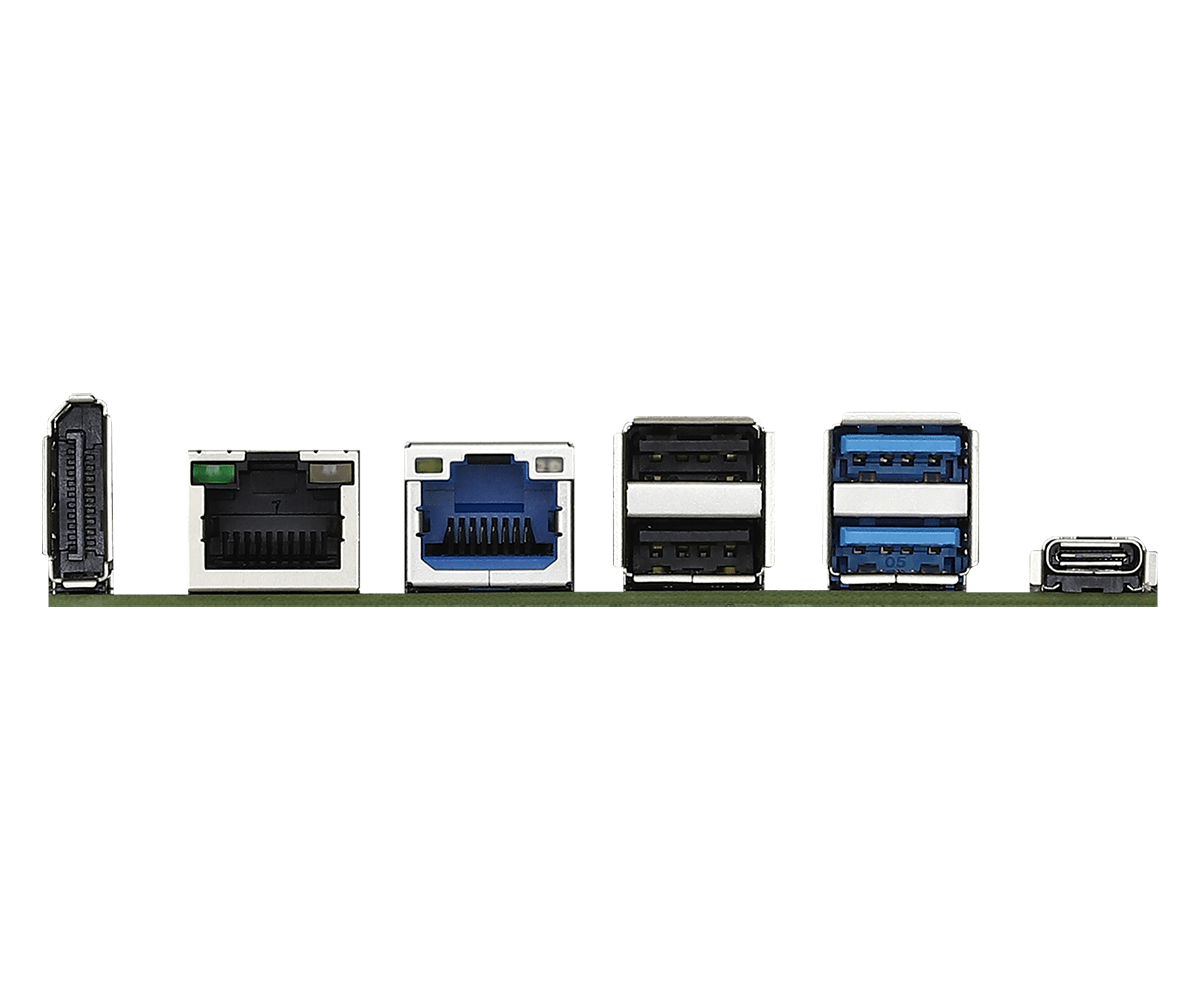

Rear I/O

DisplayPort 1 x DP 1.2 from CPU
Ethernet 1 x 1 Gigabit LAN
1 x 2.5 Gigabit LAN
USB 2 x USB 2.0
2 x USB 3.2 (Gen1)
1 x USB 3.2 (Gen1) Type-C

Internal Connector

USB 2 x USB 2.0 (1 x 2.54 pitch header)
TPM TPM 2.0 onboard
eDP 1 (shared with LVDS)
VGA 1
COM 4 x COM (RS-232), 2 x COM (RS-232 / 422 / 485)
GPIO 8 x GPI, 8 x GPO
LVDS 1 (shared with eDP)
SATA PWR Output 2
Speaker Header 1
PS/2 1

Storage

M.2 1 x M.2 (Key M, 2242 / 2260 / 2280) with SATA3_2 and PCIe x4 for SSD
1 x M.2 (Key M, 2242 / 2260 / 2280) with SATA3 or PCIe x 4 for SSD
SATA 4 x SATA3 (6Gb/s)
RAID Intel® SATA RAID 0/1/5/10

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR 18~26V DC-In Jack (220W for Quadro P5000, GTX1060/1070, 270W for GTX1080
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 60ºC
Storage Temp -40ºC – 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

规格更改时恕不预先通知。品牌和产品名称归各自公司所有。不保证任何配置与产品实物规格相同。
