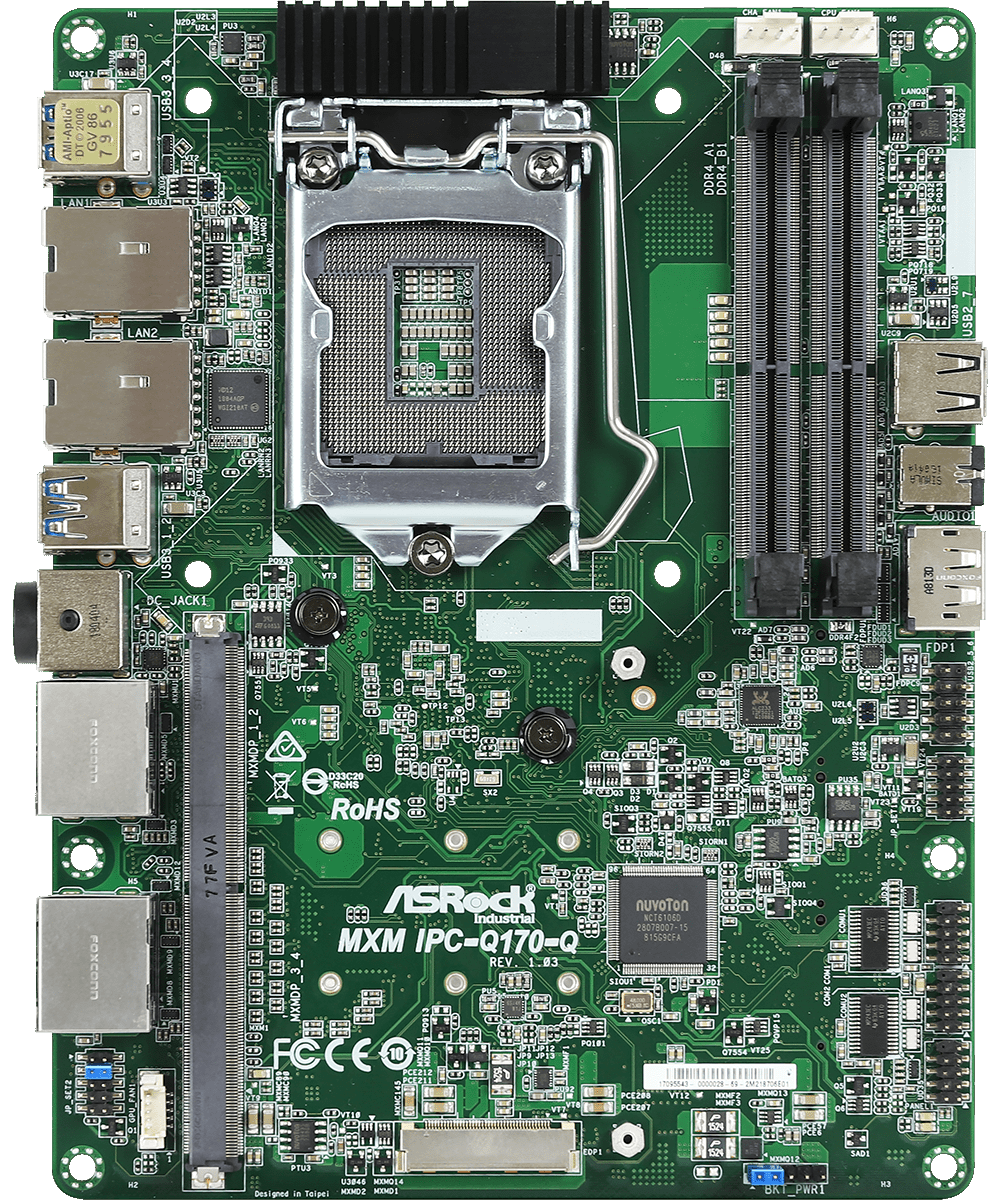

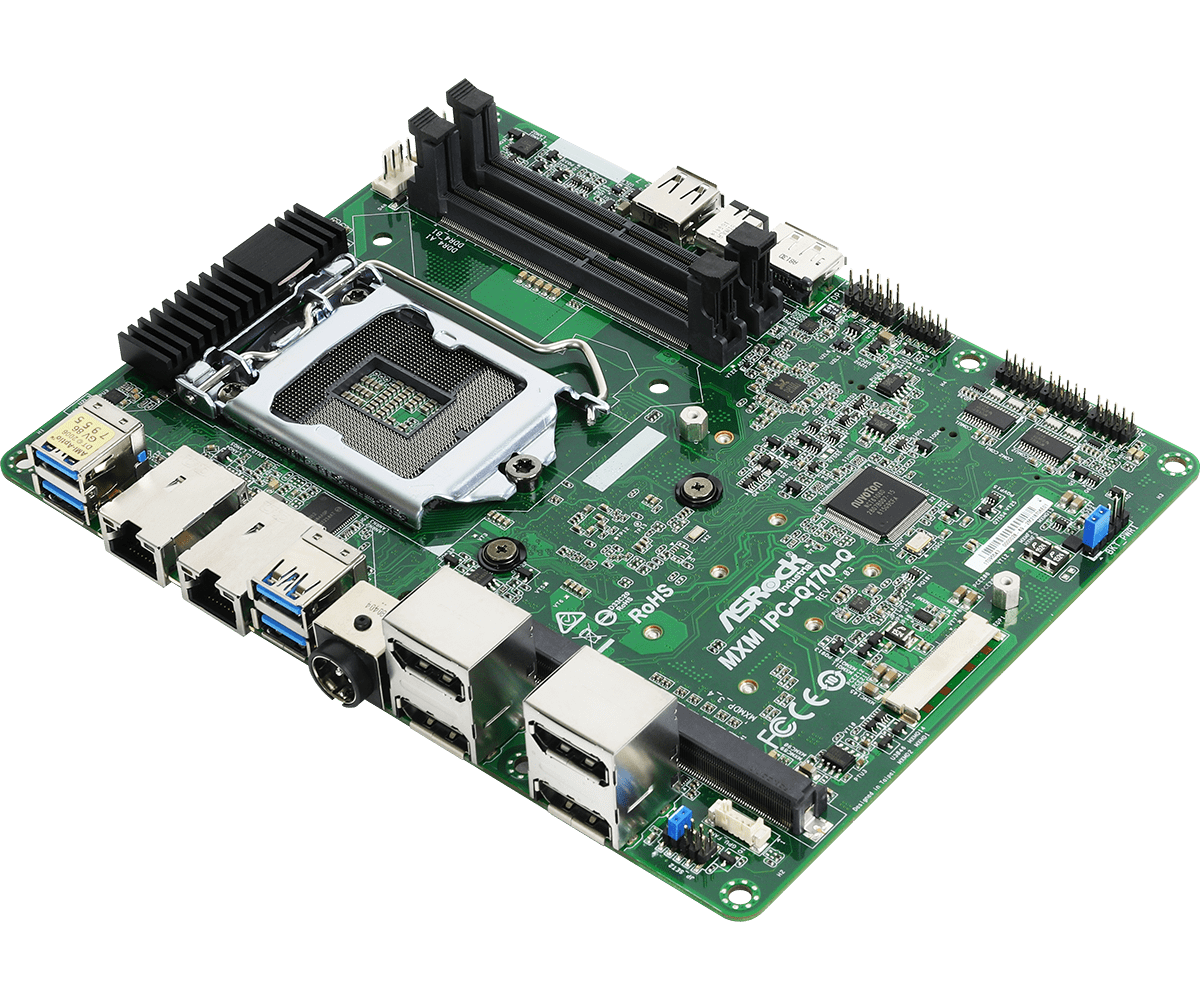

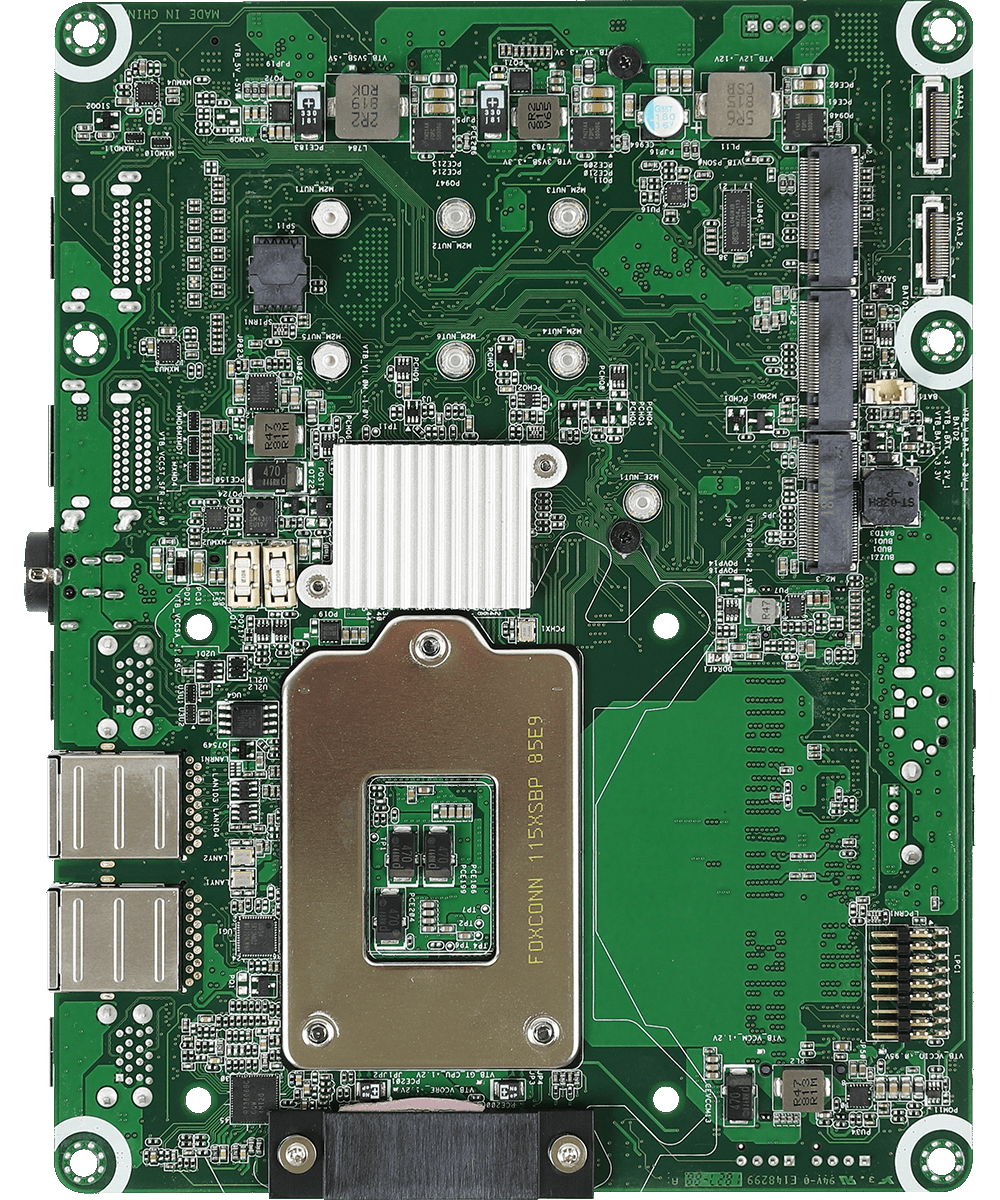

MXM IPC-Q170-Q Micro-STX Motherboard

  • Supports Intel® 7th/ 6th Gen (Kabylake-S/Skylake-S) i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors (LGA1151)
  • Supports MXM Graphics Card (Type-A or Type-B , Up to 150W)
  • Supports DDR4 SO-DIMM 2400, up to 32GB
  • 5 x DisplayPort (1 from CPU, 4 from MXM)
  • 4 x USB 3.0, 3 x USB 2.0, 2 x COM (RS232 only)
  • 3 x M.2 (1 x Key E, 2 x Key M=>R1.04)
  • 2 x Intel 1 Gigabit LAN
  • 1 x TPM Header
  • Supports Intel® vPro, AMT, RAID 0/1/5/10
  • DC 19V Input (220W for Quadro P5000, GTX1060/1070, 270W for GTX1080)
产品型录
产品规格

Form Factor

Dimensions Micro-STX (5.8-in x 7.4-in, 14.7 cm x 18.8 cm)

Processor System

CPU Intel® 7th/ 6th Gen (Kabylake-S/Skylake-S) Core. Processors, up to 65W
Chipset Intel® Q170
Socket LGA1151
BIOS AMI SPI 128 Mbit

Memory

Technology Dual Channel DDR4 2400 MHz
Capacity 32GB (16 GB per DIMM)
Socket 2 x 260-pin SO-DIMM

Graphics

Controller Intel® Gen8 Graphics DX 11,OGL3.2
DisplayPort 1 x Supports max resolution up to 4K@60Hz (CPU integrated graphics)
4 x Supports max resolution up to 4K@60Hz (MXM Graphics Card)
MultiDisplay Penta Display

Expansion Slot

M.2 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless
mini-PCIe 1x Full size with PCIe x1 and USB 2.0

Audio

Interface Realtek ALC233, High Definition Audio.

Ethernet

Controller/ Speed LAN1: 1 x Intel® I210 with 10/100/1000 Mbps
LAN2:1 x Intel® I219LM with 10/100/1000 Mbps, supports AMT/vPro
Connector 2 x RJ-45

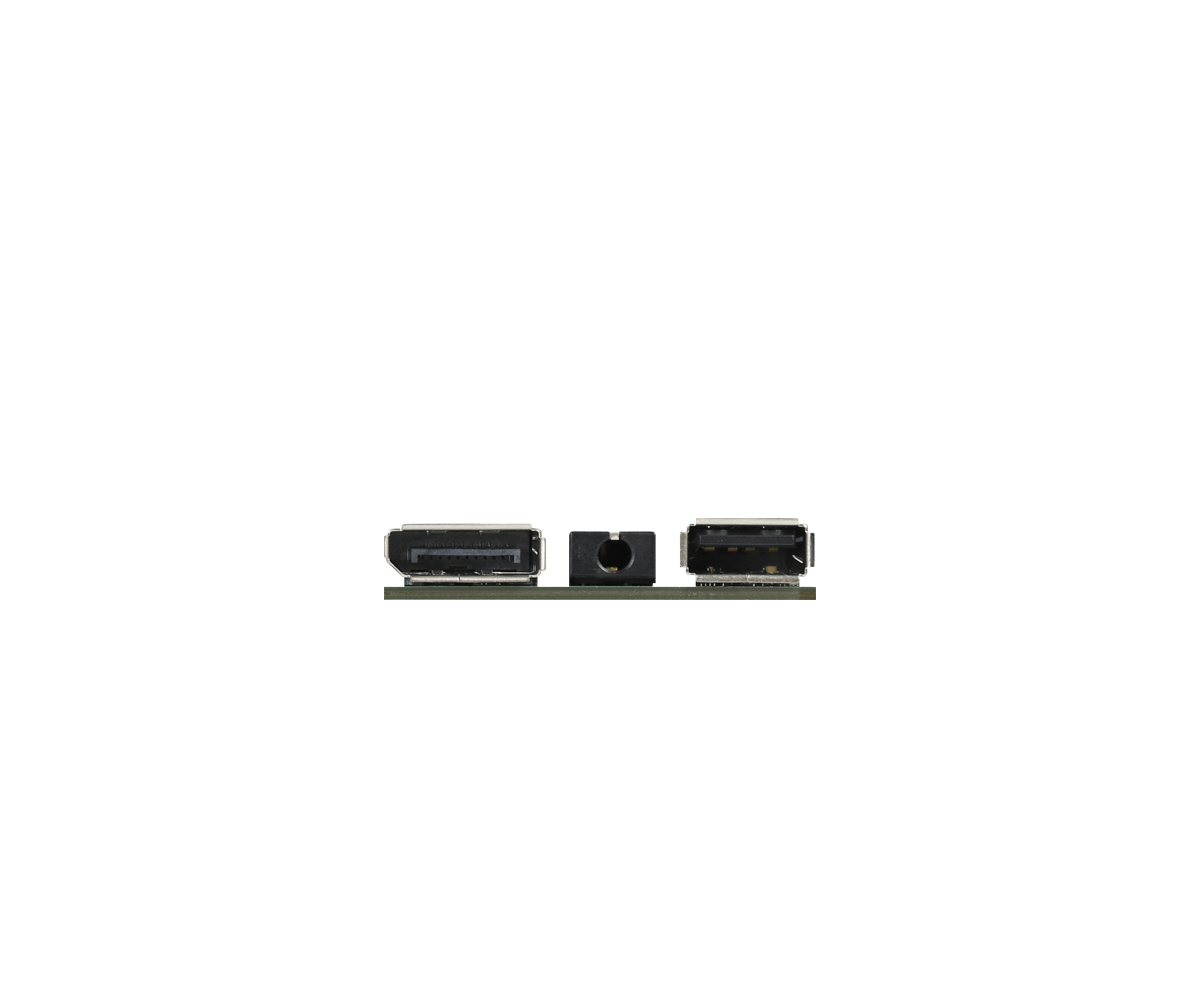

Front I/O

DisplayPort 1 (CPU integrated graphics)
USB 1 x USB 2.0 Type-A
Audio 1 (Mic-in or Line-out)

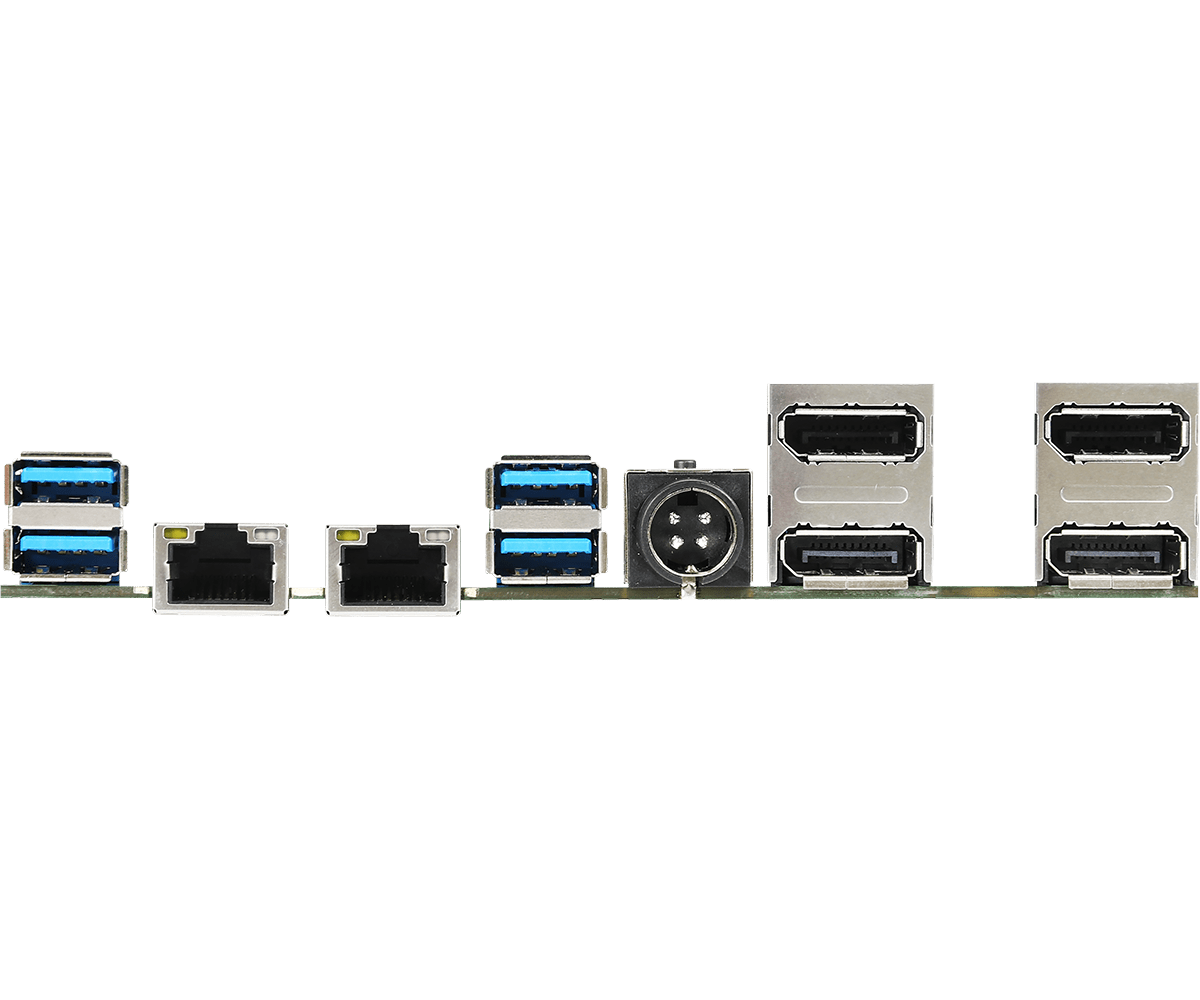

Rear I/O

DisplayPort 4 x DP 1.2 (for VGA card)
Ethernet 2 x 1 Gigabit LAN
USB 4 x USB 3.0
DC Jack 1

Internal Connector

USB 2 x USB 2.0 (1 x 2.54 pitch header)
COM 2 x COM (RS-232)
TPM TPM Header

Storage

M.2 1 x M.2 (KEY M, 2242/2260/2280) with PCIe x 4 and SATA3
1 x M.2 (KEY M, 2242/2260/2280) with SATA or PCIe x 4
SATA 2 x SATA3.0 (6.0 Gb/s)
RAID Intel® SATA RAID 0/1/5/10

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR 19V DC-In Jack (220W for Quadro P5000, GTX1060/1070, 270W for GTX1080)
Power On - AT/ATX Supported
- AT : Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready

Environment

Operating Temp 0ºC ~ 60ºC
Storage Temp -40ºC – 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

Accessories

Bulk Package 2 x SCREW FOR WIFI CARD (13G020305011AK)
2 x COM Cable (14G000000340AK)
2 x SATA Data/Power Cable (14G000104502AK)

规格更改时恕不预先通知。品牌和产品名称归各自公司所有。不保证任何配置与产品实物规格相同。

支援下载

操作系统:

说明 操作系统 日期 下载
说明 ASRock 3TB+ Unlocker utility ver:1.1.1 操作系统 Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-08 下载
说明 INF driver ver:10.1.1.14 操作系统 Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-08 下载
说明 Intel USB 3.0 Adaptation driver ver:1.0.1.45 操作系统 Win 8.1 x 64 Date 2020-05-08 下载
说明 Intel Rapid Storage Technology driver and utility ver:14.6.0.1029 操作系统 Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-08 下载
说明 VGA driver ver:21.20.16.4541 操作系统 Win 7 Date 2020-05-08 下载
说明 COM Port driver ver:1.0.2011.1109 操作系统 Win 8.1 x 64 , Win 8 x 64 , Win 7 x 64 , Win 7 Date 2020-05-08 下载
说明 Intel Management Engine driver ver:11.6.0.1126 操作系统 Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-08 下载
说明 VGA driver ver:21.20.16.4542 操作系统 Win 10 x 64 , Win 8.1 x 64 , Win 8 x 64 , Win 7 x 64 Date 2020-05-08 下载
说明 SATA Floppy Image ver:14.6.0.1029 操作系统 Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-08 下载
说明 Intel Lan driver ver:22.6 操作系统 Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-08 下载
说明 Intel USB 3.0 driver ver:4.0.2.42 操作系统 Win 7 x 64 , Win 7 Date 2020-05-08 下载
说明 Realtek high definition audio driver ver:8363_FF00 操作系统 Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-08 下载
版本 更新方式 / 如何更新 说明 日期 下载
版本 1.10 更新方式 / 如何更新 BIOS 说明 1. Update Intel Microcode
2. Update Intel ME version
日期 2020-09-15 下载
版本 1.10 更新方式 / 如何更新 DOS 说明 1. Update Intel Microcode
2. Update Intel ME version
日期 2020-09-15 下载
版本 1.10 更新方式 / 如何更新 Windows 说明 1. Update Intel Microcode
2. Update Intel ME version
日期 2020-09-15 下载
版本 1.00 更新方式 / 如何更新 BIOS 说明 First released. 日期 2020-05-06 下载
版本 1.00 更新方式 / 如何更新 DOS 说明 First released. 日期 2020-05-06 下载
版本 1.00 更新方式 / 如何更新 Windows 说明 First released. 日期 2020-05-06 下载

档案格式为 PDF,如果您没有安装 Adob​​e Acrobat Reader,请至 Adobe下载。

说明 语言 日期 下载
说明 RAID Installation Guide 语言 English 日期 2020-11-03 下载
说明 User Manual 语言 English 日期 2020-05-06 下载
说明 Jumpers and headers setting guide 语言 English 日期 2020-05-06 下载
