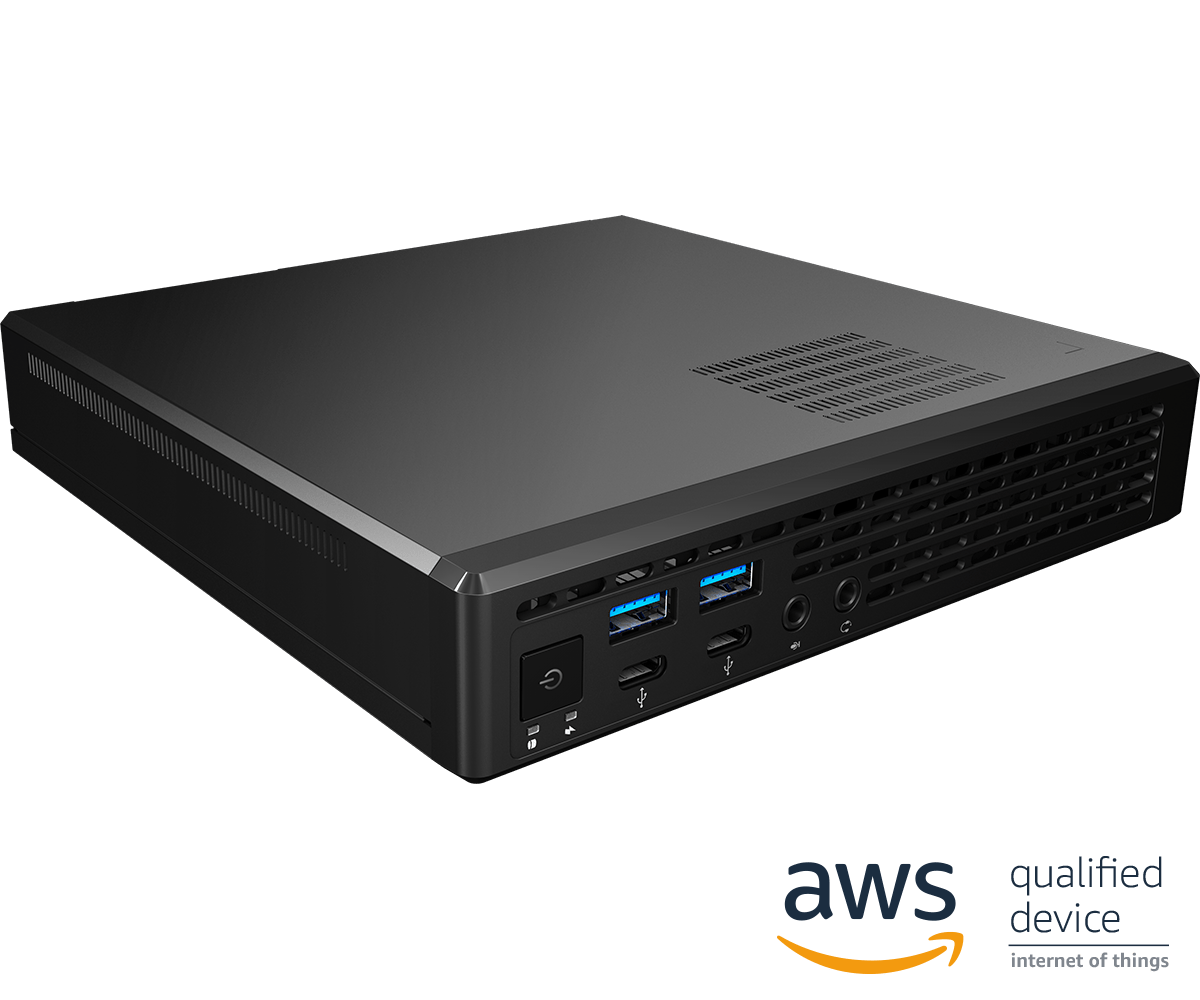

Jupiter-H310 Faned Embedded BOX PC

  • Intel® 8th Gen LGA1151 Processors, up to 65W
  • 2 x 260-pin SO-DIMM up to 32GB DDR4 2133 MHz (16GB per DIMM)
  • 2 x USB 3.1 Gen1, 2 x USB 3.1 Gen1(Type C), 4 x USB 2.0,
  • 1 x M.2 Key E, 1 x M.2 Key M, 1 x COM, 1 x SATA3‧1 x Realtek 1 Gigabit LAN
  • Supports dual display, 1 x HDMI 2.0, 1 x DP 1.4a, 1 x VGA
  • 1 x 19V/90W AC-DC power brick adapter
  • 178 x 178 x 34mm
  • Faned Barebone
产品型录
产品规格

Form Factor

Dimensions 178 x 178 x 34mm

Processor System

CPU Intel® 8th Gen (Coffee Lake) Core™ Processors up to 65W
Chipset Intel® H310
Socket LGA1151
BIOS AMI SPI 128 Mbit

Memory

Technology Dual Channel DDR4 2133 MHz
Capacity 32 GB (16 GB per DIMM)
Socket 2 x 260-pin SO-DIMM

Graphics

Controller Intel® HD Graphics
HDMI HDMI 2.0
Max resolution up to 4096x2160@30Hz
DisplayPort DisplayPort 1.2a
Max resolution up to 4096x2160@60Hz
VGA Max resolution up to 1920x1200@60Hz
MultiDisplay Dual Display

Expansion Slot

M.2 1 x M.2 (KEY E, 2230) with PCIe x1 and USB 2.0 for Wireless

Audio

Interface Realtek ALC233, High Definition Audio

Ethernet

Controller/ Speed 1 x Realtek RTL8111GN with 10/100/1000 Mbps
Connector 1 x RJ-45

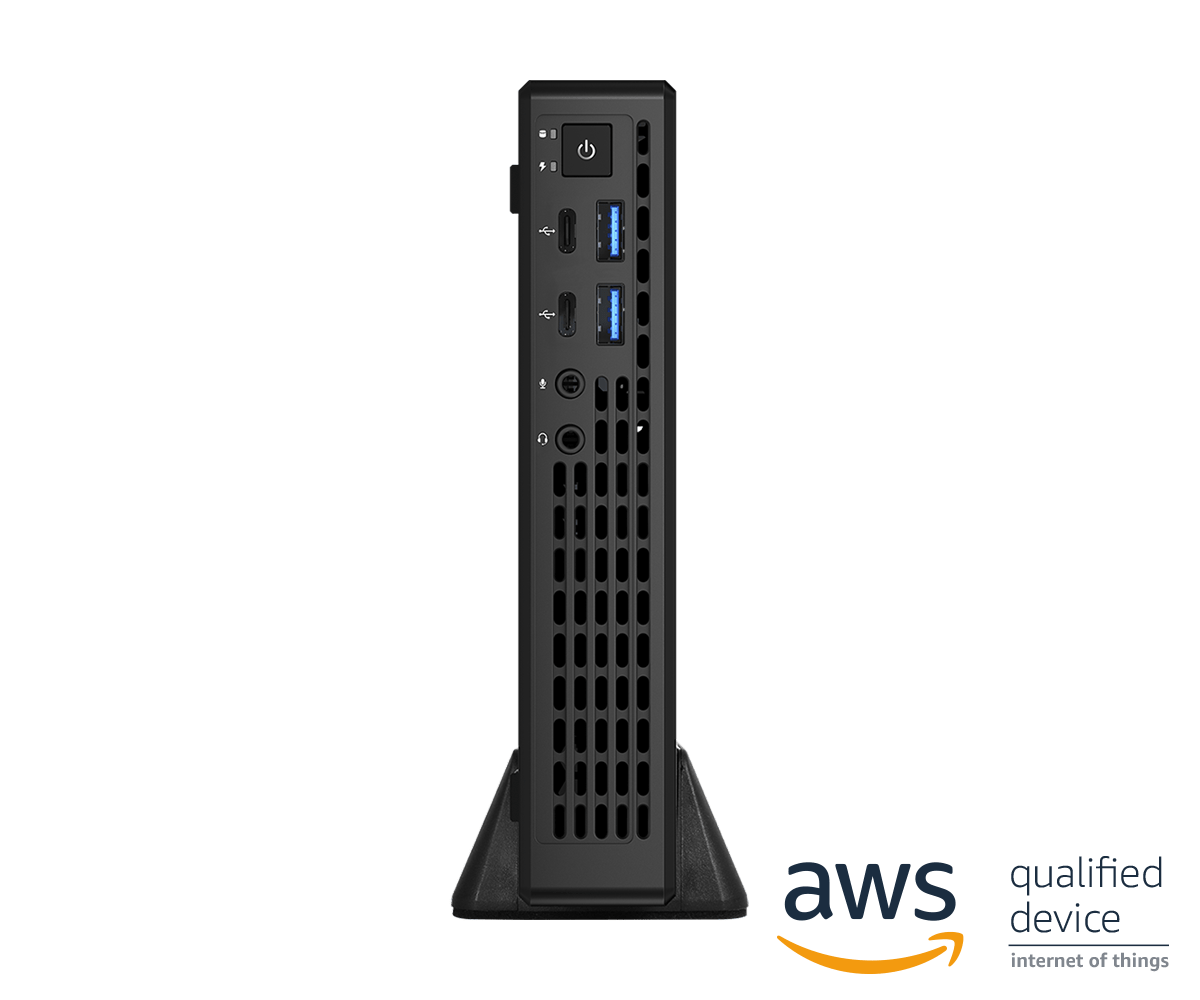

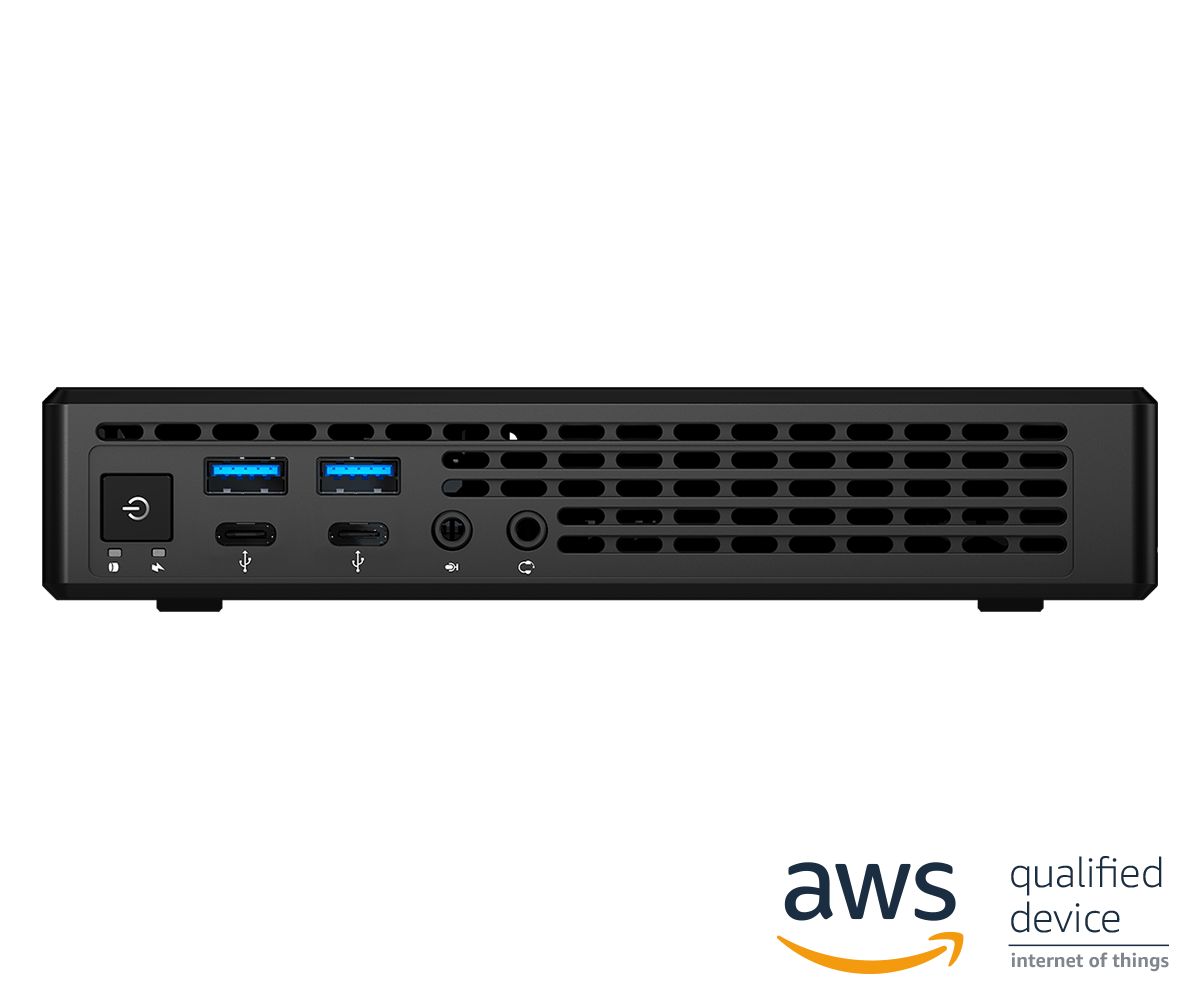

Front I/O

USB 2 x USB 3.1 (Gen1),
2 x USB 3.1 (Gen1, Type C)

Rear I/O

HDMI 1 x HDMI 2.0
DisplayPort 1 x DP 1.2a
VGA 1
Ethernet 1 x Realtek 1 Gigabit LAN
USB 4 x USB 2.0
COM 1 x COM (RS-232)
DC Jack 1

Storage

M.2 1 x Key M (2280) with PCIe x4 and SATA3 for SSD
SATA 1 x SATA3 (6.0Gb/s)

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR 1 x 19V/90W AC-DC power brick adapter
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 50ºC
Storage Temp -40° C – 85° C
Operating Humidity 10% ~ 90%
Storage Humidity 10% ~ 90%

Mechanical

Construction Front Panel - Plastic / Base - Metal
Mounting VESA mounting bracket
Dimensions (W x H x D) 178 x 178 x 34mm
Weight Net Weight:1.0Kg

Others

OS Support Windows 10
Certifications CE, FCC Class A
Packing List 1 x 19/90W Power Adapter
1 x Screw Package
1 x Product DVD
1 x VESA mounting bracket

规格更改时恕不预先通知。品牌和产品名称归各自公司所有。不保证任何配置与产品实物规格相同。

支援下载

操作系统:

说明 操作系统 日期 下载
说明 Restart to UEFI ver:1.0.6.1 操作系统 Win 10 x 64 Date 2020-05-08 下载
说明 Intel Wireless Lan driver ver:20.60.0.7 操作系统 Win 10 x 64 Date 2020-05-08 下载
说明 Intel Rapid Storage Technology driver and utility ver:16.5.0.1027_PV 操作系统 Win 10 x 64 Date 2020-05-08 下载
说明 SATA Floppy Image ver:16.5.0.1027_PV 操作系统 Win 10 x 64 Date 2020-05-08 下载
说明 Realtek high definition audio driver ver:8470_UAD_WHQL_ASR 操作系统 Win 10 x 64 Date 2020-05-08 下载
说明 Intel Management Engine driver ver:12.0.3.1091_SW_Version3 操作系统 Win 10 x 64 Date 2020-05-08 下载
说明 INF driver ver:10.1.17695.8086-public 操作系统 Win 10 x 64 Date 2020-05-08 下载
说明 Realtek Lan driver ver:10028 操作系统 Win 10 x 64 Date 2020-05-08 下载
说明 Intel Bluetooth driver ver:20.60.0.4_PV 操作系统 Win 10 x 64 Date 2020-05-08 下载
说明 VGA driver ver:100.6169_PV 操作系统 Win 10 x 64 Date 2020-05-08 下载
版本 更新方式 / 如何更新 说明 日期 下载
版本 1.30 更新方式 / 如何更新 Instant Flash 说明 Add ME Update item 日期 2020-07-17 下载
版本 1.20 更新方式 / 如何更新 Instant Flash 说明 Update Intel Microcode 日期 2020-07-17 下载
版本 1.10 更新方式 / 如何更新 Instant Flash 说明 First release. 日期 2020-07-17 下载

档案格式为 PDF,如果您没有安装 Adob​​e Acrobat Reader,请至 Adobe下载。

说明 语言 日期 下载
说明 Quick Installation Guide 语言 Multi-Language 日期 2020-05-06 下载
说明 User Manual 语言 English 日期 2020-05-06 下载
说明 日期 下载
下载 CPU Support List 日期 2020-08-28 下载
