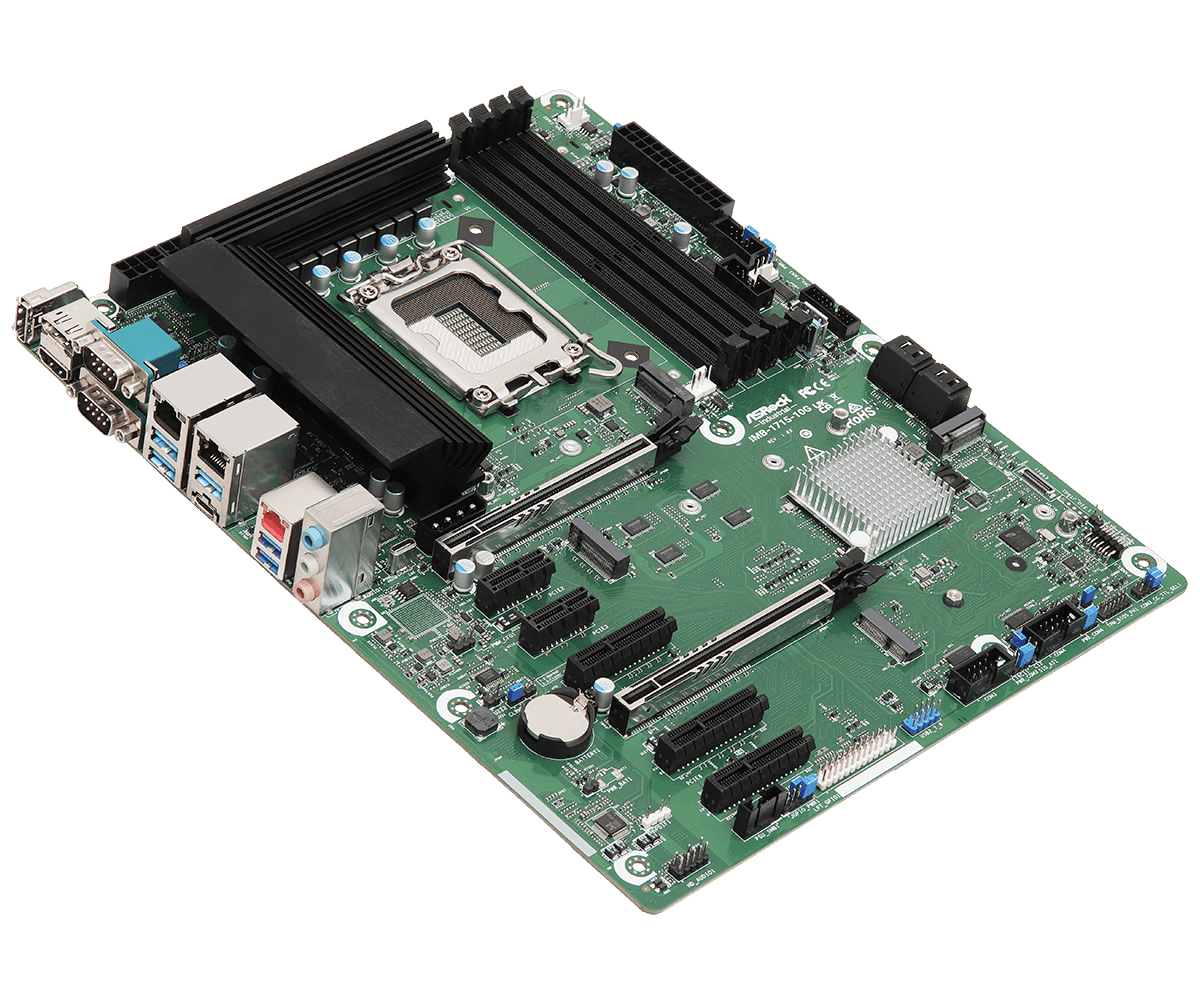

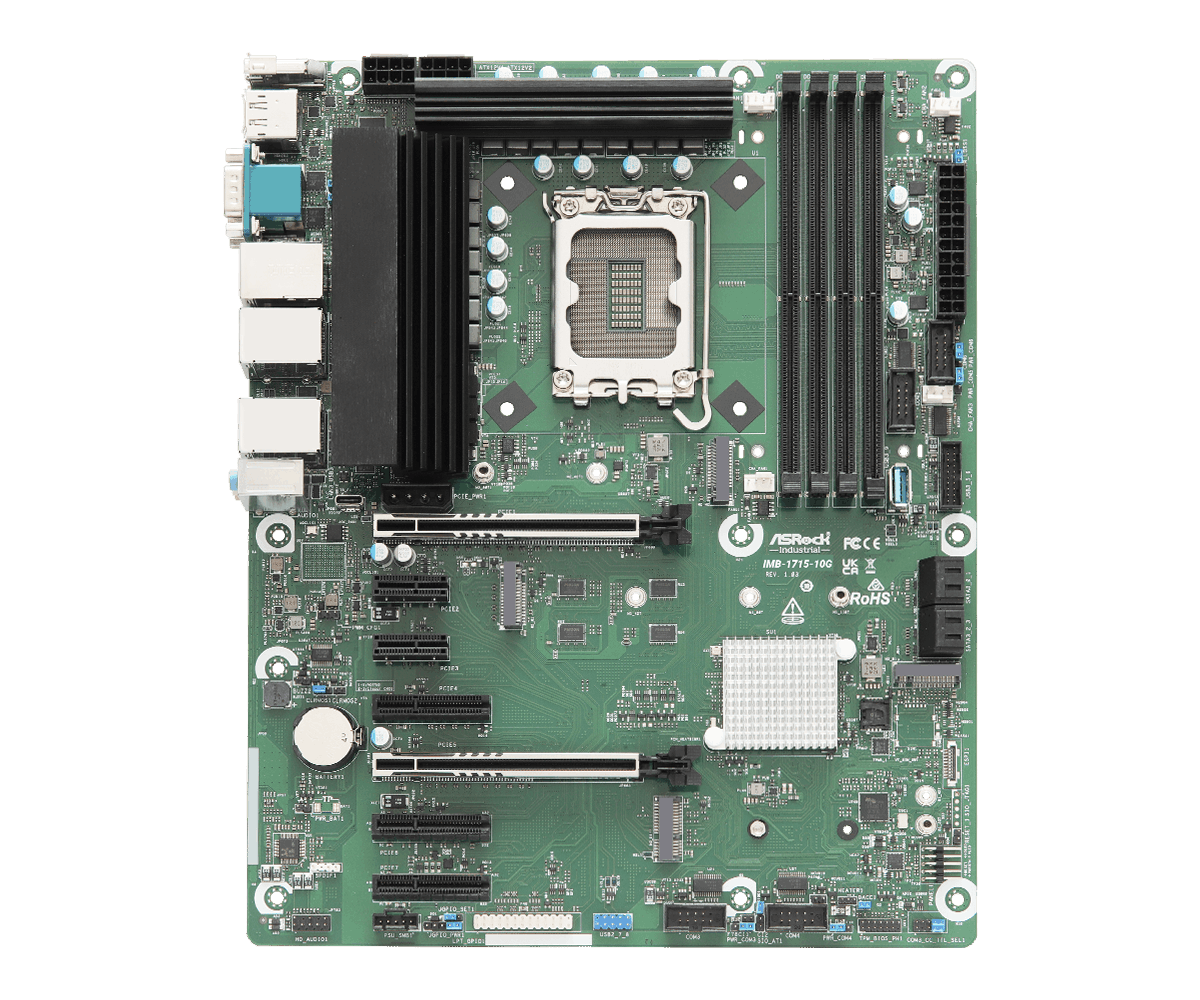

IMB-X1715-10G ATX Motherboard

Intel® Core™ Ultra processors (Arrow Lake-S) with W880 chipset
4 x 288-pin ECC/non-ECC CU-DIMM DDR5 6400 MHz, U-DIMM DDR5 5600 MHz , up to 256GB (64GB per DIMM)
1 x PCIe x16 (Gen5), 1 x PCIe x8 (Gen5), 3 x PCIe x4 (Gen4), 2 x PCIe x1 (Gen4)
2 x USB4/Thunderbolt™4, 6 x USB 3.2 Gen2, 2 x USB 3.2 Gen1, 2 x USB2.0
1 x M.2 Key B, 1 x M.2 Key E, 2 x M.2 Key M, 6 x COM, 4 x SATA3
2 x Intel 1 Gigabit LAN, 1 x Marvell 10 Gigabit LAN
Supports Quad display, 2 x HDMI 2.1 TMDS, 2 x DP 2.1 (2 from Type-C), 1 x DP 1.4a
TPM 2.0 onboard IC
Supports Intel® vPro, VMD RAID 0/1/5/10
ATX PWR (8+8+24 Pin)

产品型录

产品规格

Processor System

CPU	Intel® Core™ processors (Arrow Lake-S), up to 125W
Chipset	Intel® W880
Socket	LGA1851
BIOS	AMI SPI 256 Mbit

Form Factor

Dimensions	ATX (12-in x 9.6-in x 1.81-in, 30.5 cm x 24.4 cmx 4.61 cm)

Memory

Technology	Dual Channel ECC/non-ECC DDR5 6400/5600 MHz 1DPC 6400MHz (Ultra 9/7/5K), 5600MHz (Ultra 5 non-K) / 2DPC 1R 5600MHz / 2DPC 2R 4400MHz Only CU-DIMM can support up to 6400MHz
Capacity	256GB (64GB per DIMM)
Socket	4 x 288-pin Long-DIMM

Graphics

Controller	Intel® Xe LPG Graphics
HDMI	HDMI 2.1 TMDS Max resolution up to 7680x4320@60Hz
DisplayPort	DisplayPort 2.1/1.4a, DP++ Max resolution up to 4096x2160@60Hz
MultiDisplay	Quad display (Included 2 output from Type-C)

Expansion Slot

PCIe	2 x PCIe Gen5 Slots (PCIE1/PCIE5:single at x16(PCIE1); dual at x8 (PCIE1) / x8 (PCIE5)) (PCIE1: Support Riser card x8/x8) 3 x PCIe x4 (Gen4) 2 x PCIe x1 (Gen4) Supports ASRock Rack PAUL Card (IPMI function)
M.2	1 x M.2 (Key E, 2230) with PCIe Gen4 x1, USB 2.0 and CNVi for Wireless 1 x M.2 (Key B, 3042/3052) with PCIe Gen4 x1 , USB 2.0

Audio

Interface	Realtek ALC897, High Definition Audio. Line-in, Line-out, Mic-in

Ethernet

Controller/ Speed	LAN1: Intel® I219LM with 10/100/1000 Mbps, supports vPro LAN2: Intel® I210AT with 10/100/1000 Mbps LAN3: Marvell AQC113 with 10/100/1000/2500/5000/10000 Mbps
Connector	3 x RJ-45

Rear I/O

HDMI	2 x HDMI 2.1 TMDS
DisplayPort	1 x DP 1.4a++
Ethernet	2 x 1 Gigabit LAN
USB	5 x USB 3.2 Gen2 1 x USB4/Thunderbolt™4 (5V/3A, supports DP 2.1 display output) * For Thunderbolt support, please refer to support list.
Audio	3 (Mic-in, Line-in, Line-out)
COM	COM1, COM2 (RS-232/422/485)

Internal Connector

USB	2 x USB 3.2 Gen1 (1 x USB 3.2 header) 1 x USB 3.2 Gen2 vertical Con 2 x USB2.0 (1 x USB2 header) 1 x USB4/Thunderbolt™4 (5V/3A, supports DP 2.1 display output) * For Thunderbolt support, please refer to support list.
COM	COM3 (RS-232/TTL 5V/ccTalk, switch by Jumper setting) COM4, COM5, COM6 (RS-232)
Parallel	1 (shared with GPIO)
GPIO	8 x GPI, 8 x GPO (shared with LPT header)
Thunderbolt header	1

Security

TPM	TPM 2.0 onboard IC

Storage

M.2	1 x M.2 (Key M, 2242/2280/22110/25110) with PCIe Gen5 x4 for SSD 1 x M.2 (Key M, 2242/2280) with PCIe Gen4 x4 for SSD
SATA	4 x SATA3 (6Gb/s)
RAID	Intel® VMD RAID 0/1/5/10 **supported by identical interface (PCIe or SATA) PCIe interface: M.2 Key B + M.2 Key M SATA interface: SATA port

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 segments, 0,1,2…255sec

Power Requirements

Input PWR	ATX PWR (24+8+8-pin)
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	-20ºC ~ 70ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90% (non-condensing)
Storage Humidity	5% ~ 90% (non-condensing)

Accessories

Gift Package	2 x SATA Data Cable (14G00010107DAK) 1 x I/O Shield (13G02P077000AK) 4 x SCREW M3*2.5 (13G02P072010AK)
Bulk Package	1 x I/O Shield (13G02P077000AK) 4 x SCREW M3*2.5 (13G02P072010AK)
Option	2 x DIMM BRACKET (13G03P003000AI) *Please contact regional Sales for this inquiry

规格更改时恕不预先通知。品牌和产品名称归各自公司所有。不保证任何配置与产品实物规格相同。

支援下载

操作系统:

说明	资讯	操作系统	日期	下载
说明	[Beta] Marvell Lan driver ver:v3.1.7	资讯	Size: 769Kib Version: 3.1.7 SHA1: 1666B8BD5FEF7D1FFA89B887270217DB0D88E7E0 Filename:AQC113_LAN (v3.1.7).zip Release Note	操作系统	Win 11 x 64 , Win 10 x 64	Date	2025-03-19	下载	全球中国
说明	[Beta] VGA driver ver: 32.0.101.5866	资讯	Size: 1052 MiB Version: 32.0.101.5866 SHA1: 9EDEFD665414356B944B558462680A47B3983DAF Filename:VGA(v32.0.101.5866)	操作系统	Win 11 x 64 , Win 10 x 64	Date	2025-03-19	下载	全球中国
说明	[Beta] Intel Thunderbolt driver ver1.41.1412.0	资讯	Size: 32 MiB Version: 1.41.1412.0 SHA1: 213581000BFA753736D472EEAAB8F3CBB9623E2E Filename:Intel Thunderbolt driver ver1.41.1412.0	操作系统	Win 11 x 64 , Win 10 x 64	Date	2025-03-19	下载	全球中国
说明	[Beta] Intel Management Engine driver ver:2425.6.26.0	资讯	Size: 712 MiB Version: 2425.6.26.0 SHA1: 44EA58797D8E925AE724E5DA7F8E183E3BBFC150 Filename:ME(v2425.6.26.0_CORP)	操作系统	Win 11 x 64 , Win 10 x 64	Date	2025-03-19	下载	全球中国
说明	[Beta] SST driver ver:20.40.11112.16	资讯	**Install after VGA driver Size: 236 Mib Version: 20.40.11112.16 SHA1: 0184A3F7744FFF14DF0170229AD9CE706C8A2A7A Filename: Intel_SST(v20.40.11112.16).zip Release Note	操作系统	Win 10 x 64	Date	2025-03-17	下载	全球中国
说明	[Beta] Intel I210 Lan driver ver:27.6	资讯	Size: 70Mib Version:27.6 SHA1: F0531582526741A08DED9C2F1505B257DBBBCF85 Filename:Intel_LAN(v27.6).zip Release Notec	操作系统	Win 11 x 64 , Win 10 x 64	Date	2025-03-17	下载	全球中国
说明	[Beta] PMT ver: 3.1.2.6c	资讯	Size: 2394Kib Version: 3.1.2.6 SHA1: CB29A584170D1E8452D9E963A54D486BD1A49A27 Filename: PMT(v3.1.2.6).zip Release Note	操作系统	Win 11 x 64 , Win 10 x 64	Date	2025-03-17	下载	全球中国
说明	[Beta] COM Port driver ver:240524	资讯	Size: 3116 KiB Version: 240524 SHA1: 9089FAD87FB0323CB2546A5F3204573B05134F8F Filename: COM(v240524).zip Release Note	操作系统	Win 11 x 64 , Win 10 x 64	Date	2025-03-17	下载	全球中国
说明	[Beta] NPU driver ver: 32.0.100.2540	资讯	Size: 242Mib Version: 32.0.100.2540 SHA1: B361075DE79DE5D4869227B5D4DCE90EC348CEEB Filename: npudrive(v32.0.100.2540).zip Release Note	操作系统	Win 11 x 64 , Win 10 x 64	Date	2025-03-17	下载	全球中国
说明	[Beta] Intel Serial IO driver ver:30.100.2419.23	资讯	Size: 1877Kib Version: 30.100.2419.23 SHA1: 8B4028E04D3CA5E97C4AADAC213C1FB5216C1CDA Filename: SerialIO(v30.100.2419.23).zip Release Note	操作系统	Win 11 x 64 , Win 10 x 64	Date	2025-03-17	下载	全球中国
说明	[Beta] GNA ver: 3.5.0.1578	资讯	Size: 1235 KiB Version: 3.5.0.1578 SHA1: D1F1C2D63803811B4DA738ADB45F55410BA6A2B5 Filename: GNA(v3.5.0.1578).zip Release Note	操作系统	Win 11 x 64 , Win 10 x 64	Date	2025-03-17	下载	全球中国
说明	[Beta] Intel HID Event Filter ver: 2.2.2.6 PV	资讯	Size: 1172KiB Version: 2.2.2.6 PV SHA1: FEBD1B2BC042F43A5EA01905B5D004F575D77C08 Filename: Intel HID Event Filter ver(v2.2.2.6 PV).zip Release Note	操作系统	Win 11 x 64 , Win 10 x 64	Date	2025-03-17	下载	全球中国
说明	[Beta] Intel Rapid Storage Technology driver and utility ver:20.1.0.1015.1	资讯	Size: 7107Kib Version: 20.1.0.1015.1 SHA1: 7EDE04371C23BF0DDAE0F373164375E788D69DD0 Filename: RapidStorage(v20.1.0.1015.1).zip Release Note	操作系统	Win 11 x 64 , Win 10 x 64	Date	2025-03-17	下载	全球中国
说明	[Beta] Intel WLAN Driver ver:23.70.0.6G	资讯	Size: 79 MiB Version: 23.70.0.6G SHA1: D4E76B77DCA32D80CE1996E35F60F8830659D622 Filename: Intel_WLAN(v23.70.0.6G).zip Release Note	操作系统	Win 11 x 64 , Win 10 x 64	Date	2025-03-17	下载	全球中国
说明	[Beta] Intel I219 Lan driver ver:12.19.2.50	资讯	Size: 1387Kib Version: 12.19.2.50 SHA1: 225A63AD0563C3EF64C17D6323318D595BB315B5 Filename: Intel_LAN(v12.19.2.50).zip Release Note	操作系统	Win 11 x 64 , Win 10 x 64	Date	2025-03-17	下载	全球中国
说明	[Beta] Bluetooth driver ver:23.70.0.2G	资讯	Size: 49 MiB Version: 23.70.0.2G SHA1: 977BF8B6C8810A7F7EF7D47854702D4B3CAEC33F Filename: Intel_Bluetooth(v23.70.0.2G).zip Release Note	操作系统	Win 11 x 64 , Win 10 x 64	Date	2025-03-17	下载	全球中国
说明	[Beta] INF driver ver:10.1.19913.8607-Public-Client	资讯	Size: 7218 KiB Version:INF(v10.1.19913.8607-Public-Client) SHA1:BC21194471FA608F4951090DCFD1DADD6CE0926C Filename:INF(v10.1.19913.8607-Public-Client).zip Release Note	操作系统	Win 11 x 64 , Win 10 x 64	Date	2025-03-17	下载	全球中国
说明	[Beta] HD Audio Driver and Application ver:9757.1	资讯	**Install after SST driver Size: 49Mib Version: 9757.1 SHA1: 30FC5F5BCF2A4B410A318DABB19CB03ED1B1B337 Filename: Realtek_Audio(v9757.1).zip Release Note	操作系统	Win 11 x 64 , Win 10 x 64	Date	2025-03-17	下载	全球中国

版本	更新方式 / 如何更新	说明	资讯	日期	下载
版本	1.40	更新方式 / 如何更新	BIOS	说明	Optimize smart fan control settings	资讯	Size: 11 MiB SHA1: 68BF6D73BDE04A9D29F5A4004CB147C032AA4300	日期	2025-10-30	下载	全球中国
版本	1.40	更新方式 / 如何更新	Windows	说明	Optimize smart fan control settings	资讯	Size: 12 MiB SHA1: 4D67C4450A3D389810460C3045C7FFAD1CEE06CD	日期	2025-10-30	下载	全球中国
版本	1.20	更新方式 / 如何更新	BIOS	说明	Enhance system compatibility	资讯	Size: 11 MiB SHA1: 76FA45FDC7AD6567DCAD6FDFB10089860B9444DD	日期	2025-08-08	下载	全球中国
版本	1.20	更新方式 / 如何更新	Windows	说明	Enhance system compatibility	资讯	Size: 12 MiB SHA1: B73D80E8DF1E2355F57042E9A7DA76C9C35F29EC	日期	2025-08-08	下载	全球中国
版本	1.00	更新方式 / 如何更新	BIOS	说明	First release	资讯	Size: 11 MiB SHA1: 3BD8F0C6D20ECB984E36165E48CC7A8E7CBA5C8E	日期	2025-06-27	下载	全球中国
版本	1.00	更新方式 / 如何更新	Windows	说明	First release	资讯	Size: 12 MiB SHA1: 4A096F7BC2052D02CC0736A6E4DC1A2A92C335ED	日期	2025-06-27	下载	全球中国

档案格式为 PDF，如果您没有安装 Adobe Acrobat Reader，请至 Adobe下载。

说明	语言	日期	下载
说明	User Manual	语言	English	日期	2025-09-19	下载	全球中国
说明	Jumpers and headers setting guide	语言	English	日期	2025-06-26	下载	全球中国
