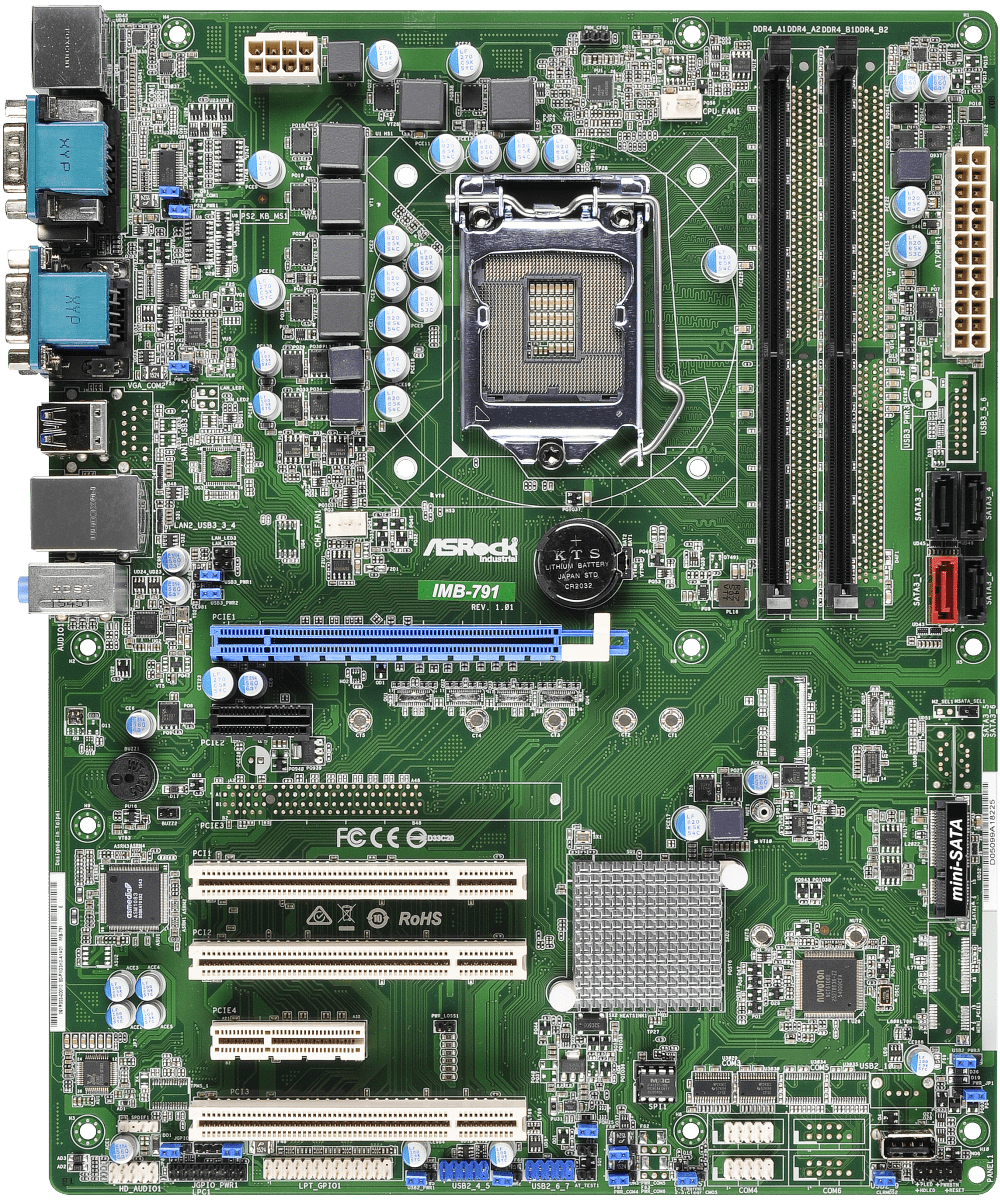

IMB-791 ATX Motherboard

  • Supports Intel® 7th / 6th Gen (Kabylake-S / Skylake-S) Core™ Processors (Socket 1151)
  • Supports Dual Channel DDR4 2133, up to 32GB
  • 1 x VGA, 2 x Displayport
  • 4 xUSB 3.0, 5 x USB 2.0, 4 x SATA3
  • 1 x PCIe x16, 1 x PCIe x1, 3 x PCI, 1 x PCIe x4
  • 1 x mSATA
  • 1 x Intel LAN
  • ATX PWR Con (24+8-pin)
产品型录
产品规格

Form Factor

Dimensions ATX (12-in x 9.6-in, 30.5 cm x 24.4 cm)

Processor System

CPU Intel® 7th / 6th Gen (Kabylake-S / Skylake-S) Core™ Processors, up to 65W
Chipset Intel® H110
Socket LGA1151
BIOS AMI SPI 128 Mbit

Memory

Technology Dual Channel DDR4 2133 MHz
Capacity 32GB
Socket 4 x Long-DIMM

Graphics

Controller Intel® Gen9 Graphics DX 11 / 12, OGL4.3/4.4
DisplayPort Supports max resolution up to 4096 x 2160@60Hz
VGA Supports max resolution up to 1920 x 1200
MultiDisplay Dual Display

Expansion Slot

PCIe 1 x PCIe x16, 1 x PCIe x1, 1 x PCIe x4
PCI 3

Audio

Interface Realtek ALC887/ALC897, High Definition Audio. Line-out,Mic-in,Line-in

Ethernet

Controller/ Speed Intel® I219V with 10/100/1000 Mbps
Connector 2 x RJ-45

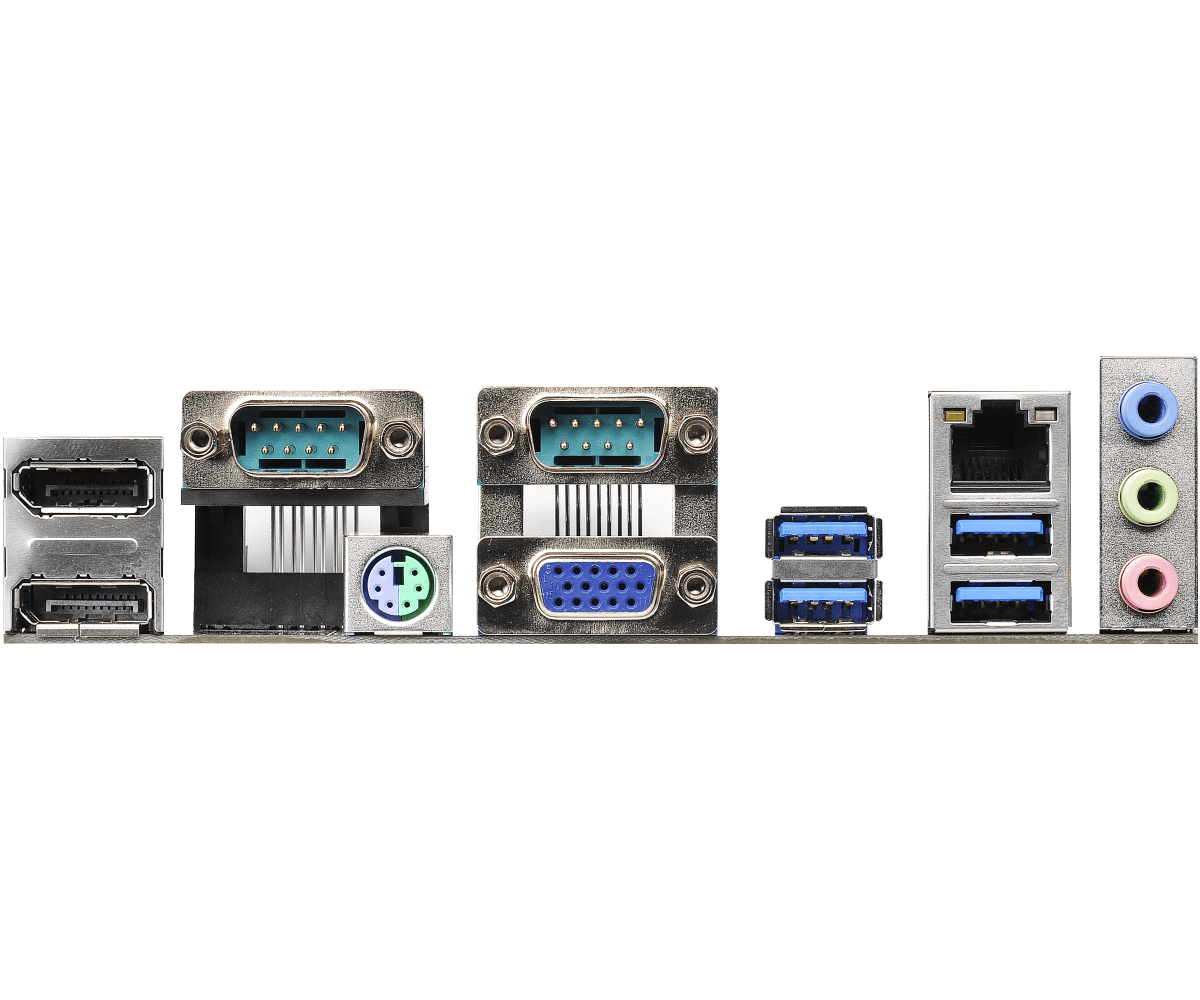

Rear I/O

DisplayPort 2
VGA 1
Ethernet 1
USB 4 x USB 3.0
Audio 3 (Mic-in, Line-in, Line-out)
COM 1 x COM (RS-232/422/485), 1 x COM (RS-232)
PS2 1 x PS/2 combo

Internal Connector

USB 5 x USB 2.0 (2 x 2.54 pitch header,1 x USB 2.0 vertical Type-A)
COM 2 x COM (RS-232)
Parallel 1 (shared with GPIO)
GPIO 8 x GPI, 8 x GPO (shared with LPT header)
TPM 1 x Header

Storage

mSATA 1 x Full size with shared SATA3 and USB2.0
SATA 4 (SATA1 shared with mSATA)

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 segments, 0,1,2…255sec

Power Requirements

Input PWR ATX PWR (24+8-pin)
Power On AT/ATX Supported
AT : Directly PWR on as power input ready
ATX : Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 60ºC
Storage Temp -40° C – 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

Accessories

Gift Package 1 x I/O Shield (13G020341000AK)
2 x SATA Data Cable (14G00010107DAK)
Bulk Package 1 x I/O Shield (13G020341000AK)

规格更改时恕不预先通知。品牌和产品名称归各自公司所有。不保证任何配置与产品实物规格相同。

支援下载

操作系统:

说明 操作系统 日期 下载
说明 INF driver ver:10.1.1.14 操作系统 Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2021-11-01 下载
说明 Adobe Reader ver:9.0 操作系统 Win 7 x 64 , Win 7 Date 2021-04-23 下载
说明 VGA driver ver:25.20.100.6519 操作系统 Win 10 x 64 Date 2021-04-23 下载
说明 VGA driver ver:15.40.10.4300 操作系统 Win 7 Date 2021-04-23 下载
说明 Microsoft .NET Framework 4.5 操作系统 Win 7 x 64 , Win 7 Date 2021-04-23 下载
说明 Intel Management Engine driver ver:v11.8.65.3590 操作系统 Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 Date 2021-04-23 下载
说明 ASRock 3TB+ Unlocker utility ver:1.1.1 操作系统 Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2021-04-23 下载
说明 VGA driver ver:21.20.16.4542 操作系统 Win 8.1 x 64 , Win 8 x 64 , Win 7 x 64 Date 2021-04-23 下载
说明 Intel USB 3.0 driver ver:4.0.2.42 操作系统 Win 7 x 64 , Win 7 Date 2021-04-23 下载
说明 Intel Rapid Storage Technology driver and utility ver:14.6.0.1029 操作系统 Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2021-04-23 下载
说明 SATA Floppy Image ver:14.6.0.1029 操作系统 Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2021-04-23 下载
说明 COM Port driver ver:1.0.2011.1109 操作系统 Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2021-04-23 下载
说明 Intel Lan driver ver:23.2 操作系统 Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2021-04-23 下载
说明 Intel Management Engine driver ver:11.6.0.1126 操作系统 Win 7 x 64 , Win 7 Date 2021-04-23 下载
说明 Realtek high definition audio driver ver:9126.FF00 操作系统 Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2021-04-23 下载
版本 更新方式 / 如何更新 说明 日期 下载
版本 2.10 更新方式 / 如何更新 BIOS 说明 1. Update audio codec
2. Update Intel ME version
日期 2021-04-21 下载
版本 2.10 更新方式 / 如何更新 DOS 说明 1. Update audio codec
2. Update Intel ME version
日期 2021-04-21 下载
版本 2.10 更新方式 / 如何更新 Windows 说明 1. Update audio codec
2. Update Intel ME version
日期 2021-04-21 下载

档案格式为 PDF,如果您没有安装 Adob​​e Acrobat Reader,请至 Adobe下载。

说明 语言 日期 下载
说明 Jumpers and headers setting guide 语言 English 日期 2020-06-17 下载
说明 User Manual 语言 English 日期 2020-06-17 下载
说明 日期 下载
下载 CPU Support List 日期 2020-06-18 下载
