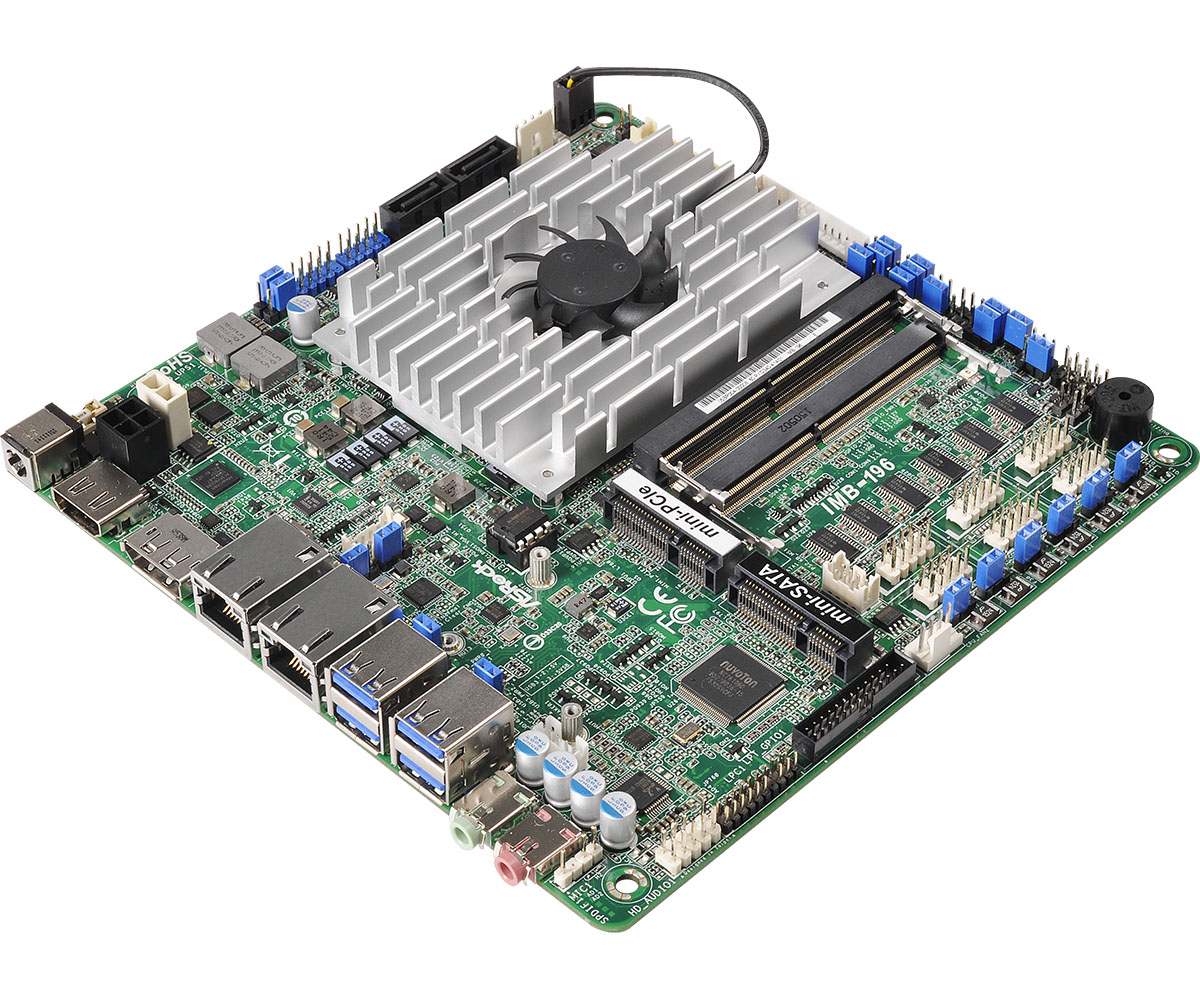

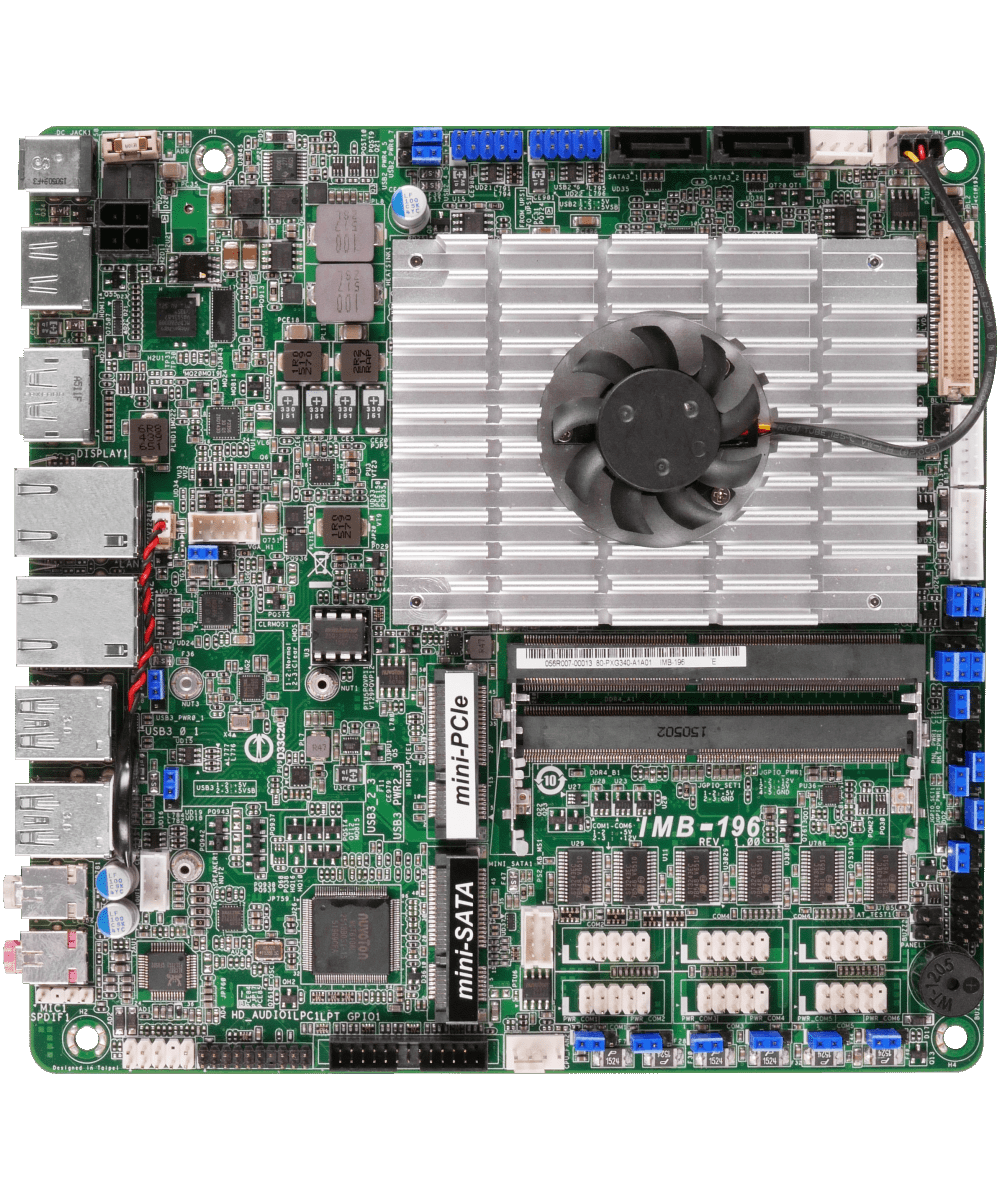

IMB-196 Mini-ITX Motherboard

Form Factor

Dimensions	Mini-ITX (6.7-in x 6.7-in)

Processor System

CPU	BGA1356 for Intel® Core i7 / i5 (Skylake-U)
BIOS	UEFI

Memory

Technology	Dual Channel DDR4 2133MHz
Capacity	32 GB
Socket	2 x SO-DIMM

Graphics

Controller	Intel® Gen9 Graphics DX 11 / 12, OGL4.3 / 4.4
HDMI	Supports HDMI 1.4a, Max. resolution 4096 x 2160@30Hz
LVDS	Supports max resolution up to 1920 x 1200@60Hz
eDP	Supports Max. resolution 4096 x 2160@60Hz
DisplayPort	Supports DP 1.2, Max. resolution 4096 x 2160@60Hz
VGA	Supports max resolution up to 1920 x 1200
MultiDisplay	Triple Display

Expansion Slot

mini-PCIe	1 x Full / Half size with PCIe x1 and USB 2.0

Ethernet

Controller/ Speed	1 x Intel® I219LM (vPro) with 10/100/1000 Mbps
Connector	2 x RJ-45

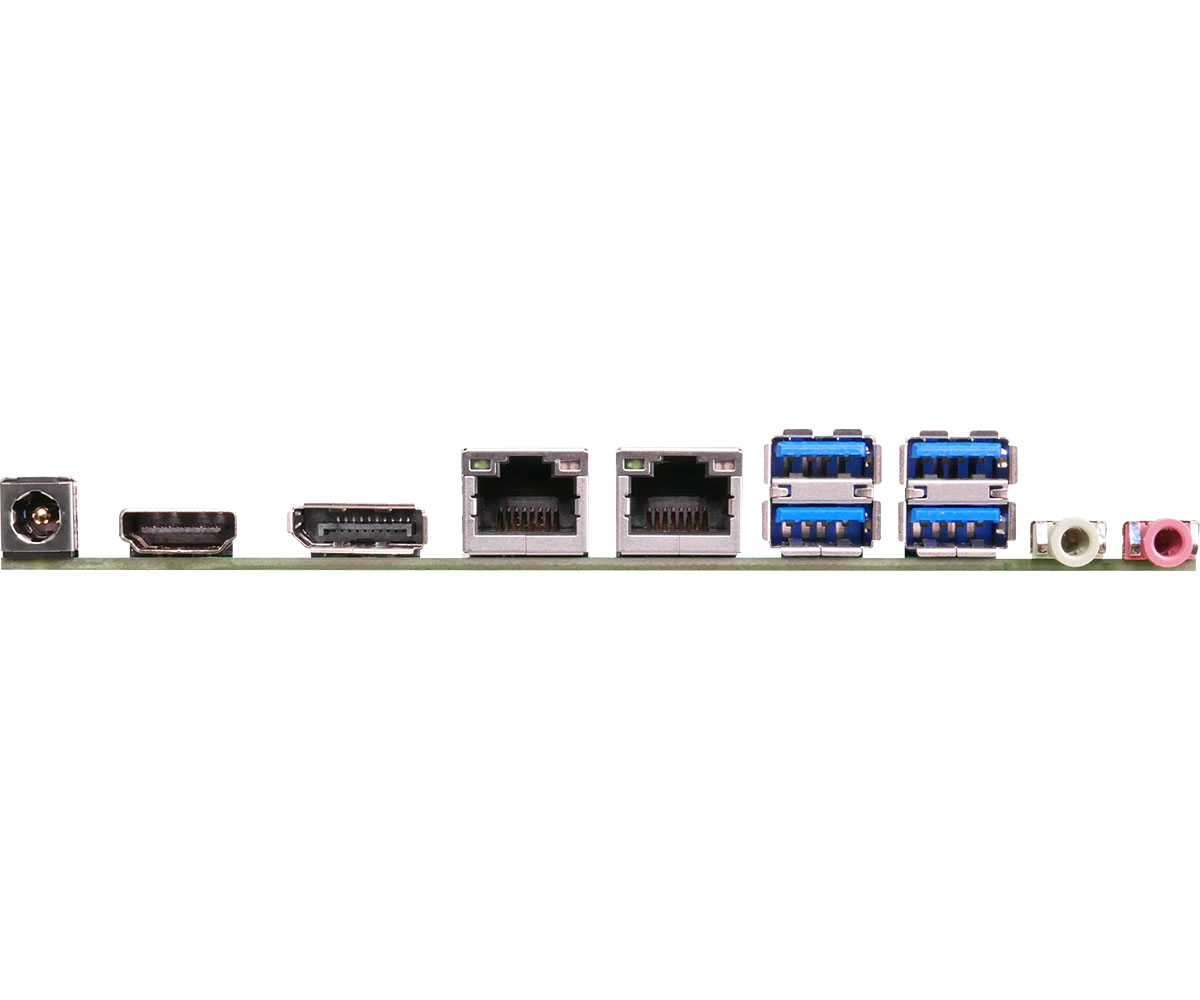

Rear I/O

HDMI	1
Ethernet	2
USB	4 x USB 3.0
Audio	2 (Mic-in, Line-out)
DisplayPort	1
DC Jack	1

Internal Connector

USB	4 x USB 2.0 (2 x 2.54 pitch header)
COM	6 x COM (COM1 and COM2 with RS-232/422/485)
LVDS	1
eDP	1
GPIO	8 x GPI, 8 x GPO
VGA	1
Parallel	1 (shared with GPIO)
SATA PWR Output	1
Speaker Header	1

Storage

SATA	2 x SATA3 (6.0Gb/s)
mSATA	1 x Full size with SATA3 (shared) and USB 2.0

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	+12V or +19V~+24V DC-In (DC Jack / 4-pin ATX PWR Con)
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Accessories

Gift Package	2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020256000AK) 1 x I/O Shield THIN (13G020256010AK) 2 x SATA Data Cable (14G00010107DAK) 1 x SATA Power Cable (14G000100410AK)
Bulk Package	2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020256000AK) 1 x I/O Shield THIN (13G020256010AK)
