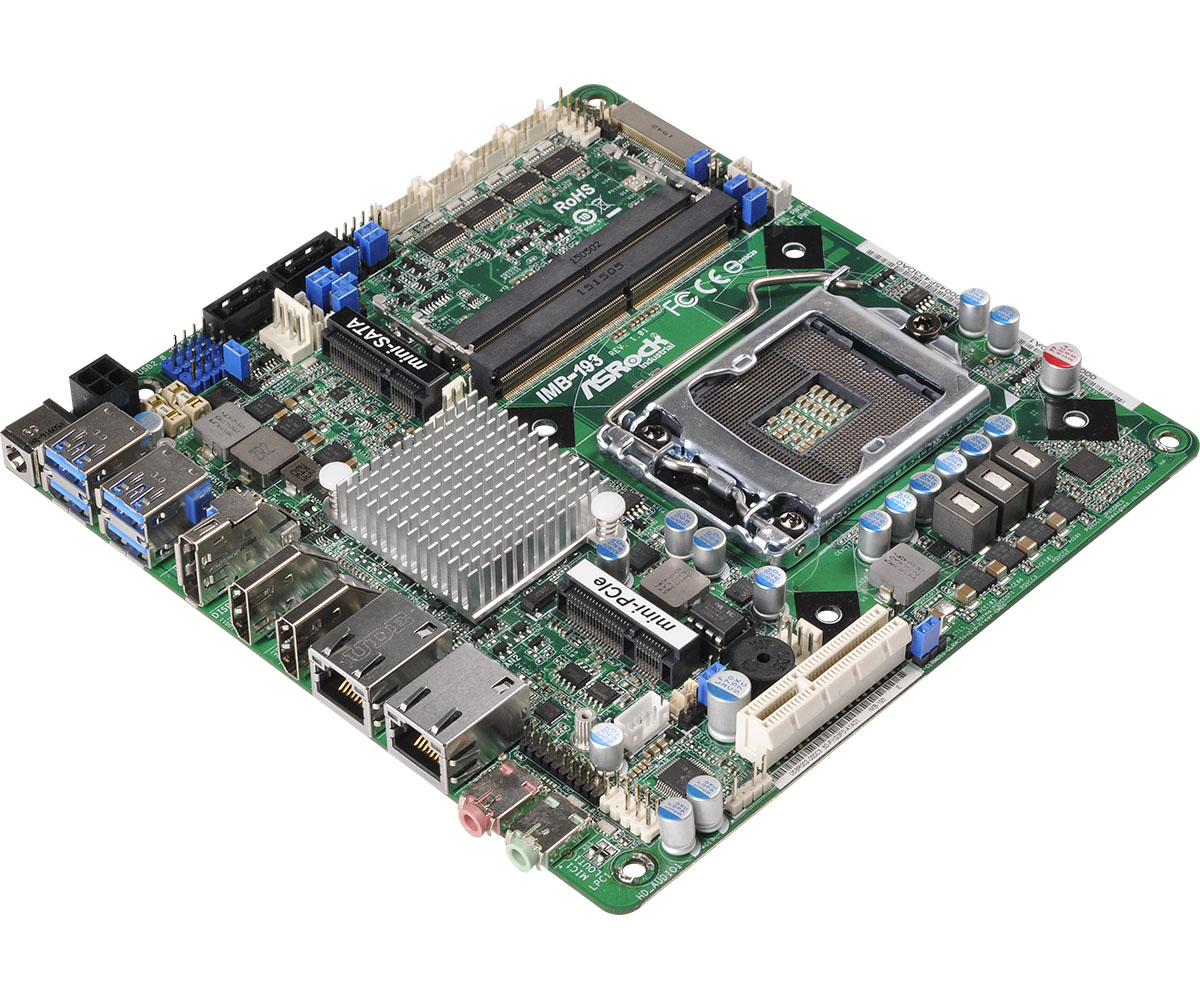

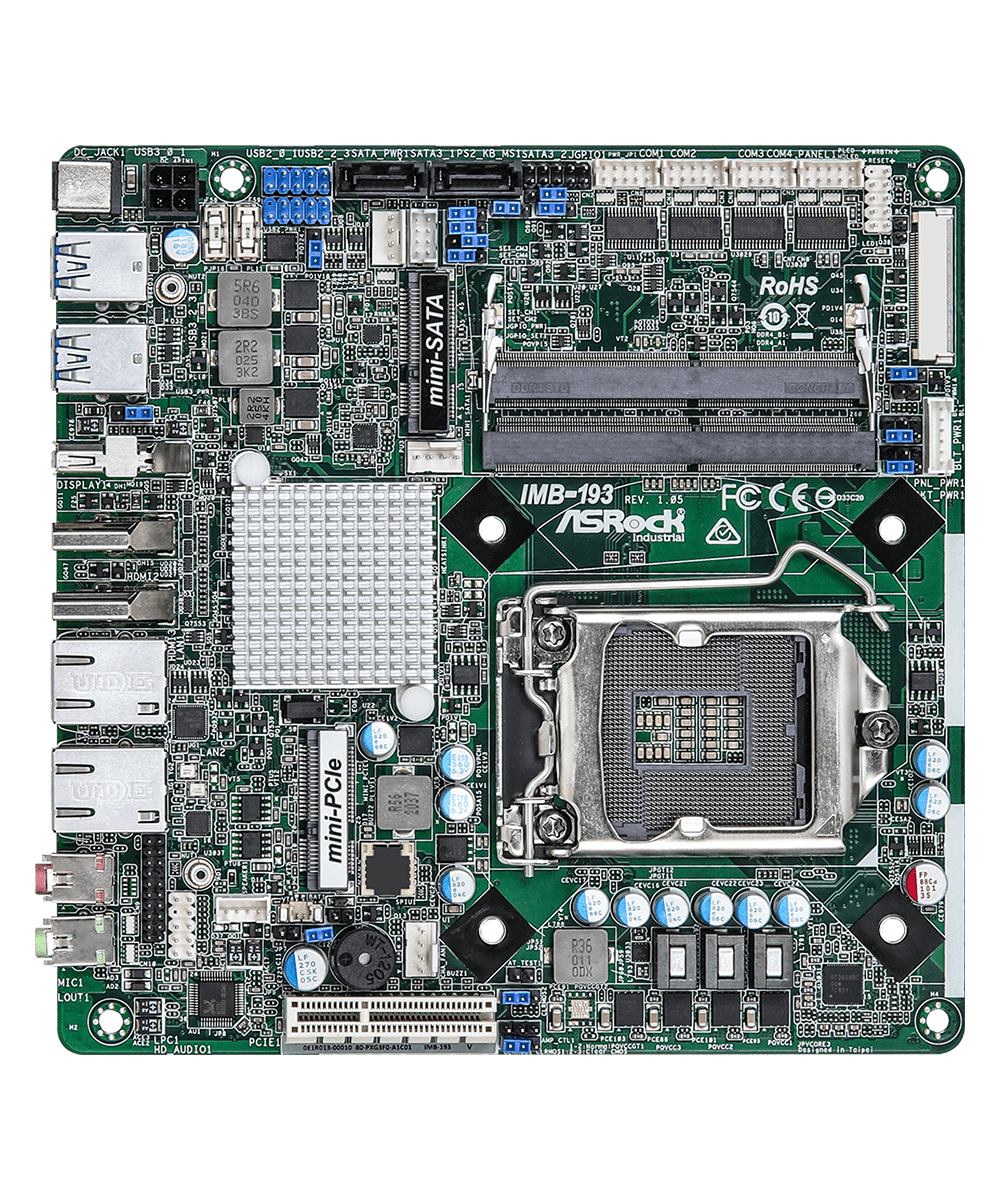

IMB-193 Mini-ITX Motherboard

  • Socket LGA1151 for Intel® Core i7 / i5 / i3 / Celeron (Skylake-S)
  • Intel® Gen9 Intel® Graphics DX 11 / 12, OGL 4.3 / 4.4
  • Supports Dual Channel DDR4 2133 MHz, 2 x SO-DIMM, up to 32GB system memory
  • 2 x HDMI, 1 x Displayport, 1 x eDP
  • 4 x USB 3.0, 4 x USB 2.0, 2 x SATA3
  • 1 x Mini-PCIe, 1 x PCIe x4 Slot ,1 x mSATA
  • Gigabit LAN : 1 x Intel LAN, 1 x Realtek LAN
  • 1 x TPM Header
  • 19V DC-in
产品型录
产品规格

Form Factor

Dimensions Mini-ITX (6.7-in x 6.7-in)

Processor System

CPU Socket LGA1151 for Intel® Core i7 / i5 / i3 / Celeron (Skylake-S)
Chipset Intel® H110
BIOS UEFI

Memory

Technology Dual Channel DDR4 2133 MHz SDRAM
Capacity 32 GB
Socket 2 x SO-DIMM

Graphics

Controller Intel® Gen9 Graphics DX 11 / 12, OGL 4.3 / 4.4
HDMI Supports HDMI 1.4a, Max. resolution 4096 x 2160@30Hz
LVDS Supports max resolution up to 1920 x 1200@60Hz
eDP Supports Max. resolution 4096 x 2160@60Hz
DisplayPort Supports DP 1.2, Max. resolution 4096 x 2160@60Hz
MultiDisplay Dual Display

Expansion Slot

PCIe 1 x PCIe x4 slot
mini-PCIe 1 x Half size with PCIe x1 and USB2.0

Audio

Interface Realtek ALC887/897 HD, High Definition Audio. Line-out, Mic-in

Ethernet

Controller/ Speed LAN1: Intel® I219V with 10/100/1000 Mbps
LAN2: Realtek RTL8111G/RTL8111H-CG with 10/100/1000 Mbps

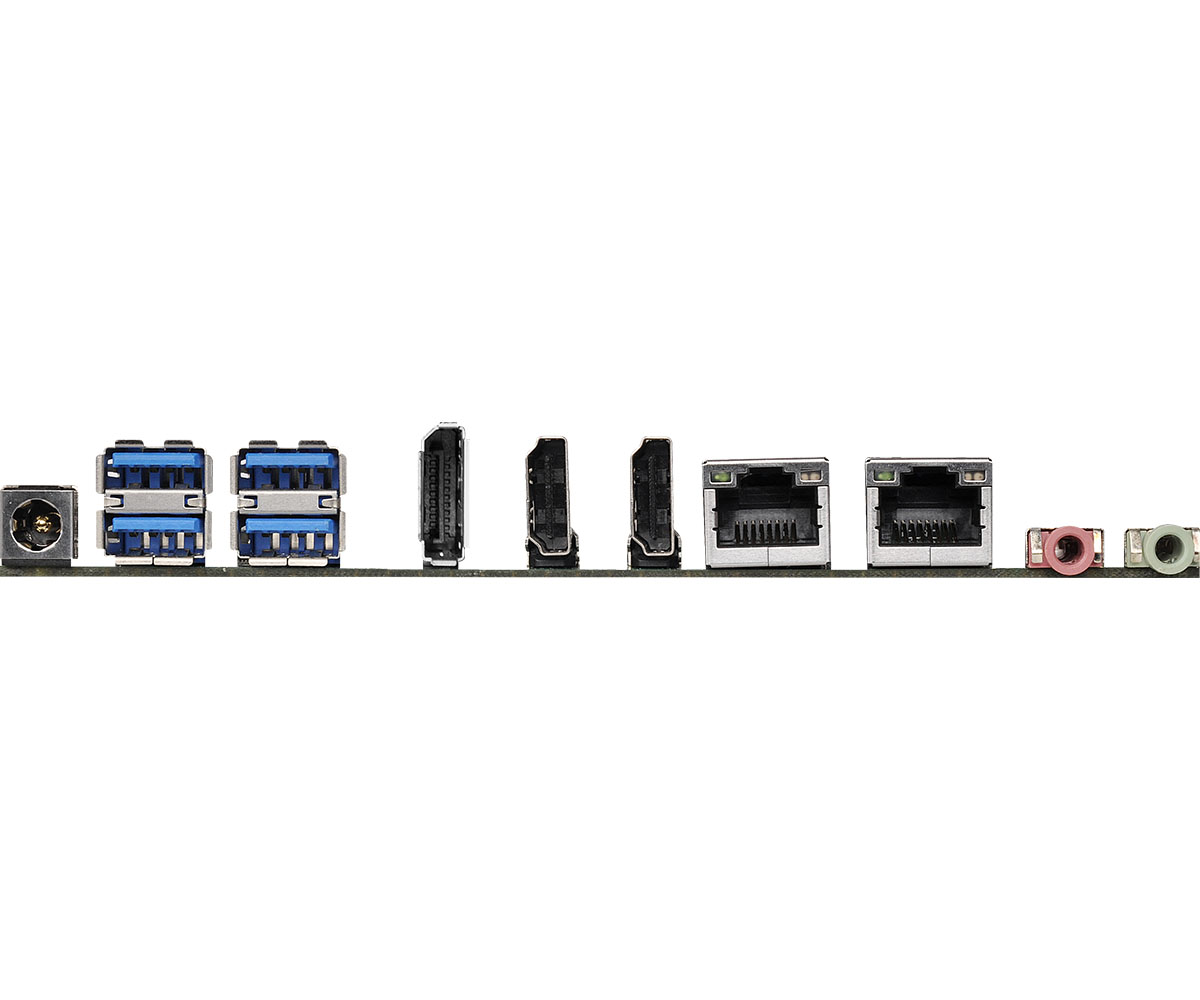

Rear I/O

HDMI 2
Ethernet 2
USB 4 x USB 3.0
Audio 2 (Mic-in, Line-out)
DisplayPort 1
DC Jack 1

Internal Connector

USB 4 x USB 2.0 (2 x 2.54 pitch header)
COM 4 x RS-232 (COM1 supports RS-232/422/485)
TPM TPM Header
eDP 1
GPIO 4 x GPI, 4 x GPO
SATA PWR Output 1
Speaker Header 1

Storage

SATA 2 x SATA3 (6.0Gb/s)
mSATA 1 x Full size with SATA3 (shared) and USB 2.0

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR 19V DC-in (DC Jack / 4-pin ATX PWR Con)
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 60ºC
Storage Temp -40° C ~ 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

Accessories

Gift Package 2 x SCREW FOR WIFI CARD (13G020305011AK)
1 x I/O Shield (13G020327000AK)
1 x I/O Shield THIN (13G020327010AK)
2 x COM Cable (14G000000310AK)
2 x SATA Data Cable (14G00010107DAK)
1 x SATA Power Cable (14G000100410AK)
Bulk Package 2 x SCREW FOR WIFI CARD (13G020305011AK)
1 x I/O Shield (13G020327000AK)
1 x I/O Shield THIN (13G020327010AK)

规格更改时恕不预先通知。品牌和产品名称归各自公司所有。不保证任何配置与产品实物规格相同。

支援下载

操作系统:

说明 操作系统 日期 下载
说明 COM Port driver ver:1.0.2011.1109 操作系统 Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2021-06-17 下载
说明 SATA Floppy Image ver:14.6.0.1029 操作系统 Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2021-06-17 下载
说明 VGA driver ver:21.20.16.4542 操作系统 Win 10 x 64 , Win 8.1 x 64 , Win 8 x 64 , Win 7 x 64 Date 2021-06-17 下载
说明 VGA driver ver:15.40.10.4300 操作系统 Win 7 Date 2021-06-17 下载
说明 Microsoft Hotfix ver:kb4474419v3_kb4490628 操作系统 Win 7 x 64 , Win 7 Date 2021-06-17 下载
说明 Microsoft .NET Framework 4.5 操作系统 Win 7 x 64 , Win 7 Date 2021-06-17 下载
说明 Intel Management Engine driver ver:v11.8.65.3590 操作系统 Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 Date 2021-06-17 下载
说明 Intel Management Engine driver ver:11.6.0.1126 操作系统 Win 7 x 64 , Win 7 Date 2021-06-17 下载
说明 Intel USB 3.0 driver ver:4.0.2.42 操作系统 Win 7 x 64 , Win 7 Date 2021-06-17 下载
说明 Intel USB 3.0 Adaptation driver ver:1.0.1.45 操作系统 Win 8.1 x 64 Date 2021-06-17 下载
说明 Intel Lan driver ver:23.2 操作系统 Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2021-06-17 下载
说明 INF driver ver:10.1.1.27 操作系统 Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2021-06-17 下载
说明 [Beta] Realtek Lan driver ver:8082_02232021 操作系统 Win 8.1 x 64 Date 2021-04-14 下载
说明 [Beta] Realtek Lan driver ver:7136_02232021 操作系统 Win 7 x 64 Date 2021-04-08 下载
说明 [Beta] Realtek Lan driver ver:10047_02232021 操作系统 Win 10 x 64 Date 2021-04-08 下载
说明 Realtek high definition audio driver ver:9151_FF00 操作系统 Win 10 x 64 , Win 10 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2021-06-17 下载
版本 更新方式 / 如何更新 说明 日期 下载
版本 2.20 更新方式 / 如何更新 BIOS 说明 Update Realtek Lan FW 日期 2021-06-04 下载
版本 2.20 更新方式 / 如何更新 DOS 说明 Update Realtek Lan FW 日期 2021-06-04 下载
版本 2.20 更新方式 / 如何更新 Windows 说明 Update Realtek Lan FW 日期 2021-06-04 下载
版本 2.10 更新方式 / 如何更新 BIOS 说明 Update audio codec 日期 2021-04-07 下载
版本 2.10 更新方式 / 如何更新 DOS 说明 Update audio codec 日期 2021-04-07 下载
版本 2.10 更新方式 / 如何更新 Windows 说明 Update audio codec 日期 2021-04-07 下载

档案格式为 PDF,如果您没有安装 Adob​​e Acrobat Reader,请至 Adobe下载。

说明 语言 日期 下载
说明 Jumpers and headers setting guide 语言 English 日期 2020-05-27 下载
说明 User Manual 语言 English 日期 2020-05-27 下载
说明 日期 下载
下载 CPU Support List 日期 2020-06-18 下载
