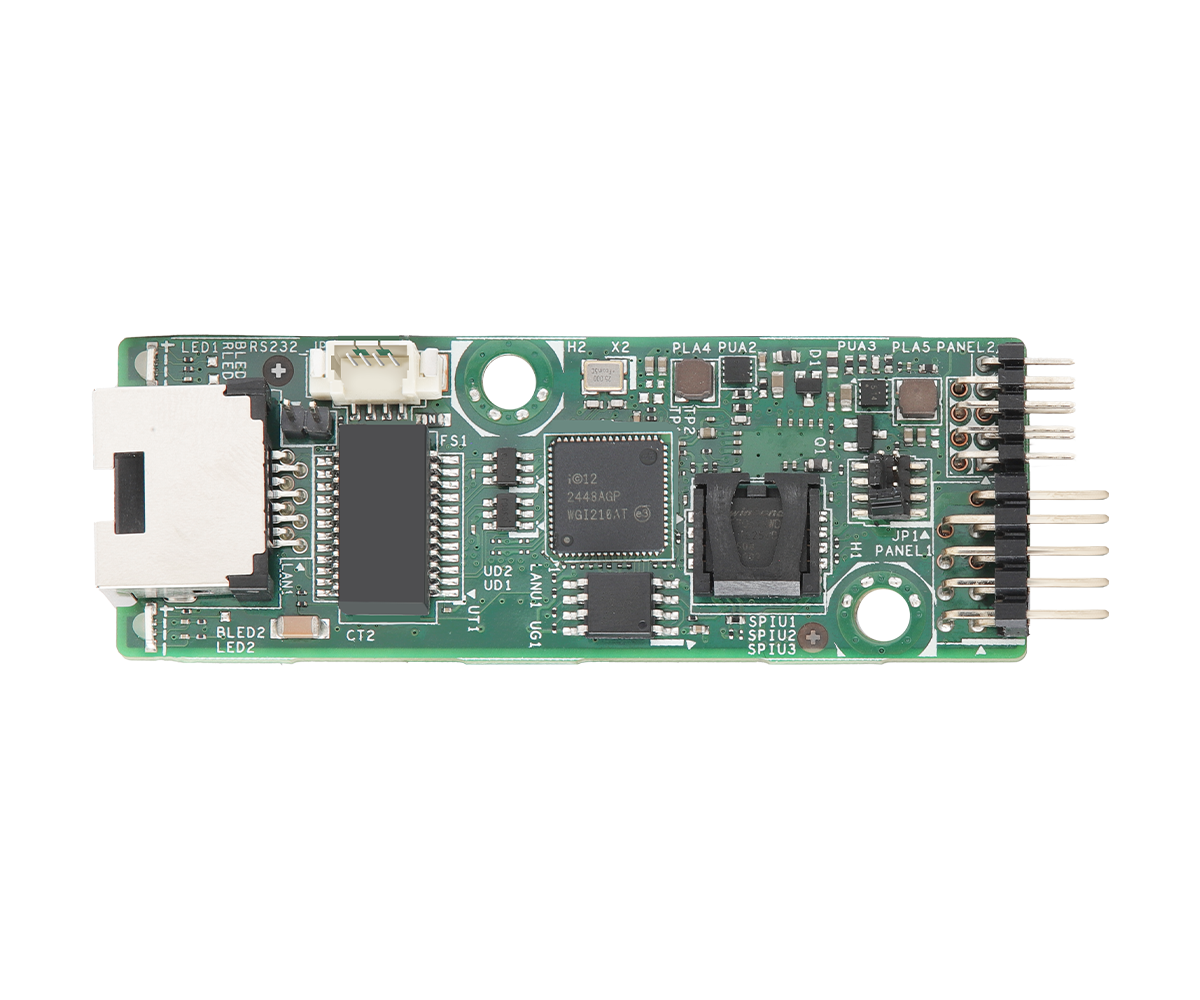

AI-OOB-LITE Kit
- [ASRock Industrial Exclusive]
- Only apply on ASRockind products
- Support Remote Power On/Off/Scheduling
- Host’s OS heartbeat to check device alive
- 1x RJ45 port supports Intel® I210 Ethernet Connection via NC-SI
- 1 x Gigabit LAN
产品规格
Specifications
| Form Factor | AI-OOB-LITE: Customized M2E-OOB: M.2 Key E 2230 |
|---|---|
| Function | Out-of-Band Management |
| Dimensions (W x L x H/mm) | AI-OOB-LITE: 26 x 78 x 9.9 M2E-OOB: 22 x 30 x 2.2 |
| Controller / Major IC | Embedded Micro-controller |
| Input Interface/Power | AI-OOB-LITE: +5VSB RJ45(MDI) 20pin Header(PCIe x1, USB 2.0, GPIO x3) M2E-OOB: PCIe x1 USB 2.0 GPIO x3 |
| Output Interface/Power | Remote Power Control 1 x Gigabit LAN* *Note: Must be paired with ASRock Industrial's M2E-OOB expansion card to enable the functionality. |
| Output connector | AI-OOB-LITE: 1 x 2.00mm Panel Header 1 x 2.54mm Panel Header 1 x RJ45 M2E-OOB: 20 pin header x1 |
| Operating Temperature | -20ºC ~ 70ºC(I210-AT) -40ºC ~ 85ºC(I210-IT) |
| Storage Temperature | -40ºC ~ 85ºC |
| Package | AI-OOB-LITE: 1 x Panel Cable (14G000018310AI) 1 x 2.0 PWR Cable(14G000506610AI) 1 x 2.54 PWR Cable(14G000506510AI) 1 x HTR Cable (14G000617300AI) 1 x IO bracket (PN TBD) M2E-OOB: 1 x M2EOOBcable(14G220032010AI) |
规格更改时恕不预先通知。品牌和产品名称归各自公司所有。不保证任何配置与产品实物规格相同。
