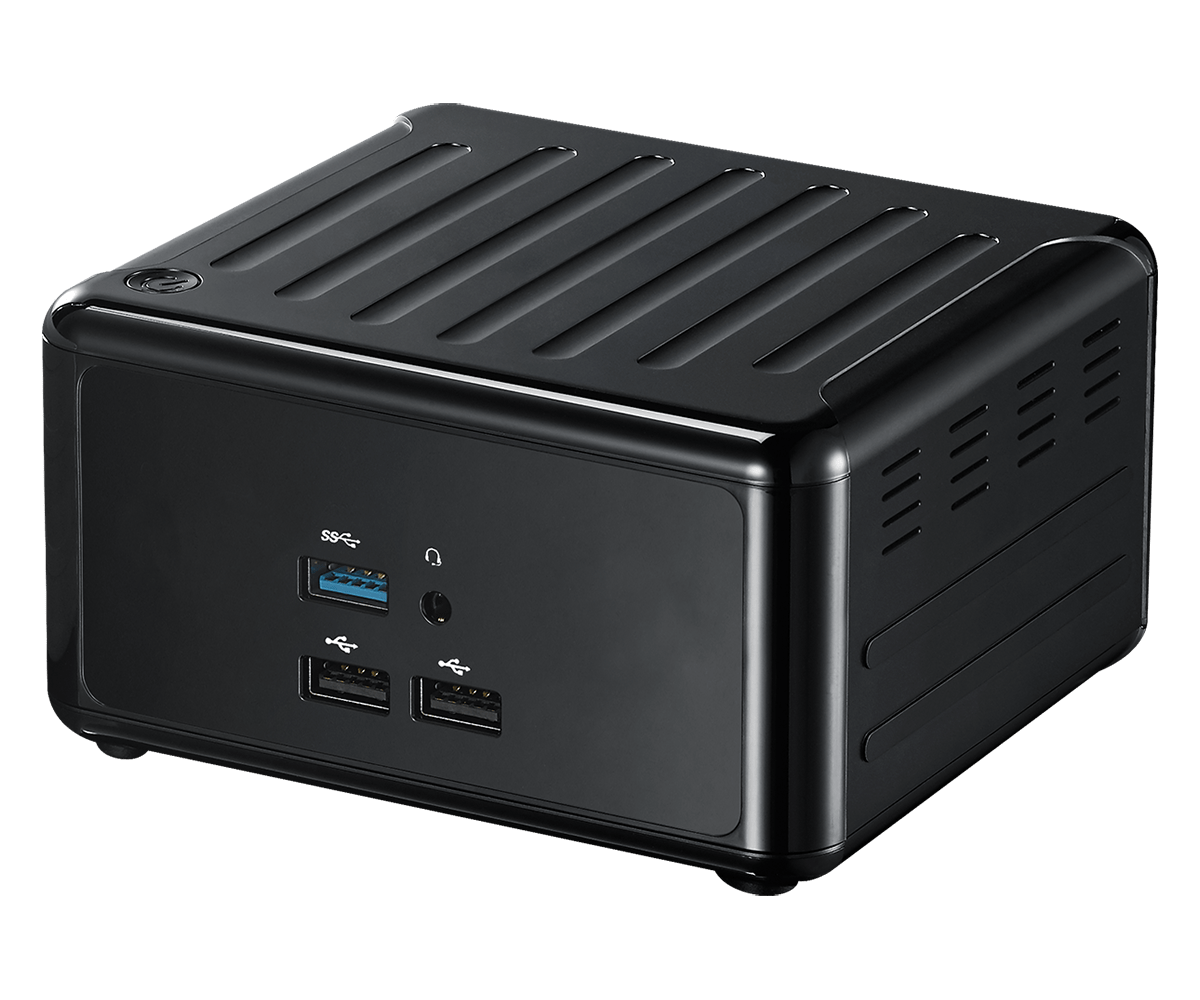

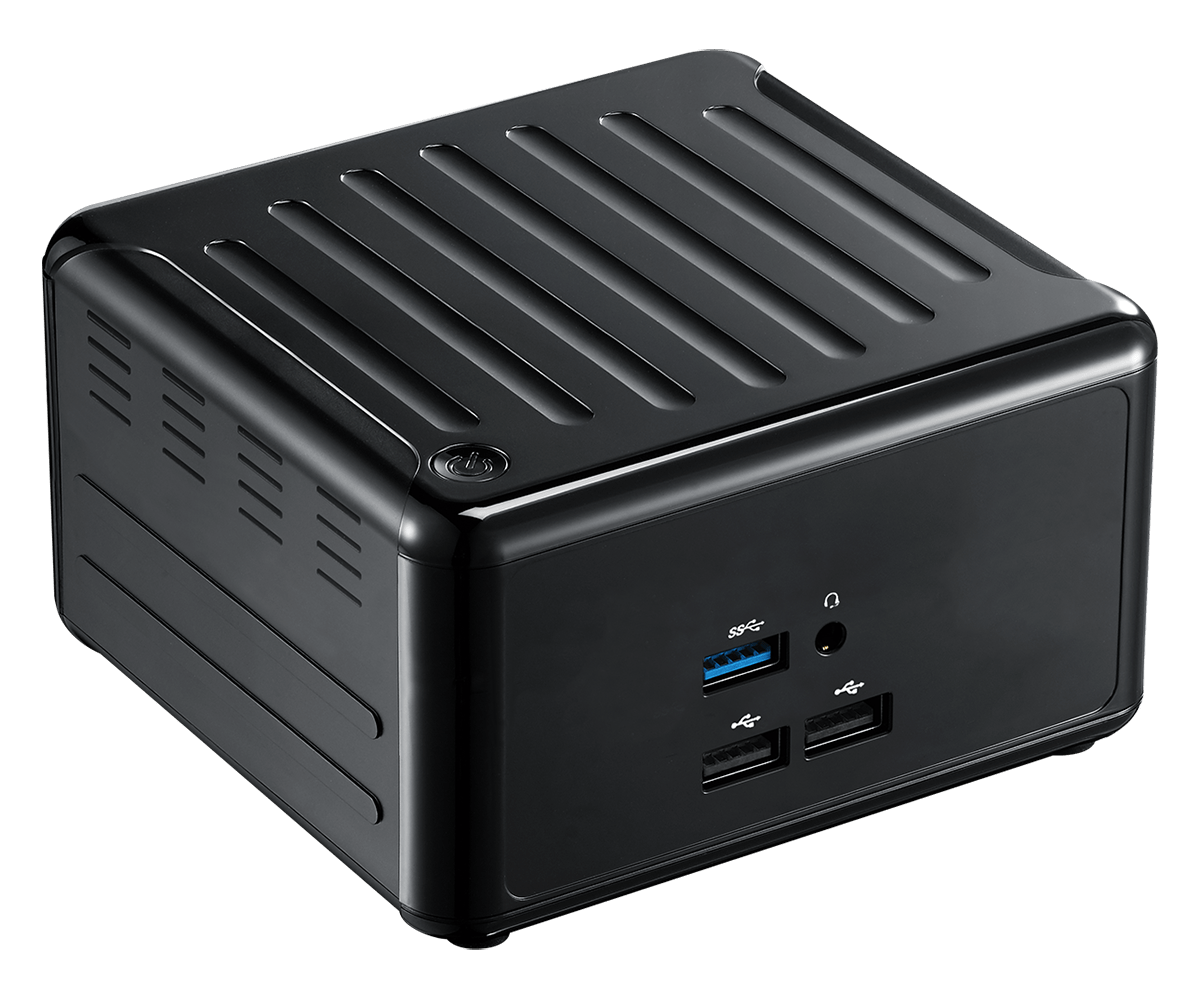

4X4 BOX-R1000V Fanned Embedded BOX PC

Processor System

CPU	AMD Ryzen™ Embedded R-Series (R1505G, DC, 2.4GHz, 12-25W)
Chipset	SoC
BIOS	AMI SPI 64 Mbit

Memory

Technology	Dual Channel DDR4 2400 MHz
Capacity	32 GB (16 GB per DIMM)
Socket	2 x 260-pin SO-DIMM

Graphics

Controller	AMD Radeon™ Vega 3 Graphics
HDMI	HDMI 2.0a Max resolution up to 4096x2160@60Hz
DisplayPort	DisplayPort 1.2a Max resolution up to 3840x2160@60Hz
MultiDisplay	Triple Display

Expansion Slot

M.2/WLAN	1 x 802.11ac (433 Mbps) + BT 4.2 (M.2 Key E, 2230 PCIe x1, USB 2.0 for Wireless)

Audio

Interface	Realtek ALC233, High Definition Audio, Line-out, Mic-in

Ethernet

Controller/ Speed	2 x Realtek RTL8111G with 10/100/1000 Mbps
Connector	2 x RJ-45

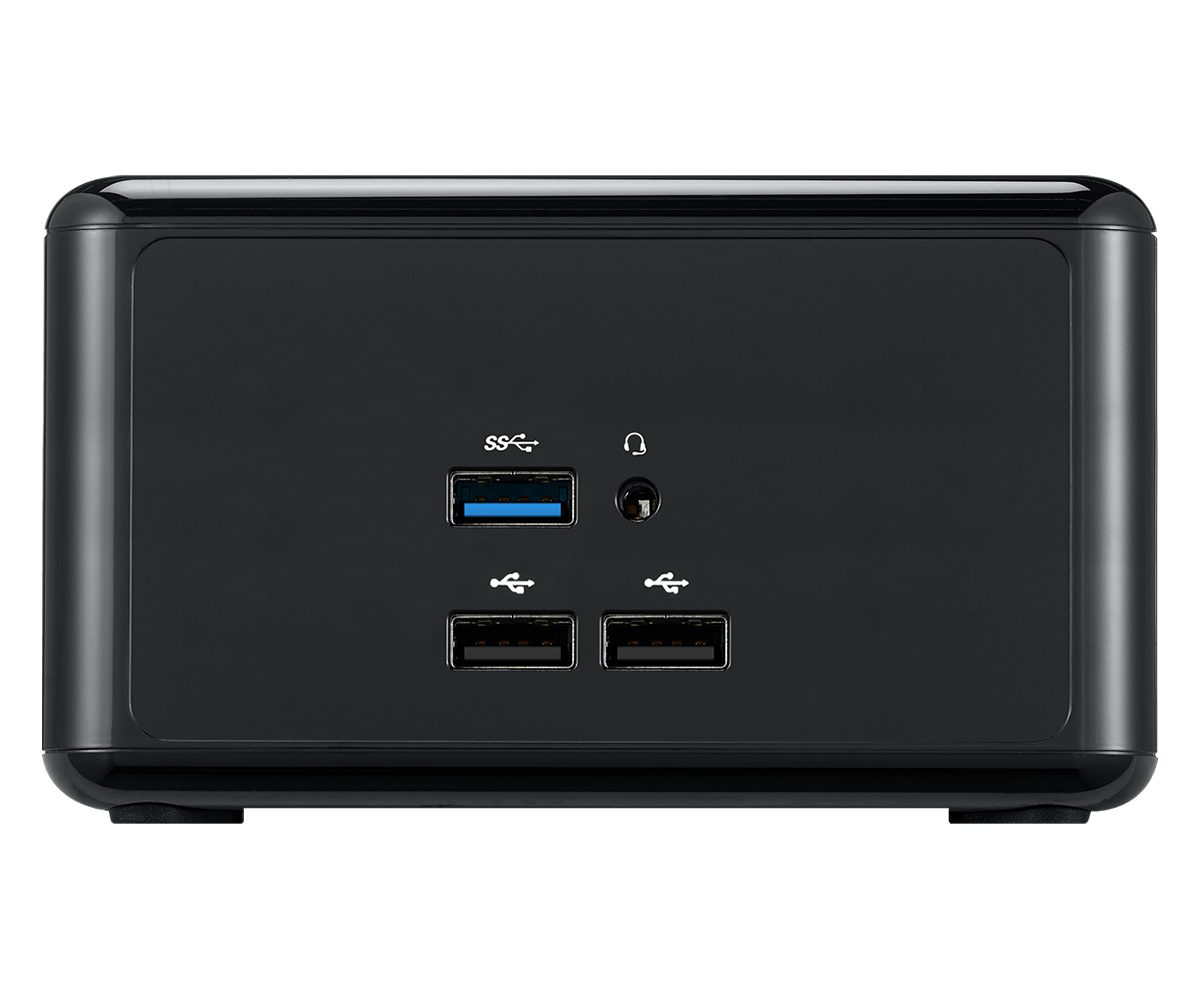

Front I/O

USB	1 x USB 3.2 (Gen2) + 2 x USB 2.0
Audio	1 (Mic-in or Line-out)

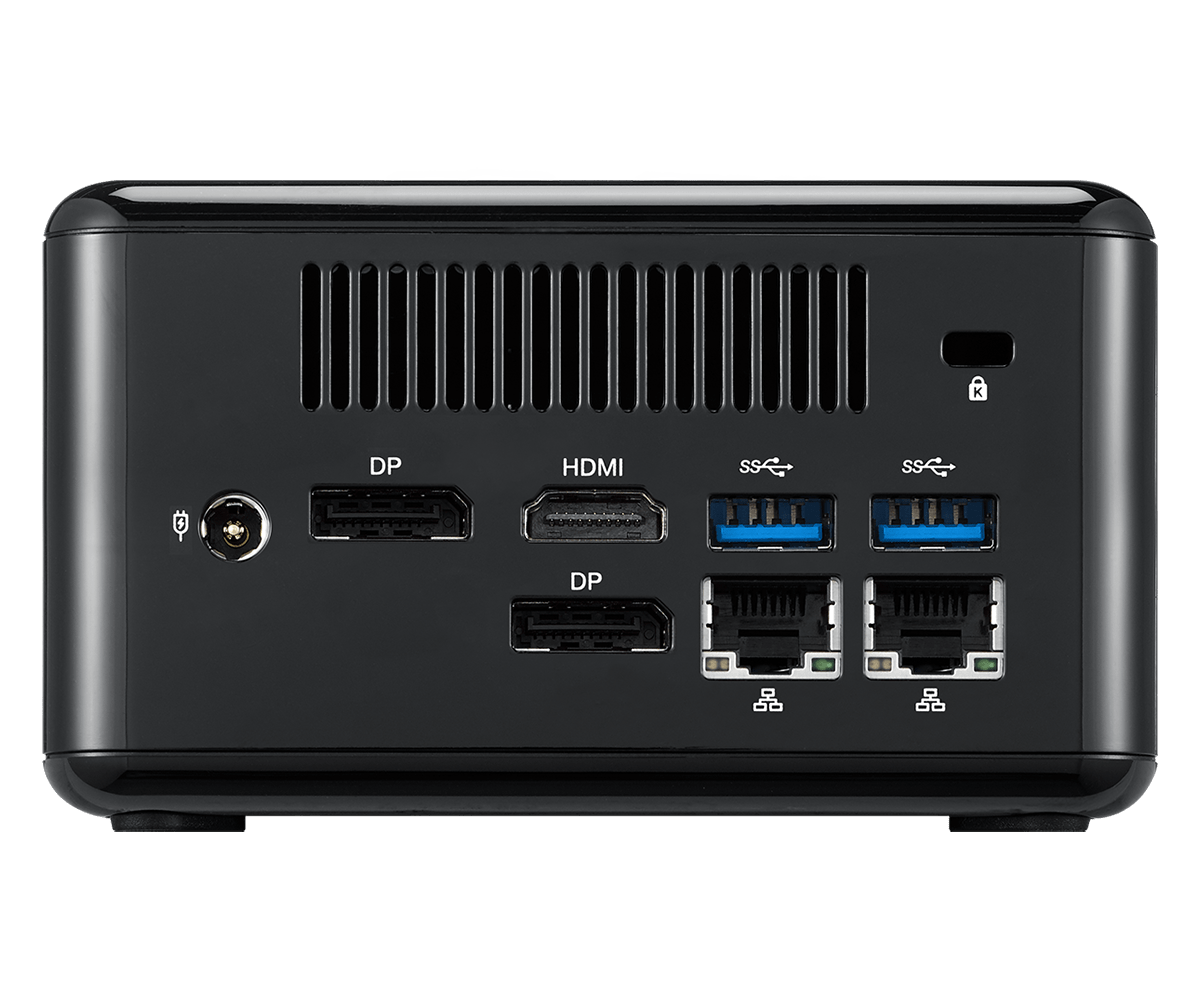

Rear I/O

HDMI	1 x HDMI 2.0a
DisplayPort	2 x DP 1.2a
Ethernet	2 x 1 Gigabit LAN
USB	2 x USB 3.2(Gen2)
DC Jack	1

Storage

M.2	1 x M.2 (Key M, 2242/2260) with PCIe x4 and SATA3 for SSD *Not support M.2 Key M 2280
SATA	1 x SATA3 (6Gb/s), SATA3_1 shared with M.2_Key M

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments 0,1,2....255sec

Power Requirements

Input PWR	1 x 12V/96W Power Adapter
Power On	AT/ATX supported -AT: Direct PWR on as power input ready -ATX:Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 40ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	10% ~ 90%
Storage Humidity	10% ~ 90%

Mechanical

Construction	Plastic
Mounting	VESA mounting
Dimensions (L x W x H)	110.0 x 118.5 x 67.3 mm
Weight	Net Weight: 1kg

Accessories

Gift Package	2 x SCREW M2*2,D=5 (13G020302031AK) 1 x NUT M2 H=3.35mm (13G020271000AK) 1 x M.2 HEATSINK FOR NUCBOX (13G070488000AI) 1 x US PWR CORD,L:1.5M (14G110001100AI)

Others

OS Support	Windows 10
Certifications	CE, FCC Class A
Packing List	1 x 12V/96W Power Adapter & Power cord 1 x Screw Package 1 x Product DVD 1 x VESA mounting bracket 1 x Heatsink for M.2 Key M
