Preliminary

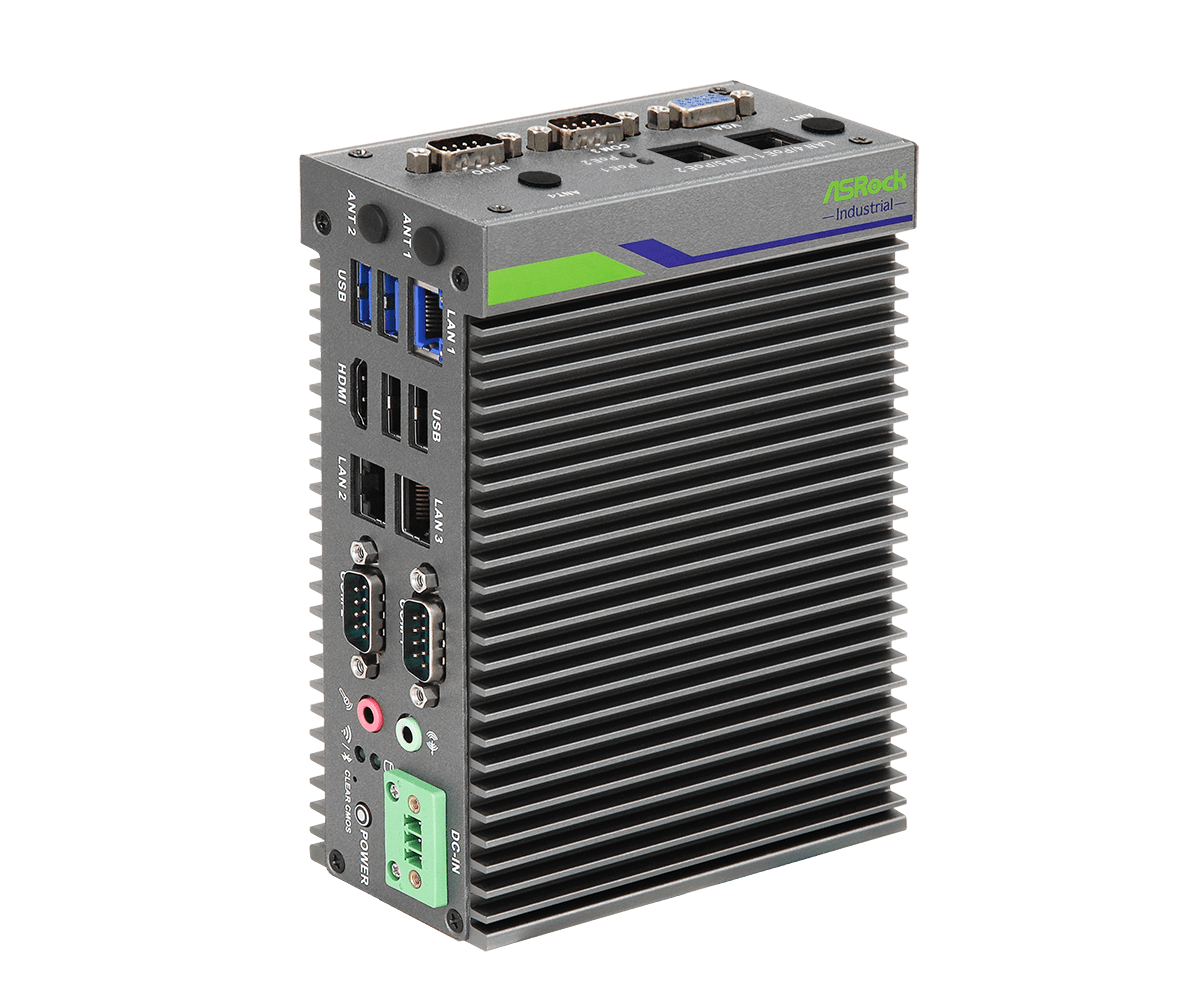

iEP-5010G Series Industrial IoT Controller
- Latest and Powerful Intel® Atom® x6000RE Processor (Elkhart Lake)
- Fan-less and Rugged Design, Wide Temperature Operation (-40 °C to 70 °C)
- 6-36VDC Wide Range Power Inputs
- Most Flexible IOs and Expansion for Industrial Applications
- Intel® TCC and TSN Support for Real-Time Computing
- DIN Rail or Wall Mount Options
- 4 x Intel 1G LAN (2 Support IEEE 802.3AF PoE Ports)
- 1 x Intel 2.5G LAN
- Support Intel® IN-Band ECC
Overview
Specification
Processor System
| CPU | iEP-5010G Series : Intel Atom® x6425RE, 4C, 1.9GHz, 12W iEP-5011G Series : Intel Atom® x6214RE, 2C, 1.4GHz, 6W |
|---|---|
| Chipset | MCP |
| BIOS | AMI SPI 256 Mbit |
Memory
| Technology | Dual Channel DDR4 3200 MHz |
|---|---|
| Capacity | 32GB (16GB per DIMM) |
| Socket | 2 x 260-pin SO-DIMM |
Graphics
| Controller | Intel® UHD Graphicse |
|---|---|
| HDMI | HDMI 2.0b Max resolution up to 4096x2160@60Hz |
| VGA | Max resolution up to 1920x1200@60Hz |
Expansion Slot
| M.2 | 1 x M.2 (Key B, 3042/3052) with PCIe x3 and USB 3.2 for 4G LTE/5G 1 x M.2 (Key E, 2230) with PCIe x3 and USB 2.0 for Wireless |
|---|---|
| RF& Antenna | 6 x SMA connector hole reserved, support for Basic SKU 4 x SMA connector hole reserved, support for PoE/5LAN SKU |
Audio
| Interface | Realtek ALC897, High Definiton Audio |
|---|
Ethernet
| Controller/ Speed | LAN1: Intel® I226IT with 10/100/1000/2500 Mbps, supports TSN/TCC LAN2/LAN3: Intel® I210IT with 10/100/1000 Mbps LAN4/LAN5: Intel® I210AT with 10/100/1000 Mbps (For 5LAN SKU) PoE1/PoE2: Intel® I210AT. PoE output max.15.4W/port, each port supports IEEE 802.3AF PoE. (For PoE SKU) |
|---|---|
| Connector | RJ-45 |
Front I/O
| Audio | 1 x Mic-in 1 x Line-out |
|---|---|
| COM | 2 x RS-232/422/485 |
| Ethernet | 1 x 2.5G LAN 2 x 1G LAN |
| HDMI | 1 x HDMI 2.0b |
| USB | 2 x USB 3.2 Gen1x1 2 x USB 2.0 |
| LED | 1 x SATA / NVMe Storage LED 1 x Wi-Fi / BT LED |
| DC-IN | 1 x 3-pin Phoenix type |
| Clear CMOS | 1 |
| Power Button | 1 (with LED) |
Rear I/O
| SIM Card | 1 x Nano SIM Card slot |
|---|---|
| Micro SD Card | 1 x Micro SD card slot (SD Card specification version 3.01) |

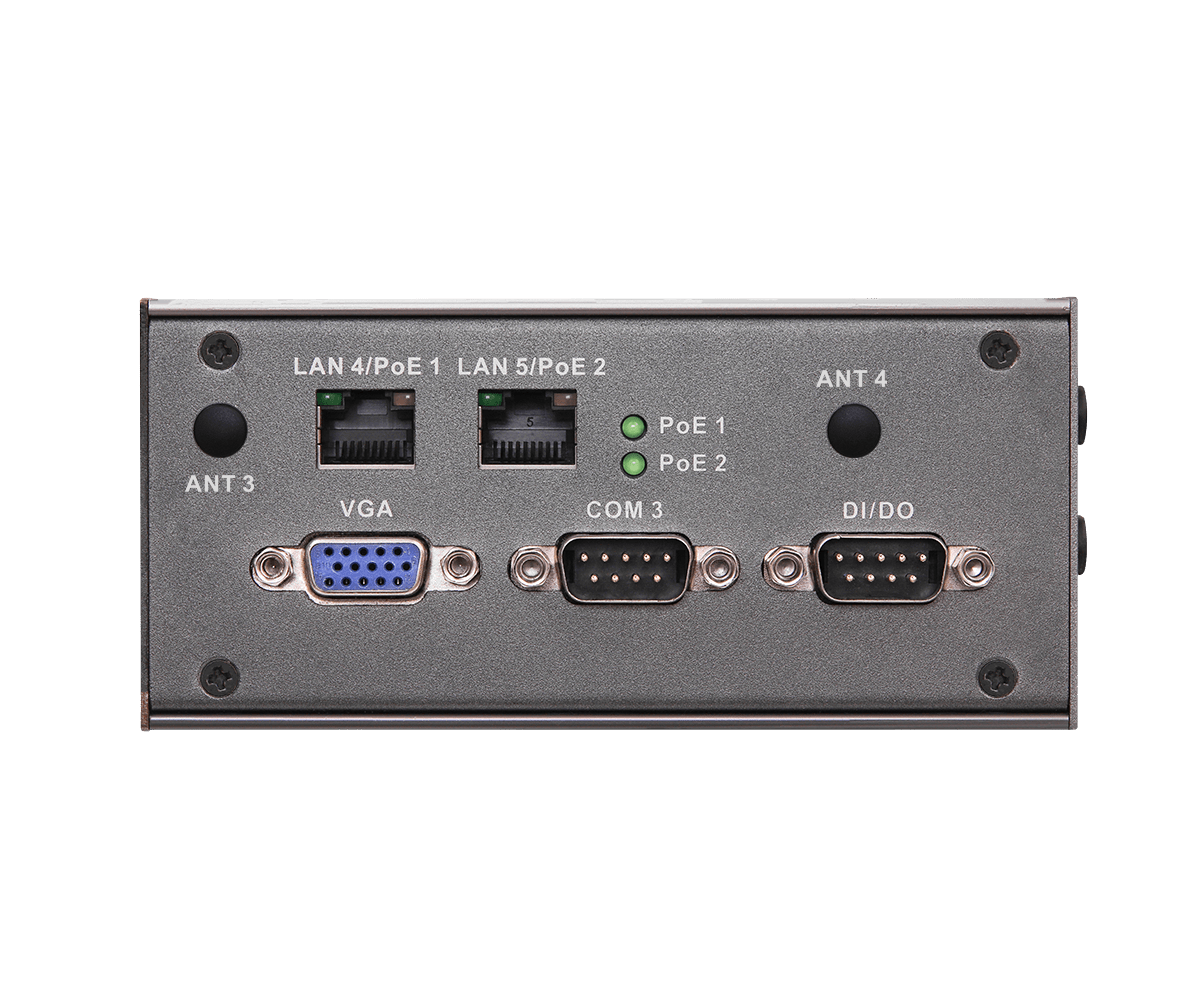

Top I/O
| COM | 1 x RS-232/422/485 |
|---|---|
| VGA | 1 |
| Digital I/O | 4DIs/4DOs |
| Ethernet | 2 x 1G LAN for PoE/5LAN SKU |
| LED | 2 x PoE LED |
Storage
| M.2 | 1 x M.2 (Key M, 2280) with PCIe x3 and SATA3 |
|---|---|
| SATA | 1 x 2.5" SATA3 SSD (6Gb/s) for Basic SKU (By request) |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| DC Input | For Basic/5LAN SKU: 6V~36V DC For PoE SKU: 19V~36V DC - OVP, UVP, OCP, plus 80V surge protection |
|---|
Environment
| Operating Temp | For Basic/5LAN SKU : -40°C ~ 70°C (-40°F~158°F) For PoE SKU : -40°C ~ 50°C (-40°F~122°F) With airflow 0.5~0.8m/s |
|---|---|
| Storage Temp | -40°C ~ 85°C (-40°F~185°F) |
| Humidity | ~95% @ 40°C (non-condensing) |
| Vibration | Operating: 5 Grms, 5-500 Hz, 3 axes with SSD |
| Shock | Operating 100 G, half sine 11 ms duration with SSD |
| ESD | Contact +/-8 KV, Air +/-15 KV |
| EMC | CE and FCC Class A (EN61000-6-4/-2) |
| Safety | LVD |
Mechanical
| Construction | Aluminum |
|---|---|
| Dimensions (L x W x H) | 58 x 125 x 157 mm |
| Mounting | DIN-Rail , Wall Mount (By Request) |
| Weight | Basic SKU: 1.45 kg PoE SKU: 1.75kg 5LAN SKU: 1.65kg |
Others
| OS Support | Windows 10 & Ubuntu 22.04 |
|---|---|
| Real-Time Enablement | TSN, TCC support under Linux |
| TPM | TPM2.0 |
| Packing List | 3 x M2*2 Screw Package 1 x Sink for Memory 1 x Sink for M.2 2280 support 1 x 3-pin phoenix connector 1 x System QIG |
| Optional Items | (1) 19V/65W Power Adapter for Basic/5LAN SKU (2) 19V/120W Power Adapter for PoE SKU (3) 2.5" HDD bracket kits for Basic SKU (4) Thermal Kits for support 4G LTE/5G module (5) Antenna/SMA Cable for support Wi-Fi module (6) Antenna/SMA Cable for support 4G LTE/5G module (7) DIN Rail Kit (8) Wall Mount Kit |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Support
OS:
| Description | Information | OS | Date | Download | |||||
|---|---|---|---|---|---|---|---|---|---|
| Description | Realtek HD Audio Driver (v9130_FF00) | Information | OS | Win 10 x 64 | Date | 2023-09-21 | Download | ||
| Description | Onboard VGA Driver (v27.20.100.9079.2) | Information | OS | Win 10 x 64 | Date | 2023-09-21 | Download | ||
| Description | Intel Bluetooth Driver (v22.170.0.2G) | Information | Size: 14Mib Version: 22.170.0.2G SHA1: 21AE4DDF072E3C1E8777A7A2277F5FC764D260BD Filename: Intel_Blurtooth(v22.170.0.2G) Release Note |
OS | Win 10 x 64 | Date | 2023-09-21 | Download | |
| Description | INF driver (v10.1.18634.8254_Public) | Information | OS | Win 10 x 64 | Date | 2023-09-21 | Download | ||
| Description | Intel I210 LAN driver (v27.6) | Information | Size: 70Mib |
OS | Win 10 x 64 | Date | 2023-09-21 | Download | |
| Description | Intel I226 LAN driver (v1.1.3.34) | Information | Siez: 1535Kib Version: 1.1.3.34 SHA1: B717C7DE9D6F5608419E4DD11092EA00C81FFEB8 Filename: Intel_LAN(v1.1.3.34).zip Release Note |
OS | Win 10 x 64 | Date | 2023-09-21 | Download | |
| Description | Intel PSE Driver (v5.4.1.4516) | Information | OS | Win 10 x 64 | Date | 2023-09-21 | Download | ||
| Description | Intel Serial IO driver (v5.123.1.1023) | Information | OS | Win 10 x 64 | Date | 2023-09-21 | Download | ||
| Description | Intel HID Event Filter (v2.2.1.386) | Information | Size: 1258Kib Version: 2.2.1.386 SHA1: 448BBCF58B800250574D673E24F794D279C4BC13 Filename: Intel HID Event Filter(v2.2.1.386).zip Release Note |
OS | Win 10 x 64 | Date | 2023-09-21 | Download |
| Version | Update BIOS Under / How to Update | Description | Information | Date | Download | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Version | 1.40 | Update BIOS Under / How to Update | BIOS | Description | Update Intel LAN module | Information | Size: 6093 KiB SHA1: EE8FF9A0B2922A021F428485D3BD815A70C01603 |
Date | 2023-12-19 | Download | |
| Version | 1.40 | Update BIOS Under / How to Update | Windows | Description | Update Intel LAN module | Information | Size: 6880 KiB SHA1: 36D01AF98A6F98BFFCBA7DC229A82E33EF7158E2 |
Date | 2023-12-19 | Download | |
| Version | 1.20 | Update BIOS Under / How to Update | BIOS | Description | First release | Information | Date | 2023-06-30 | Download | ||
| Version | 1.20 | Update BIOS Under / How to Update | Windows | Description | First release | Information | Date | 2023-06-30 | Download |
The format of our documents are in PDF files. If you have not installed Adobe Acrobat Reader, please get it from Adobe.
| Description | Language | Date | Download | ||||
|---|---|---|---|---|---|---|---|
| Description | User Manual | Language | English | Date | 2023-05-10 | Download | |
| Description | Quick Installation Guide | Language | English | Date | 2023-05-05 | Download |
Ordering Information
Ordering Information
| Model Name | Part Number | Description | |||
|---|---|---|---|---|---|
| Model Name | iEP-5010G-010 | Part Number | 90PXGAL0-32000000 | Description | Basic SKU (DC Phoenix type) CPU : Intel Atom x6425RE processor w/o Adapter, Memory, Storage System Operating Temperature is up to -40~70°C. When equipped with commercial temperature DRAM&SSD, the Operating Temperature is limited to 0~45°C as it is not wide temperature DRAM & SSD. |
| Model Name | iEP-5010G-011 | Part Number | 90PXGAL0-42000000 | Description | PoE SKU (DC Phoenix type) CPU : Intel Atom x6425RE processor w/o Adapter, Memory, Storage System Operating Temperature is up to -40~50°C. When equipped with commercial temperature DRAM&SSD, the Operating Temperature is limited to 0~45°C as it is not wide temperature DRAM & SSD. |
| Model Name | iEP-5010G-012 | Part Number | 90PXGAL0-52000000 | Description | 5LAN-WIFI SKU (DC Phoenix type) CPU : Intel Atom x6425RE processor w/o Adapter, Memory, Storage System Operating Temperature is up to -40~70°C. When equipped with commercial temperature DRAM&SSD, the Operating Temperature is limited to 0~45°C as it is not wide temperature DRAM & SSD. |
