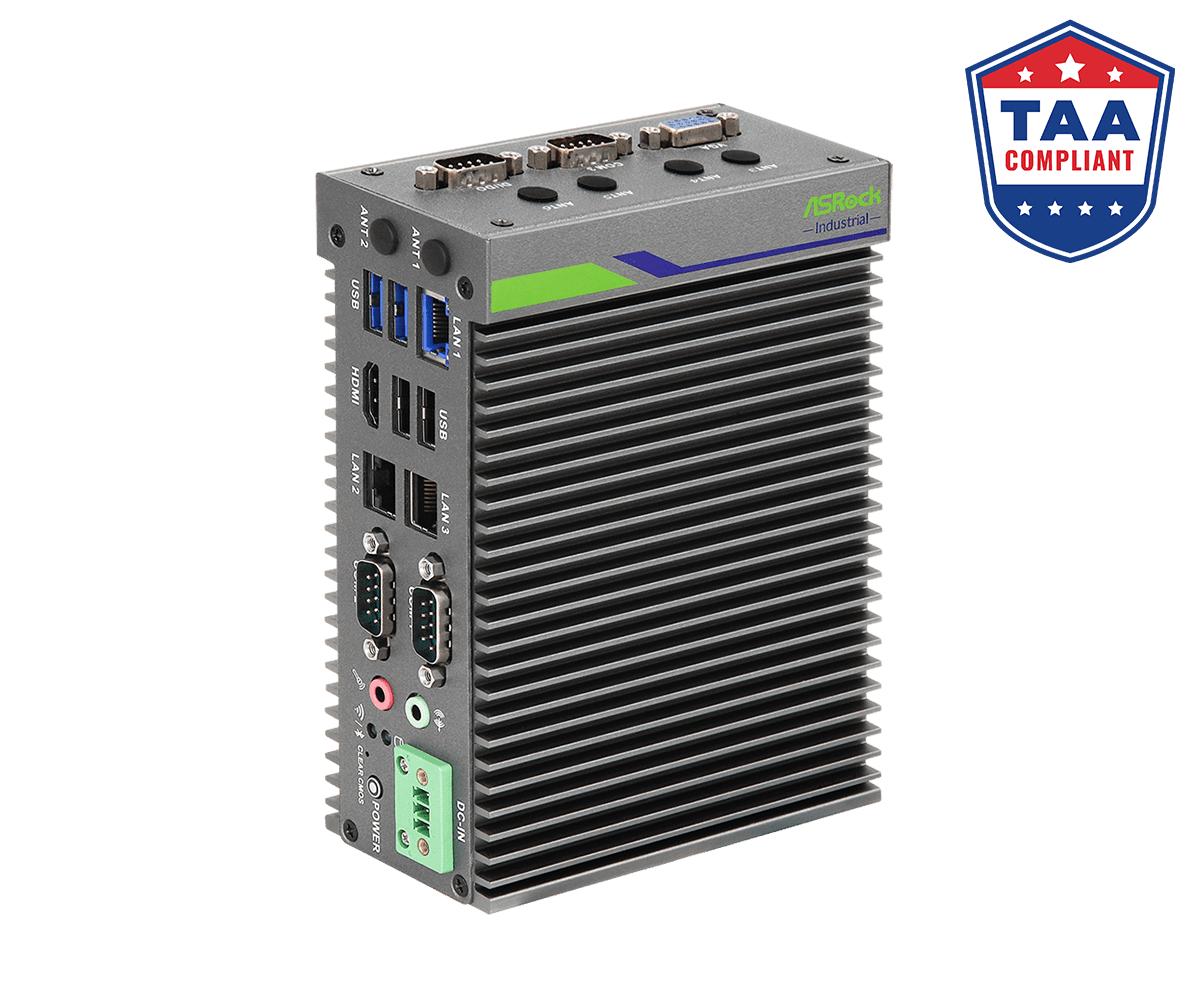

iEP-5010G Series Industrial IoT Controller

Processor System

CPU	iEP-5010G Series : Intel Atom® x6425RE, 4C, 1.9GHz, 12W iEP-5011G Series : Intel Atom® x6214RE, 2C, 1.4GHz, 6W
Chipset	MCP
BIOS	AMI SPI 256 Mbit

Memory

Technology	Dual Channel DDR4 3200 MHz
Capacity	32GB (16GB per DIMM)
Socket	2 x 260-pin SO-DIMM

Graphics

Controller	Intel® UHD Graphicse
HDMI	HDMI 2.0b Max resolution up to 4096x2160@60Hz
VGA	Max resolution up to 1920x1200@60Hz

Expansion Slot

M.2	1 x M.2 (Key B, 3042/3052) with PCIe x3 and USB 3.2 for 4G LTE/5G 1 x M.2 (Key E, 2230) with PCIe x3 and USB 2.0 for Wireless
RF& Antenna	6 x SMA connector hole reserved, support for Basic SKU 4 x SMA connector hole reserved, support for PoE/5LAN SKU

Audio

Interface	Realtek ALC897, High Definiton Audio

Ethernet

Controller/ Speed	LAN1: Intel® I226IT with 10/100/1000/2500 Mbps, supports TSN/TCC LAN2/LAN3: Intel® I210IT with 10/100/1000 Mbps LAN4/LAN5: Intel® I210AT with 10/100/1000 Mbps (For 5LAN SKU) PoE1/PoE2: Intel® I210AT. PoE output max.15.4W/port, each port supports IEEE 802.3AF PoE. (For PoE SKU)
Connector	RJ-45

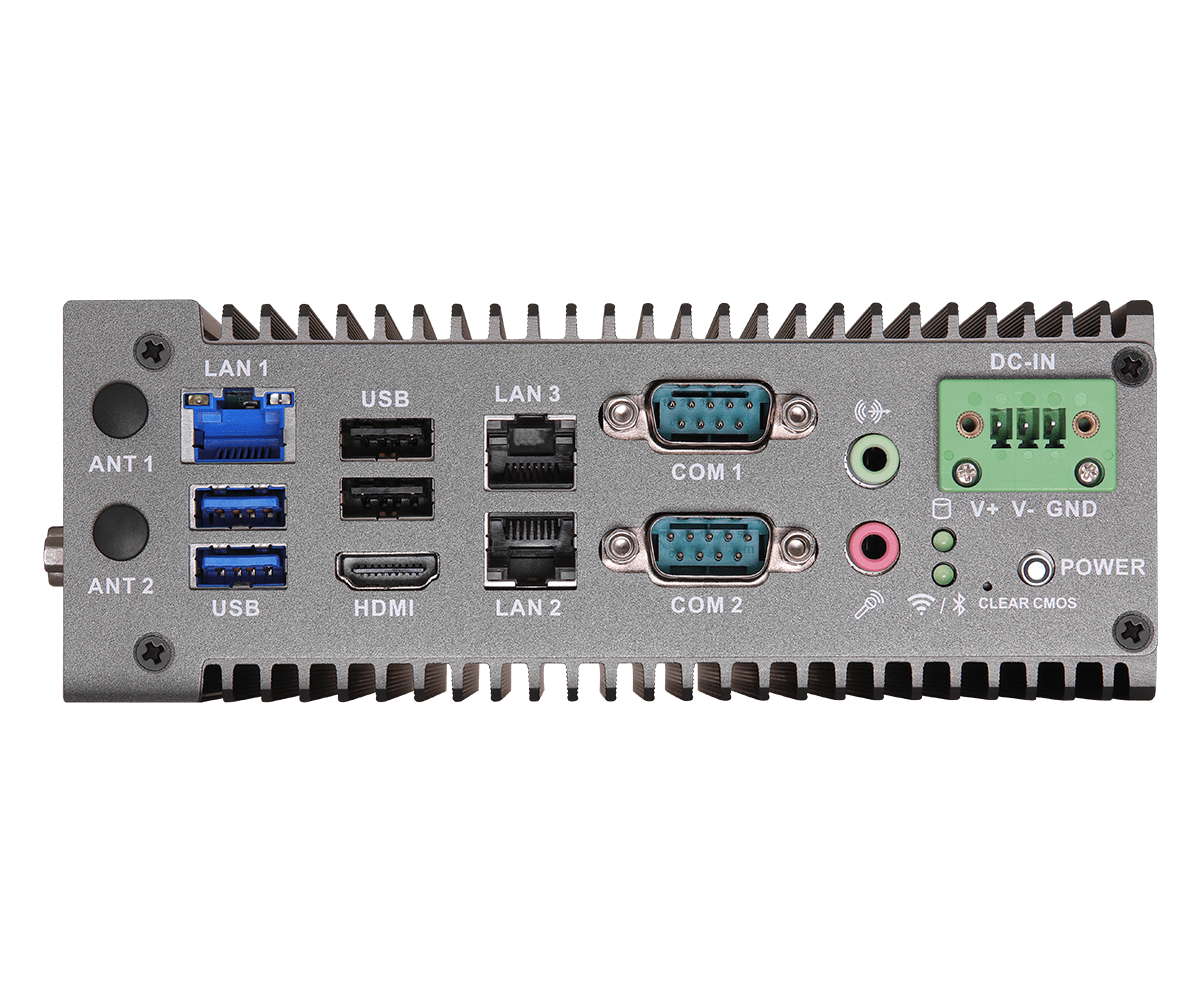

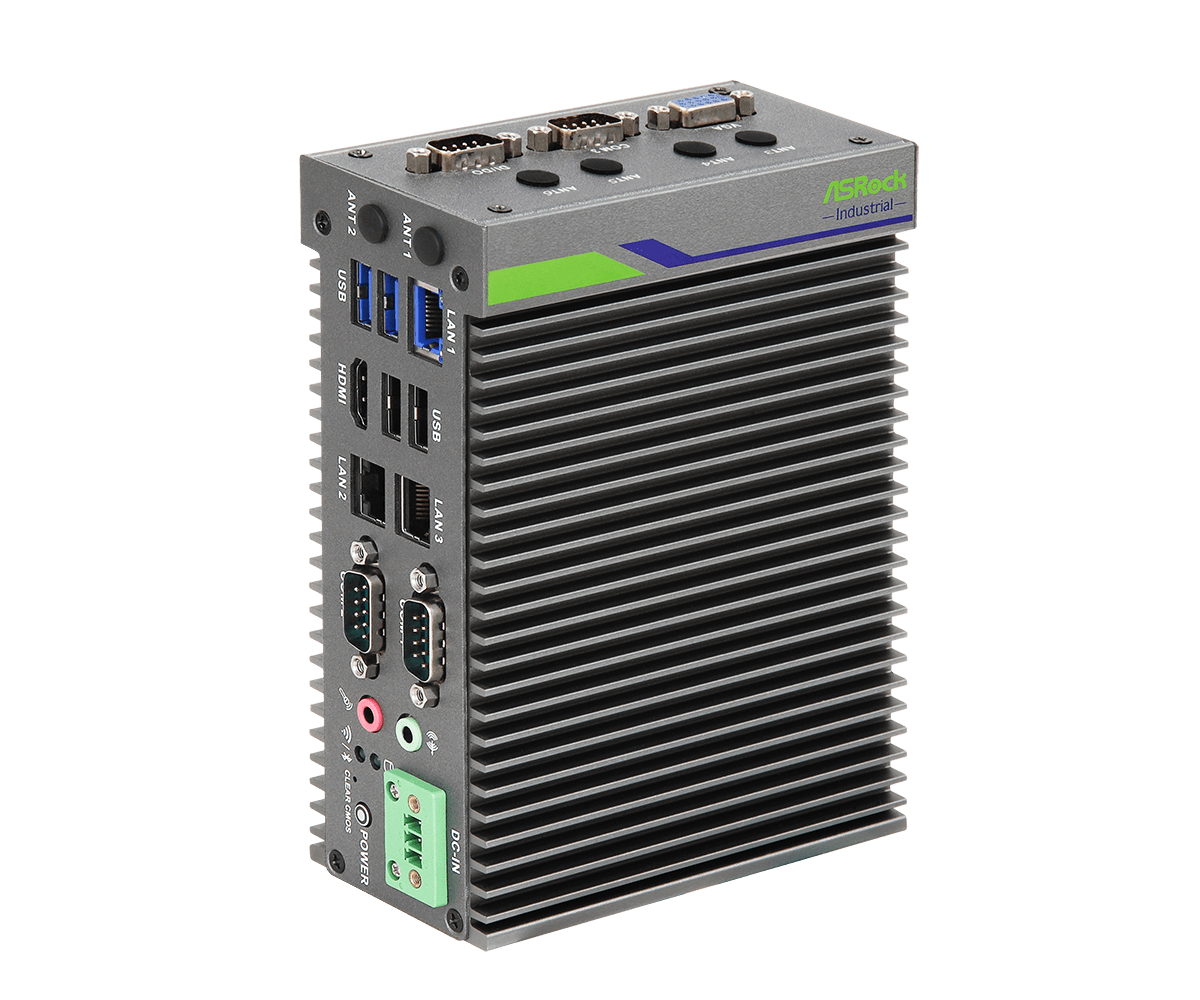

Front I/O

Audio	1 x Mic-in 1 x Line-out
COM	2 x RS-232/422/485
Ethernet	1 x 2.5G LAN 2 x 1G LAN
HDMI	1 x HDMI 2.0b
USB	2 x USB 3.2 Gen1x1 2 x USB 2.0
LED	1 x SATA / NVMe Storage LED 1 x Wi-Fi / BT LED
DC-IN	1 x 3-pin Phoenix type
Clear CMOS	1
Power Button	1 (with LED)

Rear I/O

SIM Card	1 x Nano SIM Card slot
Micro SD Card	1 x Micro SD card slot (SD Card specification version 3.01)

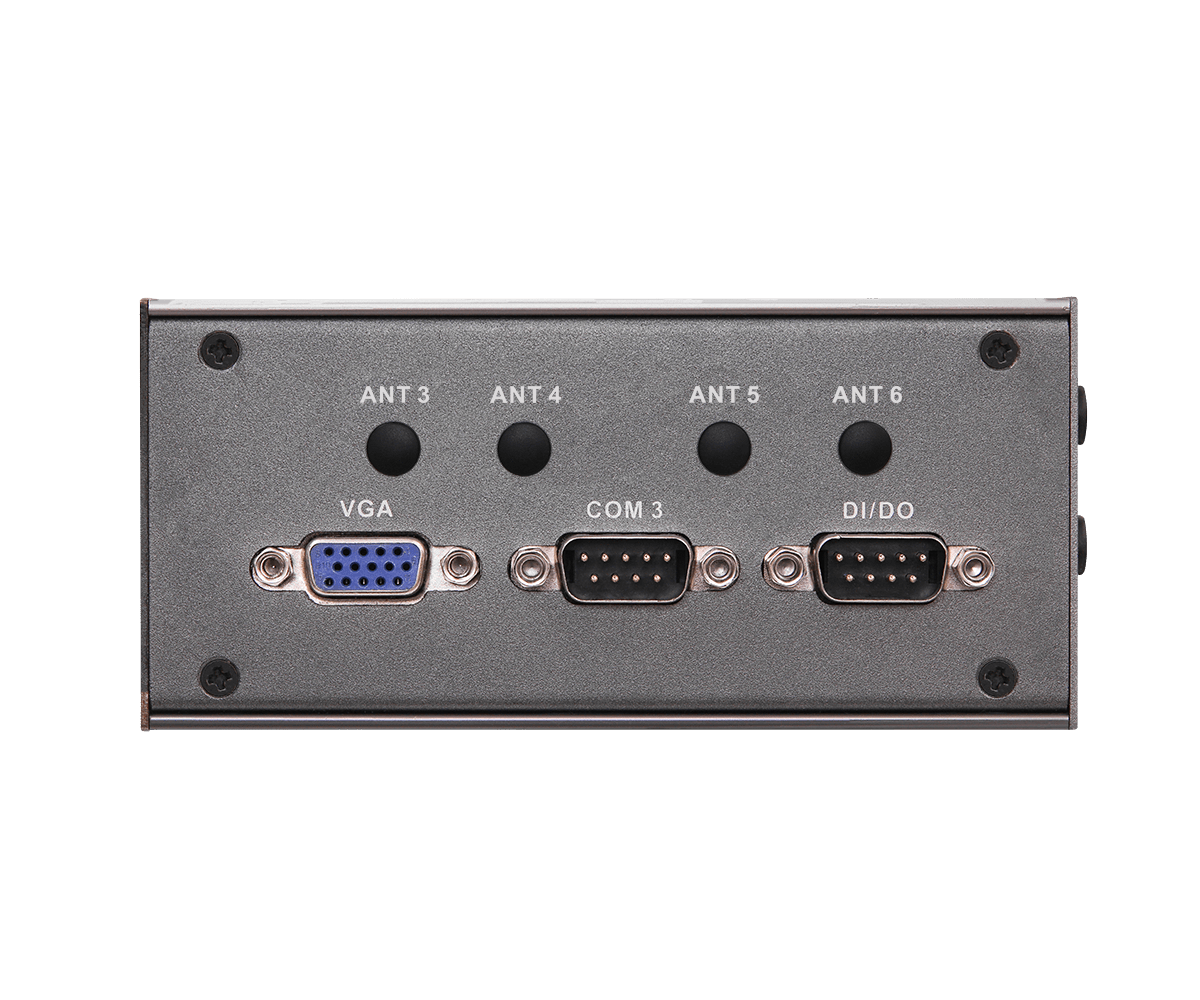

Top I/O

COM	1 x RS-232/422/485
VGA	1
Digital I/O	4DIs/4DOs
Ethernet	2 x 1G LAN for PoE/5LAN SKU
LED	2 x PoE LED

Storage

M.2	1 x M.2 (Key M, 2280) with PCIe x3 and SATA3
SATA	1 x 2.5" SATA3 SSD (6Gb/s) for Basic SKU (By request)

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

DC Input	For Basic/5LAN SKU: 6V~36V DC For PoE SKU: 19V~36V DC - OVP, UVP, OCP, plus 80V surge protection

Environment

Operating Temp	For Basic/5LAN SKU : -40°C ~ 70°C (-40°F~158°F) For PoE SKU : -40°C ~ 50°C (-40°F~122°F) With airflow 0.5~0.8m/s
Storage Temp	-40°C ~ 85°C (-40°F~185°F)
Humidity	~95% @ 40°C (non-condensing)
Vibration	Operating: 5 Grms, 5-500 Hz, 3 axes with SSD
Shock	Operating 100 G, half sine 11 ms duration with SSD
ESD	Contact +/-8 KV, Air +/-15 KV
EMC	CE and FCC Class A (EN61000-6-4/-2)
Safety	LVD

Mechanical

Construction	Aluminum
Dimensions (L x W x H)	58 x 125 x 157 mm

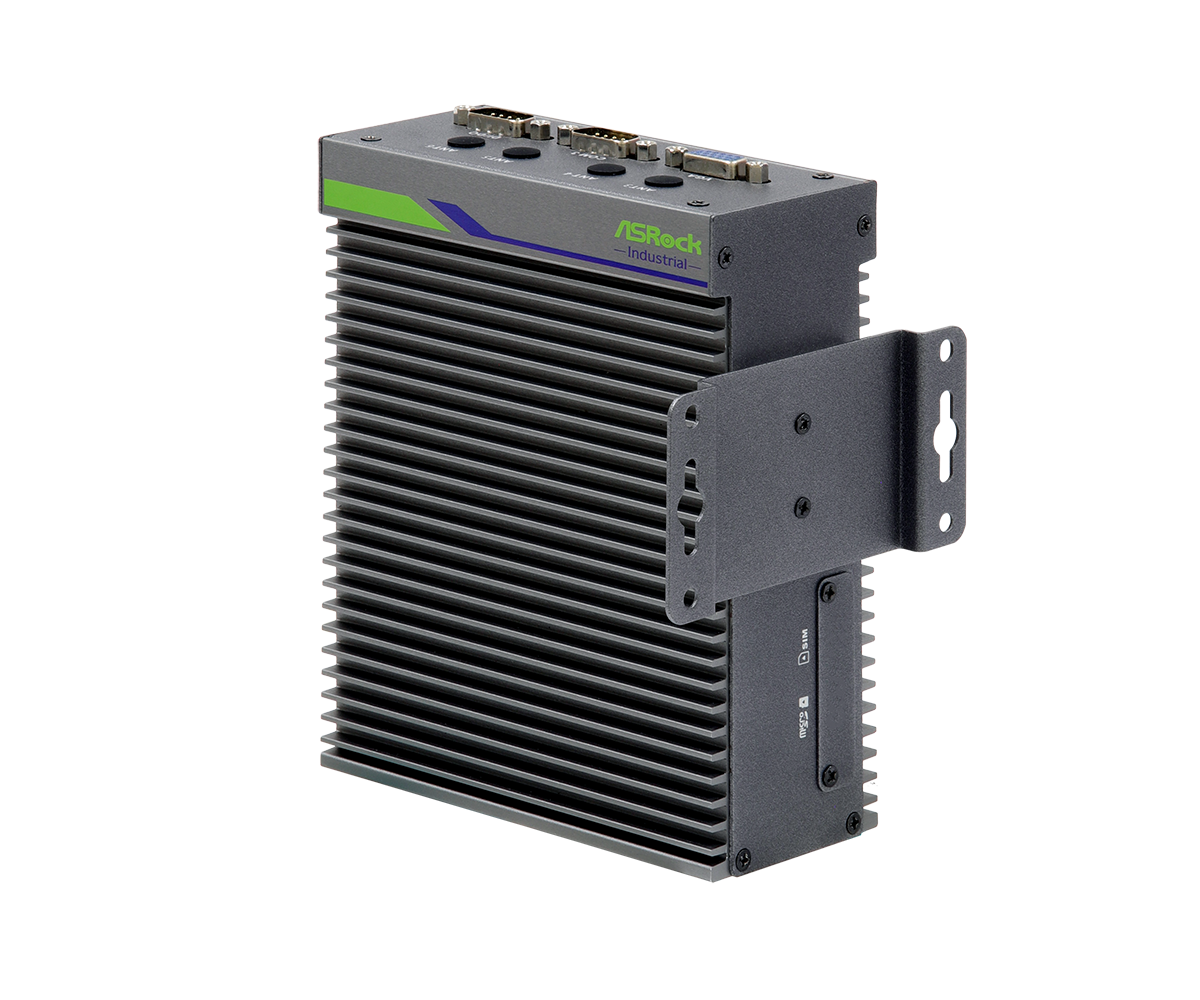

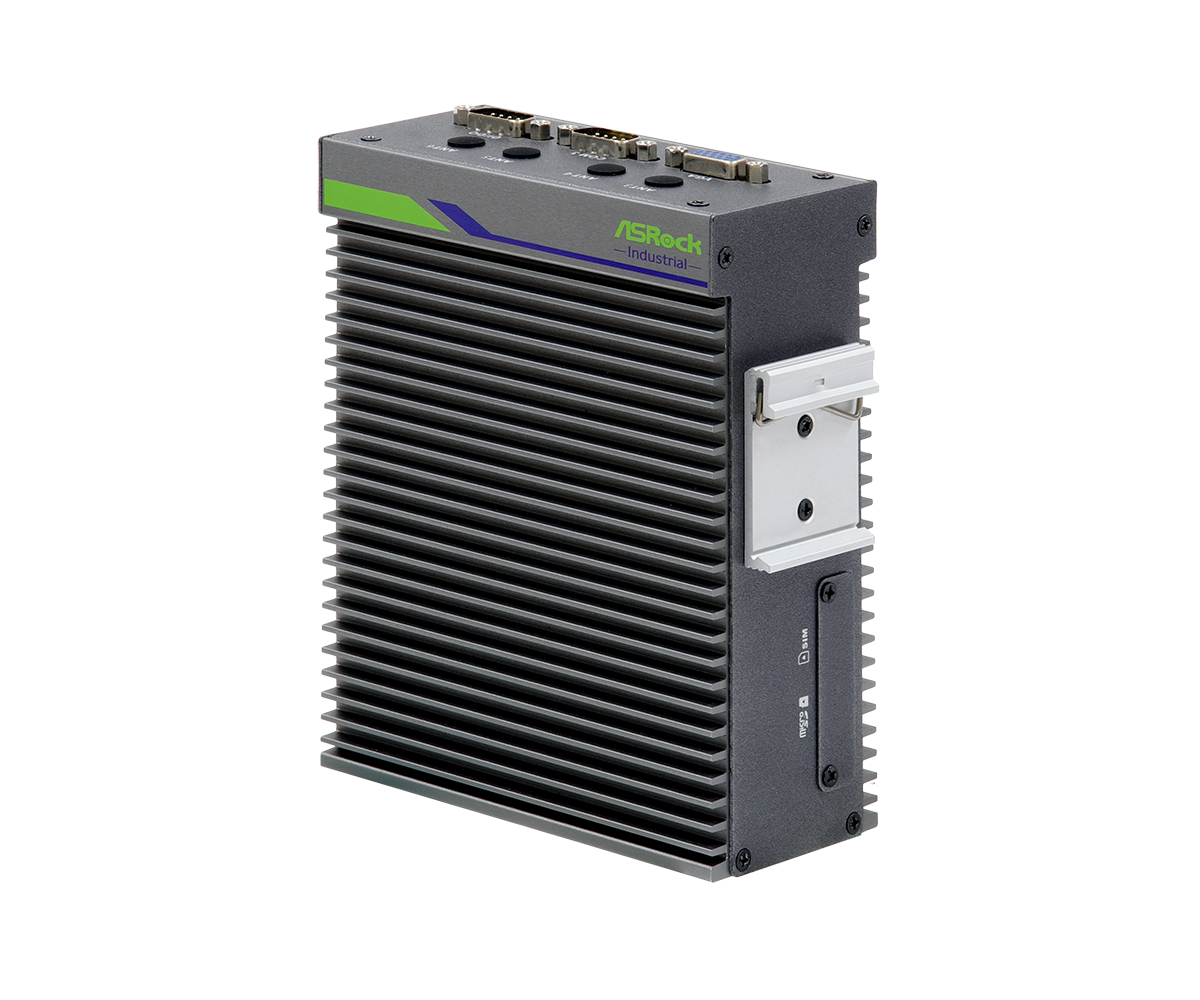

Mounting	DIN-Rail , Wall Mount (By Request)
Weight	Basic SKU: 1.45 kg PoE SKU: 1.75kg 5LAN SKU: 1.65kg

Others

OS Support	Windows 10 & Ubuntu 22.04
Real-Time Enablement	TSN, TCC support under Linux
TPM	TPM2.0
Packing List	3 x M2*2 Screw Package 1 x Sink for Memory 1 x Sink for M.2 2280 support 1 x 3-pin phoenix connector 1 x System QIG
Optional Items	(1) 19V/65W Power Adapter for Basic/5LAN SKU (2) 19V/120W Power Adapter for PoE SKU (3) 2.5" HDD bracket kits for Basic SKU (4) Thermal Kits for support 4G LTE/5G module (5) Antenna/SMA Cable for support Wi-Fi module (6) Antenna/SMA Cable for support 4G LTE/5G module (7) DIN Rail Kit (8) Wall Mount Kit
