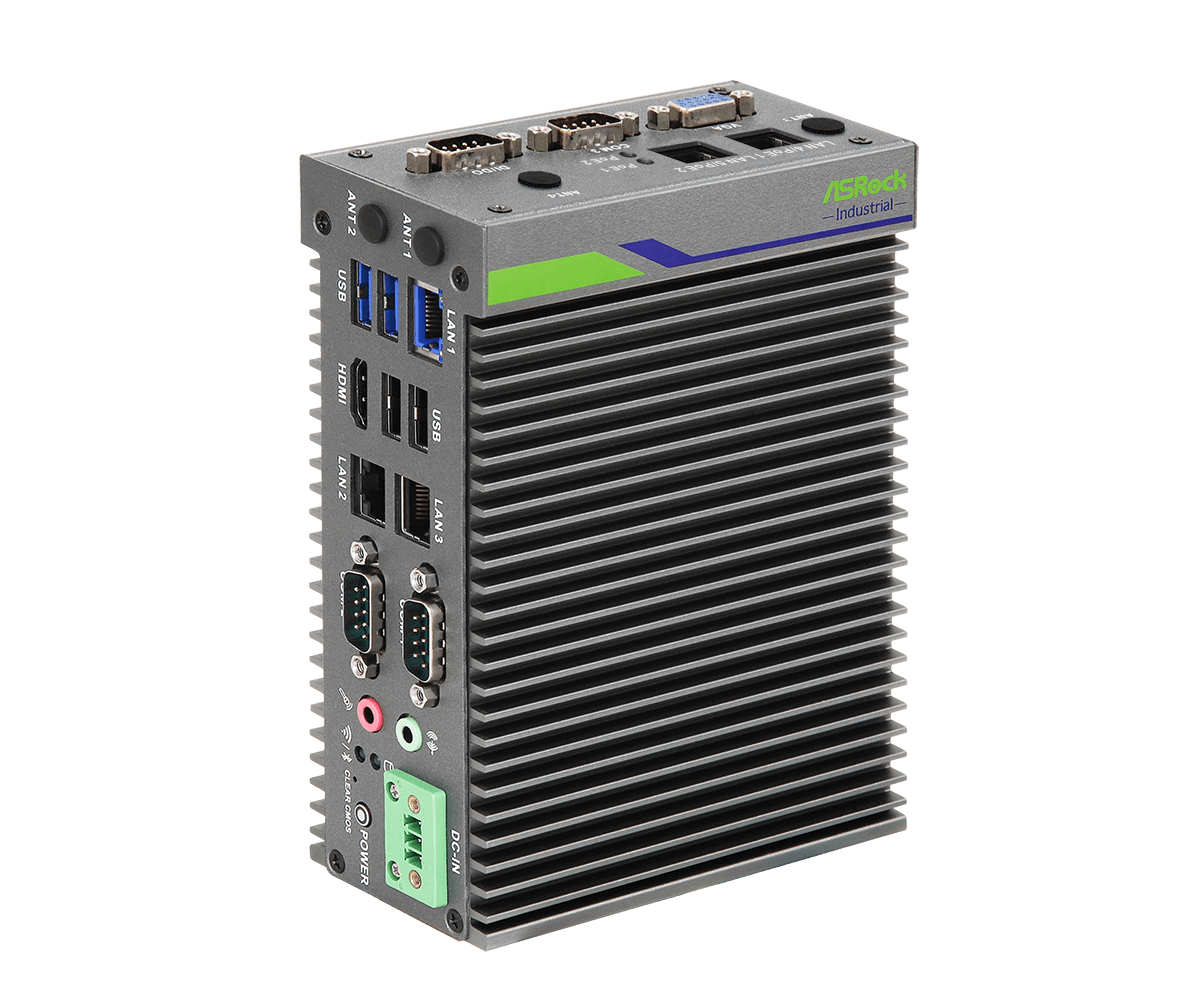

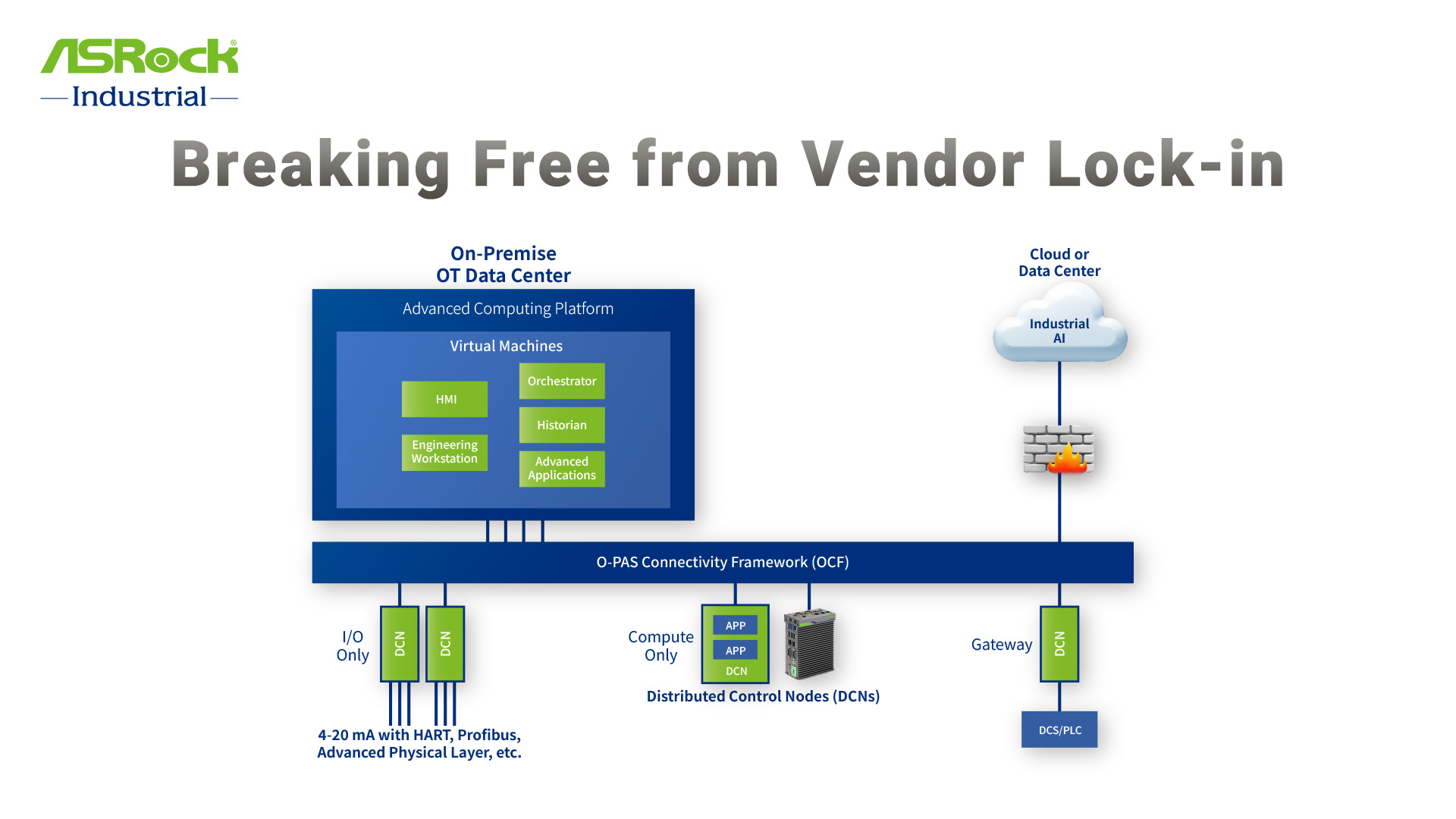

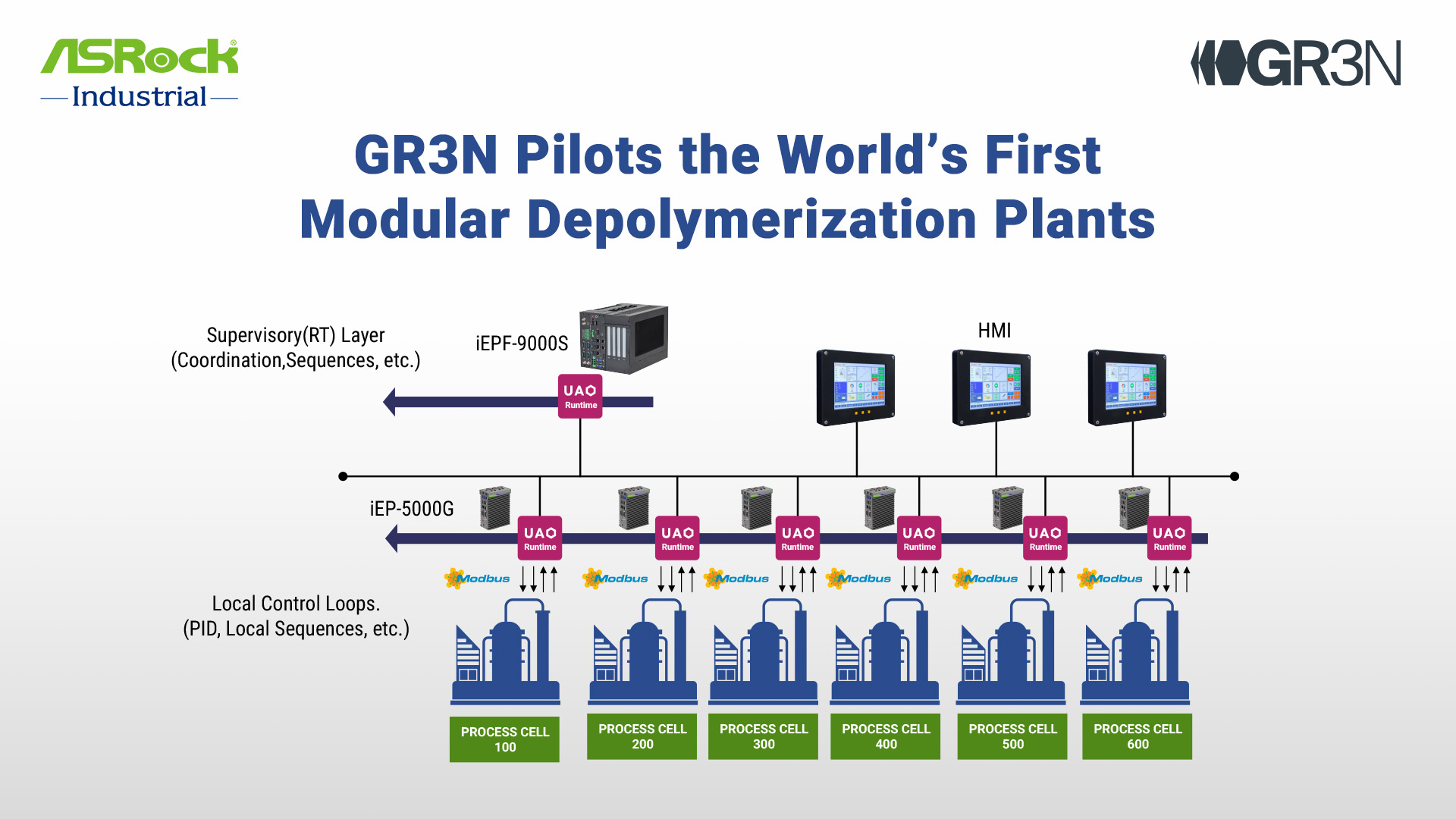

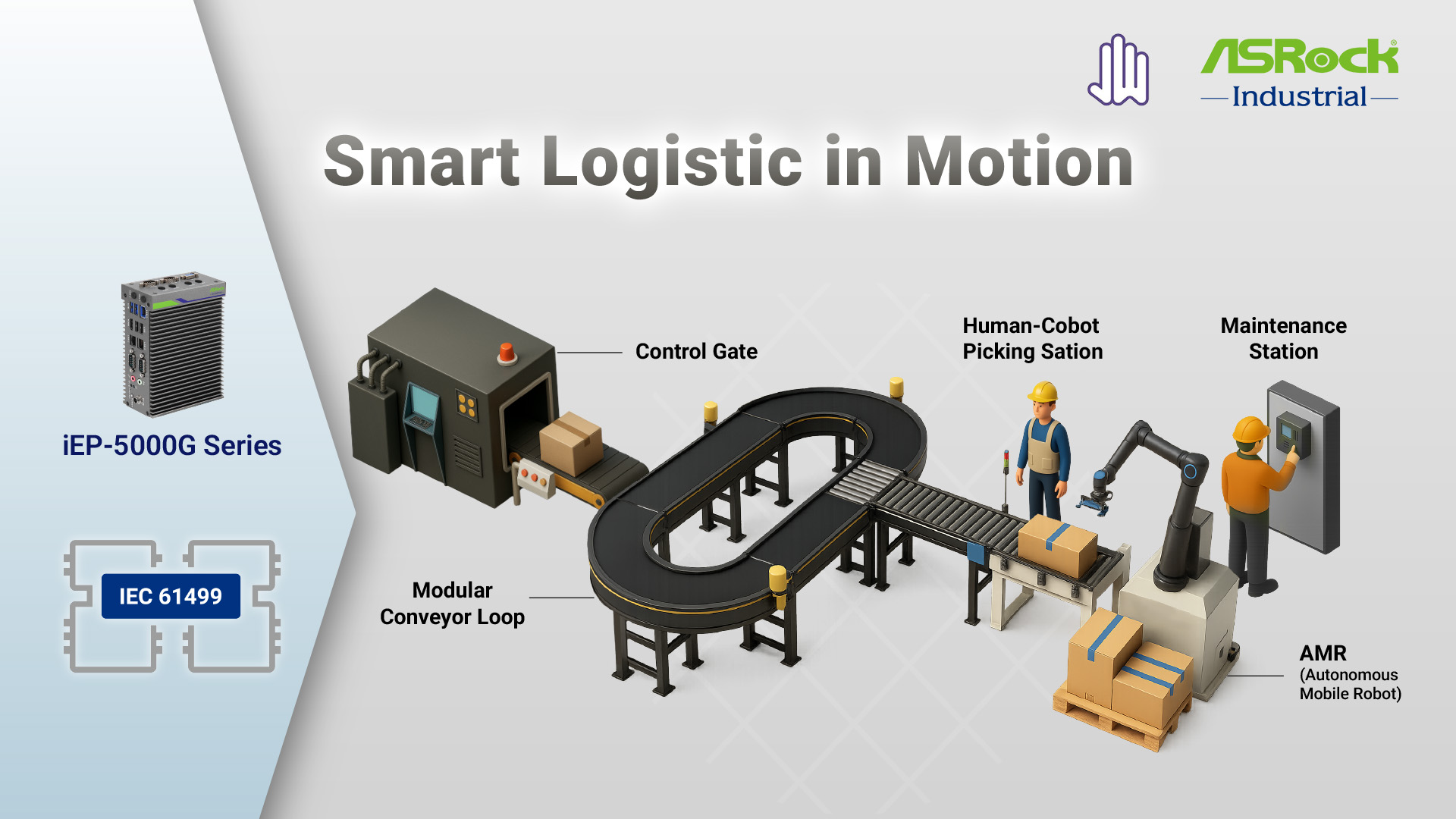

iEP-5000G Series Industrial IoT Controller

Processor System

CPU	iEP-5000G Series : Intel Atom® x6425RE, 4C, 1.9GHz, 12W iEP-5001G Series : Intel Atom® x6212RE, 2C, 1.5GHz, 6W
Chipset	MCP
BIOS	AMI SPI 256 Mbit

Memory

Technology	Dual Channel DDR4 3200 MHz
Capacity	32GB (16GB per DIMM)
Socket	2 x 260-pin SO-DIMM

Graphics

Controller	Intel® UHD Graphicse
HDMI	HDMI 2.0b Max resolution up to 4096x2160@60Hz
VGA	Max resolution up to 1920x1200@60Hz

Expansion Slot

M.2	1 x M.2 (Key B, 3042/3052) with PCIe Gen3x1 and USB 3.2 for 4G LTE/5G 1 x M.2 (Key E, 2230) with PCIe Gen3x1 and USB 2.0 for Wireless
RF& Antenna	6 x SMA connector hole reserved for Basic SKU 4 x SMA connector hole reserved for PoE/5LAN SKU

Audio

Interface	Realtek ALC897, High Definiton Audio

Ethernet

Controller/ Speed	LAN1/LAN2/LAN3: Maxlinear GPY215 with 10/100/1000 Mbps LAN4/LAN5: Intel® I210AT with 10/100/1000 Mbps (For 5LAN SKU) PoE1/PoE2: Intel® I210AT. PoE output max.15.4W/port, each port supports IEEE 802.3AF PoE. (For PoE SKU)
Connector	RJ-45

Front I/O

Audio	1 x Mic-in 1 x Line-out
COM	2 x RS-232/422/485
Ethernet	3 x 1G LAN
HDMI	1 x HDMI 2.0b
USB	2 x USB 3.2 Gen2 2 x USB 2.0
LED	1 x SATA/NVMe Storage LED 1 x Wi-Fi/BT LED
DC-IN	1 x DC Jack (For iEP-500XG-00X) 1 x 3-pin Phoenix type (For iEP-500XG-01X)
Clear CMOS	1
Power Button	1 (with LED)

Rear I/O

SIM Card	1 x Nano SIM Card slot
Micro SD Card	1 x Micro SD card slot (SD Card specification version 3.01)

Top I/O

COM	1 x RS-232/422/485
VGA	1
Digital I/O	4DIs/4DOs
Ethernet	2 x 1G LAN for PoE/5LAN SKU
LED	2 x PoE LED

Storage

M.2	1 x M.2 (Key M, 2280) with PCIe Gen3x2 and SATA3
SATA	1 x 2.5" SATA3 SSD (6Gb/s) for Basic SKU (By request)

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	For Basic/5LAN SKU: 6V~36V DC For PoE SKU: 19V~36V DC - OVP, UVP, OCP, plus 80V surge protection

Environment

Operating Temp	For Basic/5LAN SKU : -40°C ~ 70°C (-40°F~158°F) For PoE SKU : -40°C ~ 50°C (-40°F~122°F) With airflow 0.5~0.8m/s
Storage Temp	-40°C ~ 85°C (-40°F~185°F)
Humidity	~95% @ 40°C (non-condensing)

Mechanical

Construction	Aluminum
Dimensions (L x W x H)	58 x 125 x 157 mm
Mounting	DIN-Rail , Wall Mount (By Request)
Weight	Basic SKU: 1.45 kg PoE SKU: 1.75kg 5LAN SKU: 1.65kg

Standards and Certifications

Safety	EN 62368-1 (LVD)
EMC	EN 61000-6-2/-6-4 (CE) FCC Part 15B Class A
EMS	IEC 61000-4-2, ESD protection Level 4 : Contact +/-8 KV, Air +/-15
Shock	IEC 60068-2-27, Operating 100 G, half sine 11 ms duration with SSD
Vibration	IEC 60068-2-64, Operating: 5 Grms, 5-500 Hz, 3 axes with SSD
OS	Ubuntu 22.04 LTS Red Hat Enterprise Linux 9.2 - 9.x

Others

OS Support	Windows 10, Liunux
Real-Time Enablement	TSN, TCC support under Linux
TPM	TPM2.0
Packing List	1 x 19V/65W Power Adapter (for Basic SKU with DC Jack only) 3 x M2*2 Screw Package 1 x Sink for Memory 1 x Sink for M.2 2280 support 1 x 3-pin phoenix connector (for system with DC-IN phoenix type only) 1 x System QIG
Optional Items	(1) 19V/65W Power Adapter for Basic/5LAN SKU (2) 19V/120W Power Adapter for PoE SKU (3) 2.5" HDD bracket kits for Basic SKU (4) Thermal Kits for support 4G LTE/5G module (5) Antenna/SMA Cable for support Wi-Fi module (6) Antenna/SMA Cable for support 4G LTE/5G module (7) DIN Rail Kit (8) Wall Mount Kit

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

• Drivers
• BIOS
• Manual

Ordering Information

Model Name	Part Number	Description
Model Name	iEP-5000G-000	Part Number	90PXG8D0-00000010	Description	Basic SKU (DC Jack) CPU : Intel Atom x6425RE processor Adapter : FSP 65W Without Memory, Storage System Operating Temperature is up to -40~70°C. When equipped with commercial temperature DRAM&SSD, the Operating Temperature is limited to 0~45°C as it is not wide temperature DRAM & SSD.
Model Name	iEP-5000G-010	Part Number	90PXG8D0-30000000	Description	Basic SKU (DC Phoenix type) CPU : Intel Atom x6425RE processor Without Adapter, Memory, Storage System Operating Temperature is up to -40~70°C. When equipped with commercial temperature DRAM&SSD, the Operating Temperature is limited to 0~45°C as it is not wide temperature DRAM & SSD.
Model Name	iEP-5000G-000-FS1	Part Number	90PXG8D0-00610012	Description	Basic SKU (DC Jack) CPU : Intel Atom x6425RE processor Memory : DDR4 3200 SO-DIMM W/T 16GB x2 Storage : M.2 2280 PCIe NVME W/T 128G x1 Mount : DIN-RAIL Kit Adapter : FSP 65W System Operating Temperature is up to -40~70°C.
Model Name	iEP-5000G-010-FS1	Part Number	90PXG8D0-30610002	Description	Basic SKU (DC Phoenix type) CPU : Intel Atom x6425RE processor Memory : DDR4 3200 SO-DIMM W/T 16GB x2 Storage : M.2 2280 PCIe NVME W/T 128G x1 Mount : DIN-RAIL Kit Without Adapter System Operating Temperature is up to -40~70°C.
Model Name	iEP-5000G-011	Part Number	90PXG8D0-40000000	Description	PoE SKU (DC Phoenix type) CPU : Intel Atom x6425RE processor w/o Adapter, Memory, Storage System Operating Temperature is up to -40~50°C. When equipped with commercial temperature DRAM&SSD, the Operating Temperature is limited to 0~45°C as it is not wide temperature DRAM & SSD.
Model Name	iEP-5000G-012	Part Number	90PXG8D0-50000000	Description	5LAN-WIFI SKU (DC Phoenix type) CPU : Intel Atom x6425RE processor w/o Adapter, Memory, Storage System Operating Temperature is up to -40~70°C. When equipped with commercial temperature DRAM&SSD, the Operating Temperature is limited to 0~45°C as it is not wide temperature DRAM & SSD.
Model Name	iEP-5000G-013	Part Number	90PXG8D0-60000000	Description	5LAN-5G SKU (DC Phoenix type) CPU : Intel Atom x6425RE processor w/o Adapter, Memory, Storage System Operating Temperature is up to -40~70°C. When equipped with commercial temperature DRAM&SSD, the Operating Temperature is limited to 0~45°C as it is not wide temperature DRAM & SSD.
