iBOX-155U Fanless Embedded BOX PC

Intel® Core™ Ultra processors (Meteor Lake-U/H)
2 x 262-pin SO-DIMM DDR5 5600MHz up to 96GB (48GB per DIMM)
1 x USB4/Thunderbolt™4, 4 x USB3.2 Gen2, 2 x USB 2.0, 2 x M.2 Key M, 1 x M.2 Key E, 1 x COM, 1 x SATA3
2 x Intel 2.5 Gigabit LAN
Supports Quad display, 2 x HDMI 2.1 TMDS, 1 x DP 2.1 (from USB4), 1 x DP 1.4a (from Type-C)
Intel® PTT
Supports Intel® vPro, VMD RAID 0/1
19V/90W Power Adapter
171.8 x 109.45 x 50.05mm (6.76" x 4.31" x 1.97"), Fanless Embedded BOX PC

Datasheet

Specification

Processor System

CPU	Intel® Core™ Ultra processors (Meteor Lake-U/H) iBOX-155U (2P+8E)
Chipset	MCP
BIOS	AMI SPI 256 Mbit

Form Factor

Dimensions	200 x 200 x 35mm (WxDxH)

Memory

Technology	Dual Channel DDR5 5600 MHz
Capacity	96GB (48GB per DIMM)
Socket	2 x 262-pin SO-DIMM

Graphics

Controller	Intel® Graphics
HDMI	HDMI 2.1 TMDS Max resolution up to 4096x2160@60Hz
DisplayPort	DisplayPort 2.1/ 1.4a, DP++ Max resolution up to 4096x2160@60Hz
MultiDisplay	Quad-Display (Included 2 outputs from Type-C)

Expansion Slot

M.2	1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless

Audio

Interface	Realtek ALC256, High Definition Audio.

Ethernet

Controller/ Speed	LAN1: Intel I226L,M with 10/100/1000/2500 Mbps, supports vPro LAN2: Intel I226V with 10/100/1000/2500 Mbps
Connector	2 x RJ-45

Front I/O

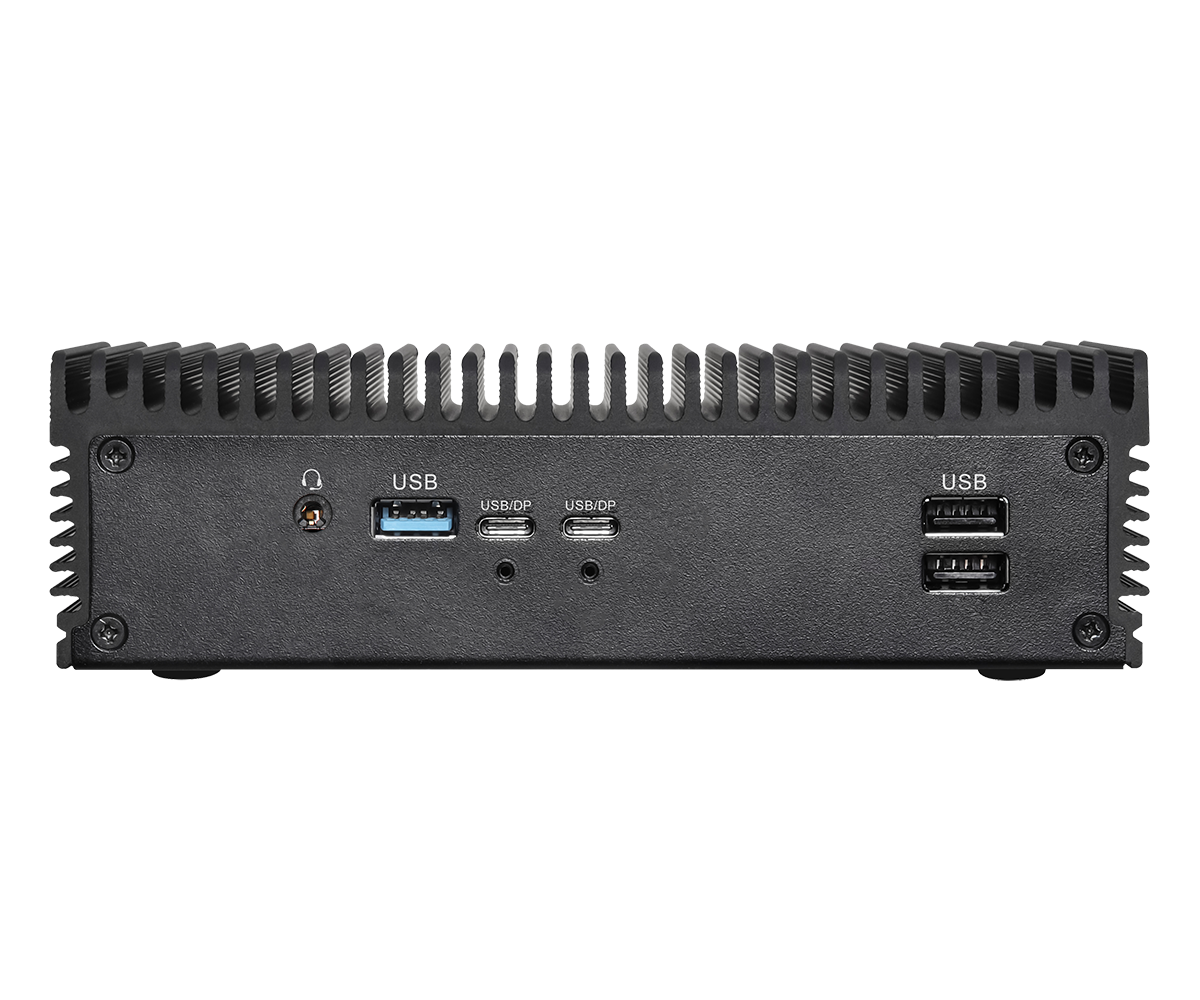

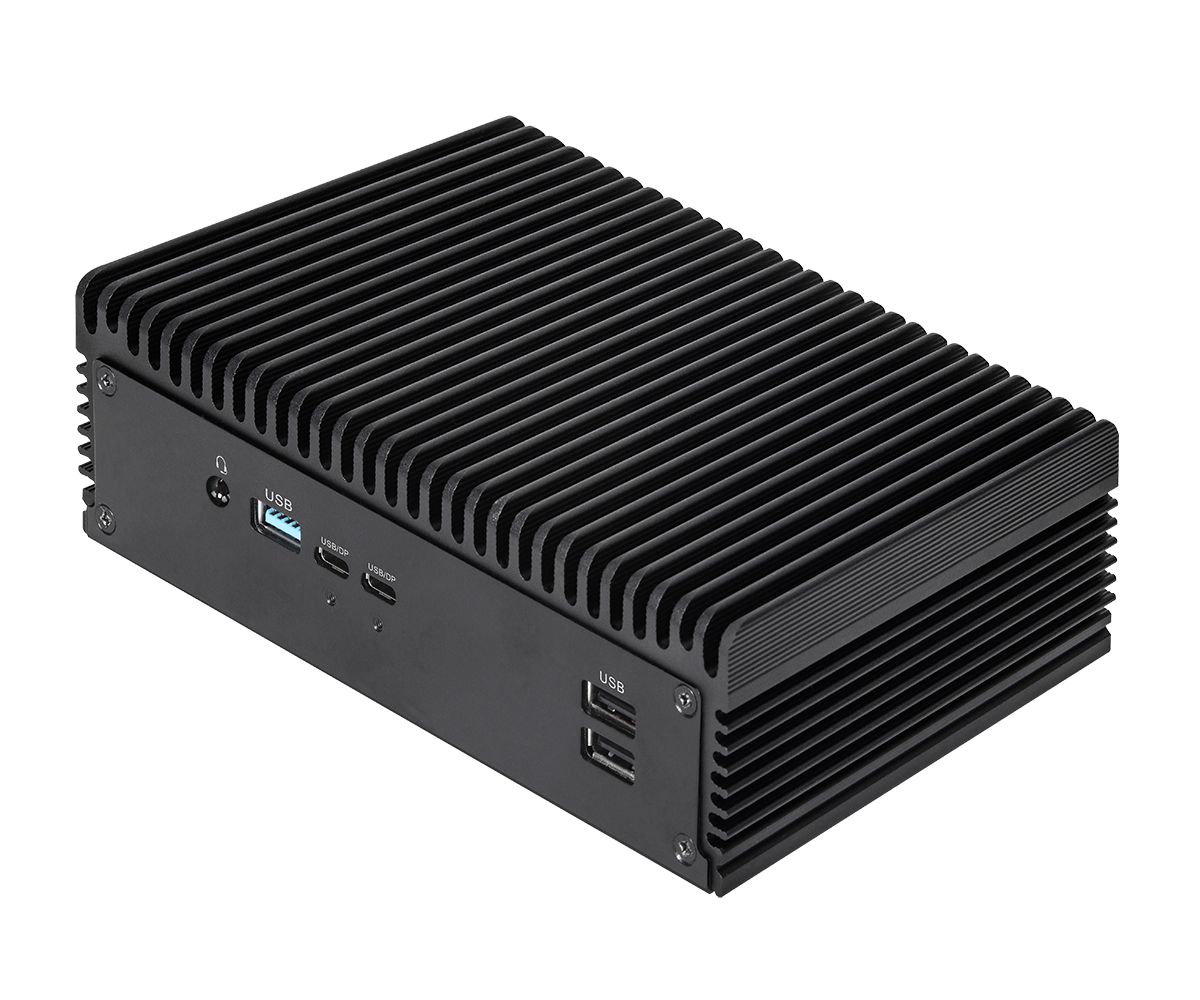

USB	1 x USB 3.2 Gen2 (Type A) 1 x USB4/Thunderbolt™ 4 (5V/3A, Supports DP 2.1display output) 1 x USB3.2 Gen2 x2 (Type-C, 5V/3A, Supports DP1.4adisplay output) 2 x USB 2.0 *For Thunderbolt support, please refer to support list.
Audio	1 (headphone & microphone jack)

Rear I/O

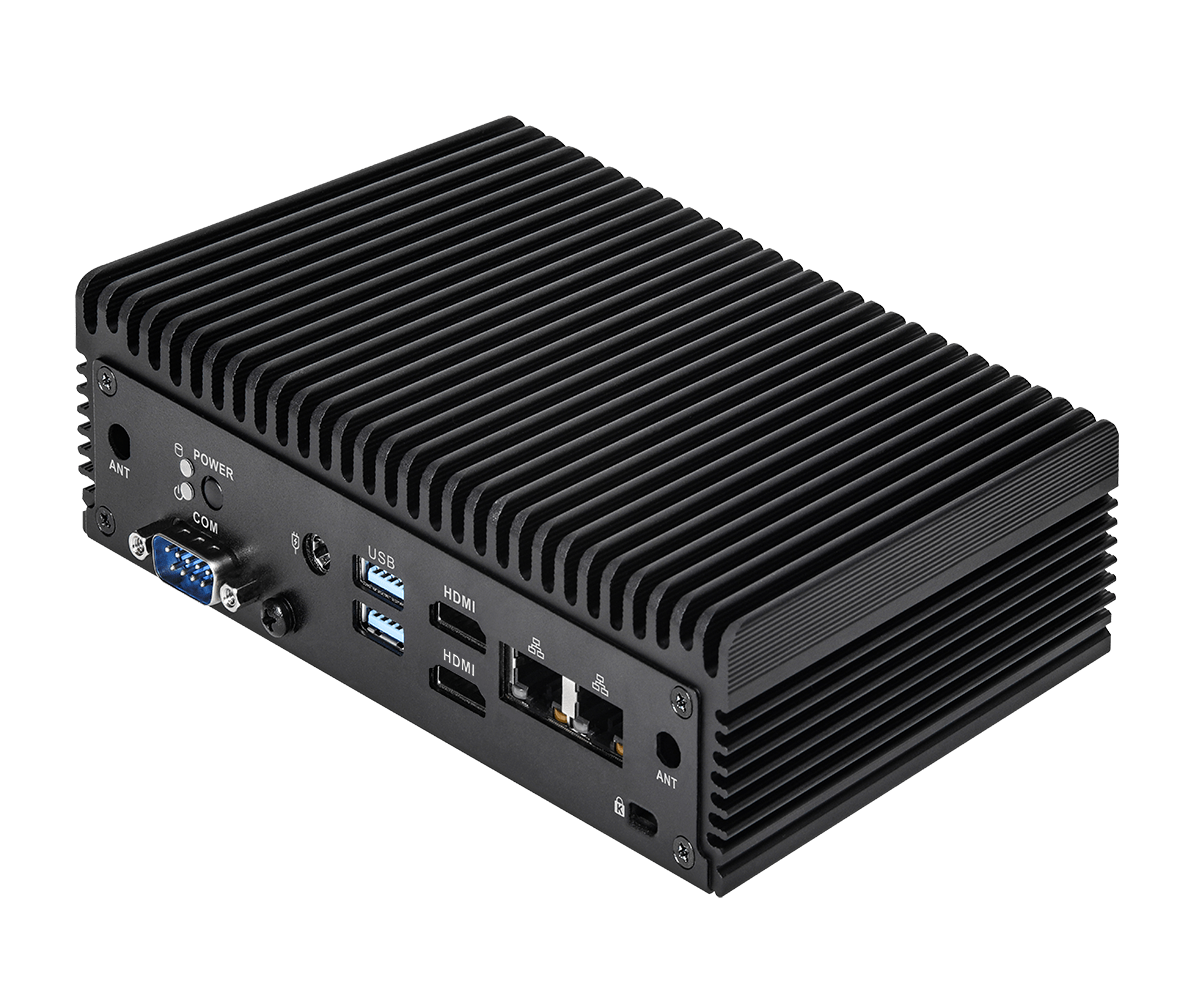

HDMI	2 x HDMI 2.1 TMDS
Ethernet	2 x 2.5 Gigabit LAN
USB	2 x USB 3.2 Gen2 (Type-A)
COM	1 x COM(RS-232)
DC Jack	1

Storage

M.2	1 x M.2 (KEY M, 2242) with PCIe Gen4 x4 for SSD 1 x M.2 (KEY M, 2242/2280) with PCIe Gen4 x4 for SSD
SATA	1 x SATA3.0 (6.0 Gb/s)

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	12V~24V DC-In Jack
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	-20ºC ~ 40ºC with air flow 0.5~0.8 m/s (with extended temp. peripherals)
Storage Temp	-40° C – 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Mechanical

Construction	Aluminum housing
Mounting	VESA mount/Wall mount/Din-rail
Dimensions (L x W x H)	171.8 x 109.45 x 50.05mm (6.76" x 4.31" x 1.97")
Weight	Net Weight:1.6Kg

Others

OS Support	Windows 10/11
TPM	Intel® PTT
Certifications	CE, FCC
Packing List	1 x 19V/90W Power Adapter 1 x Wall mount kit

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

OS:

Description	Information	OS	Date	Download
Description	Intel WLAN Driver ver: 23.0.6.4_G	Information	Size: 28Mib Version: 23.0.6.4_G SHA1: 1ADB11C3F94F7FBF07379B7CBB764C379448636E Filename: Intel_WLAN_Driver_ver(v23.0.6.4_G).zip Release Note	OS	Win 11 x 64	Date	2024-03-01	Download	Global China
Description	Realtek high definition ALC 256 audio driver ver:9467	Information	Size: 39Mib Version: 9467_UAD_2023_0110_110651 SHA1: 2ED4B16592555AFF7623D1E939C47F49897AD9EC Filename: Realtek_Audio(v9467_UAD_2023_0110_110651).zip Release Note	OS	Win 11 x 64	Date	2024-01-10	Download	Global China
Description	GNA ver: 03.05.00.1574	Information	Size: 1186Kib Version: 03.05.00.1574 SHA1: B6636A73A10ADA0F1D05D1CA3D4B58885E81D607 Filename: GNA(v03.05.00.1574).zip Release Note	OS	Win 11 x 64	Date	2024-03-01	Download	Global China
Description	Intel Rapid Storage Technology driver and utility ver: 20.0.0.1035.4	Information	Size: 50Mib Version: 20.0.0.1035.4 SHA1: 4E392712489B70E6269E22AAC309643F9527C7D9 Filename: Intel Rapid Start driver ver(v20.0.0.1035.4).zip Release Note	OS	Win 11 x 64	Date	2024-01-10	Download	Global China
Description	Intel HID Event Filter ver: 2.2.2.5	Information	Size: 1181Kib Version: 2.2.2.5 SHA1: A91AC0D0D72C7DD52327F9C8D4B3981D5C66E306 Filename: Intel_HID_Event_Filter_ver(v2.2.2.5).zip Release Note	OS	Win 11 x 64	Date	2024-03-01	Download	Global China
Description	NPU driver ver: 31.0.100.1688	Information	Size: 123Mib Version: 31.0.100.1688 SHA1: 4BD8D2BC4DB21C451C1DC35F0CAE6FCDF8217C22 Filename: npudrive(v31.0.100.1688).zip Release Note	OS	Win 11 x 64	Date	2024-03-01	Download	Global China
Description	PMT ver: 3.1.2.2	Information	Size: 1180Kib Version: 3.1.2.2 SHA1: 608BD7420AAB27718BEF8166A81695799646128E Filename: PMT(v3.1.2.2).zip Release Note	OS	Win 11 x 64	Date	2024-03-01	Download	Global China
Description	Intel Serial IO driver ver: 30.100.2318.58	Information	Size: 2623Kib Version: 30.100.2318.58 SHA1: D264D7CBC00DB1DD42B73E182801236CFDE7C2C2 Filename: Intel Serial IO driver ver(v30.100.2318.58).zip Release Note	OS	Win 11 x 64 , Win 10	Date	2024-01-10	Download	Global China
Description	Intel Management Engine driver ver: 2344.5.41.0_Corporate	Information	Size: 311Mib Version: 2344.5.41.0_Corporate SHA1: 2FCE2503C758A03FEF4958BC1D7CE749CE2ADF49 Filename: Intel Management Engine driver ver(v2344.5.41.0_Corporate).zip Release Note	OS	Win 11 x 64	Date	2024-01-10	Download	Global China
Description	Bluetooth driver ver: 23.0.1.1G	Information	Size: 46Mib Version:23.0.1.1G SHA1: E983110D48196B13AFBB2AE3A85889FD9E38266B Filename:Intel Bluetooth Driver(v23.0.1.1G).zip Release Note	OS	Win 11 x 64	Date	2024-01-10	Download	Global China
Description	VGA driver ver: 31.0.101.5125	Information	Size: 710Mib Version:31.0.101.5125 SHA1: 6EAE53BBAB7AB96F9307A059AE2E2E4511B6EBB1 Filename:Intel_VGA (v31.0.101.5125).zip Release Note	OS	Win 11 x 64	Date	2024-01-10	Download	Global China
Description	Chipset Driver ver: 10.1.19627.8423-Public-MUP	Information	Size: 5172Kib Version:10.1.19627.8423-Public-MUP SHA1: 6F13EB23B92CB4E3C2244C6A98048DAF7A3D2808 Filename:Chipset(v10.1.19627.8423-Public-MUP).zip Release Note	OS	Win 11 x 64	Date	2024-01-10	Download	Global China
Description	Intel I226/I225 Lan driver ver: 2.1.3.15	Information	Size: 1467Kib Version: 2.1.3.15 SHA1: C86191829A5CDC51E1BCBC774905E8359A4C9791 Filename: Intel I226_I225_LAN_Driver(v2.1.3.15).zip Release Note	OS	Win 11 x 64	Date	2024-03-01	Download	Global China

The format of our documents are in PDF files. If you have not installed Adobe Acrobat Reader, please get it from Adobe.

Description	Language	Date	Download
Description	Quick Installation Guide	Language	English	Date	2024-05-15	Download	Global China
