EOL

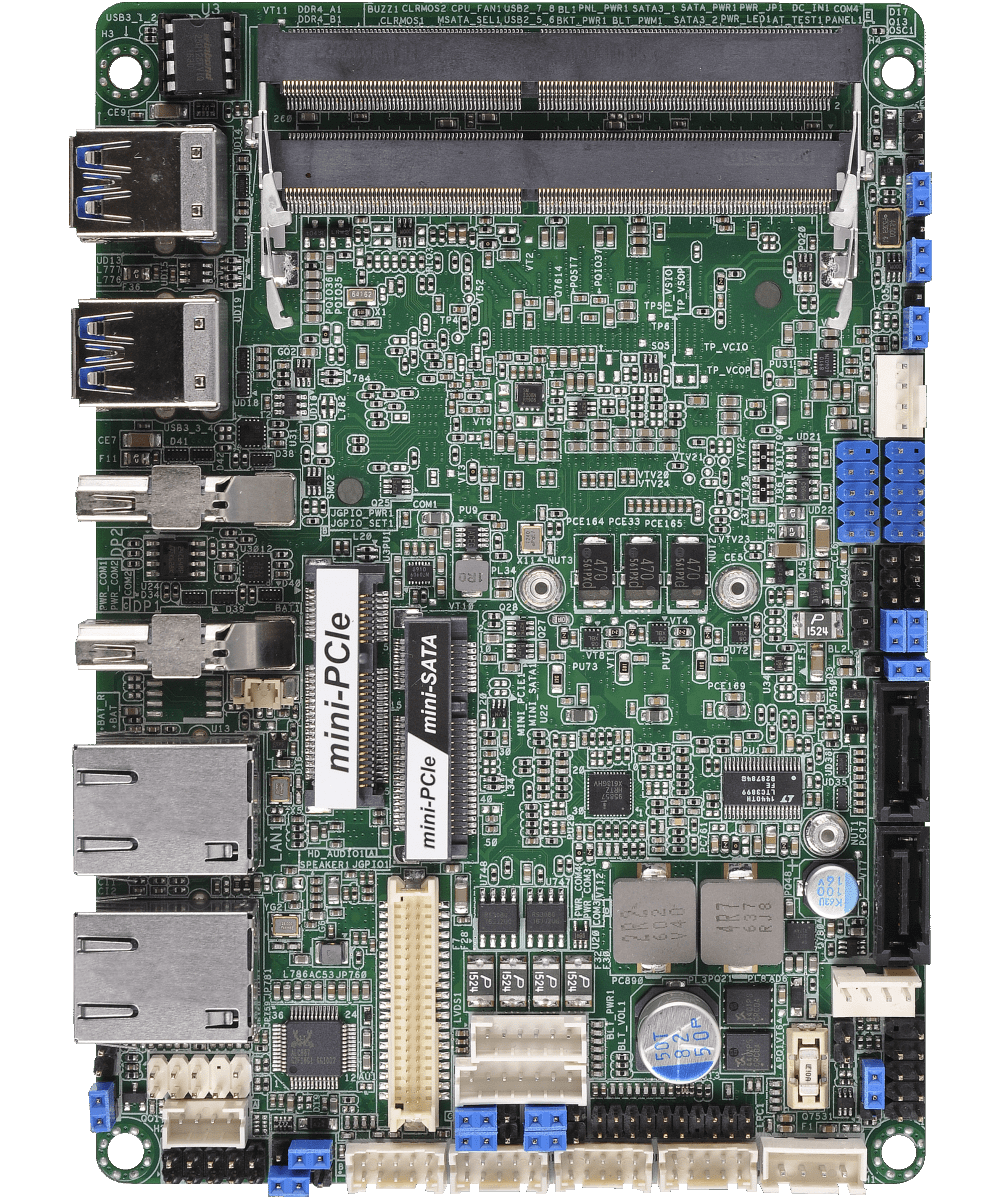

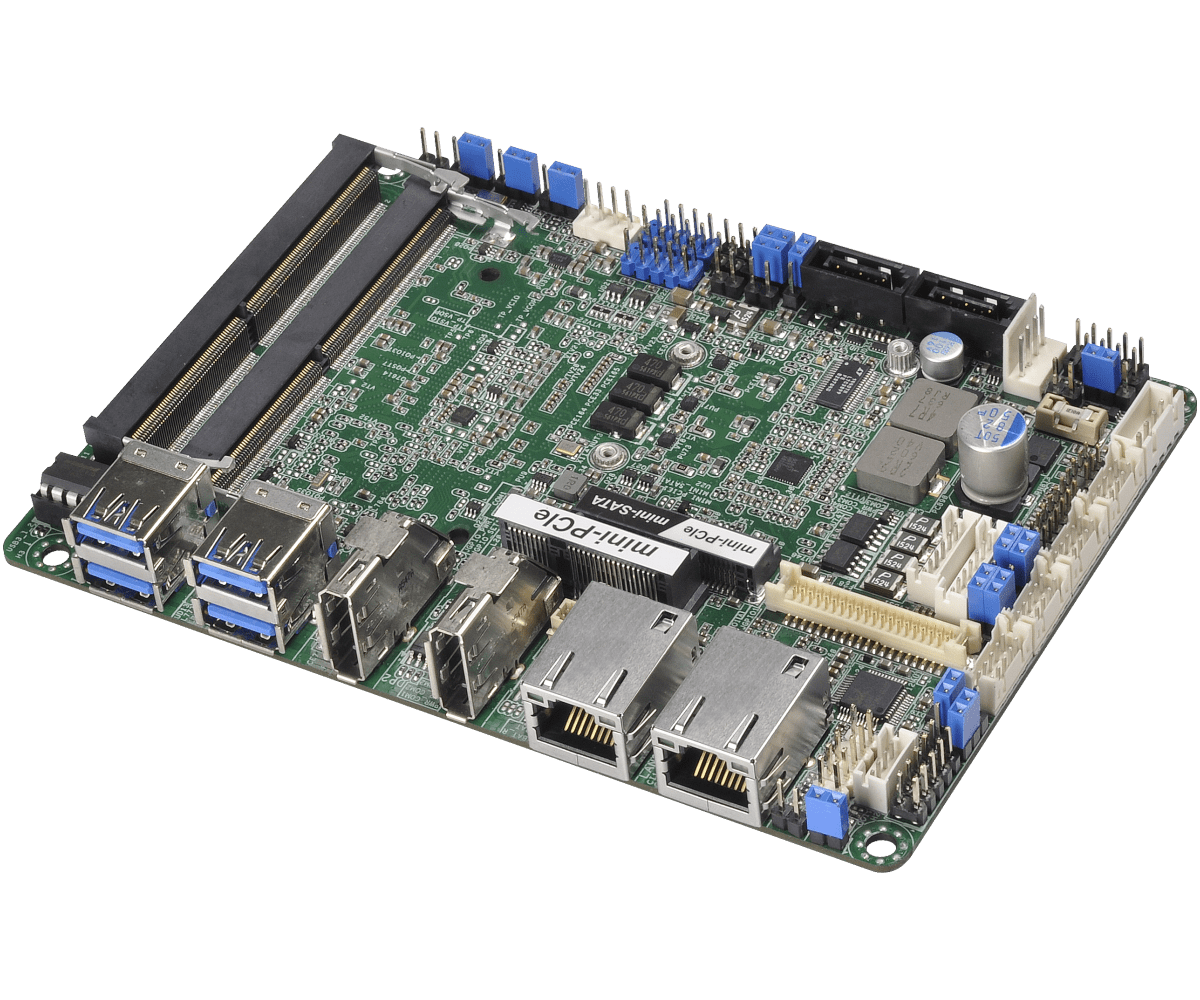

SBC-330 SBC 3.5
- Intel® 6th Gen (Skylake-U) Core™ MCP Processors
- 2 x 260-pin SO-DIMM DDR4 2133 MHz, up to 32GB (16GB per DIMM)
- 4 x USB 3.1 Gen2, 4 x USB 2.0, 1 x mini-PCIe, 1 x mSATA/mini-PCIe, 4 x COM, 2 x SATA3
- 2 x Intel 1 Gigabit LAN
- Supports triple display, 2 x DP 1.2, 1 x LVDS
- Supports Intel® vPro, AMT, RAID 0/1
- 12~36V DC-In
Specification
Processor System
| CPU | Intel® 6th Gen (Skylake-U) Core™ MCP Processors -SBC-330P (i7-6600U, QC, 2.60GHz, 15W) -SBC-330M (i5-6300U, QC, 2.40GHz, 15W) |
|---|---|
| Chipset | MCP |
| BIOS | AMI SPI 128 Mbit |
Form Factor
| Dimensions | 3.5"SBC (5.8-in x 4.0-in, 14.7 cm x 10.2 cm) |
|---|
Memory
| Technology | Dual Channel DDR4 2133 MHz |
|---|---|
| Capacity | 32 GB (16 GB per DIMM) |
| Socket | 2 x 260-pin SO-DIMM |
Graphics
| Controller | Intel® Gen9 Graphics DX 12 |
|---|---|
| DisplayPort | DisplayPort 1.2 Max resolution up to 4096x2160@60Hz |
| LVDS | Dual channel 24 bit up to 1920x1200@60Hz |
| MultiDisplay | Triple Display |
Expansion Slot
| mini-PCIe | 1 x Full size with PCIe x1 and USB 2.0 |
|---|---|
| mini-PCIe/mSATA | 1 x Full size with SATA3 and USB 2.0 |
Audio
| Interface | Realtek ALC888S, High Definition Audio. Line-out,Mic-in |
|---|
Ethernet
| Controller/ Speed | SBC-330P/330M LAN1: Intel® I219LM with 10/100/1000 Mbps, supports AMT/vPro LAN2: Intel® I210AT with 10/100/1000 Mbps |
|---|---|
| Connector | 2 x RJ-45 |

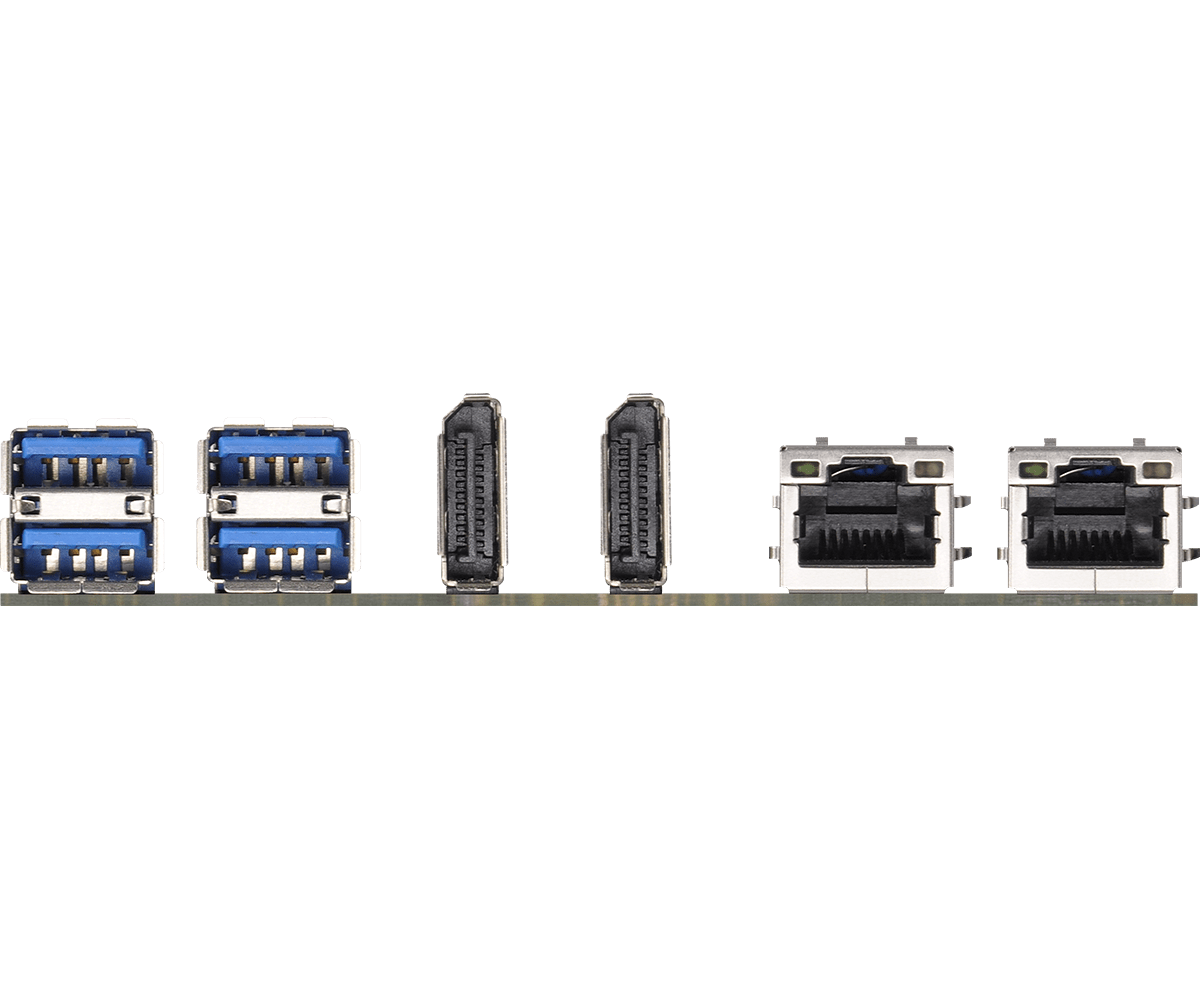

Rear I/O
| DisplayPort | 2 x DP1.2 |
|---|---|
| Ethernet | 2 x 1 Gigabit LAN |
| USB | 4 x USB 3.1 Gen2 |
Internal Connector
| USB | 4 x USB 2.0 (2x 2.54 pitch header) |
|---|---|
| COM | 1 x COM (RS-232/422/485) 3 x COM (RS-232) |
| GPIO | 4 x GPI , 4 x GPO |
| TPM | TPM Header |
| LVDS | 1 |
| SATA PWR Output | 1 |
Storage
| mSATA | 1 x Half size with SATA3 and USB 2.0 colay with mini-PCIe |
|---|---|
| SATA | 2 x SATA3 (6Gb/s) |
| RAID | Intel® SATA RAID 0/1 |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR | 12~36V (DC In) |
|---|---|
| Power On | AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
Environment
| Operating Temp | 0ºC ~ 60ºC |
|---|---|
| Storage Temp | -40° C ~ 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
Accessories
| Gift Package | 2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x AL PLATE 102.22*147.01mm (13G070252020AK) 1 x COM Cable (14G000000310AK) 1 x SATA Data Cable (14G00010107DAK) 1 x SATA Power Cable (14G000100410AK) 1 x DC-in Cable (14G000600900AK) |
|---|---|
| Bulk Package | 2 x SCREW FOR WIFI CARD (13G020305011AK) |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
