NUC BOX-J6412
NUC BOX-J6412
NUC BOX-J6412
NUC BOX-J6412

NUC BOX-J6412 Fanned BOX

  • Intel® ElkHart Lake SoC Processors J6412
  • 2 x 260-pin SO-DIMM up to 32GB DDR4 3200 MHz
  • 4 x USB 3.2 Gen2, 1 x USB 2.0, 1 x M.2 Key M, 1 x M.2 Key E, 1 x SATA3

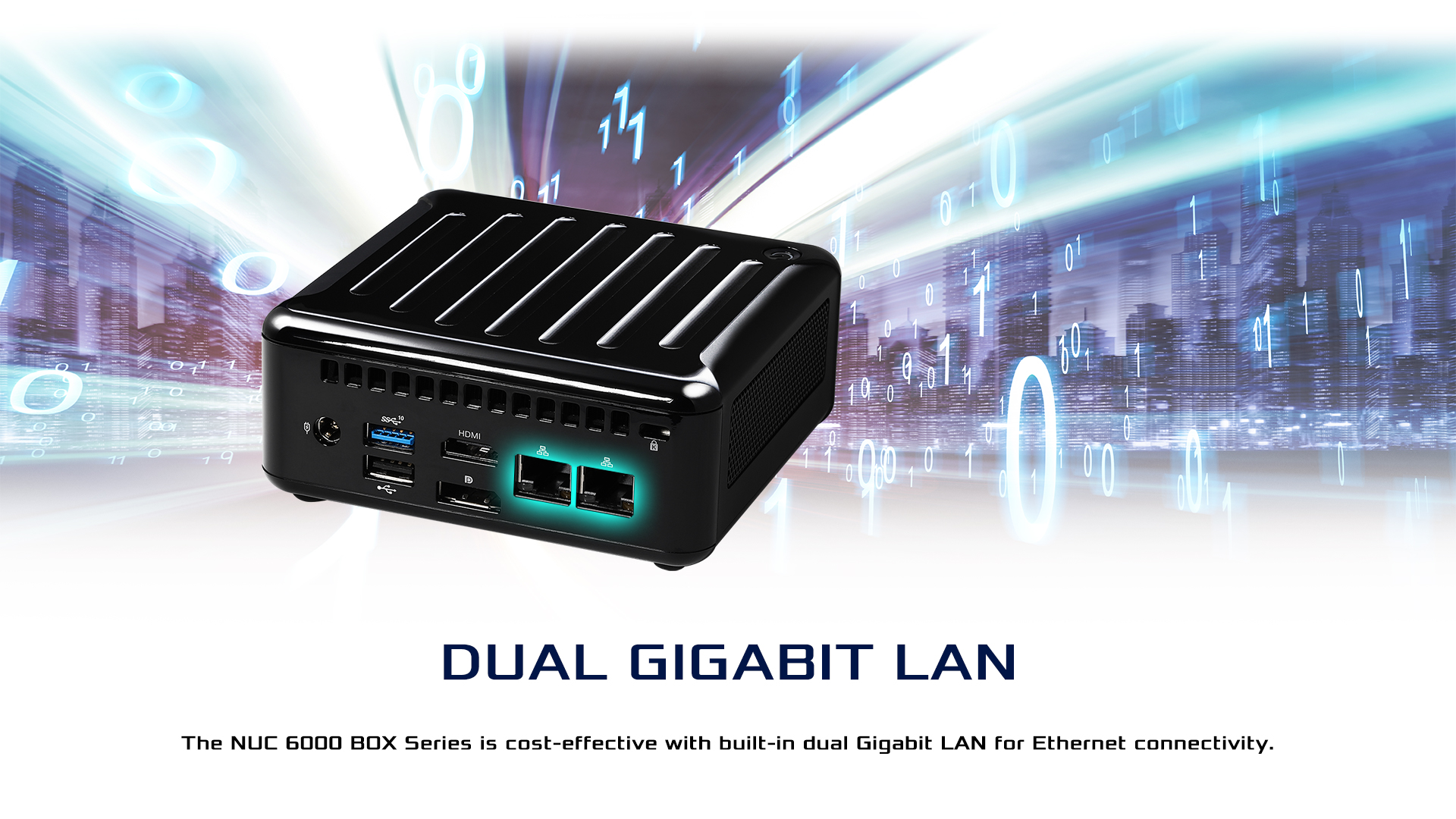

  • 2 x Realtek 1 Gigabit LAN
  • Supports Dual display, 1 x HDMI 2.0b, 1 x DP 1.2
  • TPM 2.0 onboard IC
  • 19V/65W Power Adapter

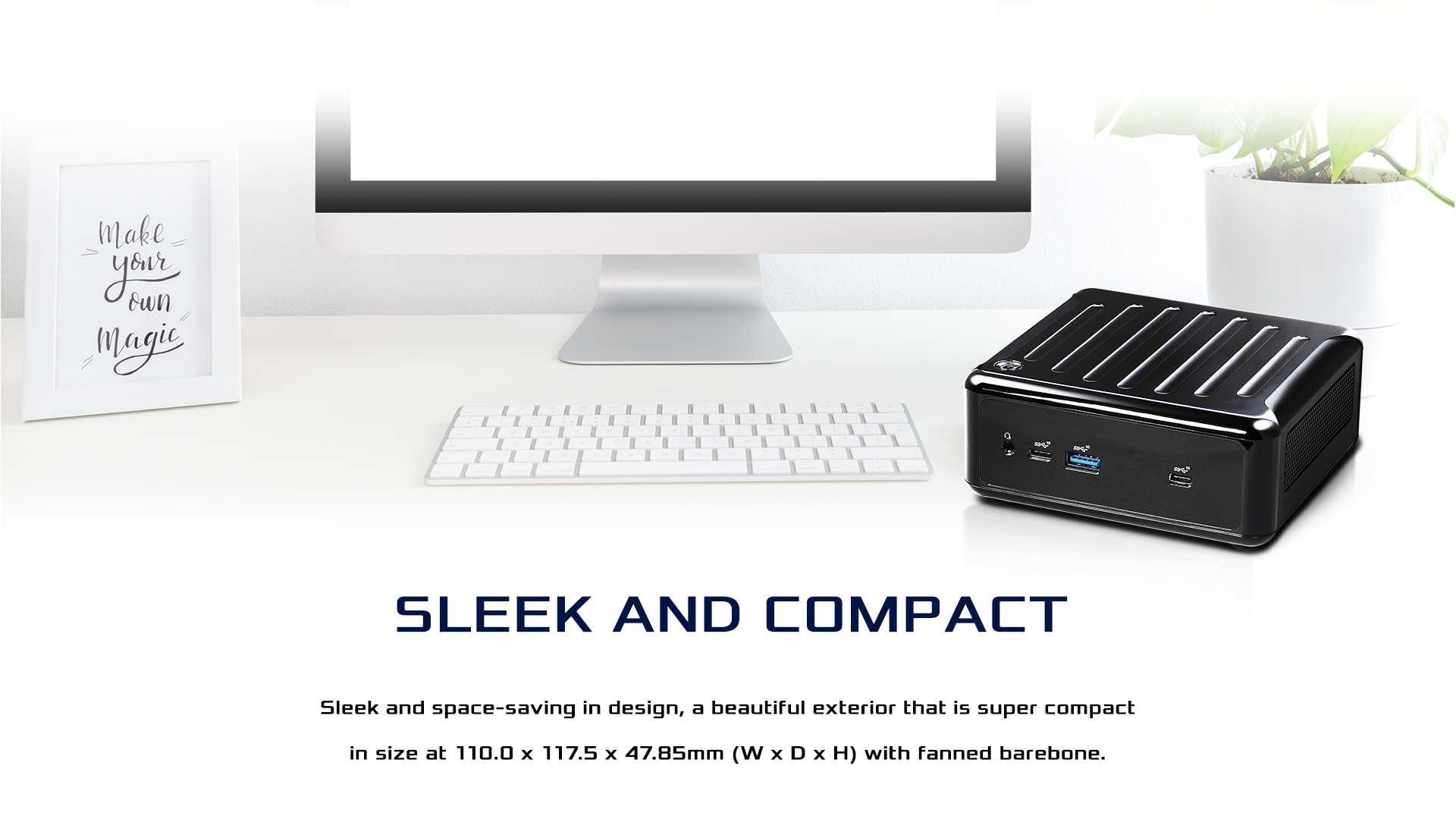

  • 110.0 x 117.5 x 47.85mm, Fanned Barebone
Datasheet
Overview





Specification

Form Factor

Dimensions 110.0 x 117.5 x 47.85mm

Processor System

CPU Intel® ElkHart Lake SoC Processors
NUC BOX-J6412 (J6412, QC, Max Speed up to 2.6GHz, 10W
Chipset SoC
BIOS AMI SPI 256 Mbit

Memory

Technology Dual Channel DDR4 3200 MHz
Capacity 32GB (16 GB per DIMM)
Socket 2 x 260-pin SO-DIMM

Graphics

Controller Intel® Gen 11 Graphics
HDMI HDMI 2.0b
Max resolution up to 4096x2160@60Hz
DisplayPort DisplayPort 1.2, DP++
Max resolution up to 4096x2160@60Hz
MultiDisplay Dual-Display

Expansion Slot

M.2/WLAN 1 x 802.11ac (433 Mbps) + BT 4.2 (M.2 Key E, 2230 PCIe x1, USB 2.0 for Wireless)

Audio

Interface Realtek ALC233, High Definition Audio.

Ethernet

Controller/ Speed Realtek RTL8111G-CG/RTL8111H-CG with 10/100/1000 Mbps
Connector 2 x RJ-45

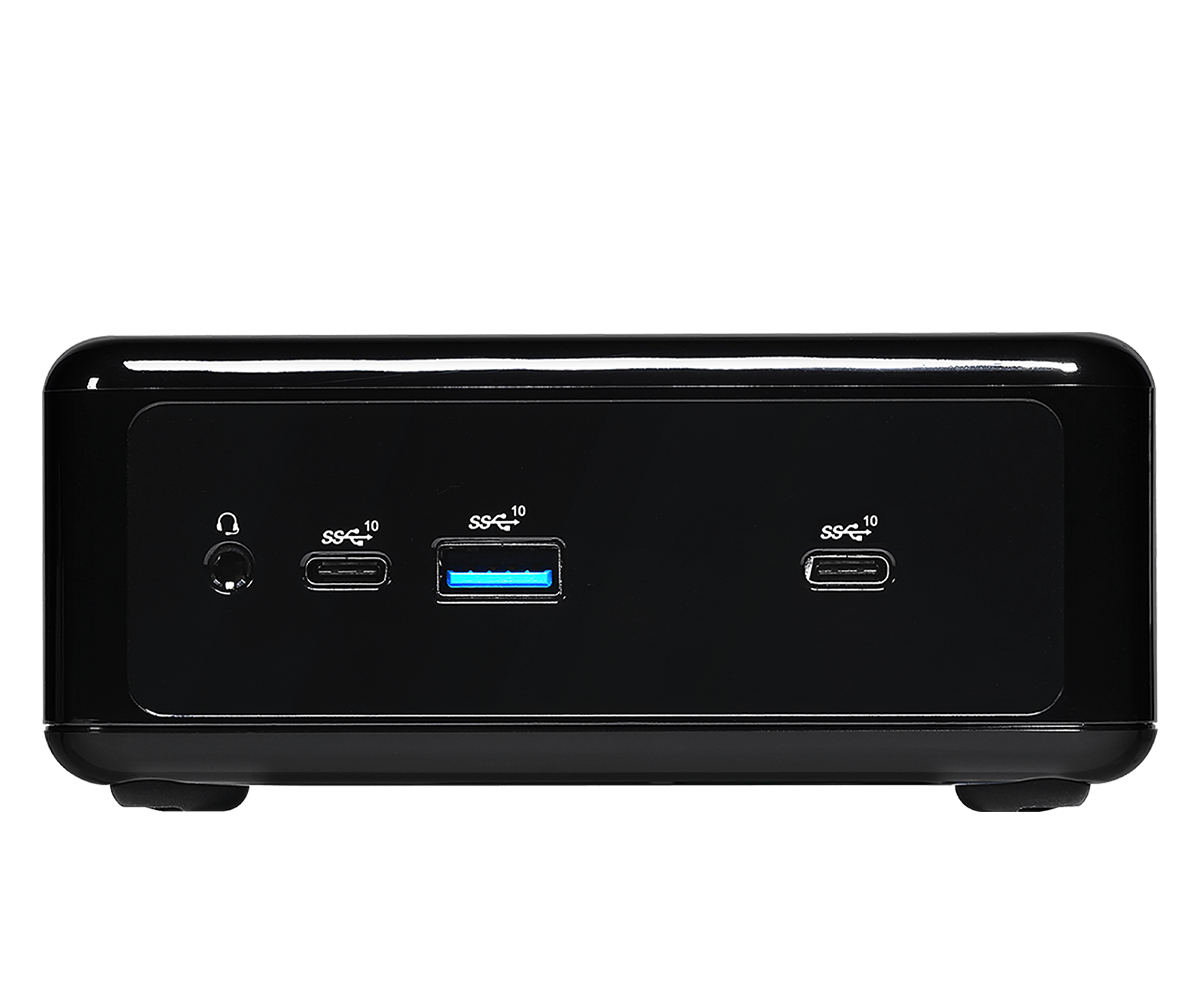

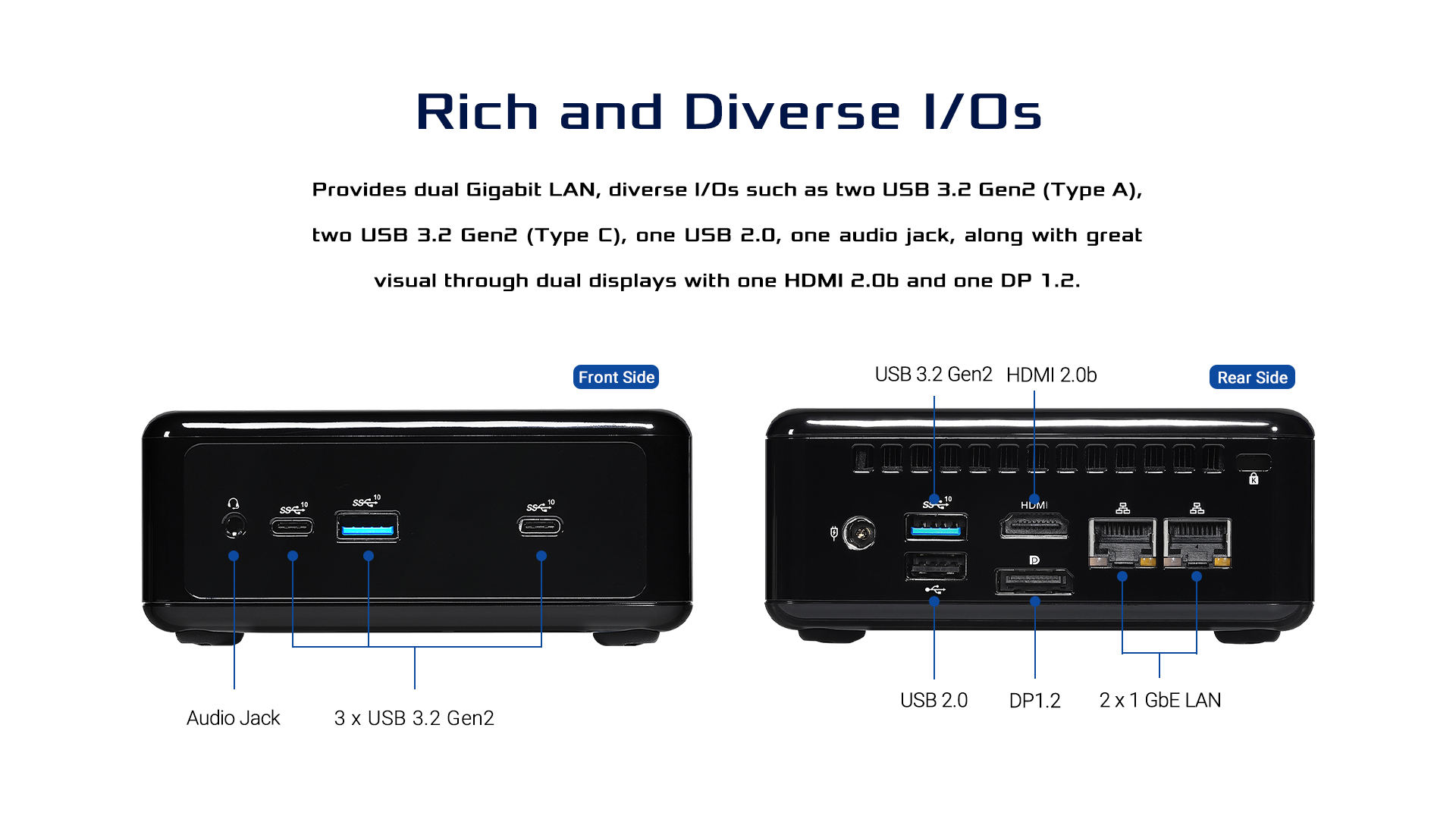

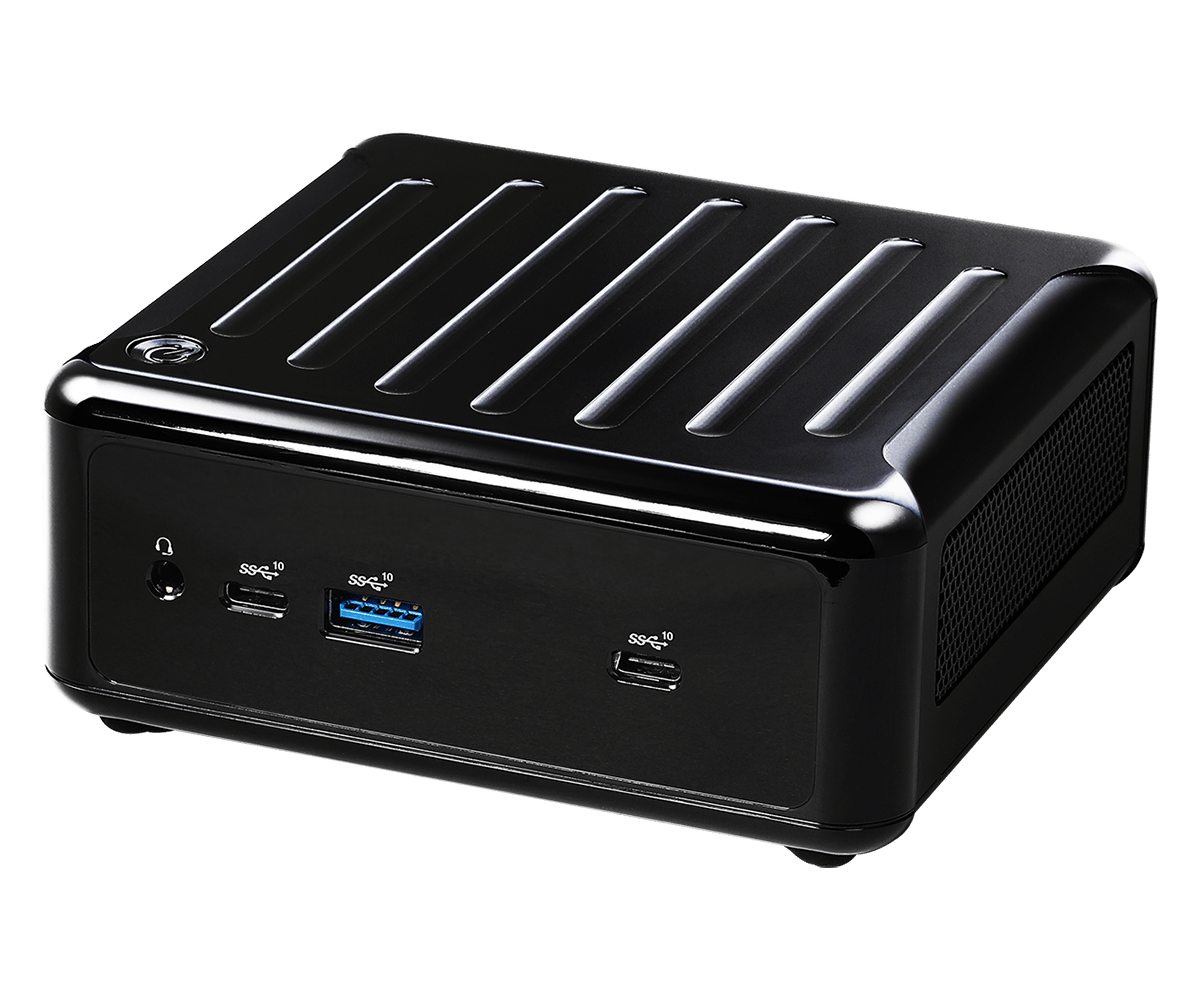

Front I/O

USB 1 x USB 3.2 Gen2 (Type-A)
2 x USB 3.2 Gen2 (Type-C)
Audio 1 (headphone & microphone jack)

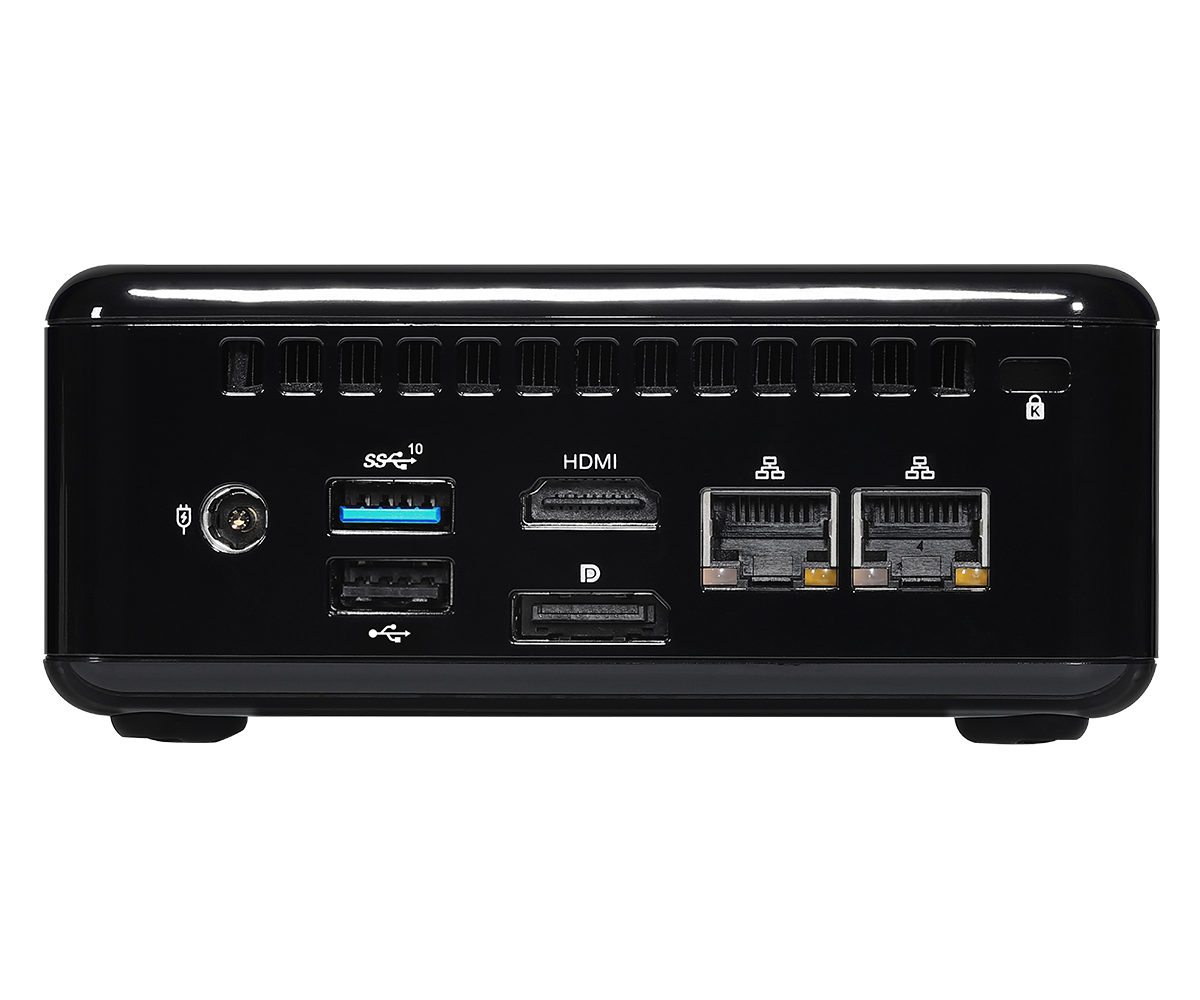

Rear I/O

HDMI 1 x HDMI 2.0b
DisplayPort 1 x DP 1.2
Ethernet 2 x 1 Gigabit LAN
USB 1 x USB 2.0
1 x USB 3.2 Gen2 (Type-A)
DC Jack 1

Storage

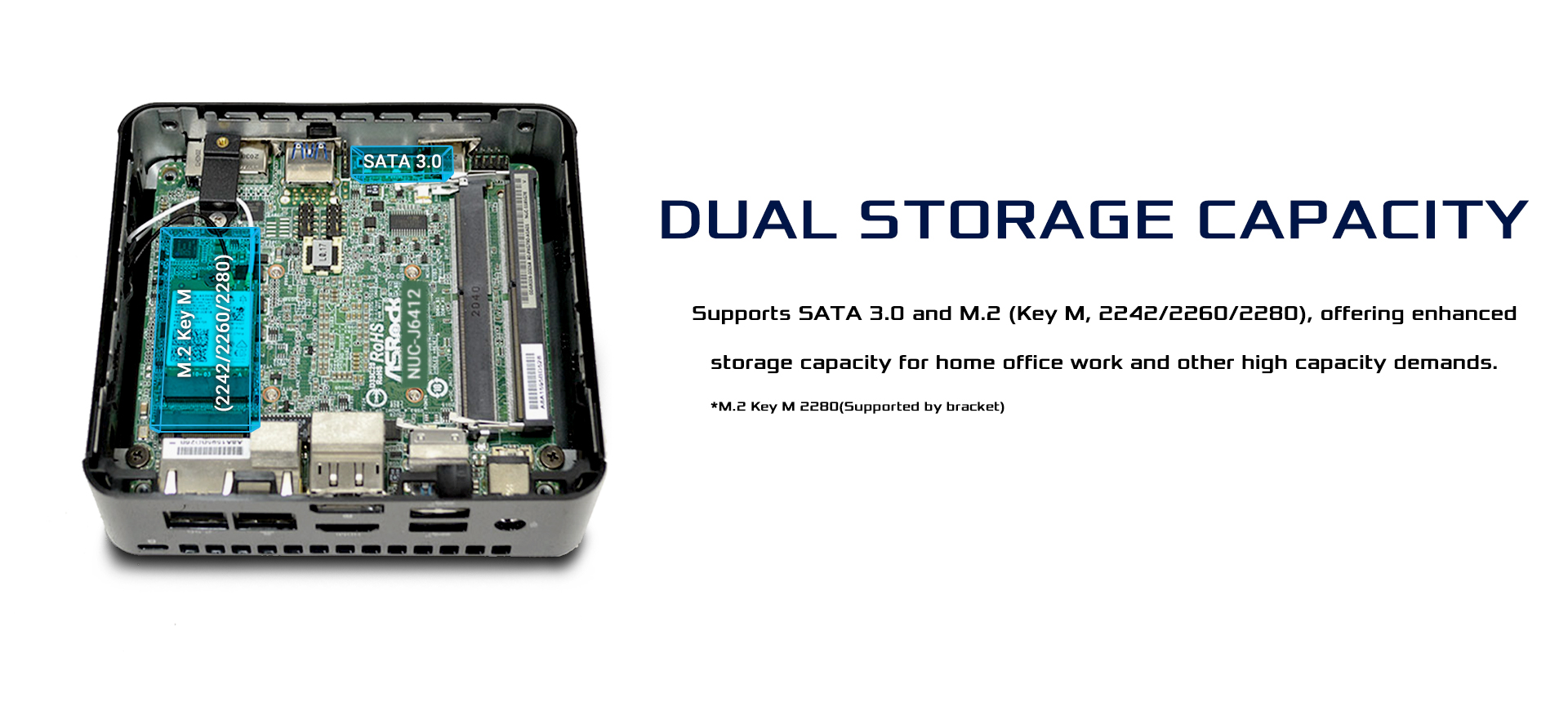

M.2 1 x M.2(KEY M, 2242/2260/2280) with PCIe x1 and SATA3 for SSD
*M.2 Key M 2280(Supported by bracket)
SATA 1 x SATA3.0 (6.0 Gb/s)

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR 1 x 19V/65W Power Adapter
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 40ºC
Storage Temp -40° C – 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

Mechanical

Construction Plastic
Mounting VESA mounting
Dimensions (W x H x D) 110.0 x 117.5 x 47.85mm
Weight Net Weight:1.0Kg

Others

OS Support Windows 10
Certifications CE, FCC Class A
Packing List 1 x 19V/65W Power Adapter
1 x Screw Package
1 x VESA mounting bracket
Longivity Support No
TPM TPM 2.0 onboard IC

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

Support

OS:

Description OS Date Download
Description Intel Serial IO driver ver:5.123.1.1023 OS Win 10 x 64 Date 2022-06-06 Download
Description Intel AC3168 Wireless LAN driver ver: 21.90.3 OS Win 10 x 64 Date 2022-03-18 Download
Description VGA Driver ver:27.20.100.9079.2 OS Win 10 x 64 Date 2021-08-23 Download
Description Intel Management Engine driver ver:15.40.10.2252_PV_SW_DCH OS Win 10 x 64 Date 2021-08-23 Download
Description INF driver ver:10.1.18634.8254_Public OS Win 10 x 64 Date 2021-08-23 Download
Description Realtek Lan driver ver:10047_02232021 OS Win 10 x 64 Date 2021-08-23 Download
Description Realtek Teaming driver ver:2.0.4.0 OS Win 10 x 64 Date 2021-08-23 Download
Description Realtek high definition audio driver ver:9116_FF00 OS Win 10 x 64 Date 2021-08-23 Download
Version Update BIOS Under / How to Update Description Date Download
Version 1.70 Update BIOS Under / How to Update BIOS Description 1. Update Intel microcode
2. Update Intel ME version
3. Enhance system compatibility
Date 2022-08-04 Download
Version 1.70 Update BIOS Under / How to Update DOS Description 1. Update Intel microcode
2. Update Intel ME version
3. Enhance system compatibility
Date 2022-08-04 Download
Version 1.70 Update BIOS Under / How to Update Windows Description 1. Update Intel microcode
2. Update Intel ME version
3. Enhance system compatibility
Date 2022-08-04 Download
Version 1.50 Update BIOS Under / How to Update BIOS Description 1. Enhance system compatibility
2. Optimize system fan control
Date 2021-10-08 Download
Version 1.50 Update BIOS Under / How to Update DOS Description 1. Enhance system compatibility
2. Optimize system fan control
Date 2021-10-08 Download
Version 1.50 Update BIOS Under / How to Update Windows Description 1. Enhance system compatibility
2. Optimize system fan control
Date 2021-10-08 Download
Version 1.10 Update BIOS Under / How to Update BIOS Description First release Date 2021-07-30 Download
Version 1.10 Update BIOS Under / How to Update DOS Description First release Date 2021-07-30 Download
Version 1.10 Update BIOS Under / How to Update Windows Description First release Date 2021-07-30 Download

The format of our documents are in PDF files. If you have not installed Adobe Acrobat Reader, please get it from Adobe.

Description Language Date Download
Description User Manual Language English Date 2022-04-28 Download
Description Quick Installation Guide Language English Date 2022-04-28 Download
