NUC BOX-125H
NUC BOX-125H
NUC BOX-125H
NUC BOX-125H

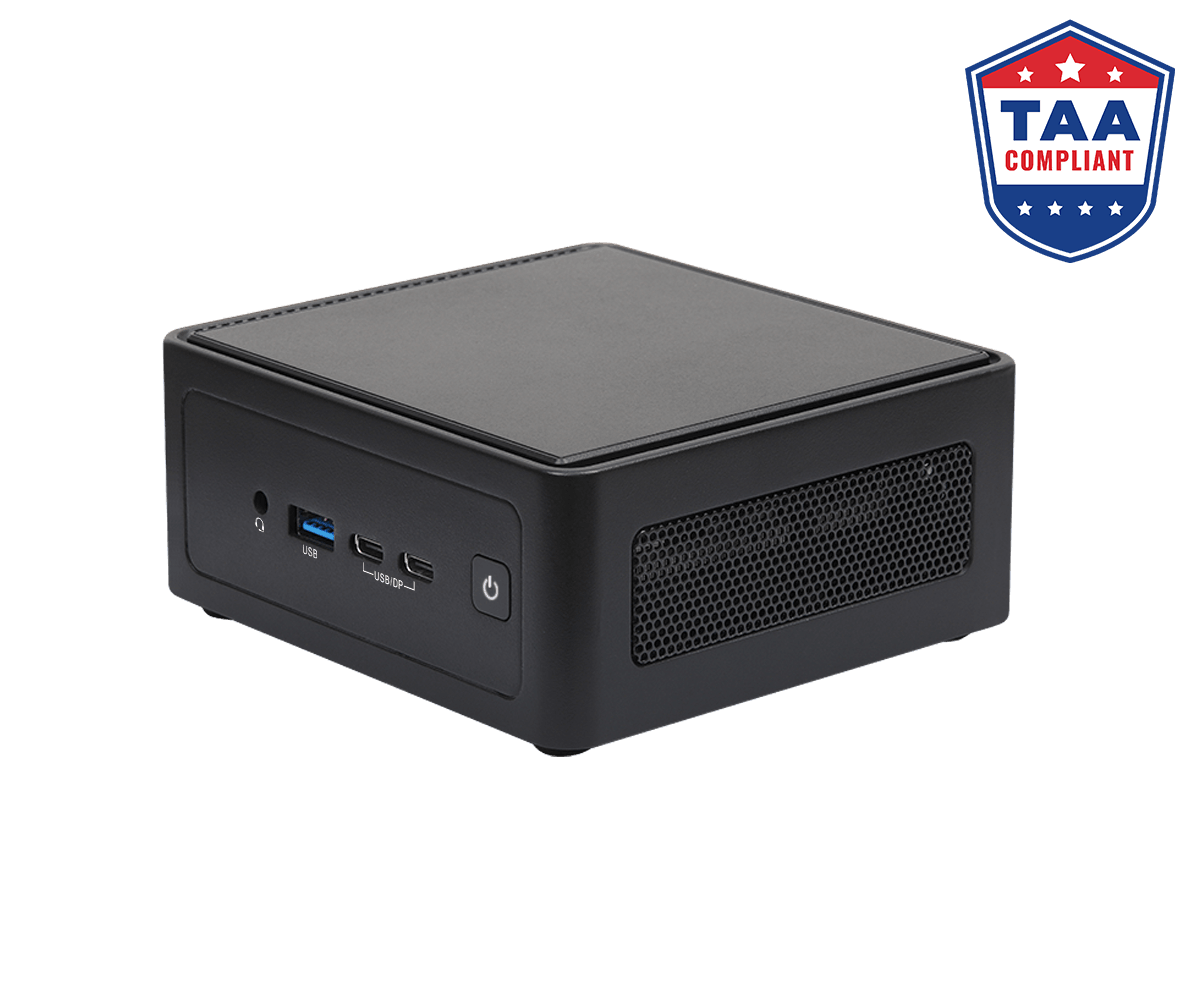

NUC BOX-125H Fanned BOX

  • Intel® Core™ Ultra processors (Meteor Lake-H)
  • 2 x 262-pin SO-DIMM DDR5 5600MHz up to 96GB (48GB per DIMM)
  • 1 x USB4/Thunderbolt™4, 4 x USB3.2 Gen2, 2 x M.2 Key M,
  • 1 x M.2 Key E (WiFi-6E Module), 1 x SATA3
  • 2 x Intel 2.5 Gigabit LAN
  • Supports Quad display, 2 x HDMI 2.1 TMDS, 1 x DP 2.1 (from USB4), 1 x DP 1.4a (from Type-C)
  • Intel® PTT
  • Supports Intel® vPro, VMD RAID 0/1
  • 19V Power Adapter
  • 117.5 x 110.0 x 49mm (4.63" x 4.33" x 1.93"), Fanned Barebone
Datasheet
Overview

Specification

Processor System

CPU Intel® Core™ Ultra processors (Meteor Lake-H)
NUC BOX-125H (4P+8E)
Chipset MCP
BIOS AMI SPI 256 Mbit

Memory

Technology Dual Channel DDR5 5600 MHz
Capacity 96GB (48 GB per DIMM)
Socket 2 x 262-pin SO-DIMM

Graphics

Controller Intel® Iris® Xe Graphics
HDMI HDMI 2.1 TMDS
Max resolution up to 4096x2160@60Hz
DisplayPort DisplayPort 2.1/ 1.4a, DP++
Max resolution up to 4096x2160@60Hz
MultiDisplay Quad-Display (Included 2 outputs from Type-C)

Expansion Slot

M.2/WLAN 1 x Wi-Fi 6E 802.11ax + BT 5.3

Audio

Interface Realtek ALC256, High Definition Audio.

Ethernet

Controller/ Speed LAN1: Intel® I226LM with 10/100/1000/2500 Mbps
LAN2: Intel® I226V with 10/100/1000/2500 Mbps
Connector 2 x RJ-45

Front I/O

USB 1 x USB 3.2 Gen2 (Type A)
1 x USB4/Thunderbolt™ 4 (Supports DP 2.1 display output)
1 x USB3.2 Gen2x2 (Type-C, Supports DP1.4a display output)
*For Thunderbolt support, please refer to support list.
Audio 1 (headphone & microphone jack)

Rear I/O

HDMI 2 x HDMI 2.1 TMDS
Ethernet 2 x 2.5 Gigabit LAN
USB 2 x USB 3.2 Gen2 (Type-A)
DC Jack 1

Storage

M.2 1 x M.2 (KEY M, 2242/2280) with PCIe Gen4x4 for SSD
1 x M.2 (KEY M, 2242) with PCIe Gen4x4 for SSD
SATA 1 x SATA3.0 (6.0 Gb/s)
RAID Intel® VMD RAID 0/1
**supported by identical interface (PCIe)
PCIe interface: 2*M.2 Key M

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR 12V~24V DC-In Jack
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 40ºC
Storage Temp -40° C – 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

Mechanical

Mounting VESA mount
Dimensions (L x W x H) 117.5 x 110.0 x 49mm (4.63" x 4.33" x 1.93")
Weight Net Weight:1.0Kg

Others

OS Support Windows 10/11
TPM Intel® PTT
Certifications CE, FCC
Packing List 1 x 19V/120W Power Adapter (Core Ultra 7)
1 x 19V/90W Power Adapter (Core Ultra 5)
1 x VESA mount bracket

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

Support

OS:

Description Information OS Date Download
Description Intel WLAN Driver ver: 23.0.6.4_G Information

Size: 28Mib
Version: 23.0.6.4_G
SHA1: 1ADB11C3F94F7FBF07379B7CBB764C379448636E
Filename: Intel_WLAN_Driver_ver(v23.0.6.4_G).zip
Release Note

OS Win 11 x 64 Date 2024-03-01 Download
Description Realtek high definition ALC 256 audio driver ver:9467 Information

Size: 39Mib
Version: 9467_UAD_2023_0110_110651
SHA1: 2ED4B16592555AFF7623D1E939C47F49897AD9EC
Filename: Realtek_Audio(v9467_UAD_2023_0110_110651).zip
Release Note

OS Win 11 x 64 Date 2024-01-10 Download
Description GNA ver: 03.05.00.1574 Information

Size: 1186Kib
Version: 03.05.00.1574
SHA1: B6636A73A10ADA0F1D05D1CA3D4B58885E81D607
Filename: GNA(v03.05.00.1574).zip
Release Note

OS Win 11 x 64 Date 2024-03-01 Download
Description Intel Rapid Storage Technology driver and utility ver: 20.0.0.1035.4 Information

Size: 50Mib
Version: 20.0.0.1035.4
SHA1: 4E392712489B70E6269E22AAC309643F9527C7D9
Filename: Intel Rapid Start driver ver(v20.0.0.1035.4).zip
Release Note

OS Win 11 x 64 Date 2024-01-10 Download
Description Intel HID Event Filter ver: 2.2.2.5 Information

Size: 1181Kib
Version: 2.2.2.5
SHA1: A91AC0D0D72C7DD52327F9C8D4B3981D5C66E306
Filename: Intel_HID_Event_Filter_ver(v2.2.2.5).zip
Release Note

OS Win 11 x 64 Date 2024-03-01 Download
Description NPU driver ver: 31.0.100.1688 Information

Size: 123Mib
Version: 31.0.100.1688
SHA1: 4BD8D2BC4DB21C451C1DC35F0CAE6FCDF8217C22
Filename: npudrive(v31.0.100.1688).zip
Release Note

OS Win 11 x 64 Date 2024-03-01 Download
Description PMT ver: 3.1.2.2 Information

Size: 1180Kib
Version: 3.1.2.2
SHA1: 608BD7420AAB27718BEF8166A81695799646128E
Filename: PMT(v3.1.2.2).zip
Release Note

OS Win 11 x 64 Date 2024-03-01 Download
Description Intel Serial IO driver ver: 30.100.2318.58 Information

Size: 2623Kib
Version: 30.100.2318.58
SHA1: D264D7CBC00DB1DD42B73E182801236CFDE7C2C2
Filename: Intel Serial IO driver ver(v30.100.2318.58).zip
Release Note

OS Win 11 x 64 , Win 10 Date 2024-01-10 Download
Description Intel Management Engine driver ver: 2344.5.41.0_Corporate Information

Size: 311Mib
Version: 2344.5.41.0_Corporate
SHA1: 2FCE2503C758A03FEF4958BC1D7CE749CE2ADF49
Filename: Intel Management Engine driver ver(v2344.5.41.0_Corporate).zip
Release Note

OS Win 11 x 64 Date 2024-01-10 Download
Description Bluetooth driver ver: 23.0.1.1G Information

Size: 46Mib
Version:23.0.1.1G
SHA1: E983110D48196B13AFBB2AE3A85889FD9E38266B
Filename:Intel Bluetooth Driver(v23.0.1.1G).zip
Release Note

OS Win 11 x 64 Date 2024-01-10 Download
Description VGA driver ver: 31.0.101.5125 Information

Size: 710Mib
Version:31.0.101.5125
SHA1: 6EAE53BBAB7AB96F9307A059AE2E2E4511B6EBB1
Filename:Intel_VGA (v31.0.101.5125).zip
Release Note

OS Win 11 x 64 Date 2024-01-10 Download
Description Chipset Driver ver: 10.1.19627.8423-Public-MUP Information

Size: 5172Kib
Version:10.1.19627.8423-Public-MUP
SHA1: 6F13EB23B92CB4E3C2244C6A98048DAF7A3D2808
Filename:Chipset(v10.1.19627.8423-Public-MUP).zip
Release Note

OS Win 11 x 64 Date 2024-01-10 Download
Description Intel I226/I225 Lan driver ver: 2.1.3.15 Information

Size: 1467Kib
Version: 2.1.3.15
SHA1: C86191829A5CDC51E1BCBC774905E8359A4C9791
Filename: Intel I226_I225_LAN_Driver(v2.1.3.15).zip
Release Note

OS Win 11 x 64 Date 2024-03-01 Download
Version Update BIOS Under / How to Update Description Information Date Download
Version 1.20 Update BIOS Under / How to Update BIOS Description 1. Update Intel RC code
2. Enhance display compatibility
Information

Size: 10 MiB

SHA1: 7CDF567CD39E3B98ACF8DA557C582A3A05B942A7

Date 2024-03-15 Download
Version 1.20 Update BIOS Under / How to Update Windows Description 1. Update Intel RC code
2. Enhance display compatibility
Information

Size: 11 MiB

SHA1: CF979C11D319351CDDF15E492471A7620A85C59F

Date 2024-03-15 Download
Version 1.10 Update BIOS Under / How to Update BIOS Description First release Information

Size: 10 MiB

SHA1: 28B62DA070290AA702BC72D1A3C41C74036F8E83

Date 2024-02-06 Download
Version 1.10 Update BIOS Under / How to Update Windows Description First release Information

Size: 11 MiB

SHA1: 2E2A2B2A6F9C6C9FCF6E4A269E8DD601A99C2CB7

Date 2024-02-06 Download

The format of our documents are in PDF files. If you have not installed Adobe Acrobat Reader, please get it from Adobe.

Description Language Date Download
Description User Manual Language English Date 2024-03-12 Download
Description RAID Installation Guide Language English Date 2024-03-04 Download
Description Quick Installation Guide Language English Date 2024-01-30 Download
Description Date Download
Download Thunderbolt Support List Date 2024-01-29 Download
