NUC BOX-1240P
NUC BOX-1240P
NUC BOX-1240P
NUC BOX-1240P

NUC BOX-1240P Fanned BOX

  • Intel® 12th Gen (Alder Lake-P) Core™ Processors i5-1240P
  • 2 x 260-pin SO-DIMM up to 64GB DDR4 3200 MHz
  • 5 x USB 3.2 Gen2, 1 x M.2 Key M, 1 x M.2 Key E (WiFi-6E), 1 x SATA3
  • 2 x Intel 2.5 Gigabit LAN
  • Supports Quad display, 1 x HDMI 2.0b, 3 x DP 1.4a (2 from Type C)
  • TPM 2.0 onboard IC
  • 19V/90W Power Adapter
  • 110.0 x 117.5 x 47.85mm, Fanned Barebone
Datasheet
Overview

Specification

Form Factor

Dimensions 110.0 x 117.5 x 47.85mm

Processor System

CPU Intel® 12th Gen (Alder Lake-P) Core™ Processors
NUC BOX-1240P( i5-1240P, 4P+8E)
Chipset MCP
BIOS AMI SPI 256 Mbit

Memory

Technology Dual Channel DDR4 3200 MHz
Capacity 64GB (32 GB per DIMM)
Socket 2 x 260-pin SO-DIMM

Graphics

Controller Intel® Iris® Xe Graphics
HDMI HDMI 2.0b
Max resolution up to 4096x2160@60Hz
DisplayPort DisplayPort 1.4, DP++
Max resolution up to 4096x2160@60Hz
MultiDisplay Quad-Display (Included 2 outputs from Type-C)

Expansion Slot

M.2/WLAN 1 x Wi-Fi 6E 802.11ax (2.4Gbps) + BT 5.2
(M.2 Key E, 2230 PCIe x1, USB 2.0 for Wireless)

Audio

Interface Realtek ALC233, High Definition Audio.

Ethernet

Controller/ Speed Intel® I225LM with 10/100/1000/2500 Mbps
Connector 2 x RJ-45

Front I/O

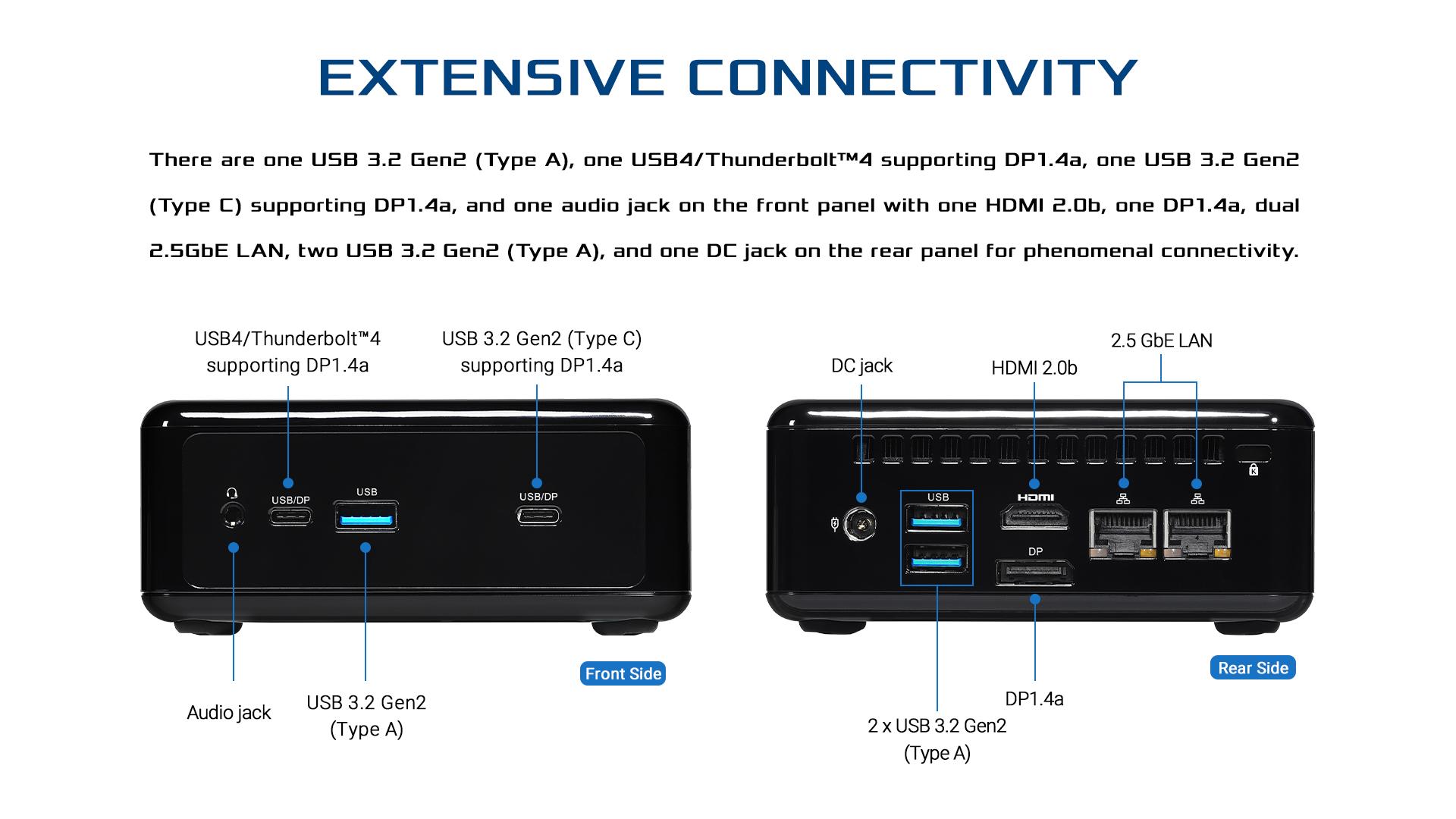

USB 1 x USB 3.2 Gen2 (Type A)
2 x USB 3.2 Gen2 (Type-C, Supports DP 1.4a display output)
* USB4™ Compliance Test is pending for certification
* For Thunderbolt support, please refer to support list.
Audio 1 (headphone & microphone jack)

Rear I/O

HDMI 1 x HDMI 2.0b
DisplayPort 1 x DP 1.4a

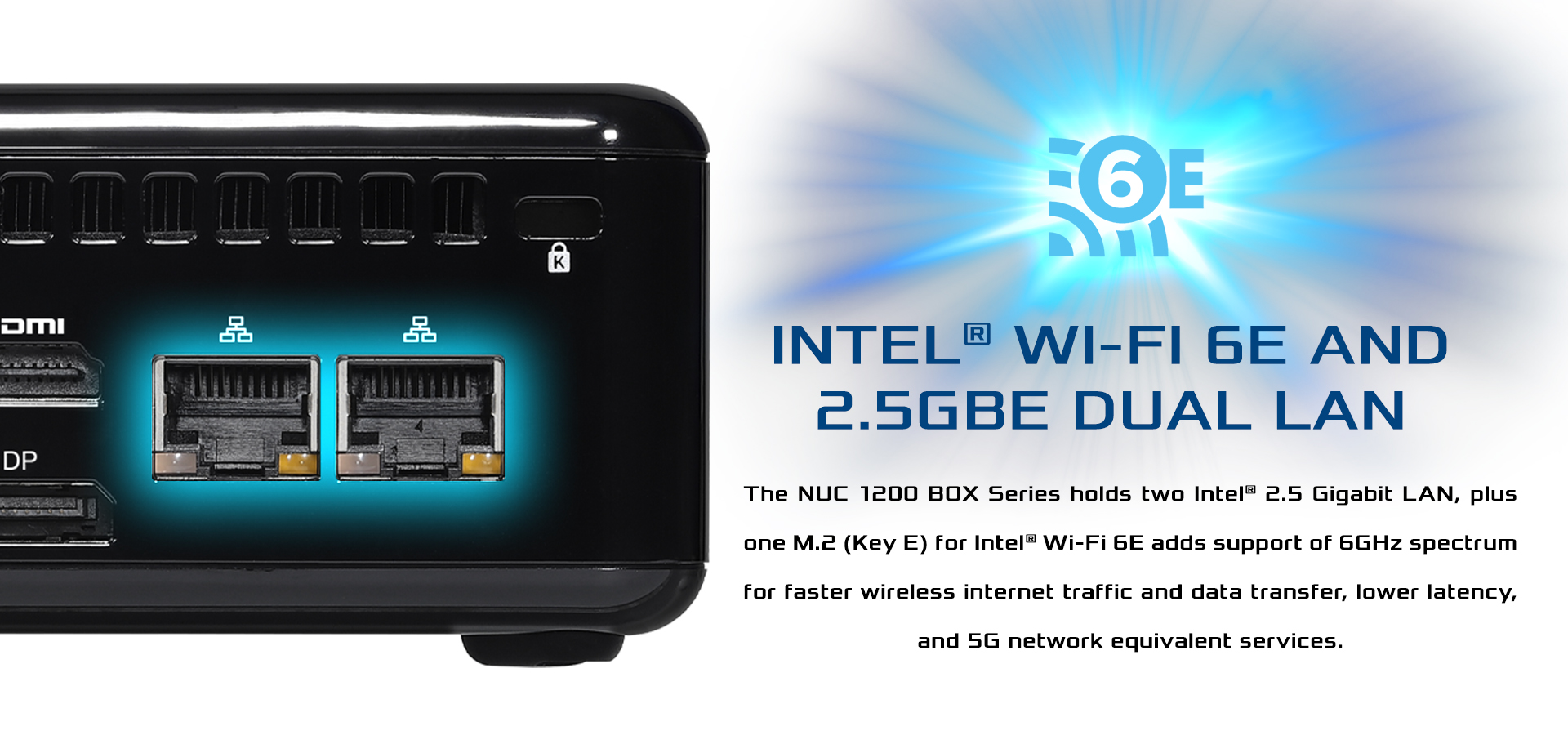

Ethernet 2 x 2.5 Gigabit LAN
USB 2 x USB 3.2 Gen2 (Type-A)
DC Jack 1

Storage

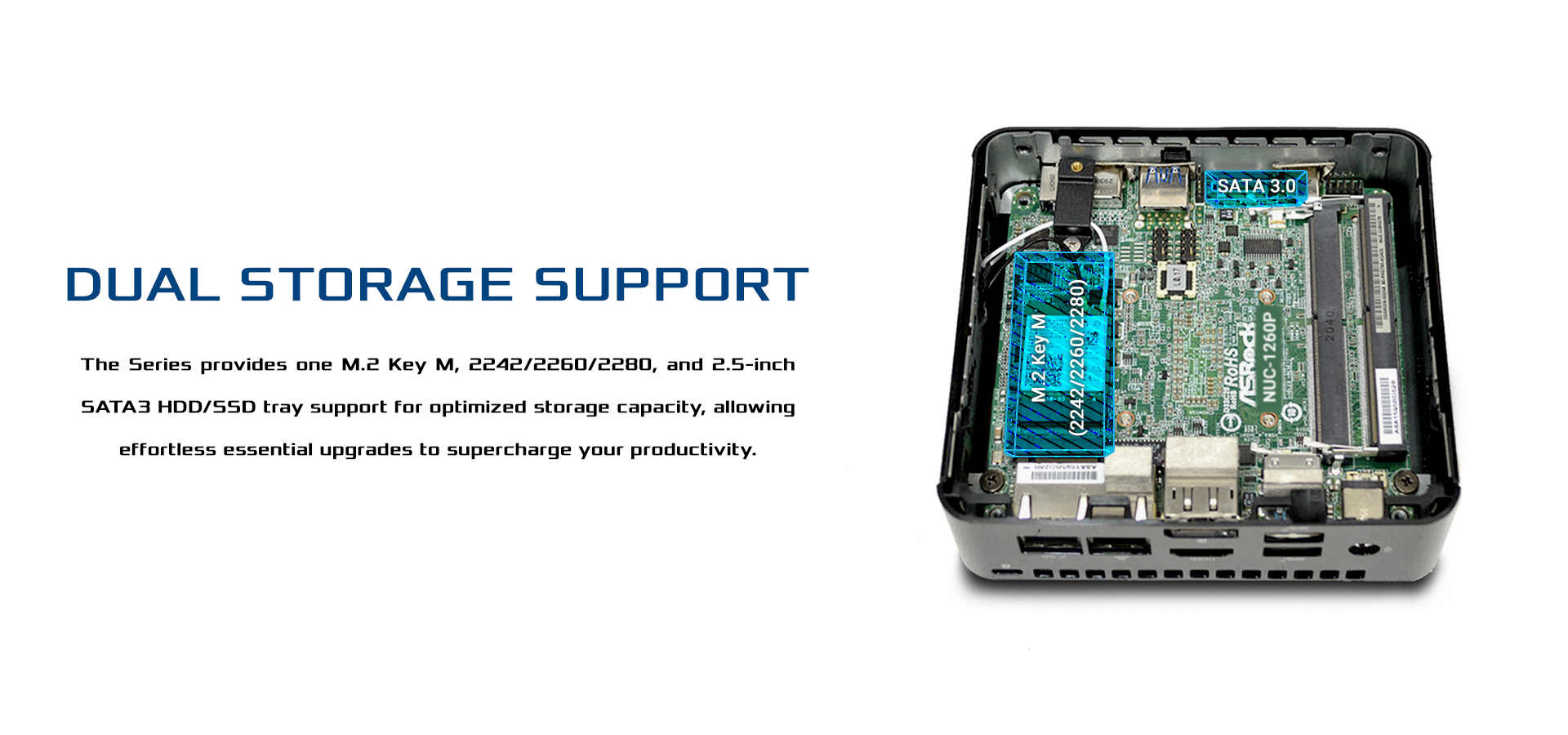

M.2 1 x M.2 (Key M, 2242/2260/2280) with PCIe Gen4 x4 for SSD
*M.2 Key M 2280(Supported by bracket)
SATA 1 x SATA3.0 (6.0 Gb/s)

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR 12V~19V DC-In Jack
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 40ºC
Storage Temp -40° C – 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

Mechanical

Construction Plastic with sheet metal
Mounting VESA mounting
Dimensions (W x H x D) 110.0 x 117.5 x 47.85mm
Weight Net Weight:1.0Kg

Others

OS Support Windows 10/11
TPM TPM 2.0 onboard IC
Certifications CE, FCC Class A
Packing List 1 x 19V/90W Power Adapter
1 x Screw Package
1 x VESA mounting bracket

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

Support

OS:

Description OS Date Download
Description Intel Thunderbolt driver ver:85 OS Win 10 x 64 Date 2022-08-19 Download
Description VGA driver ver: 31.0.101.3729 OS Win 11 x 64 , Win 10 x 64 Date 2022-03-21 Download
Description Intel Serial IO driver ver:30.100.2148.1 OS Win 11 x 64 , Win 10 x 64 Date 2022-03-21 Download
Description Realtek high definition audio driver ver:9235_FF00 OS Win 11 x 64 , Win 10 x 64 Date 2022-03-21 Download
Description Intel AX211 Wireless LAN driver ver: 22.110.0.2_G OS Win 11 x 64 , Win 10 x 64 Date 2022-03-21 Download
Description Intel Management Engine driver ver:16.0.15.1662_CORP_SW_DCH OS Win 11 x 64 , Win 10 x 64 Date 2022-03-21 Download
Description Intel Lan driver ver:27.4 OS Win 11 x 64 , Win 10 x 64 Date 2022-03-21 Download
Description INF driver ver:10.1.18950.8298 OS Win 11 x 64 , Win 10 x 64 Date 2022-03-21 Download
Description Intel HID Event Filter ver:2.2.1.386 OS Win 11 x 64 , Win 10 x 64 Date 2022-03-18 Download
Version Update BIOS Under / How to Update Description Date Download
Version 1.40 Update BIOS Under / How to Update BIOS Description 1. Enhance system performance
2. Optimize energy consumption
3. Modify Display Audio detection behavior
Date 2022-08-12 Download
Version 1.40 Update BIOS Under / How to Update DOS Description 1. Enhance system performance
2. Optimize energy consumption
3. Modify Display Audio detection behavior
Date 2022-08-12 Download
Version 1.40 Update BIOS Under / How to Update Windows Description 1. Enhance system performance
2. Optimize energy consumption
3. Modify Display Audio detection behavior
Date 2022-08-12 Download
Version 1.20 Update BIOS Under / How to Update BIOS Description First release Date 2022-07-26 Download
Version 1.20 Update BIOS Under / How to Update DOS Description First release Date 2022-07-26 Download
Version 1.20 Update BIOS Under / How to Update Windows Description First release Date 2022-07-26 Download

The format of our documents are in PDF files. If you have not installed Adobe Acrobat Reader, please get it from Adobe.

Description Language Date Download
Description Quick Installation Guide Language English Date 2022-11-10 Download
Description User Manual Language English Date 2022-05-09 Download
Description Date Download
Download Thunderbolt Support List Date 2022-04-22 Download
