NUC BOX-1165G7
NUC BOX-1165G7
NUC BOX-1165G7
NUC BOX-1165G7

NUC BOX-1165G7 Fanned BOX

  • Intel® 11th Gen (Tiger Lake-UP3) Core™ Processors
  • 2 x 260-pin SO-DIMM up to 64GB DDR4 3200 MHz
  • 5 x USB 3.2 Gen2, 1 x M.2 Key M, 1 x M.2 Key E (WiFi-6 AX200), 1 x SATA3
  • 1 x Intel 1 Gigabit LAN, 1 x Intel 2.5 Gigabit LAN
  • Supports Quad display, 1 x HDMI 2.0a, 3 x DP 1.4 (2 from Type C)
  • TPM onboard
  • 19V/90W Power Adapter
  • 110.0 x 117.5 x 47.85mm, Fanned Barebone
Datasheet
Overview

Specification

Form Factor

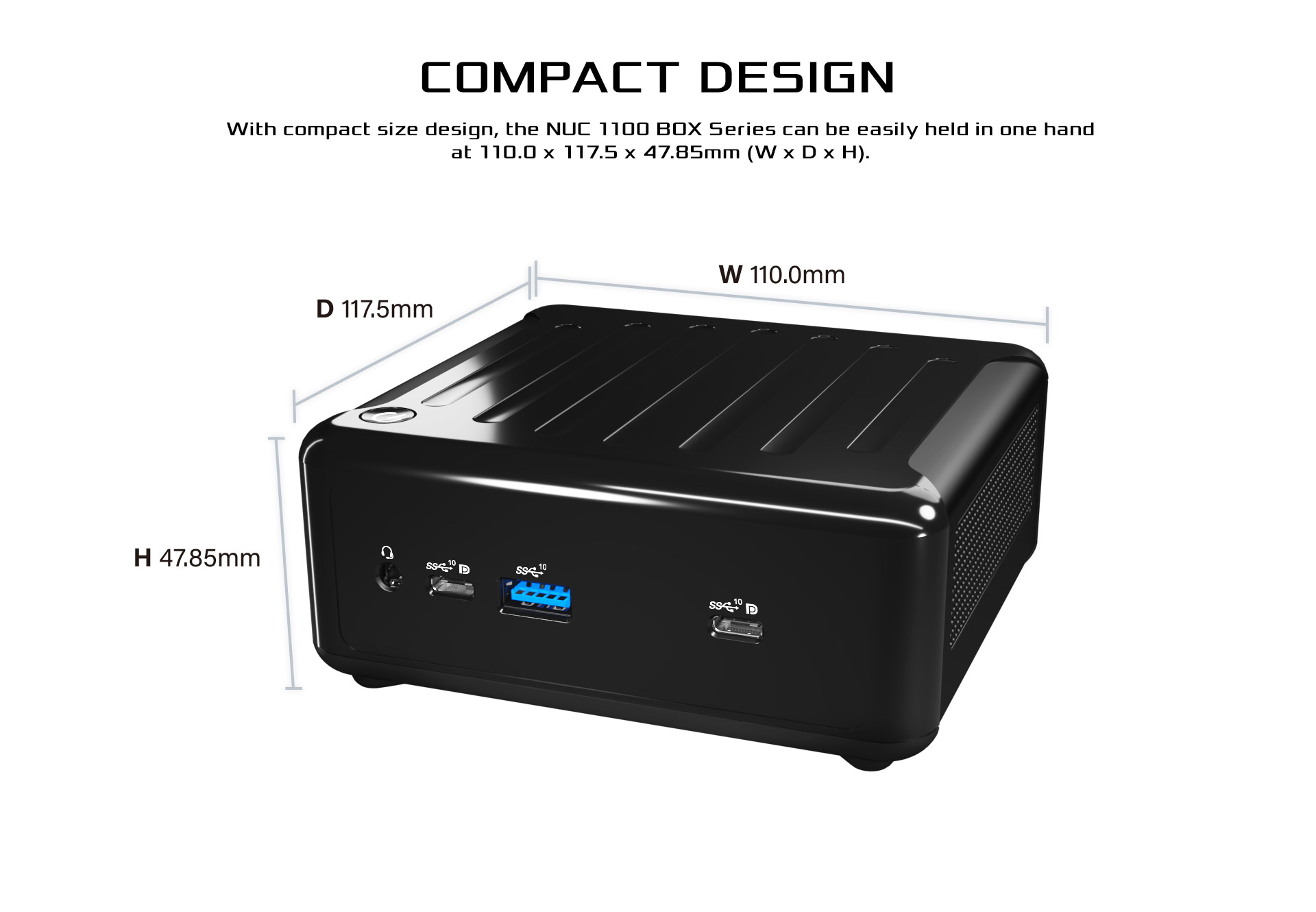

Dimensions 110.0 x 117.5 x 47.85mm

Processor System

CPU I7-1165G7, QC, Max Speed up to 4.7GHz
Chipset MCP
BIOS AMI SPI 256 Mbit

Memory

Technology Dual Channel DDR4 3200 MHz
Capacity 64GB (32 GB per DIMM)
Socket 2 x 260-pin SO-DIMM

Graphics

Controller Intel® Iris® Xe Graphics
HDMI HDMI 2.0a
Max resolution up to 4096x2160@60Hz
DisplayPort DisplayPort 1.4, DP++
Max resolution up to 4096x2160@60Hz
MultiDisplay Quad-Display (Included 2 outputs from Type-C)

Expansion Slot

M.2 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 for Wireless
WLAN 1 x Intel® Wi-Fi 6 AX200 module

Audio

Interface Realtek ALC233, High Definition Audio.

Ethernet

Controller/ Speed LAN1: Intel® I219V with 10/100/1000 Mbps
LAN2: Intel® I225LM with 10/100/1000/2500 Mbps
Connector 2 x RJ-45

Front I/O

USB 1 x USB 3.2 Gen2 (Type A)
2 x USB 3.2 Gen2 (Type-C, Supports DP 1.4 display output)
* USB4™ Compliance Test is pending for certification
Audio 1 (headphone & microphone jack)

Rear I/O

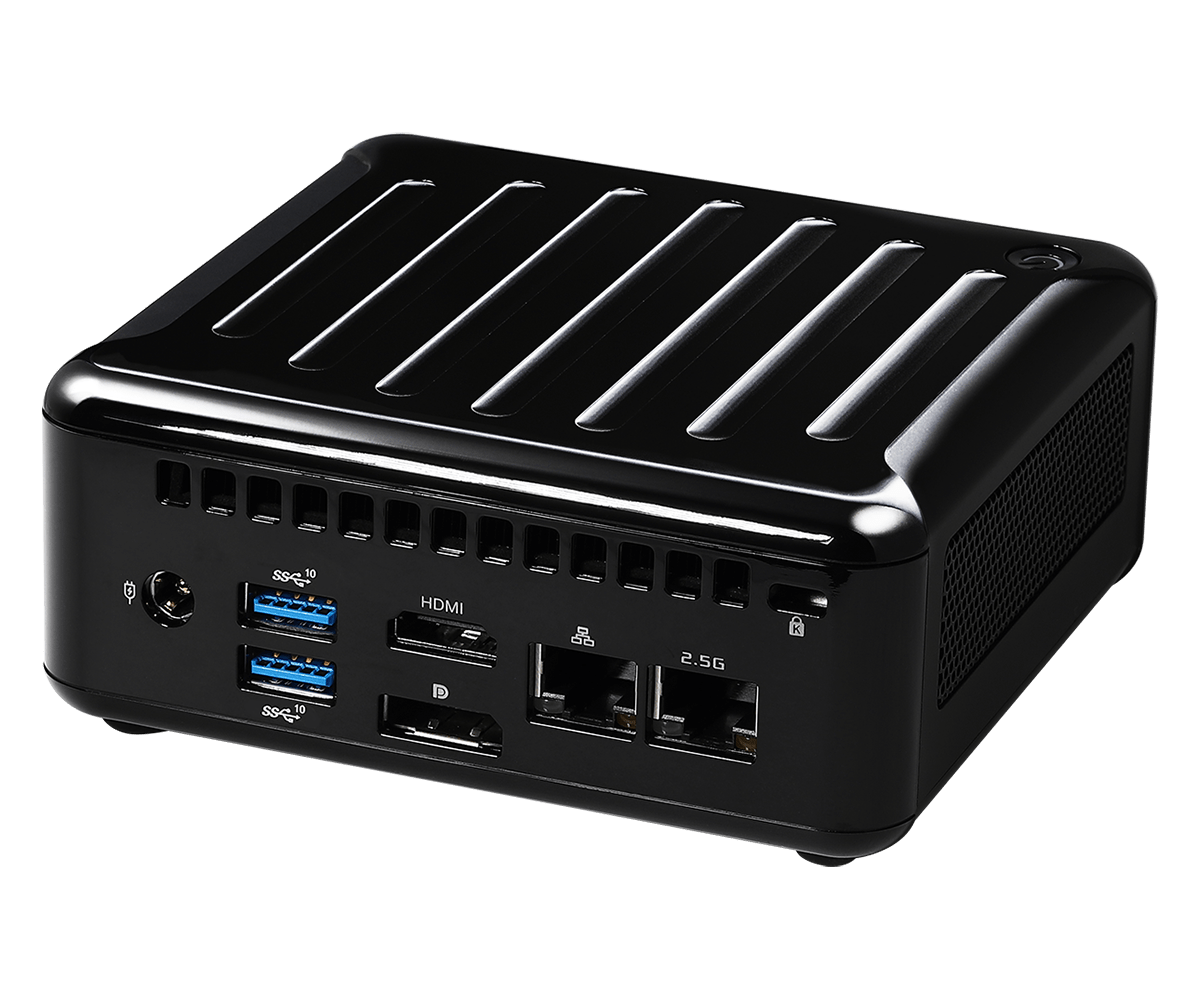

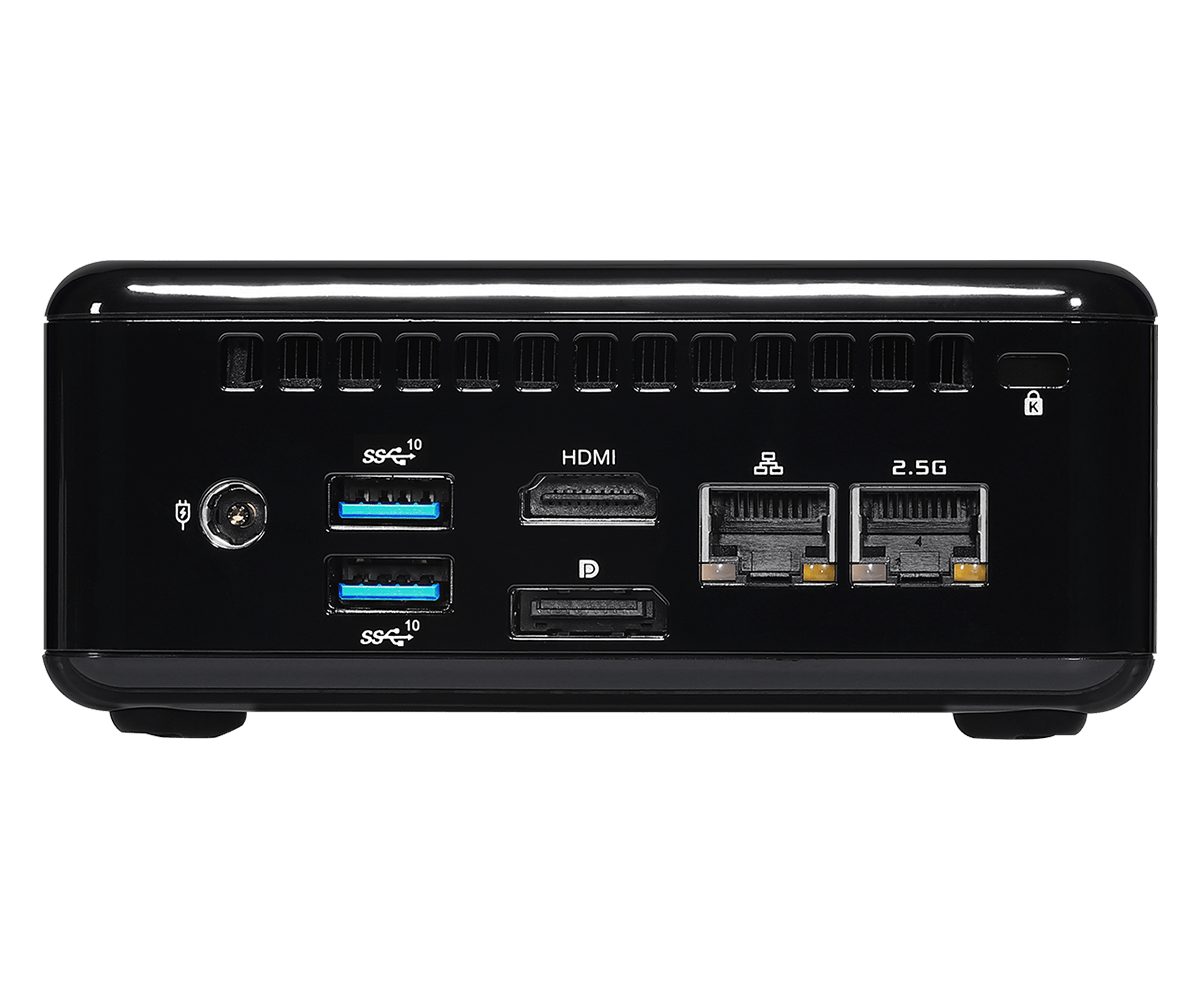

HDMI 1 x HDMI 2.0a
DisplayPort 1 x DP 1.4

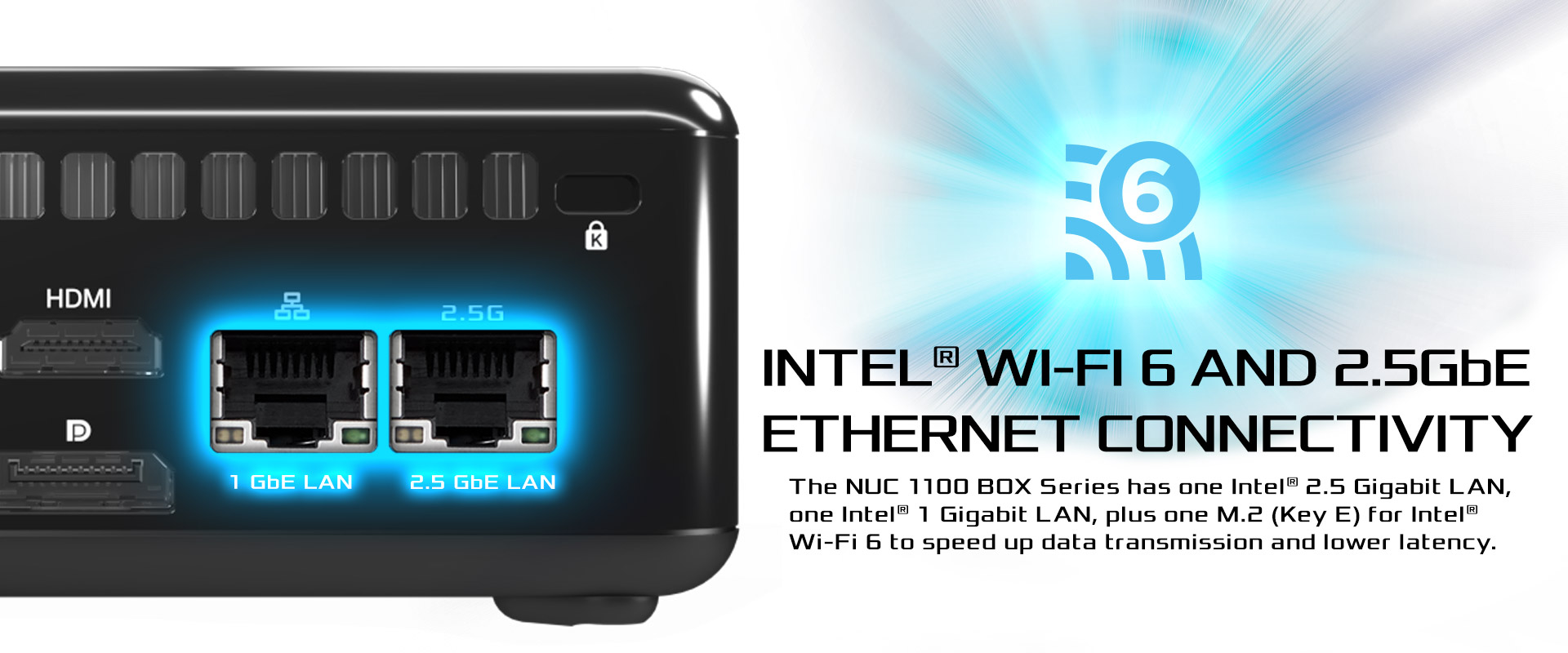

Ethernet 1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN
USB 2 x USB 3.2 Gen2 (Type-A)
DC Jack 1

Storage

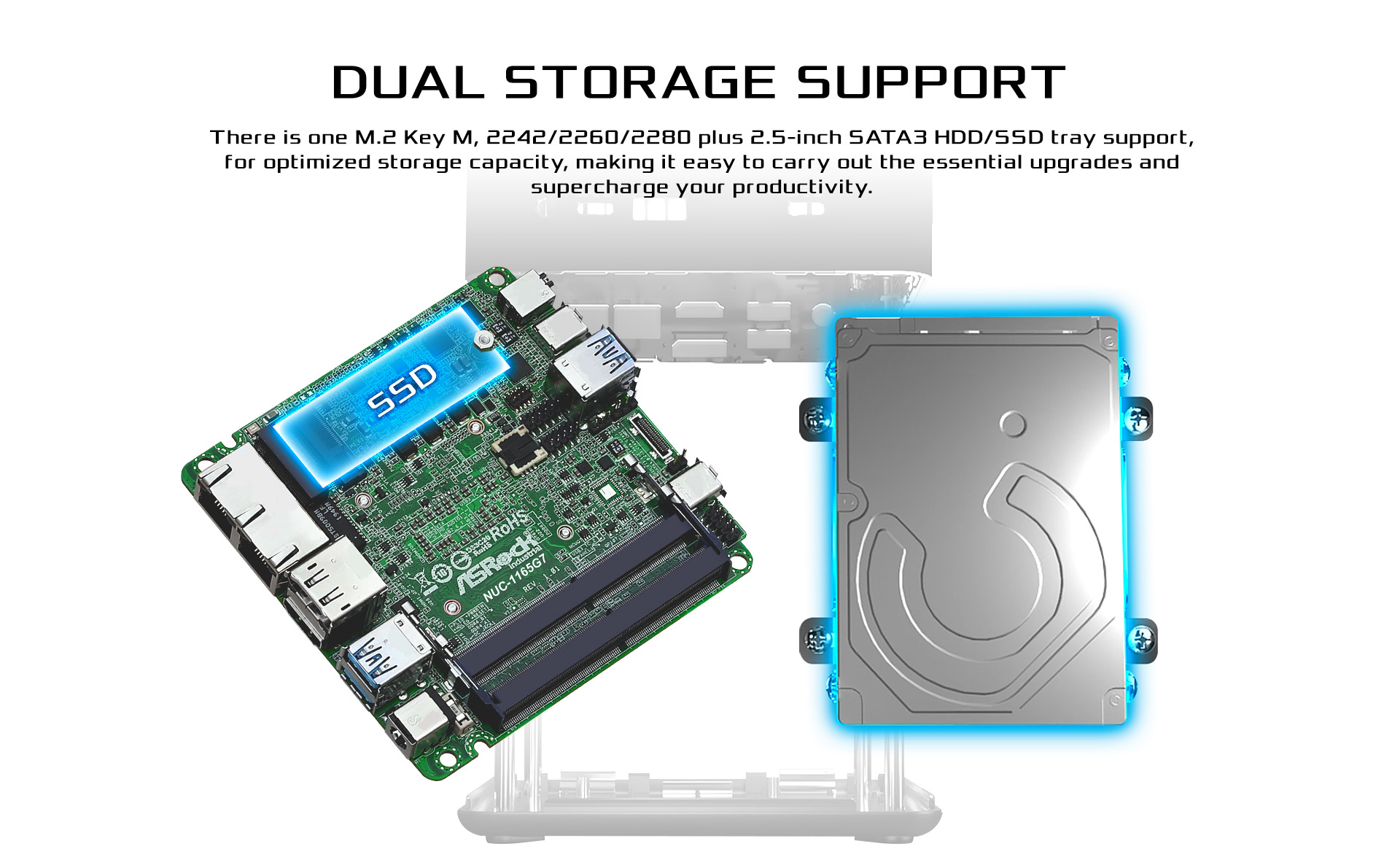

M.2 1 x M.2 (KEY M, 2242/2260/2280) with PCIe x4 and SATA3 for SSD
*M.2 Key M 2280(Supported by bracket)
SATA 1 x SATA3.0 (6.0 Gb/s)

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR 19V/90W Power Adapter
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 40ºC
Storage Temp -40° C – 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

Mechanical

Construction Plastic
Mounting VESA mounting
Dimensions (W x H x D) 110.0 x 117.5 x 47.85mm
Weight Net Weight:1.0Kg

Others

OS Support Windows 10
Certifications CE, FCC Class A
Packing List 1 x 19V/90W Power Adapter
1 x Screw Package
1 x Product DVD
1 x VESA mounting bracket
Longivity Support No

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
