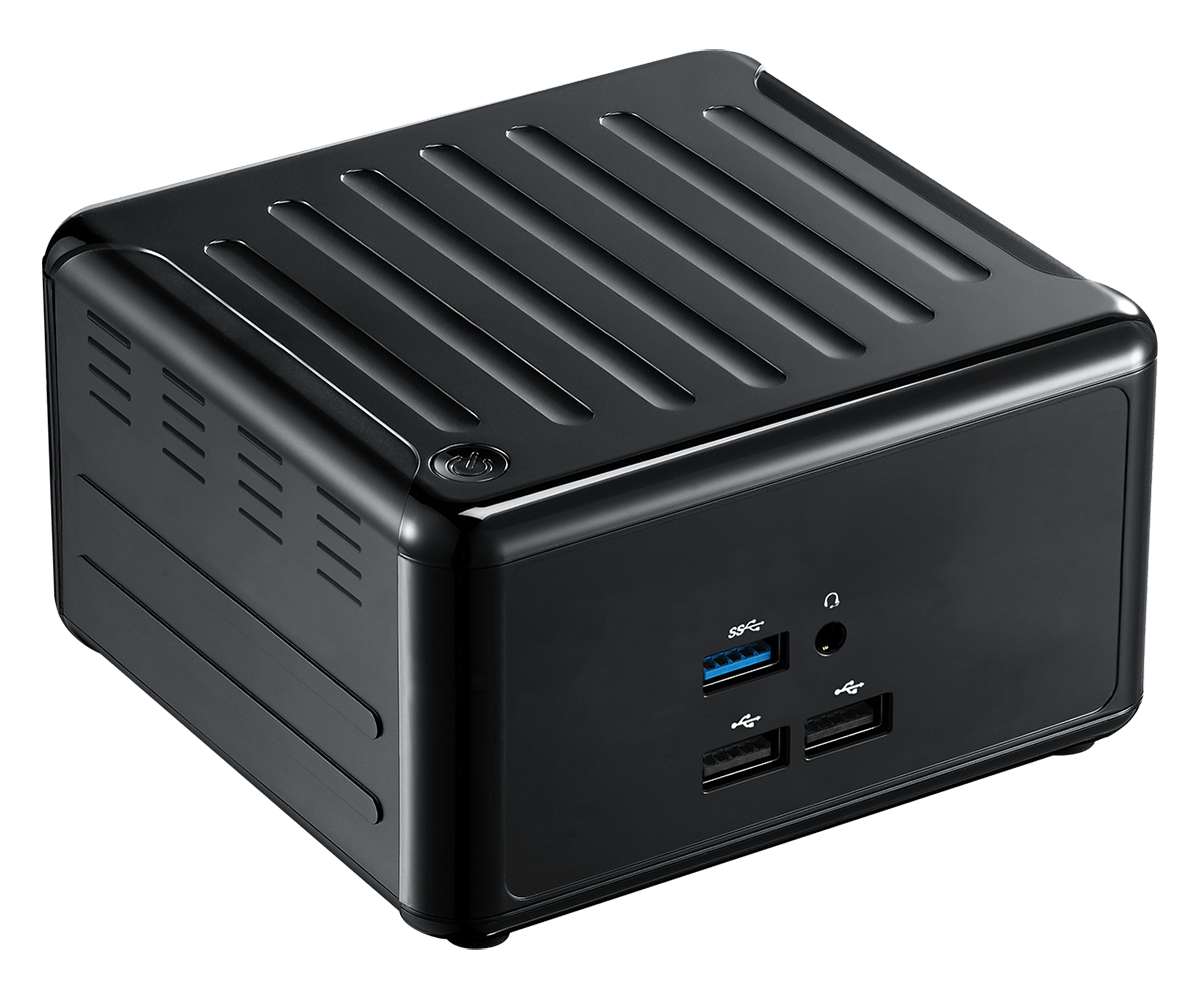

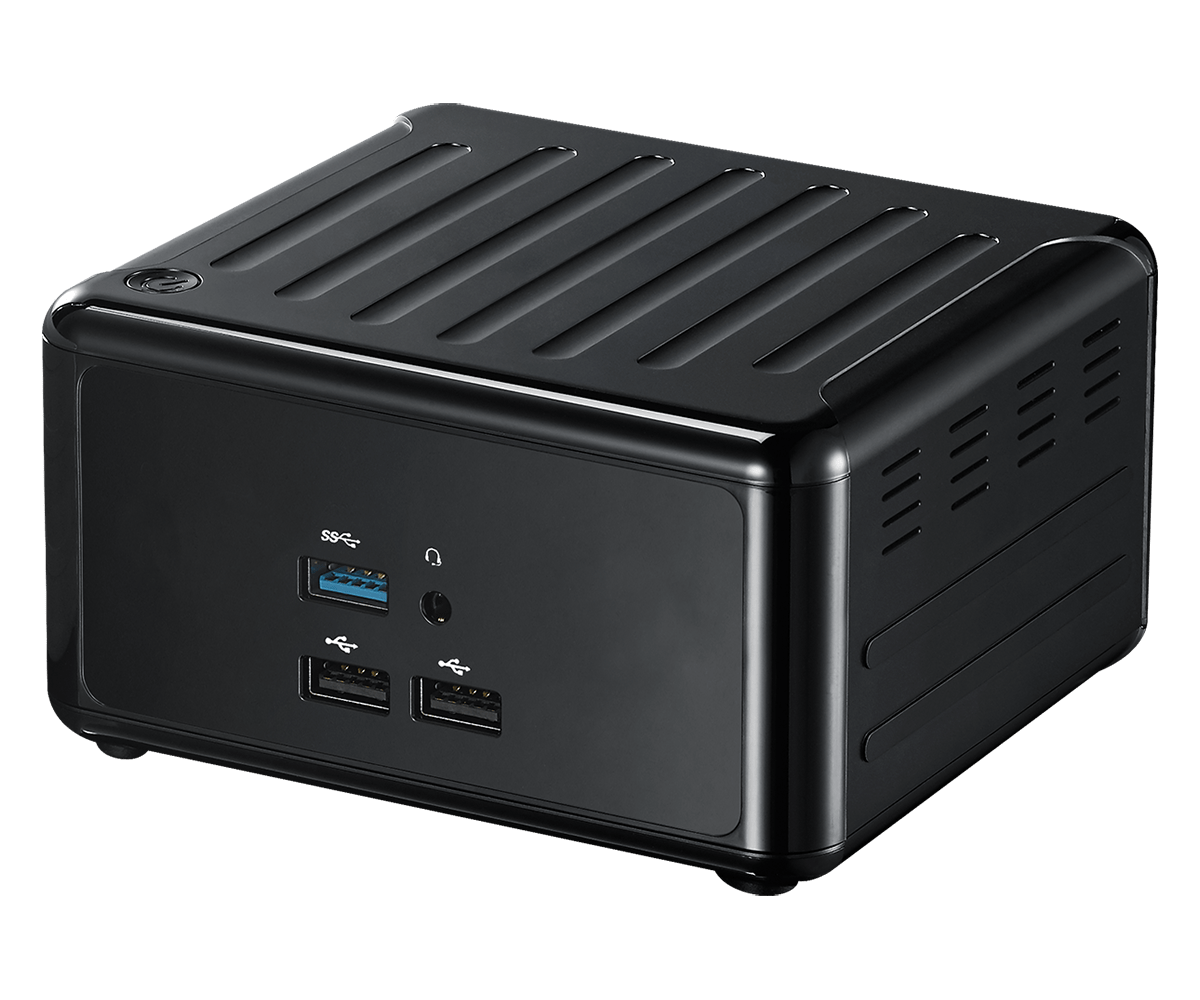

NUC BOX 8265U Faned Embedded BOX PC

  • Intel® 8th Gen (Whiskey lake-U) Core™ MCP Processors
  • Supports Dual Channel DDR4 SO-DIMM 2400MHz, up to 32GB
  • 1 x HDMI, 2 x Displayport
  • Supports Triple Display
  • 3 x USB 3.1, 2 x USB 2.0
  • 1 x M.2 Key M, 1 x M.2 Key E
  • 1 x Intel LAN, 1 x Realtek LAN
  • 12V DC-in
Datasheet
Specification

Form Factor

Dimensions 110.0 x 118.5 x 67.3 mm

Processor System

CPU Intel® 8th Gen (Whiskey lake-U) Core™ MCP Processors I5-8265U QC, 1.6GHz, 15 W
Chipset SoC
BIOS AMI SPI 128 Mbit

Memory

Technology Dual Channel DDR4 2400 MHz
Capacity 32 GB
Socket 2 x SO-DIMM

Graphics

HDMI Supports max resolution up to 4000 x 2000@30Hz
DisplayPort Supports max resolution up to 3840 x 2160@60Hz
MultiDisplay Triple Display

Expansion Slot

M.2 1 x Key E (2230) with PCIe x1 and USB 2.0 for Wireless
WLAN 1 x Intel® Wireless-AC 3168 module

Audio

Interface Realtek ALC233, High Definition Audio, Line-out, Mic-in

Ethernet

Controller/ Speed LAN1: Intel® I219V with 10/100/1000 Mbps
LAN2: Realtek RTL8111H with 10/100/1000 Mbps
Connector 2 x RJ-45

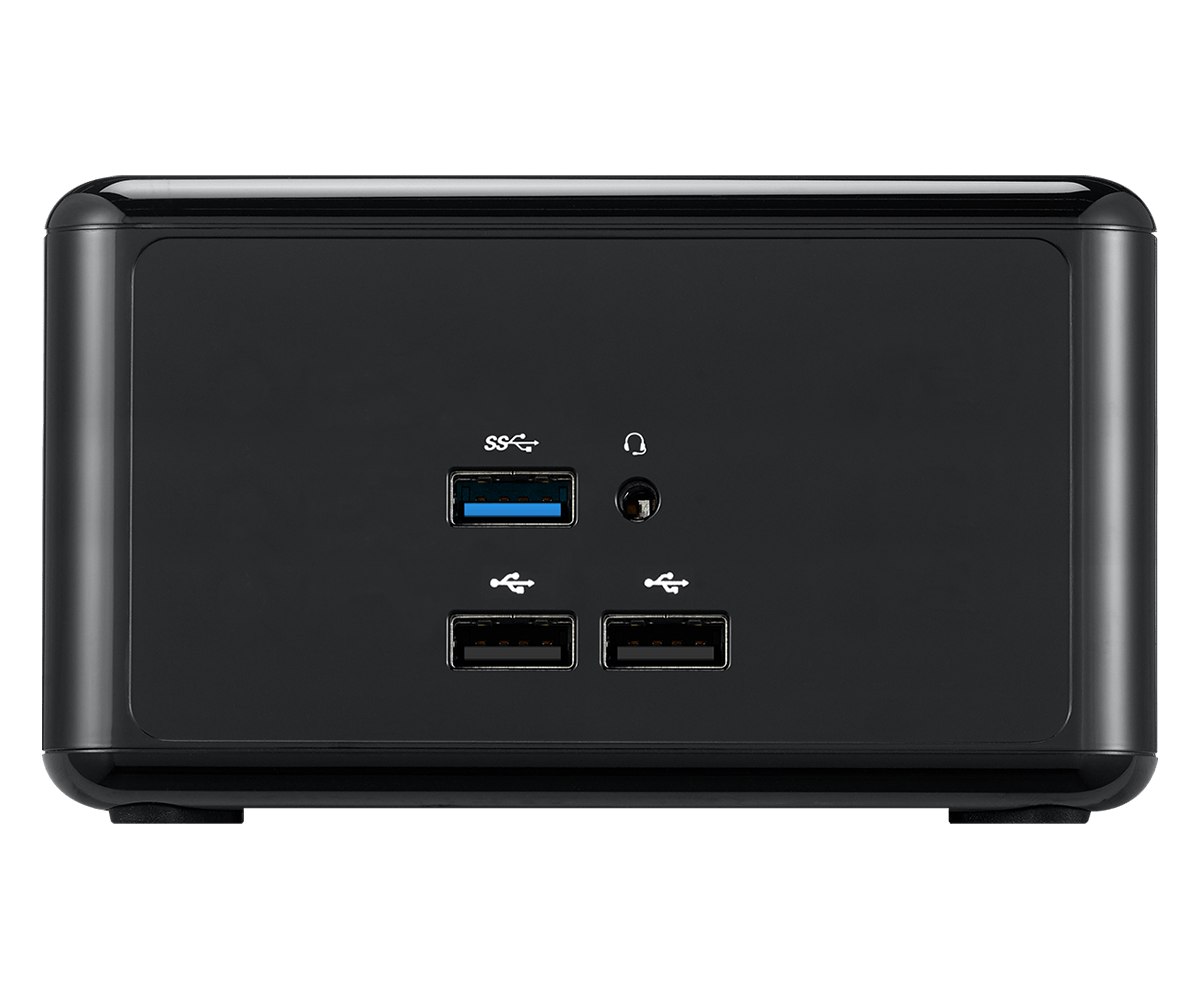

Front I/O

USB 1 x USB 3.1, 2 x USB 2.0
Audio 1 (Mic-in or Line-out)

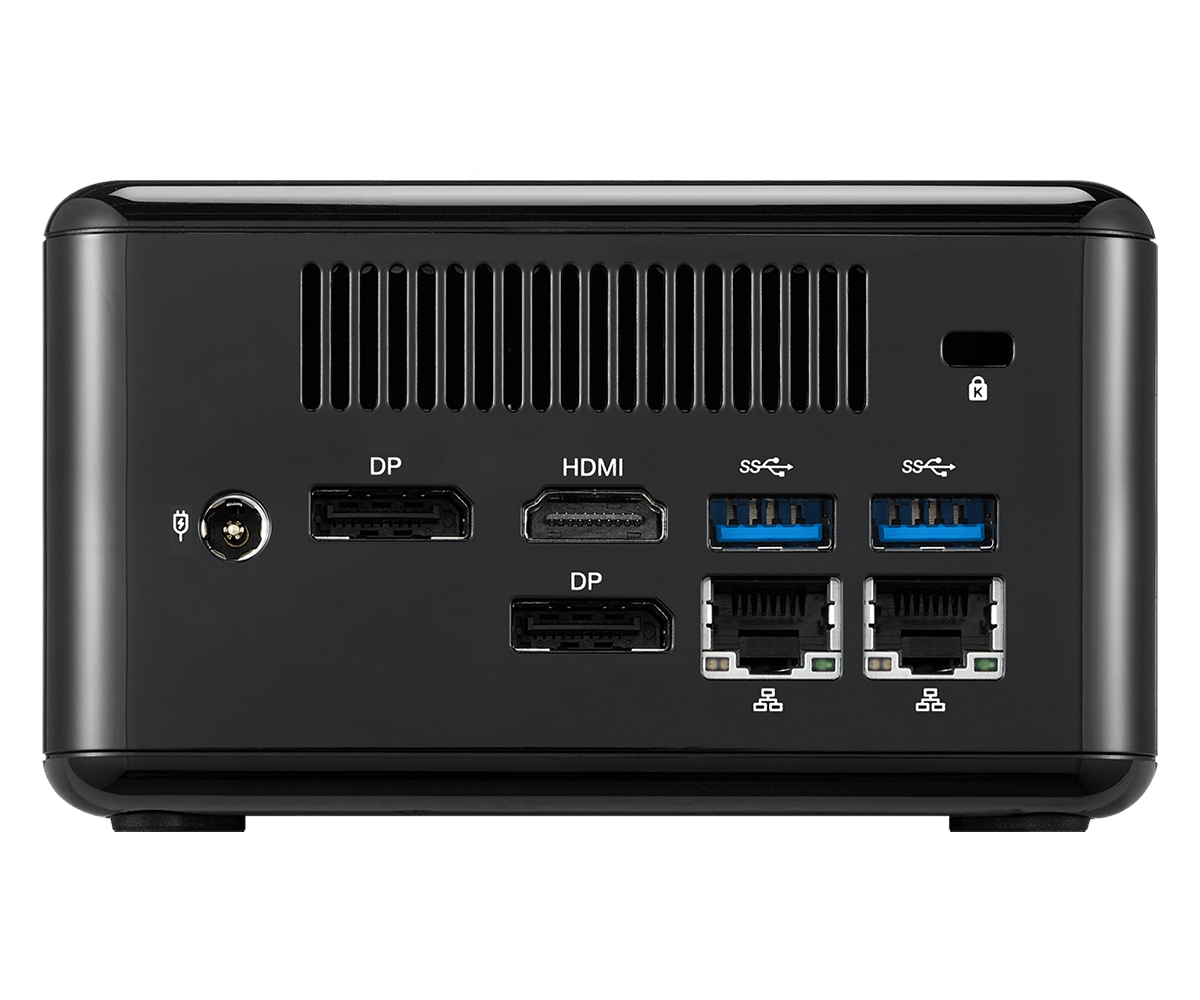

Rear I/O

HDMI 1 x HDMI 1.4
DisplayPort 2 x DP 1.2a
Ethernet 2 x 1 Gigabit LAN
USB 2 x USB 3.1
DC Jack 1

Internal Connector

SATA PWR Output 1

Storage

M.2 1 x M.2 (Key M, 2242/2260) with PCIe x4 and SATA3 for SSD
*Not support M.2 Key M 2280
SATA 1 x SATA3 (6Gb/s)

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments 0,1,2....255sec

Power Requirements

Input PWR 1 x 12V/96W Power Adapter
Power On AT/ATX supported
-AT: Direct PWR on as power input ready
-ATX:Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 40ºC
Storage Temp -40° C ~ 85° C
Operating Humidity 10% ~ 90%
Storage Humidity 10% ~ 90%

Mechanical

Construction Plastic
Mounting VESA mounting bracket
Dimensions (W x H x D) 110.0 x 118.5 x 67.3 mm
Weight Net Weight: 1kg

Others

OS Support Windows 10
TPM TPM 2.0 onboard IC
Certifications CE, FCC Class A
Packing List 1 x 12V/96W Power Adapter
1 x Screw Package
1 x Product DVD
1 x VESA mounting bracket
Longivity Support No

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

Support

OS:

Description OS Date Download
Description Intel Wireless Lan driver ver:20.110.0.3 OS Win 10 x 64 Date 2020-06-16 Download
Description VGA driver ver:25.20.100.6519 OS Win 10 x 64 Date 2020-06-16 Download
Description Intel Rapid Storage Technology driver and utility ver:17.0.0.1072 OS Win 10 x 64 Date 2020-06-16 Download
Description COM Port driver ver:1.0.2011.1109 OS Win 10 x 64 Date 2020-06-16 Download
Description Intel Lan driver ver:23.2_PV OS Win 10 x 64 Date 2020-06-16 Download
Description Realtek Lan driver ver:10031_10232018 OS Win 10 x 64 Date 2020-06-16 Download
Description Intel Management Engine driver ver:12.0.37.1429_Corp OS Win 10 x 64 Date 2020-06-16 Download
Description INF driver ver:10.1.17765.8094_Public OS Win 10 x 64 Date 2020-06-16 Download
Description Realtek high definition audio driver ver:8569 OS Win 10 x 64 Date 2020-06-16 Download
Version Update BIOS Under / How to Update Description Date Download
Version 1.20 Update BIOS Under / How to Update BIOS Description First released. Date 2020-05-06 Download
Version 1.20 Update BIOS Under / How to Update DOS Description First released. Date 2020-05-06 Download
Version 1.20 Update BIOS Under / How to Update Windows Description First released. Date 2020-05-06 Download

The format of our documents are in PDF files. If you have not installed Adobe Acrobat Reader, please get it from Adobe.

Description Language Date Download
Description Quick Installation Guide Language English Date 2020-06-16 Download
Description User Manual Language English Date 2020-06-16 Download
