NUC BOX 3010 Fanned Embedded BOX PC

  • Intel® Braswell SoC Processor N3010
  • 2 x 204-pin SO-DIMM up to 16GB DDR3L 1600 MHz ( 8GB per DIMM )
  • 1 x M.2 Key E , 3 x USB 3.1 Gen1 , 1 x USB 3.1 Gen1 Type C , 1 x mSATA, 1 x SATA3
  • 1x Realtek LAN RTL8111G
  • Supports triple display, 2 x HDMI1.4 , 1 x DP1.2
  • 1 x 12V/36W AC-DC power brick adapter
  • 110 x 118.5 x 46mm
  • Faned Barebone
Datasheet
Specification

Form Factor

Dimensions 110 x 118.5 x 46mm

Processor System

CPU Intel® Braswell SoC Processor N3010, DC, 1.04 GHz, 4W
Chipset SoC
BIOS AMI SPI 64 Mbit

Memory

Technology Dual Channel DDR3L 1600 MHz
Capacity 16 GB (8 GB per DIMM)
Socket 2 x 204-pin SO-DIMM

Graphics

Controller Intel® Gen8 Intel® Graphics DX 11, OGL3.2
HDMI HDMI 1.4a
Max resolution up to 3840x2160@30Hz
DisplayPort DisplayPort 1.1a
Max resolution up to 3840x2160@30Hz
MultiDisplay Triple Display

Expansion Slot

M.2 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 for Wireless

Audio

Interface Realtek ALC233, High Definition Audio, Line-out, Mic-in

Ethernet

Controller/ Speed 1 x Realtek RTL8111G with 10/100/1000 Mbps
Connector 1 x RJ-45

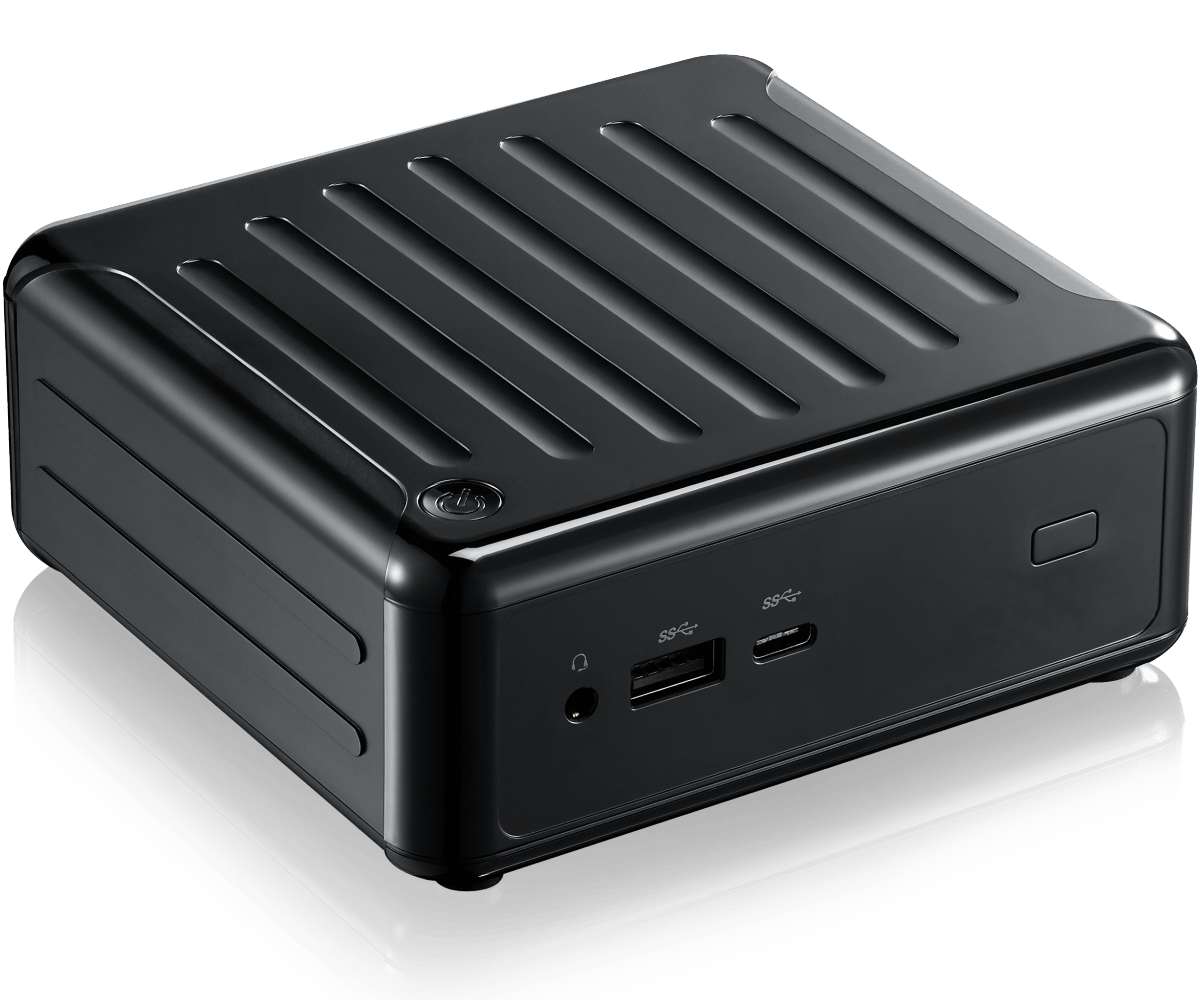

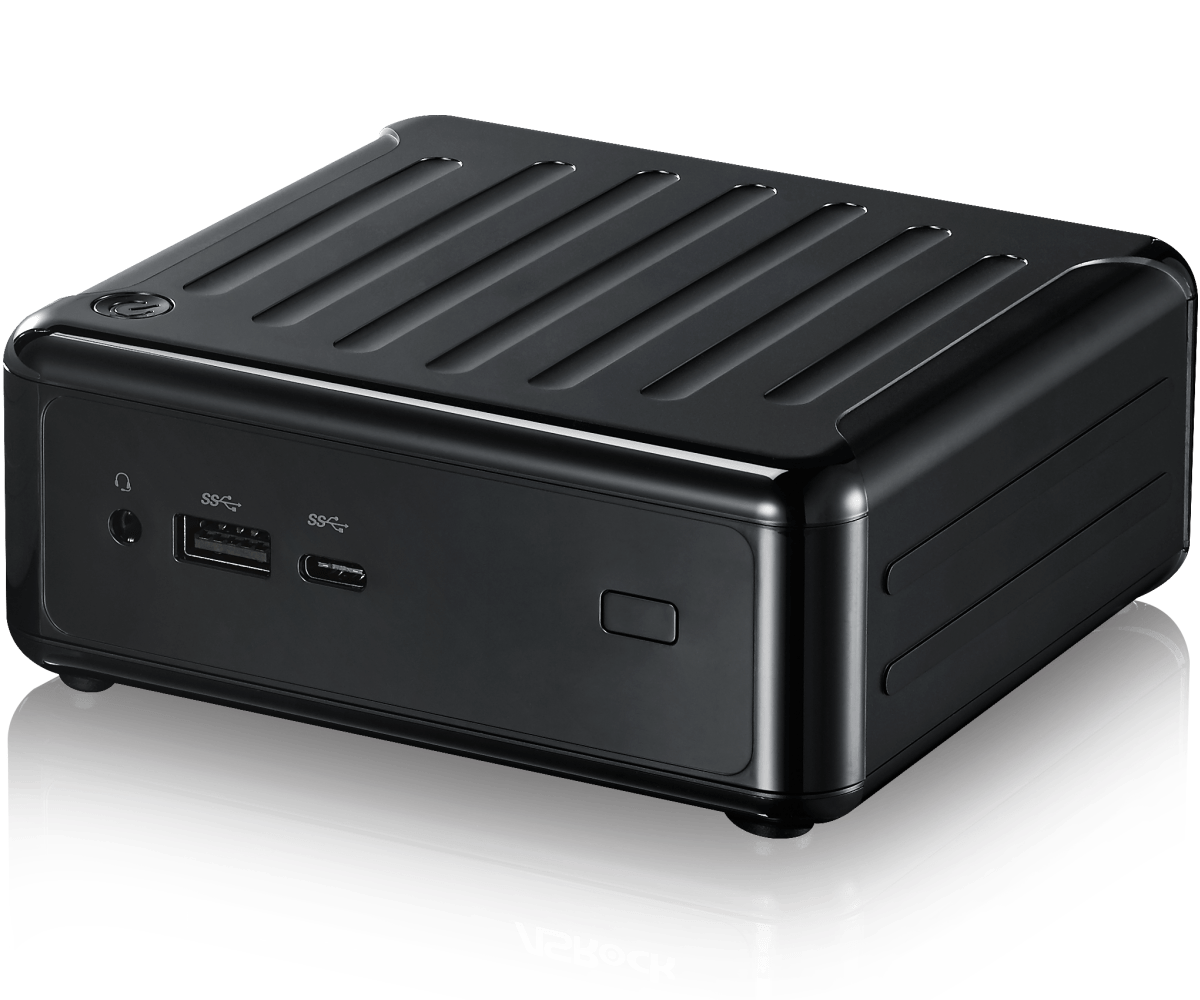

Front I/O

USB 1 x USB3.0 (TypeC)
1 x USB3.0
Audio 1 (Mic-in or Line-out)

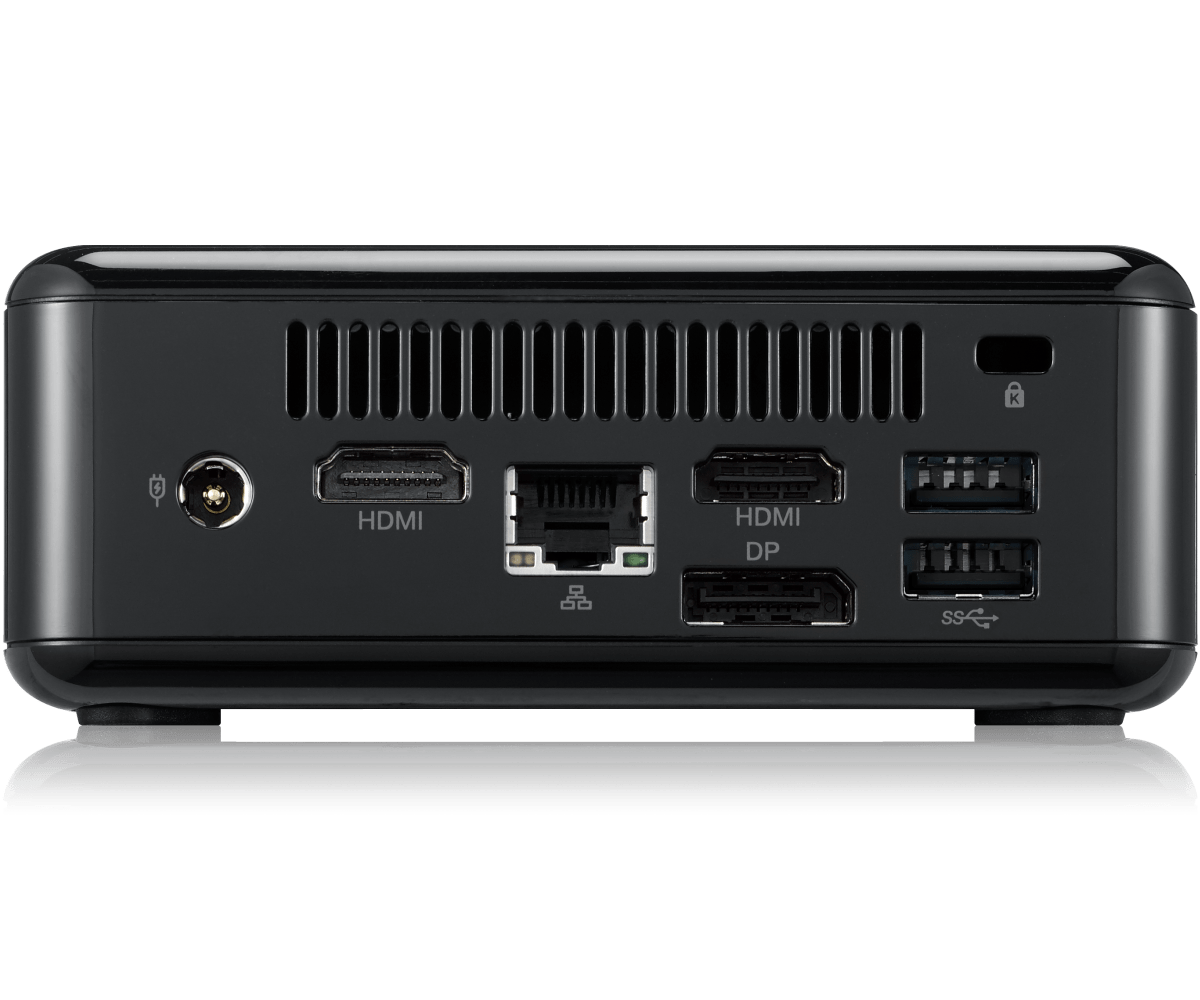

Rear I/O

HDMI 2 x HDMI 1.4
DisplayPort 1 x DP 1.2
Ethernet 1 x 1 Gigabit LAN
USB 2 x USB 3.0
DC Jack 1

Internal Connector

SATA PWR Output 1

Storage

mSATA 1 x Full size with SATA3
SATA 1 x SATA3 (6Gb/s)

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments 0,1,2....255sec

Power Requirements

Input PWR 12V DC-in(DC Jack)
Power On AT/ATX supported
-AT: Direct PWR on as power input ready
-ATX:Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 50ºC
Storage Temp -40° C ~ 85° C
Operating Humidity 10% ~ 90%
Storage Humidity 10% ~ 90%

Mechanical

Construction Plastic
Mounting VESA mounting bracket
Dimensions (W x H x D) 110 x 118.5 x 46mm
Weight Net Weight: 0.5kg

Others

OS Support Windows 7, Windows 10
Certifications CE, FCC Class A
Packing List 1 x 12V/36W Power Adapter
1 x VESA mounting bracket
1 x Screw Package
1 x Product DVD

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

Support

OS:

Description OS Date Download
Description CIR receiver driver ver:2.11.1009 OS Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 7 x 64 Date 2020-05-08 Download
Description Intel Wireless Lan driver ver:18.12.0 OS Win 10 x 64 , Win 10 Date 2020-05-08 Download
Description VGA driver ver:15.40.6.4352 OS Win 10 , Win 8.1 , Win 7 Date 2020-05-08 Download
Description Intel Trusted Execution Engine ver:2.0.2.2092 OS Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 7 x 64 , Win 7 Date 2020-05-08 Download
Description Realtek Lan driver ver:8025 (Support ASRock Cloud) OS Win 8.1 x 64 Date 2020-05-08 Download
Description INF driver ver:10.1.1.1 OS Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 7 x 64 , Win 7 Date 2020-05-08 Download
Description Realtek high definition audio driver ver:7514 OS Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 7 x 64 Date 2020-05-08 Download
Description VGA driver ver:15.40.6.64.4352 OS Win 10 x 64 , Win 8.1 x 64 , Win 7 x 64 Date 2020-05-08 Download
Description Intel USB 3.0 driver ver:4.0.3.49 OS Win 7 x 64 Date 2020-05-08 Download
Description Intel iRMT ver:1.1.50.493 OS Win 8.1 x 64 , Win 7 x 64 , Win 7 Date 2020-05-08 Download
Description Realtek Lan driver ver:10006 OS Win 10 x 64 , Win 10 Date 2020-05-08 Download
Description Intel Bluetooth driver ver:17.1.1506.520 OS Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 7 x 64 Date 2020-05-08 Download
Description Intel Wireless Lan driver ver:18.11.0 OS Win 8.1 x 64 , Win 7 x 64 Date 2020-05-08 Download
Description Intel USB 3.0 Adaptation driver ver:1.0.1.45 OS Win 8.1 Date 2020-05-08 Download
Description Intel iRMT ver:1.1.50.493 OS Win 10 x 64 , Win 10 Date 2020-05-08 Download
Description Realtek Lan driver ver:7086 OS Win 7 x 64 , Win 7 Date 2020-05-08 Download
Version Update BIOS Under / How to Update Description Date Download
Version 2.00 Update BIOS Under / How to Update BIOS Description 1.Update Intel Microcode.
2.Improve system compatibility
Date 2020-05-06 Download
Version 2.00 Update BIOS Under / How to Update DOS Description 1.Update Intel Microcode.
2.Improve system compatibility
Date 2020-05-06 Download
Version 2.00 Update BIOS Under / How to Update Windows Description 1.Update Intel Microcode.
2.Improve system compatibility
Date 2020-05-06 Download

The format of our documents are in PDF files. If you have not installed Adobe Acrobat Reader, please get it from Adobe.

Description Language Date Download
Description User Manual Language English Date 2020-05-06 Download
Description Quick Installation Guide Language English Date 2020-05-06 Download
