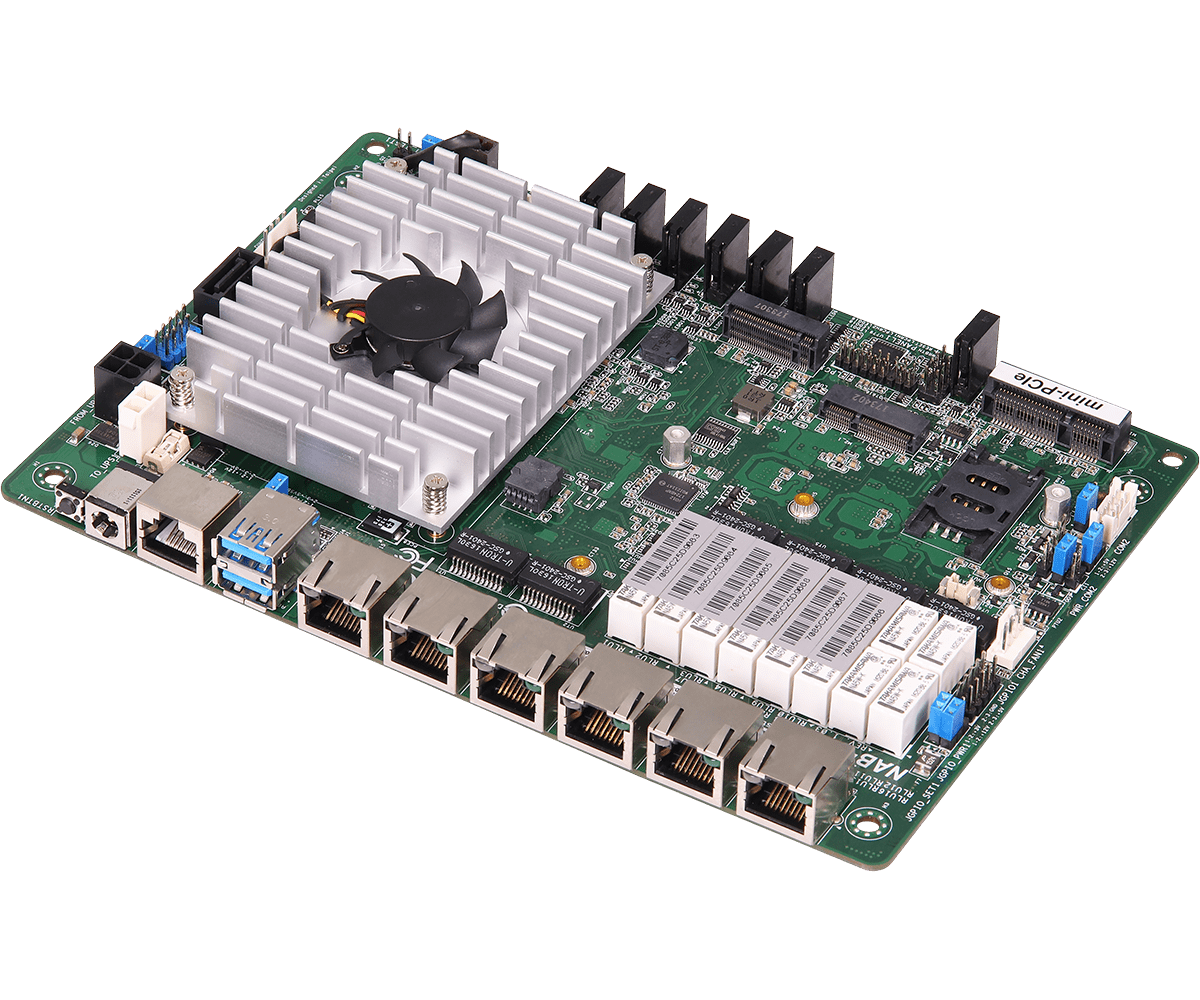

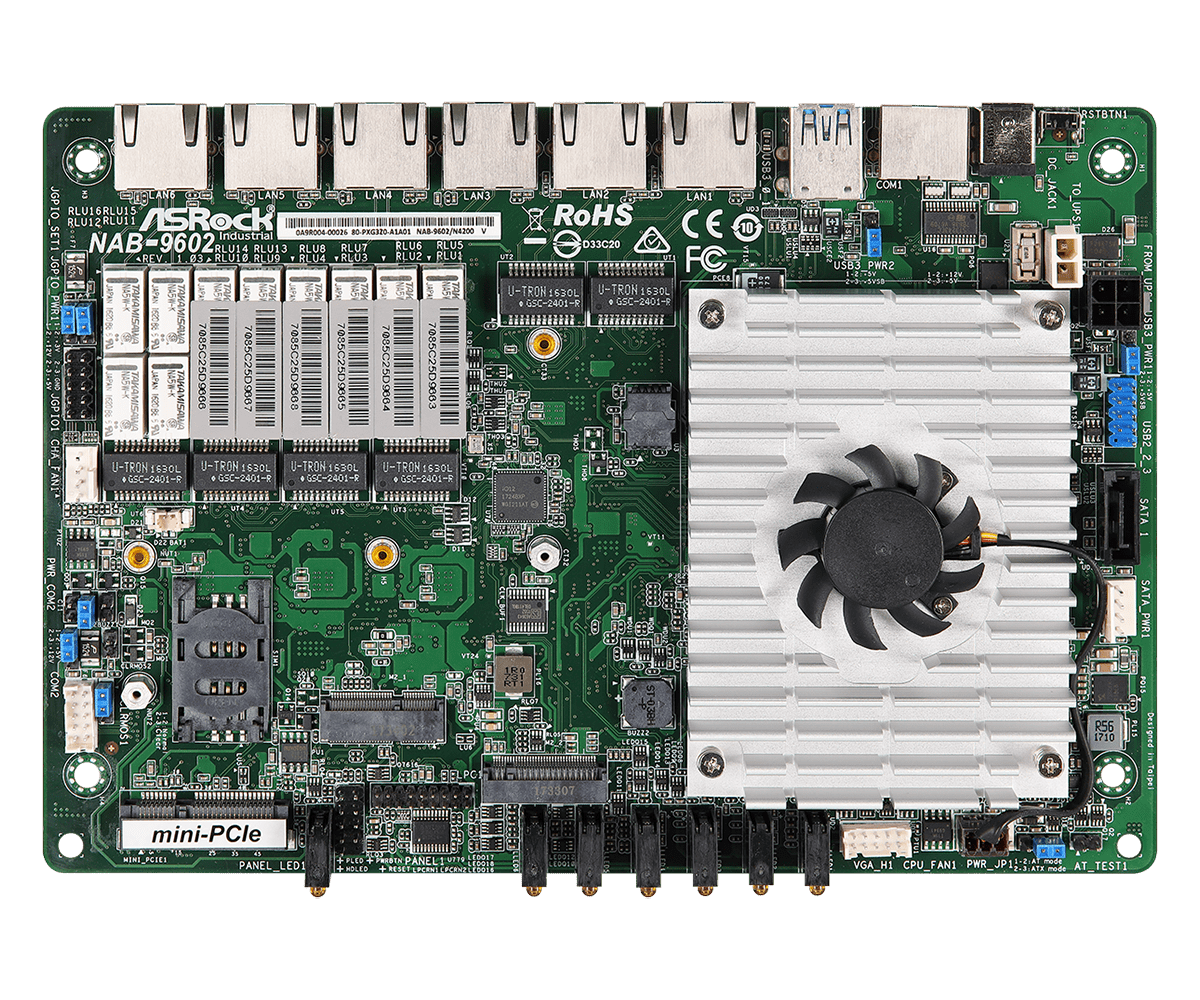

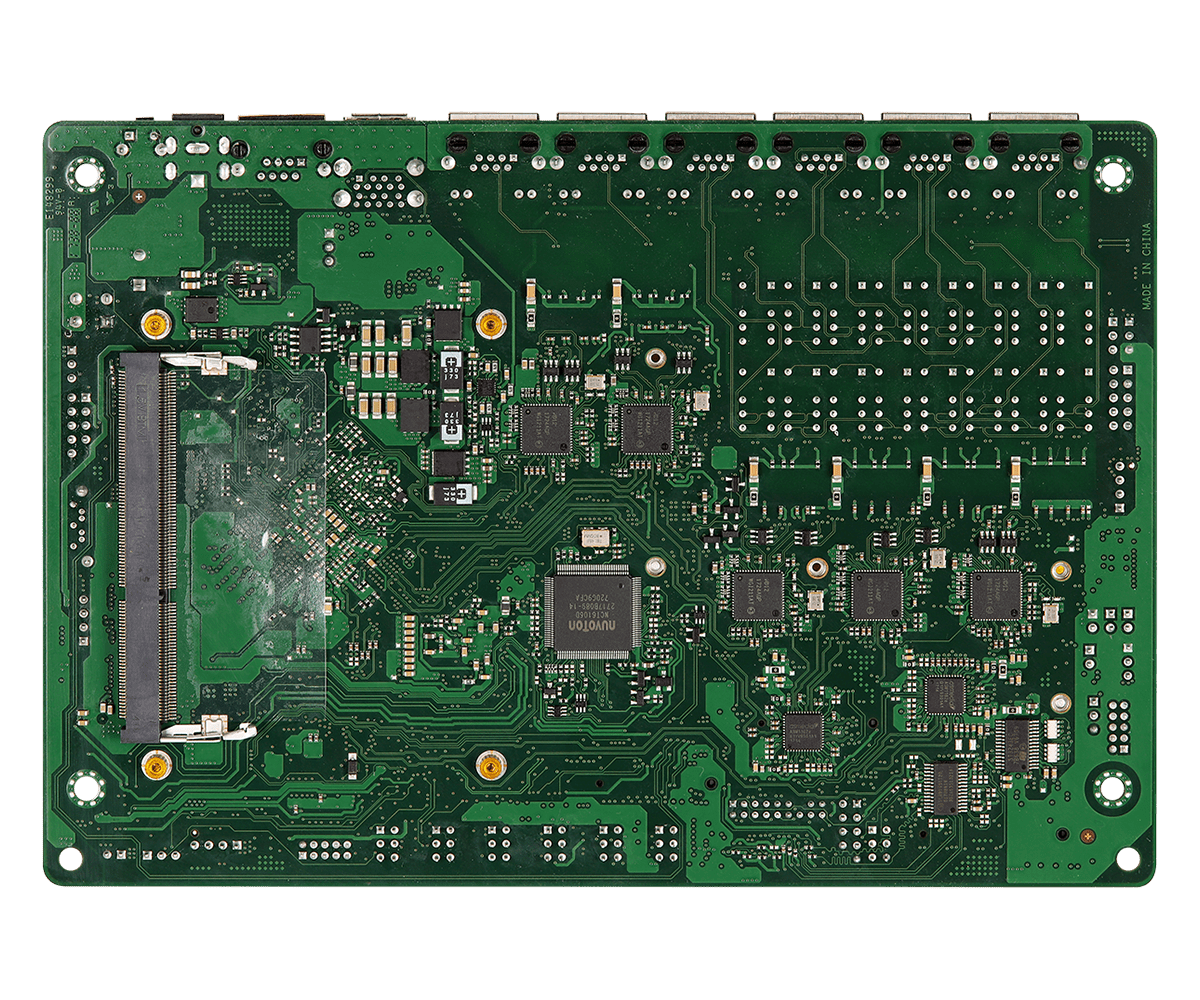

NAB-9602 NAB Motherboard

  • Intel® Apollo Lake SoC Processor
  • Supports Single Channel DDR3L SO-DIMM 1866, up to 8GB
  • 1 x VGA
  • 2 x USB 3.0
  • 1 x M.2 (Key E) , 1 x M.2 (Key M)
  • 6 x Intel 1 Gigabit LAN
  • Supports Bypass Function
  • 1 x MiniPCIe with SIM socket for WiFI/3G/LTE
  • 1 x TPM 2.0 IC
  • 12V DC-in Jack / 4-pin ATX PWR Con.
Datasheet
Specification

Form Factor

Dimensions NAB (7.9-in x 5.5-in)

Processor System

CPU Intel® Apollo Lake SoC Processor N4200, QC, 1.10GHz, 6W
Chipset SoC
BIOS AMI SPI 128 Mbit

Memory

Technology Single Channel DDR3L 1866 MHz
Capacity 8GB
Socket 1 x 204-pin SO-DIMM

Graphics

Controller Intel® Gen9 Graphics DX 12
VGA 1 x Header
(Supports max. resolution 1920 x 1200)

Expansion Slot

mini-PCIe 1x Full size with PCIe x1 and USB 2.0
M.2 1 x M.2 (Key E, 2230) with PCIe x1 and USB 2.0 for Wireless
SIM Socket 1

Audio

Interface N/A

Ethernet

Controller/ Speed 6 x Intel I211 with 10/100/1000 Mbps
Connector 6 x RJ-45

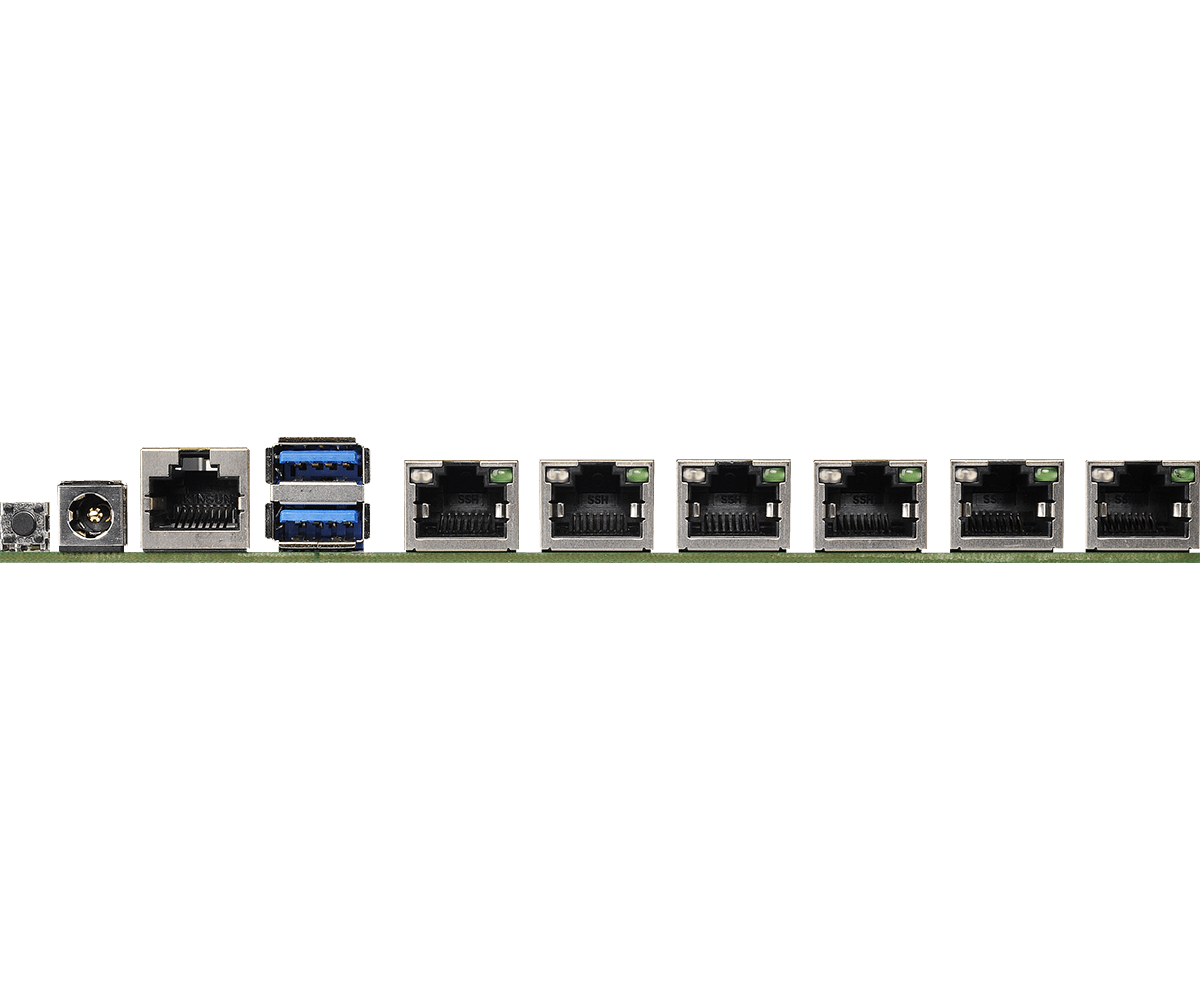

Rear I/O

Ethernet 6 x INTEL 1 Gigabit LAN
USB 2 x USB 3.0
DC Jack 1
Serial Port 1 x console (RS232)

Internal Connector

USB 2 x USB 2.0
COM 1 x COM (RS232)
GPIO 4 x GPI + 4 x GPO
TPM 1 x Onboard TPM 2.0 IC
VGA 1
SATA PWR Output 1

Storage

M.2 1 x M.2 (K ey M, 2242/2260/2280) with SATA3 for SSD
SATA 1 x SATA3 (6Gb/s)

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR 12V DC-in Jack
4-pin ATX PWR
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 60ºC
Storage Temp -40° C ~ 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
