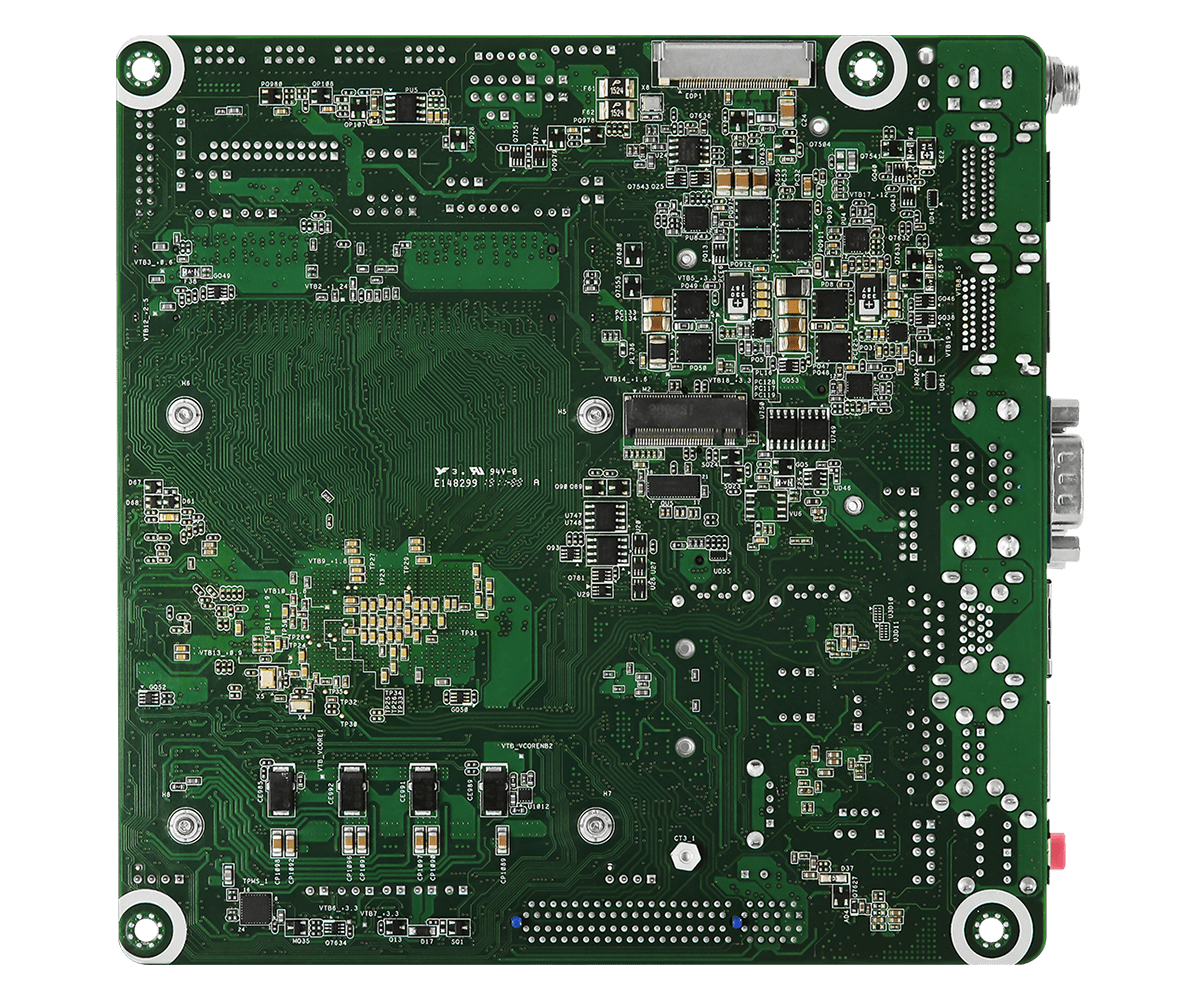

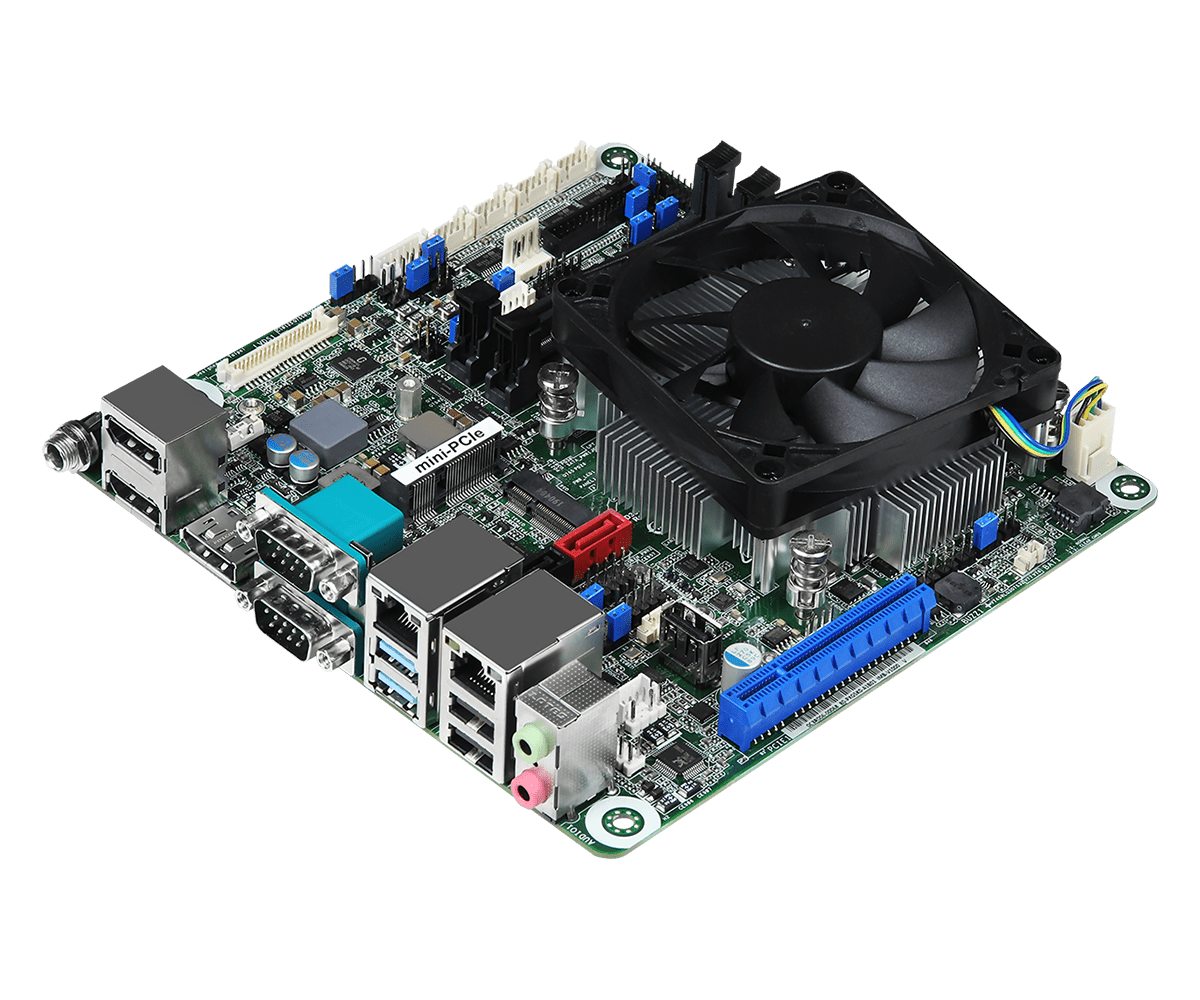

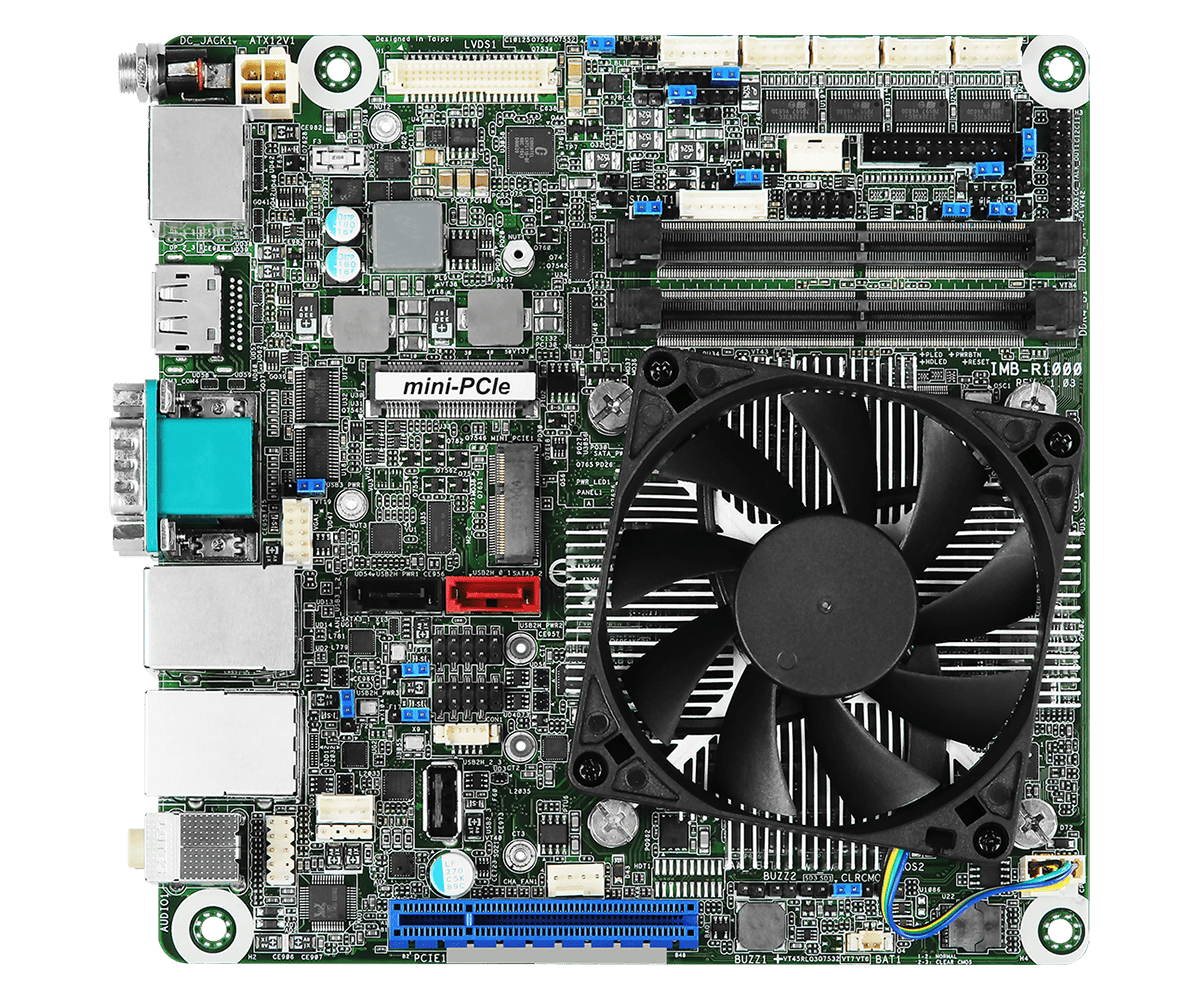

IMB-R1000V Mini-ITX Motherboard

Processor System

CPU	AMD Ryzen™ Embedded R1000 SoC processors R1505G, DC, 2.4GHz, 12-25W
Chipset	SoC
BIOS	AMI SPI 64 Mbit

Form Factor

Dimensions	Mini-ITX (6.7-in x 6.7-in, 17.0 cm x 17.0 cm)

Memory

Technology	Dual Channel DDR4 2400 MHz
Capacity	32 GB (16 GB per DIMM)
Socket	2 x 260-pin SO-DIMM

Graphics

Controller	AMD Radeon™ Vega 3 Graphics
DisplayPort	DisplayPort 1.2a Max resolution up to 3840x2160@60Hz
VGA	Max resolution up to 1920x1200@60Hz
LVDS	Dual channel 48 bit up to 1920 x 1200@60Hz
eDP	eDP 1.3 Max resolution up to 3840x2160@60Hz
MultiDisplay	Triple Display

Expansion Slot

PCIe	1 x PCIe x4 (Gen3)
mini-PCIe	1 x Full/Half size with PCIe x1 and USB 2.0
M.2	1 x M.2 (Key E, 2230) with PCIe x1 and shared USB 2.0 for Wireless

Audio

Interface	Realtek ALC887, High Definition Audio. Line-out,Mic-in,Line-in

Ethernet

Controller/ Speed	2 x Realtek R8111G with 10/100/1000 Mbps
Connector	2 x RJ-45

Rear I/O

DisplayPort	3 x DP 1.2a
Ethernet	2 x 1 Gigabit LAN
USB	2 x USB 3.2 Gen2 2 x USB 2.0
Audio	2 (Mic-in, Line-out)
COM	2 x COM (RS-232/422/485)

Internal Connector

USB	5 x USB 2.0 (2 x 2.54 pitch header, 1 x USB 2.0 Type-A vertical con)
COM	4 x COM (RS-232, COM6 shared with ccTalk)
GPIO	8 x GPI, 8 x GPO (shared with LPT header)
TPM	TPM 2.0 onboard IC
LVDS	1(Shared with DP1)
eDP	1(Shared with DP0)
VGA	1(Shared with DP3)
SATA PWR Output	1
Speaker Header	1

Storage

M.2	1 x M.2 (Key M, 2242/2260/2280) with SATA for SSD
SATA	2 x SATA3 (6.0Gb/s), Red header shared with M.2 Key M SATA signal

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	12V or 19~28V DC-In with 4-pin plug PWR cable or DC Jack
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Accessories

Gift Package	1 x SCREW M2,D=5.3 (13G020302010AK) 2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020513000AK) 1 x SATA Data Cable (14G00010107DAK) 1 x COM Cable (14G000000310AK)
Bulk Package	1 x SCREW M2,D=5.3 (13G020302010AK) 2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020513000AK)

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
