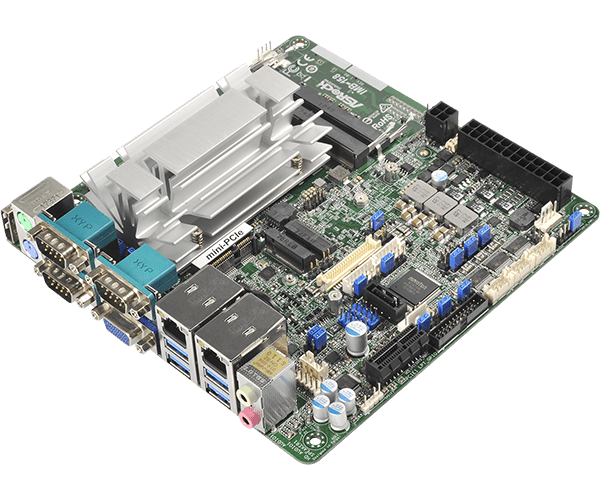

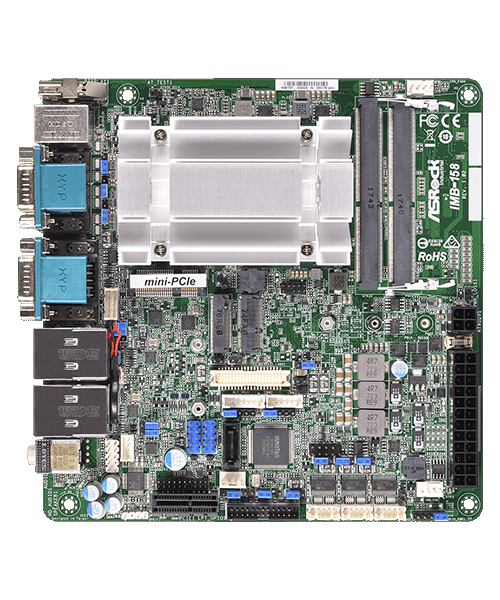

IMB-158 Mini-ITX Motherboard

  • Intel Gemini Lake SoC Processor
  • Supports Dual Channel DDR4 SO DIMM 2400, up to 8GB
  • 1 x Displayport, 1 x VGA, 1 x Dual Channel 24-bit LVDS (eDP by BOM option)
  • 4 x USB 3.0, 4 x USB 2.0, 1 x SATA3, 6 x COM
  • 1 x PCIe x1, 1 x mini-PCIe, 1 x M.2 Key E ,1 x M.2 Key M
  • 2 x Realtek LAN
  • 1 x TPM Header
  • 12V / 19~28V DC-in (20+4-pin ATX PWR Con.)
Datasheet
Specification

Form Factor

Dimensions Mini-ITX (6.7-in x 6.7-in x 1.5-in)

Processor System

CPU Intel Gemini Lake SoC Processor
(N5000, QC, 1.10GHz, 6W)
(N4100, QC, 1.10GHz, 6W)
(N4000, DC, 1.10GHz, 6W)
Chipset SoC

Memory

Technology Dual Channel DDR4 2400 MHz
Capacity 8GB
Socket 2 x SO-DIMM

Graphics

VGA Supports max resolution up to 1920 x 1200
LVDS Dual Channel 24-bit, max resolution up to 1920 x 1200@60Hz
MultiDisplay Triple Display
eDP Max resolution up to 4096 x 2160@60Hz (Bom option with LVDS)
DisplayPort Max resolution up to 4096 x 2160@60Hz

Expansion Slot

PCIe 1 x PCIe x1
mini-PCIe 1 x Full / Half size with PCIe x1 and shared USB 2.0
M.2 1 x M.2 (Key E, 2230) with PCIe x1, CNVI and USB 2.0 for Wireless

Ethernet

Controller/ Speed 2 x Realtek RTL8111H with 10/100/1000 Mbps

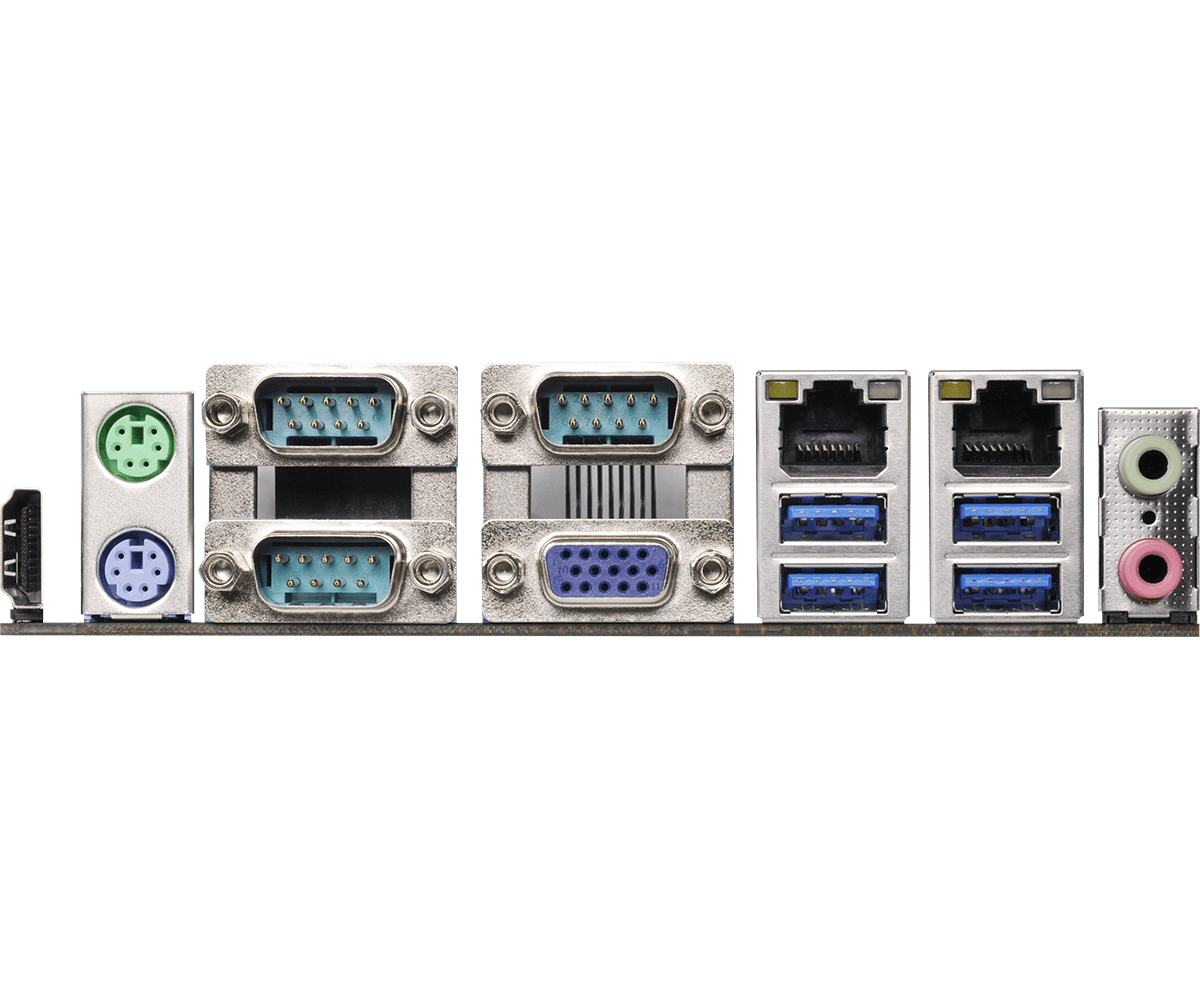

Rear I/O

VGA 1
Ethernet 2
USB 4 x USB 3.0
Audio 2 (Mic-in, Line-out)
COM 3 x COM (RS-232/422/485)
PS2 2 (1 x keyboard, 1 x mouse)

Internal Connector

USB 4 x USB 2.0 (2 x headers)
COM 3 x COM (RS-232)
Parallel 1 (shared with GPIO)
GPIO 8 x GPI, 8 x GPO
TPM 1 x Header
LVDS 1
VGA 1 (shared with VGA Con.)
eDP 1 (BOM option with LVDS)
Speaker Header 1

Storage

M.2 1 x M.2 (Key M, 2242 / 2260 / 2280) with SATA3 for SSD
SATA 1 x SATA3 (6.0Gb/s)

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR 12V / 19V~28V DC-in (20+4-pin ATX PWR Con.)
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 60ºC
Storage Temp -40° C ~ 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

Others

Longivity Support No

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

Support

OS:

Description OS Date Download
Description VGA driver ver:23.20.16.4882 OS Win 10 x 64 Date 2020-05-28 Download
Description Intel Trusted Execution Engine ver:1731.4.0.1199_0214 OS Win 10 x 64 Date 2020-05-28 Download
Description Intel Dynamic Platform and Thermal Framework (Intel DPTF) driver ver:8.3.10208.5644 OS Win 10 x 64 Date 2020-05-28 Download
Description COM Port driver ver:1.0.2011.1109 OS Win 10 x 64 Date 2020-05-28 Download
Description Realtek Lan driver ver:10018 OS Win 10 x 64 Date 2020-05-28 Download
Description Realtek Teaming driver ver:2.0.2.11 OS Win 10 x 64 Date 2020-05-28 Download
Description Intel Serial IO driver ver:30.100.1726.2_PV OS Win 10 x 64 Date 2020-05-28 Download
Description INF driver ver:10.1.17479.8054 OS Win 10 x 64 Date 2020-05-28 Download
Description Intel Bluetooth driver ver:20.10.0.9g_2745 OS Win 10 x 64 Date 2020-05-28 Download
Description Realtek high definition audio driver ver:8152_FF00 OS Win 10 x 64 Date 2020-05-28 Download
Description Intel Wireless Lan driver ver:20.20.0.4g_2295 OS Win 10 x 64 Date 2020-05-28 Download

The format of our documents are in PDF files. If you have not installed Adobe Acrobat Reader, please get it from Adobe.

Description Language Date Download
Description Jumpers and headers setting guide Language English Date 2020-05-28 Download
Description User Manual Language English Date 2020-05-28 Download
