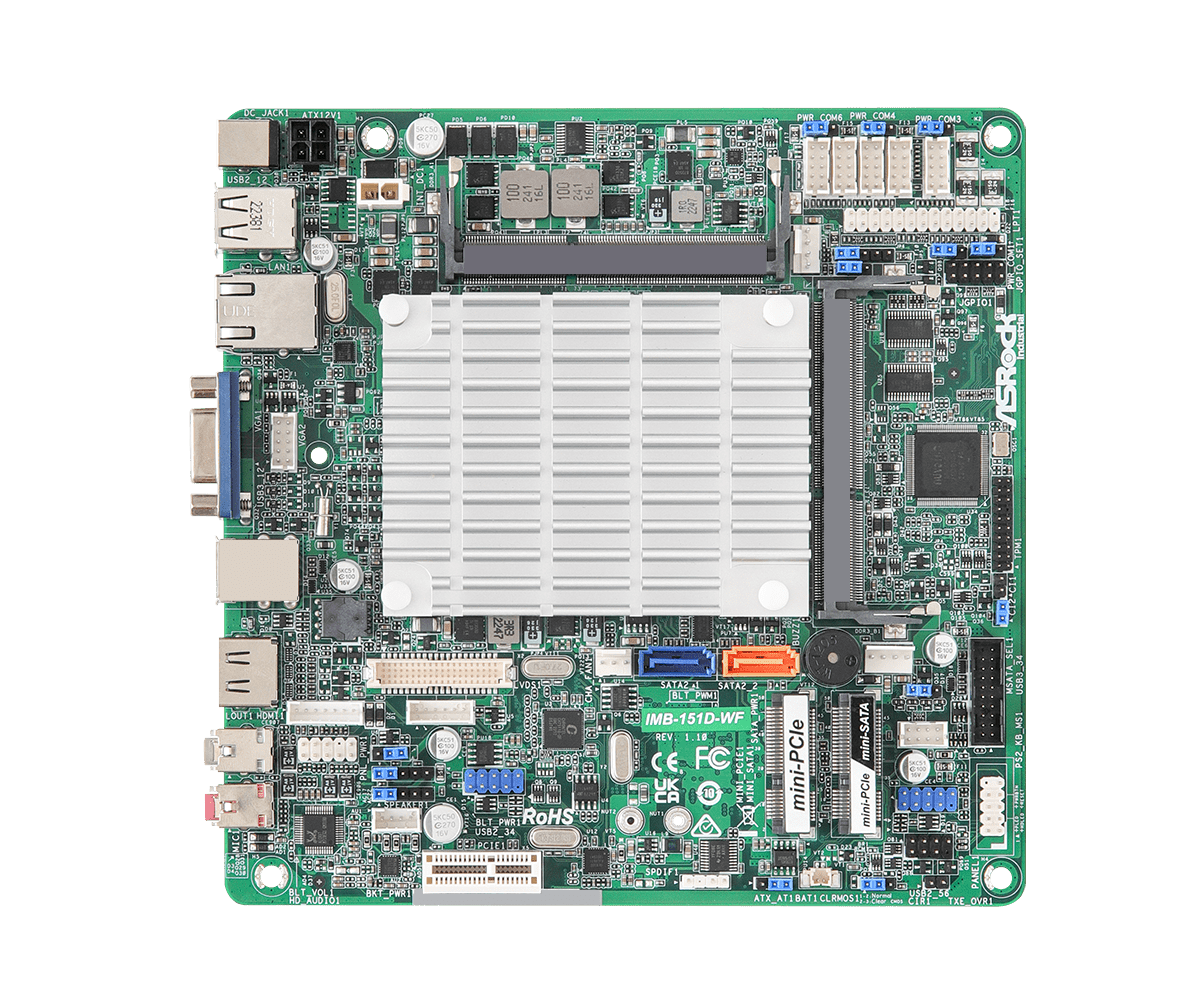

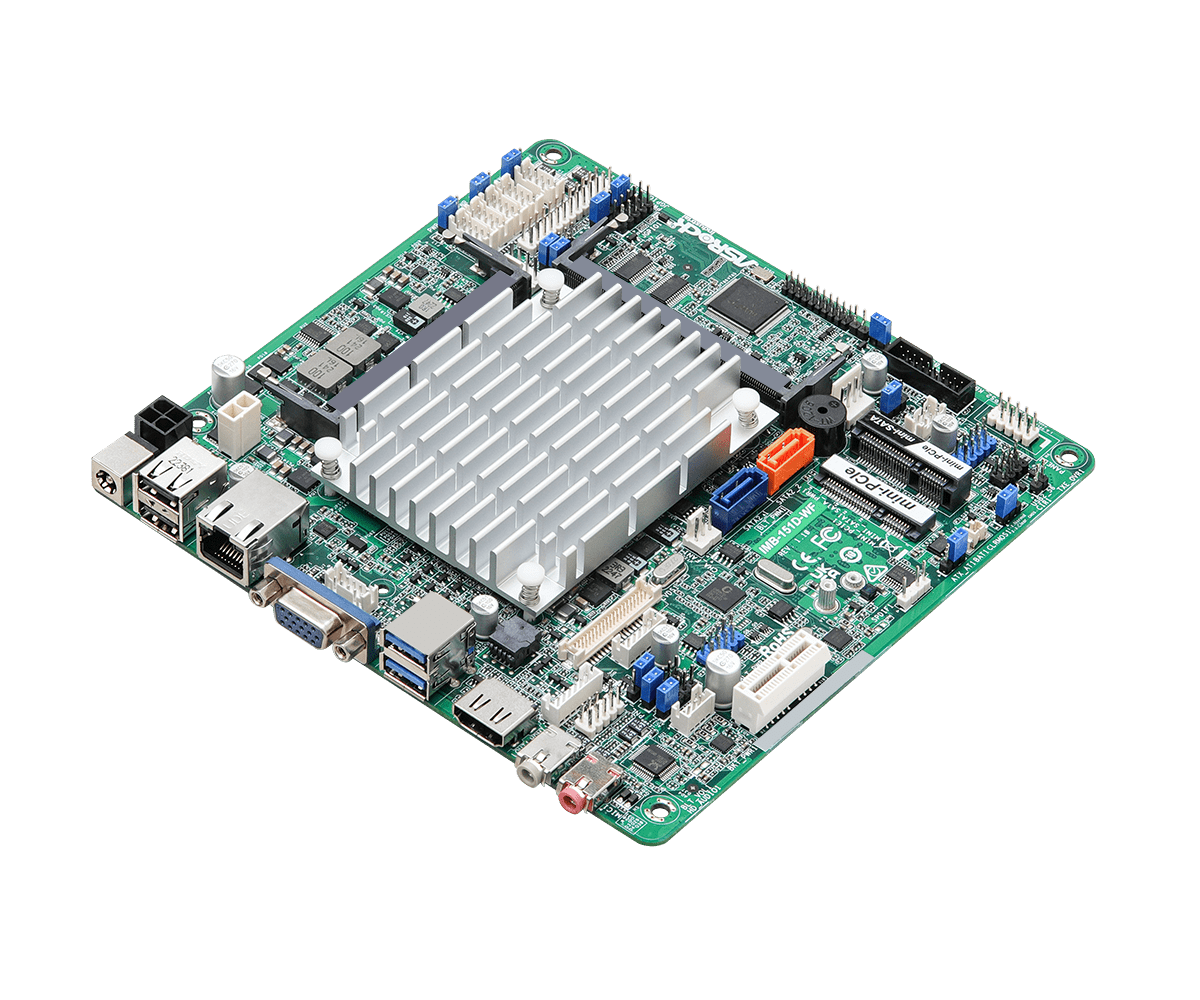

IMB-151D-WF Mini-ITX Motherboard

  • Intel® Baytrail SoC Processor J1900
  • Supports Dual Channel DDR3L SO-DIMM 1333, up to 8GB
  • 1 x HDMI, 1 x VGA, 1 x LVDS
  • 4 x USB 3.0, 8 x USB 2.0, 4 x SATA2
  • 1 x Mini-PCIe, 1 x PCIe x1, 1 x mSATA
  • 1 x Realtek LAN
  • 1 x TPM Header
  • 9~19 V DC-in
Datasheet
Specification

Form Factor

Dimensions Mini-ITX (6.7-in x 6.7-in)

Processor System

CPU Intel® Baytrail SoC Processor J1900, QC, 2.00 GHz, 10 W
Chipset SoC

Memory

Technology Dual Channel DDR3 1333 MHz
Capacity 8GB
Socket 2 x SO-DIMM

Graphics

Controller Intel® Gen7 Intel Graphics DX 11*, OGL3.2
HDMI Supports max resolution up to 1920 x 1200
VGA Max resolution up to 1920 x 1200@60Hz
LVDS Supports max resolution up to 1920 x 1200@60Hz
MultiDisplay Dual Display

Expansion Slot

PCIe 1 x PCIe x1
mini-PCIe/mSATA 1 x Full size with PCIe x1, SATA2 and USB 2.0
mini-PCIe 1 x Half size with PCIe x1 and USB 2.0

Ethernet

Controller/ Speed 10/100/1000 Mbps
Connector 2 x Realtek RTL8111G-CG

Rear I/O

HDMI 1
VGA 1
Ethernet 1
USB 2 x USB 3.0, 2 x USB 2.0
Audio 2 (Mic-in, Line-out)
DC Jack 1

Internal Connector

USB 2 x USB 3.0, 4 x USB 2.0
COM 4 x COM (RS-232), 1 x COM (RS-232/422/485)
Parallel 1
GPIO 4 x GPI + 4 x GPO
TPM 1 x Header
LVDS 1
SATA PWR Output 1
Speaker Header 1
VGA 1

Storage

SATA 2 x SATA2

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR 9-19V DC-In (2-pin ATX PWR Con)
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 60ºC
Storage Temp -40° C ~ 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

Support

OS:

Description OS Date Download
Description [Beta] VGA driver ver:15.33.37.4242_PV OS Win 10 Date 2020-06-09 Download
Description VGA driver ver:37.15.0.1091 OS Win 7 x 64 Date 2020-06-04 Download
Description VGA driver ver:15.33.13.3408 OS Win 8.1 , Win 8 Date 2020-06-04 Download
Description Intel USB 3.0 driver ver:3.0.0.19 OS Win 7 x 64 , Win 7 Date 2020-06-04 Download
Description Realtek Lan driver ver:7075 OS Win 7 x 64 , Win 7 Date 2020-06-04 Download
Description [Beta] Realtek high definition audio driver ver:7560 OS Win 10 x 64 , Win 10 Date 2020-05-21 Download
Description [Beta] INF driver ver:10.1.1.8 OS Win 10 x 64 , Win 10 Date 2020-05-21 Download
Description [Beta] Realtek Lan driver ver:10006 OS Win 10 x 64 , Win 10 Date 2020-05-21 Download
Description [Beta] COM Port driver ver:1.0.2011.1109 OS Win 10 x 64 , Win 10 Date 2020-05-21 Download
Description [Beta] Intel Sideband Fabric Device ver:604.10125.2655.573 OS Win 10 x 64 Date 2020-05-21 Download
Description [Beta] Intel Trusted Execution Engine ver:1.1.4.1145 OS Win 10 x 64 , Win 10 Date 2020-05-21 Download
Description [Beta] VGA driver ver:15.33.37.64.4242 OS Win 10 x 64 Date 2020-05-21 Download
Description Realtek high definition audio driver ver:R271 OS Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-21 Download
Description CIR receiver driver ver:2.09.1007 OS Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-21 Download
Description INF driver ver:9.4.4.1006 OS Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-21 Download
Description Intel Smart Connect driver ver:4.2.41.2710 OS Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-21 Download
Description Realtek Lan driver ver:8020 OS Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 Date 2020-05-21 Download
Description COM Port driver ver:1.0.2011.1109 OS Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-21 Download
Description Intel Sideband Fabric Device ver:1.70.305.16316 OS Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 Date 2020-05-21 Download
Description Intel Trusted Execution Engine ver:1.1.0.1089 OS Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-21 Download
Description VGA driver ver:15.33.13.64.3408 OS Win 8.1 x 64 , Win 8 x 64 Date 2020-05-21 Download
Description VGA driver ver:36.15.0.1091 OS Win 7 Date 2020-05-20 Download
Version Update BIOS Under / How to Update Description Date Download
Version 1.90 Update BIOS Under / How to Update BIOS Description Update Intel Microcode for D1 Stepping Date 2019-09-23 Download
Version 1.90 Update BIOS Under / How to Update DOS Description Update Intel Microcode for D1 Stepping Date 2019-09-23 Download
Version 1.90 Update BIOS Under / How to Update Windows Description Update Intel Microcode for D1 Stepping Date 2019-09-23 Download

The format of our documents are in PDF files. If you have not installed Adobe Acrobat Reader, please get it from Adobe.

Description Language Date Download
Description User Manual Language English Date 2020-09-08 Download
Description Jumpers and Headers Setting Guide Language English Date 2020-09-08 Download
