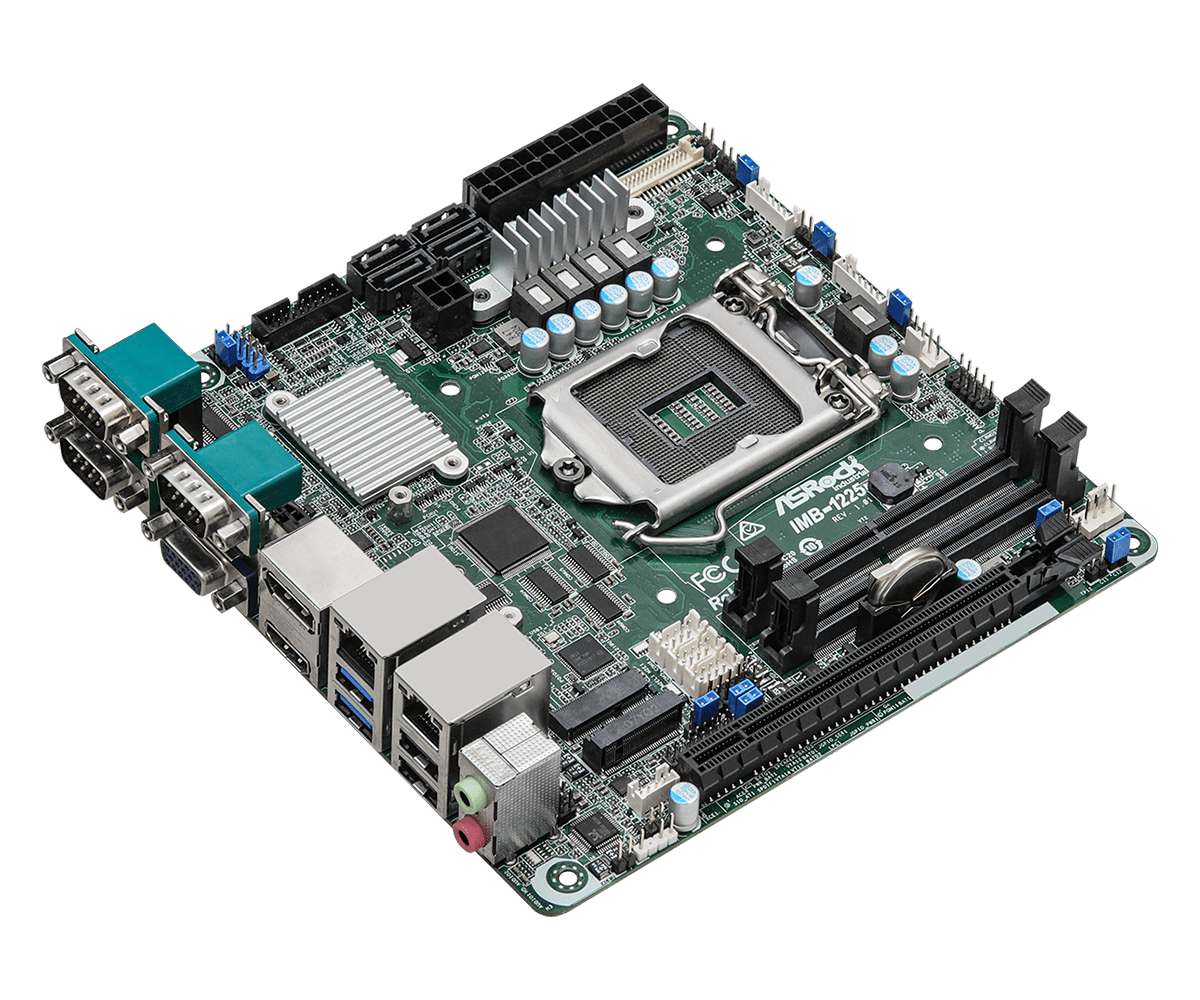

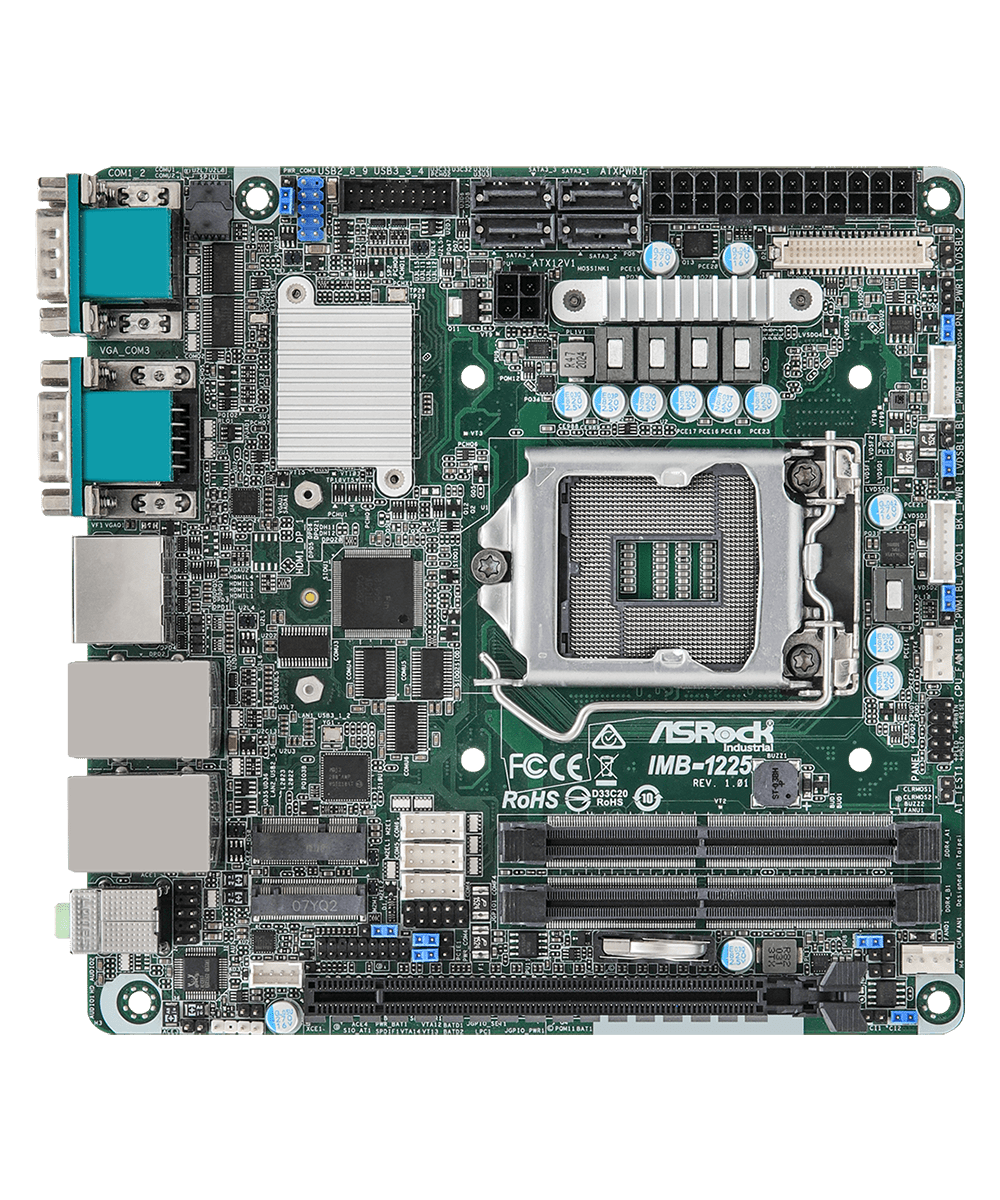

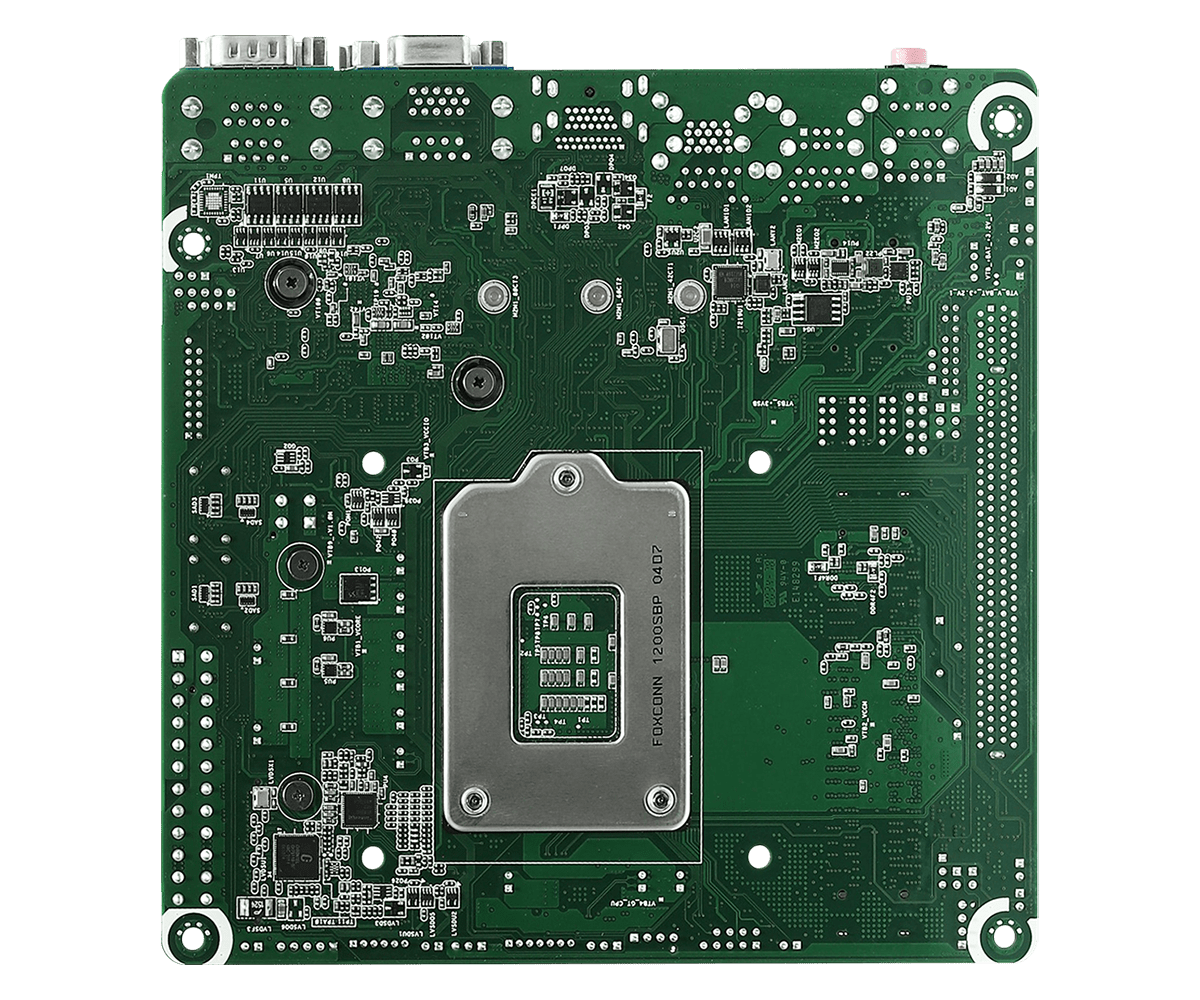

IMB-1225 Mini-ITX Motherboard

  • Intel® 10th Gen (Comet lake-S) Core™ Processors with H410 chipset
  • 2 x 260-pin SO-DIMM Support Dual Channel DDR4 2933 (i9/i7 CPU)/ 2666 (i5/i3 CPU) / 2400 (Pentium/ Celeron CPU), up to 64GB
  • 1 x PCIe x16 Gen3, 4 x USB 3.2 Gen1, 4 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key M, 3 x COM, 6 x COM, 4 x SATA3
  • 2 x Intel 1 Gigabit LAN
  • Support Dual display, 1 x DP 1.2, 1 x VGA, 1 x HDMI 1.4, 1 x LVDS
  • ATX-PWR (24+4-pin)
Datasheet
Specification

Form Factor

Dimensions Mini-ITX (6.7-in x 6.7-in)

Processor System

CPU Intel® 10th Gen (Cometlake-S) Core™ Processors, up to 65W
*The performance of CPUs over 65W will be limited due to power design.
Chipset Intel® H410
Socket LGA1200
BIOS AMI SPI 128 Mbit

Memory

Technology Dual Channel DDR4 2933/2666/2400 MHz
- Intel Core i9/i7 CPUs support DDR4 up to 2933 MHz
- Intel Core i5/i3 CPUs support DDR4 up to 2666 MHz
- Intel Pentium/Celeron CPU support DDR4 up to 2400 MHz
Capacity 64GB (32 GB per DIMM)
Socket 2 x 260-pin SO-DIMM

Graphics

Controller Intel® UHD Graphics
DisplayPort DisplayPort 1.2 , DP++
Max resolution up to 4096x2160@60Hz
HDMI HDMI 1.4
Max resolution up to 4096x2160 @30Hz
VGA Max resolution up to 1920x1200@60Hz
LVDS Dual channel 24 bit up to 1920 x 1200@60Hz
MultiDisplay Dual Display

Expansion Slot

M.2 1 x M.2 (Key E, 2230) with PCIe x1 ,USB 2.0 for Wireless
PCIe 1 x PCIe x16 (Gen3)

Audio

Interface Realtek ALC897 HD , High Definition Audio. Line-out,Mic-in.

Ethernet

Controller/ Speed LAN1: Intel® I219V with 10/100/1000 Mbps
LAN2: Intel® I210 with 10/100/1000 Mbps
Connector 2 x RJ-45

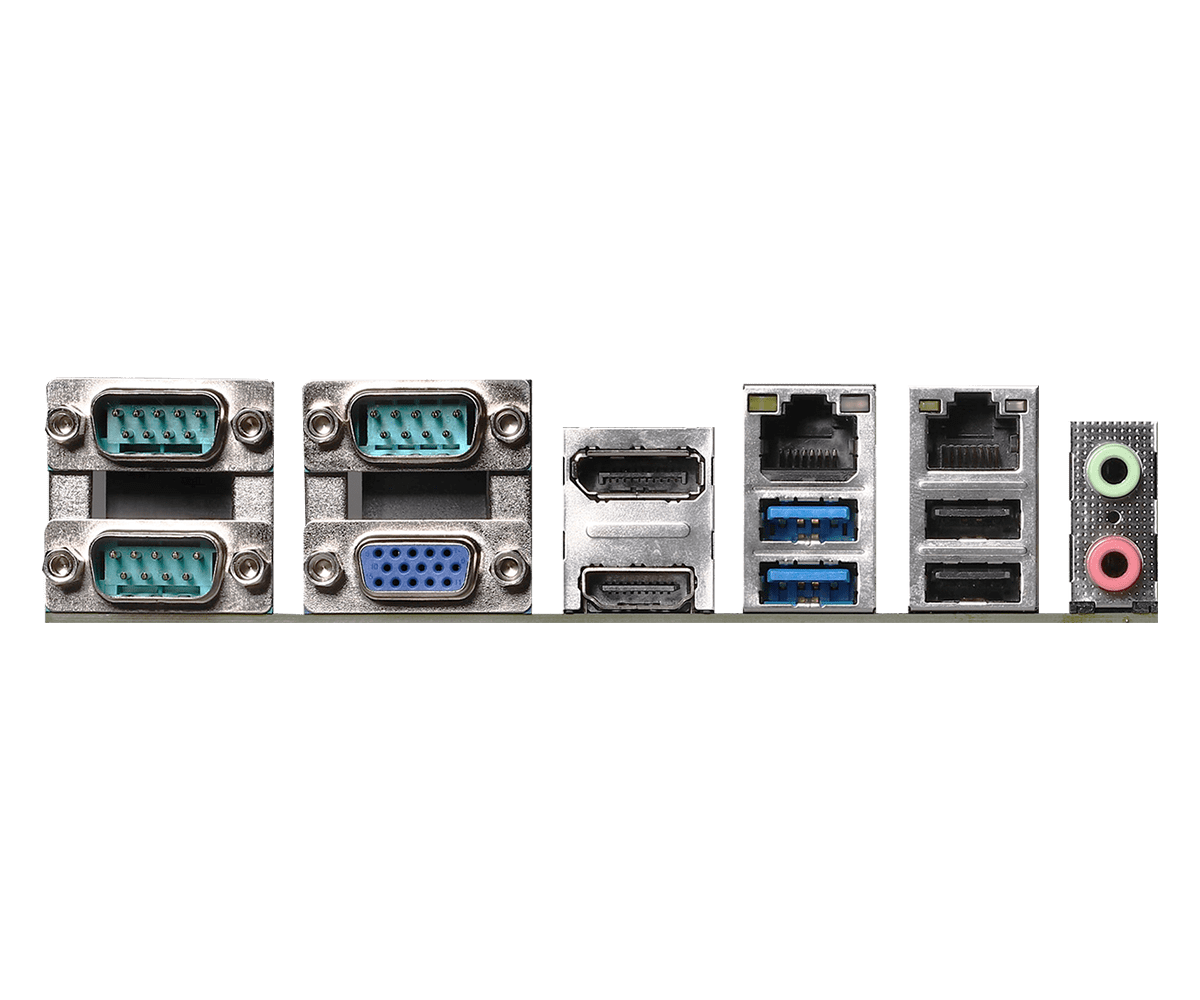

Rear I/O

Ethernet 2 x 1 Gigabit LAN
USB 2 x USB 2.0, 2 x USB 3.2 (Gen1)
HDMI 1 x HDMI 1.4
Audio 2 (Mic-in, Line-out)
DisplayPort 1 x DP 1.2
VGA 1
COM COM1,2 (support RS-232/422/485), COM3(support RS-232 only)

Internal Connector

USB 2 x USB 3.2 Gen1 (1 x USB 3.2 Gen1 header)
2 x USB 2.0 (1 x 2.54 pitch header
COM 3 x COM (RS-232)
GPIO 4 x GPI, 4 x GPO
LVDS 1
Speaker Header 1

Storage

M.2 1 x M.2 (Key M, 2242/2260/2280) with PCIE x4
SATA 4 x SATA3 (6Gb/s)

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR ATX PWR 4pin+24 Pin
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 60ºC
Storage Temp -40° C ~ 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

Accessories

Gift Package 1 x I/O Shield (13G020669000AK)
2 x SCREW M2*2,D=5 (13G020302031AK)
2 x SATA Data Cable (14G00010107DAK)
Bulk Package 1 x I/O Shield (13G020669000AK)
2 x SCREW M2*2,D=5 (13G020302031AK)

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

Support

OS:

Description OS Date Download
Description Intel Lan driver ver: 25.2 OS Win 10 x 64 Date 2021-01-04 Download
Description Bluetooth driver ver:21.40.1.1 OS Win 10 x 64 Date 2020-12-31 Download
Description SATA Floppy Image ver: 17.9.0.1007 OS Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-11-04 Download
Description Intel Rapid Storage Technology driver and utility ver: 17.9.0.1007 OS Win 10 x 64 Date 2020-11-04 Download
Description VGA driver ver: 27.20.100.8190 OS Win 10 x 64 Date 2020-11-04 Download
Description Intel Management Engine driver ver: 14.5.12.1111v2 OS Win 10 x 64 Date 2020-11-04 Download
Description Intel WLAN Driver ver:21.40.1.4 OS Win 10 x 64 Date 2020-11-04 Download
Description INF driver ver: 10.1.18383.8213 OS Win 10 x 64 Date 2020-11-04 Download
Description Realtek high definition audio driver ver:9057_FF00 OS Win 10 x 64 Date 2020-11-04 Download
Version Update BIOS Under / How to Update Description Date Download
Version 1.10 Update BIOS Under / How to Update BIOS Description First release Date 2020-12-15 Download
Version 1.10 Update BIOS Under / How to Update DOS Description First release Date 2020-12-07 Download
Version 1.10 Update BIOS Under / How to Update Windows Description First release Date 2020-12-15 Download

The format of our documents are in PDF files. If you have not installed Adobe Acrobat Reader, please get it from Adobe.

Description Language Date Download
Description Jumpers and Headers Setting Guide Language English Date 2021-02-04 Download
Description User Manual Language English Date 2020-12-01 Download
Description Date Download
Download CPU Support List Date 2020-12-22 Download
