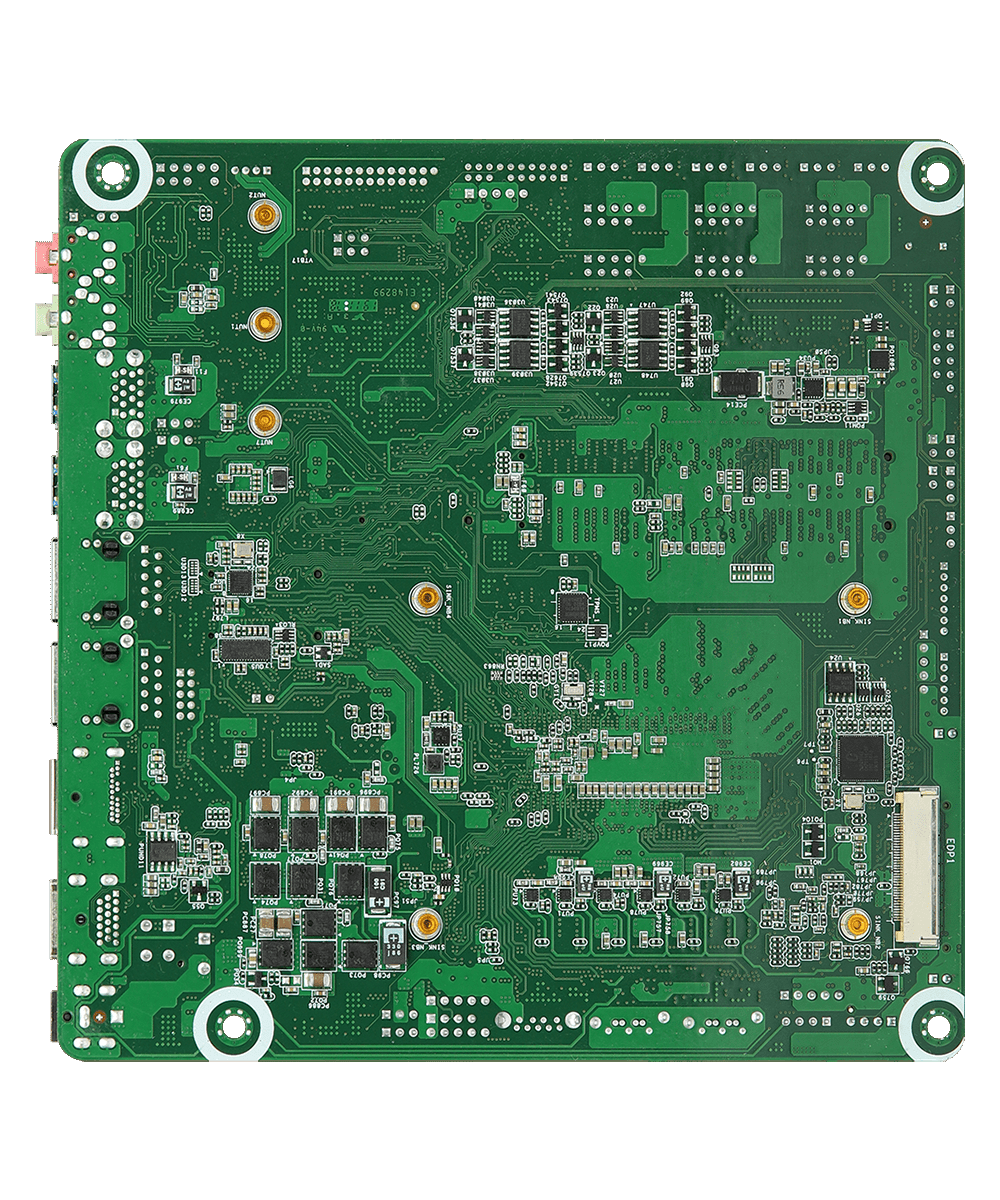

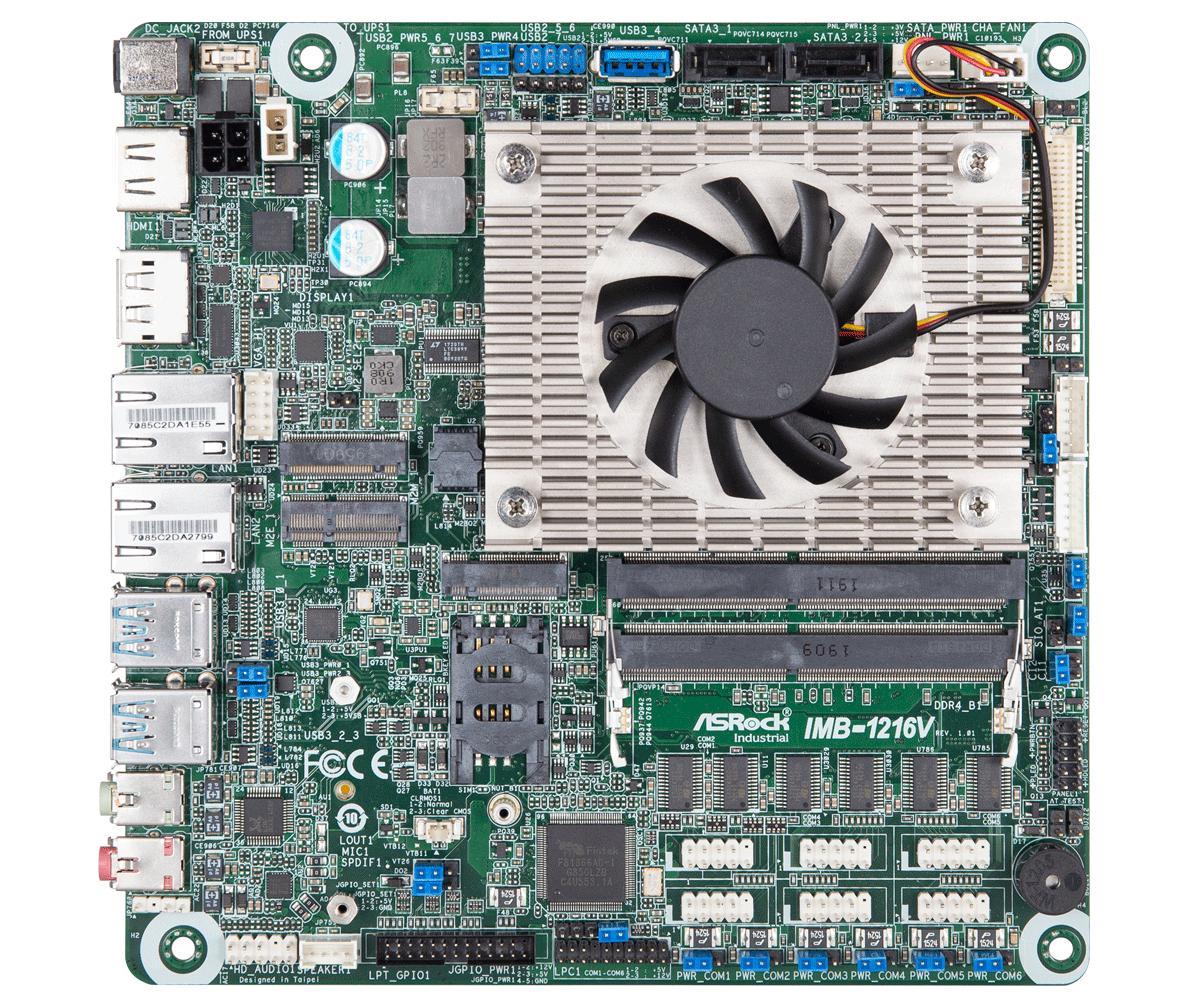

IMB-1216E Mini-ITX Motherboard

  • Intel® 8th Gen (Whiskey Lake-U) Core™ MCP Processors
  • 2 x 260-pin SO-DIMM up to 32GB DDR4 2400MHz (16GB per DIMM)
  • 5 x USB 3.2 Gen1, 3 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key B, 1 x M.2 Key M, 6 x COM, 2 x SATA3
  • 1 x Intel 1 Gigabit LAN, 1 x Realtek 1 Gigabit LAN
  • Supports triple display, 1 x HDMI 2.0a, 1 x DP 1.2 or VGA, 1 x LVDS or eDP
  • TPM Header
  • Supports Intel® RAID 0/1
  • 12V~28V DC-In
Datasheet
Specification

Form Factor

Dimensions Mini-ITX (6.7-in x 6.7-in, 17.0 cm x 17.0 cm)

Processor System

CPU Intel® 8th Gen (Whiskey Lake-U) Core™ MCP Processors CELERON-4305UE, DC, 2.0GHz,15W
Chipset MCP
BIOS AMI SPI 128 Mbit

Memory

Technology Dual Channel DDR4 2400 MHz
Capacity 32 GB (16 GB per DIMM)
Socket 2 x 260-pin SO-DIMM

Graphics

Controller Intel® Gen9 Graphics DX 11/12
HDMI HDMI 2.0a
Max resolution up to 4096x2160@60Hz
DisplayPort DisplayPort 1.2, DP++
Max resolution up to 4096x2304@60Hz
VGA Max resolution up to 1920x1200@60Hz
LVDS Dual channel 24 bit up to 1920x1200@60Hz
eDP eDP 1.4 Max resolution up to 4096x2304@60Hz
MultiDisplay Triple Display

Expansion Slot

M.2 1 x M.2 (Key E, 2230) with PCIe x1, USB2.0 and CNVi for Wireless
1 x M.2 (Key B, 3042) with PCIe x1, USB 3.0 and SIM for 4G
SIM Socket 1 x Socket connected to M.2 Key_B

Audio

Interface Realtek ALC887, High Definition Audio. Line-out,Mic-in

Ethernet

Controller/ Speed LAN1: 1 x Intel I219V with 10/100/1000 Mbps
LAN2: 1 x Realtek RTL8111G/RTL8111H-CG with 10/100/1000 Mbps
Connector 2 x RJ-45

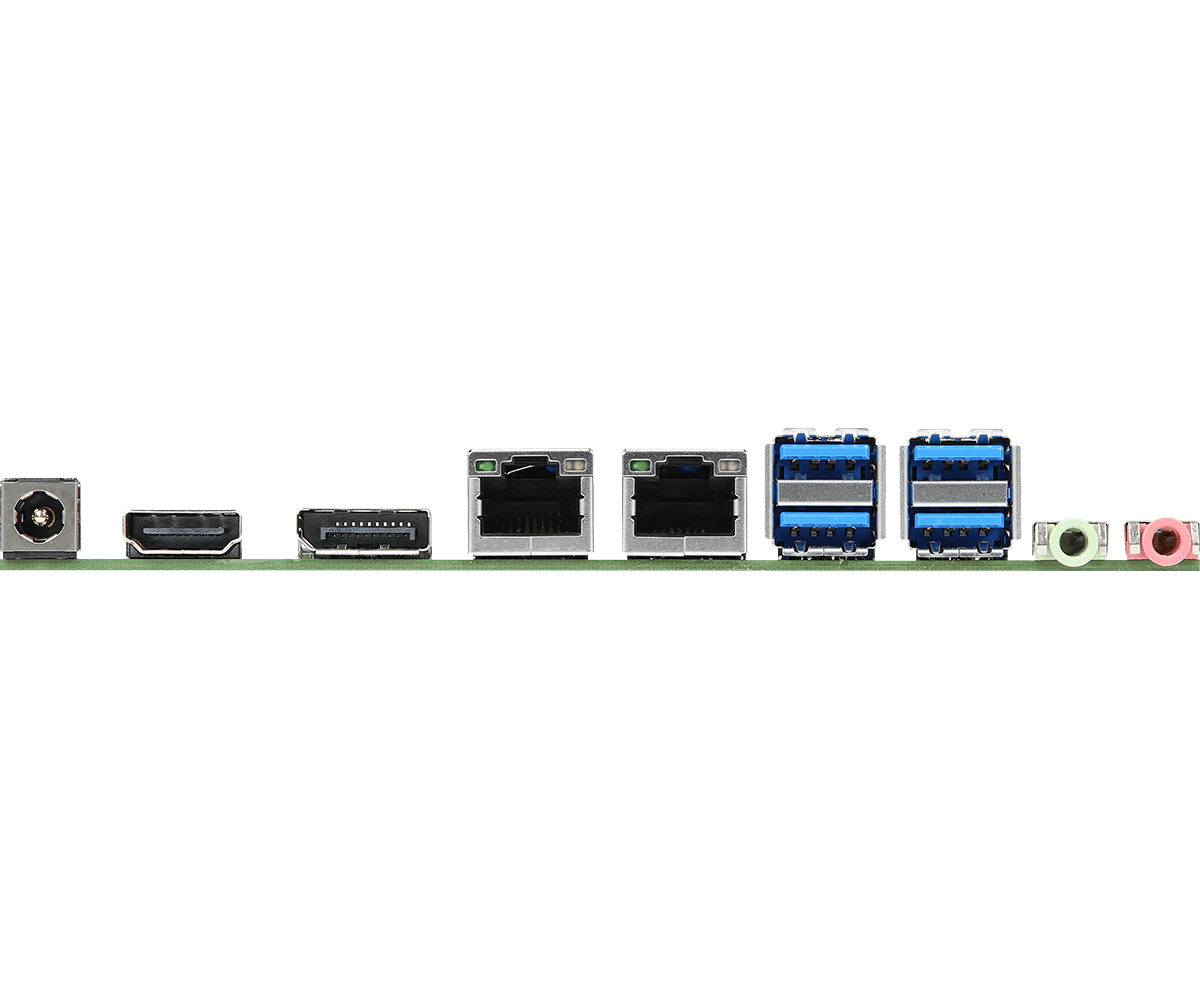

Rear I/O

HDMI 1 x HDMI 2.0a
DisplayPort 1 x DP 1.2 (shared with internal VGA, by BIOS setting)
Ethernet 2 x 1 Gigabit LAN
USB 4 x USB 3.2 (Gen1)
Audio 2 (Mic-in, Line-out)
DC Jack 1

Internal Connector

USB 1 x USB 3.2 Gen1 (Type-A vertical con)
3 x USB 2.0 (2 x 2.54 pitch header)
COM COM1, 2(RS232/422/485)
COM3, 4, 5, 6 (RS-232)
Parallel 1 (shared with GPIO)
GPIO 8 x GPI, 8 x GPO (shared with LPT header)
TPM TPM Header
LVDS 1 (shared with eDP, by BIOS setting)
eDP 1 (shared with LVDS, by BIOS setting)
VGA 1 x Header (shared with DP port, by BIOS setting)
SATA PWR Output 1
Speaker Header 1

Storage

M.2 1 x M.2 (Key M, 2242/2260/2280) with PCIe x4 and SATA3 for SSD
SATA 2 x SATA3 (6Gb/s)
RAID Intel® SATA RAID 0/1

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR 12V~28V DC-In with 4-pin plug PWR cable or DC Jack
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 60ºC
Storage Temp -40° C ~ 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

Accessories

Gift Package 3 x SCREW M2,D=5 (13G020302031AK)
1 x I/O Shield (13G020256000AK)
1 x I/O Shield THIN (13G020256010AK)
2 x SATA Data Cable (14G00010107DAK)
1 x SATA Power Cable (14G000100410AK)
Bulk Package 3 x SCREW M2,D=5 (13G020302031AK)
1 x I/O Shield (13G020256000AK)
1 x I/O Shield THIN (13G020256010AK)

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

Support
Version Update BIOS Under / How to Update Description Date Download
Version 1.30 Update BIOS Under / How to Update BIOS Description Enhance system compatibility Date 2022-08-18 Download
Version 1.30 Update BIOS Under / How to Update DOS Description Enhance system compatibility Date 2022-08-18 Download
Version 1.30 Update BIOS Under / How to Update Windows Description Enhance system compatibility Date 2022-08-18 Download
