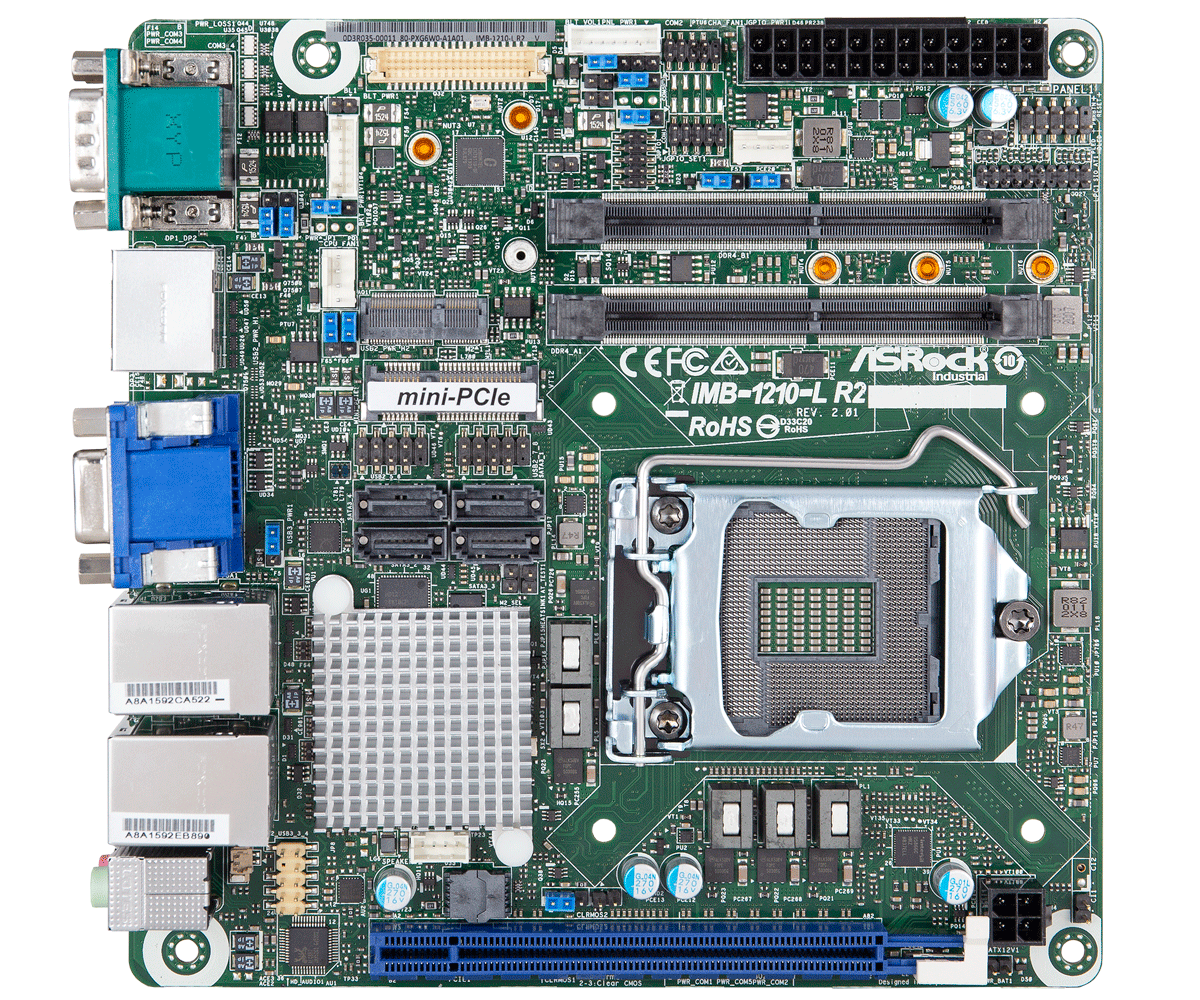

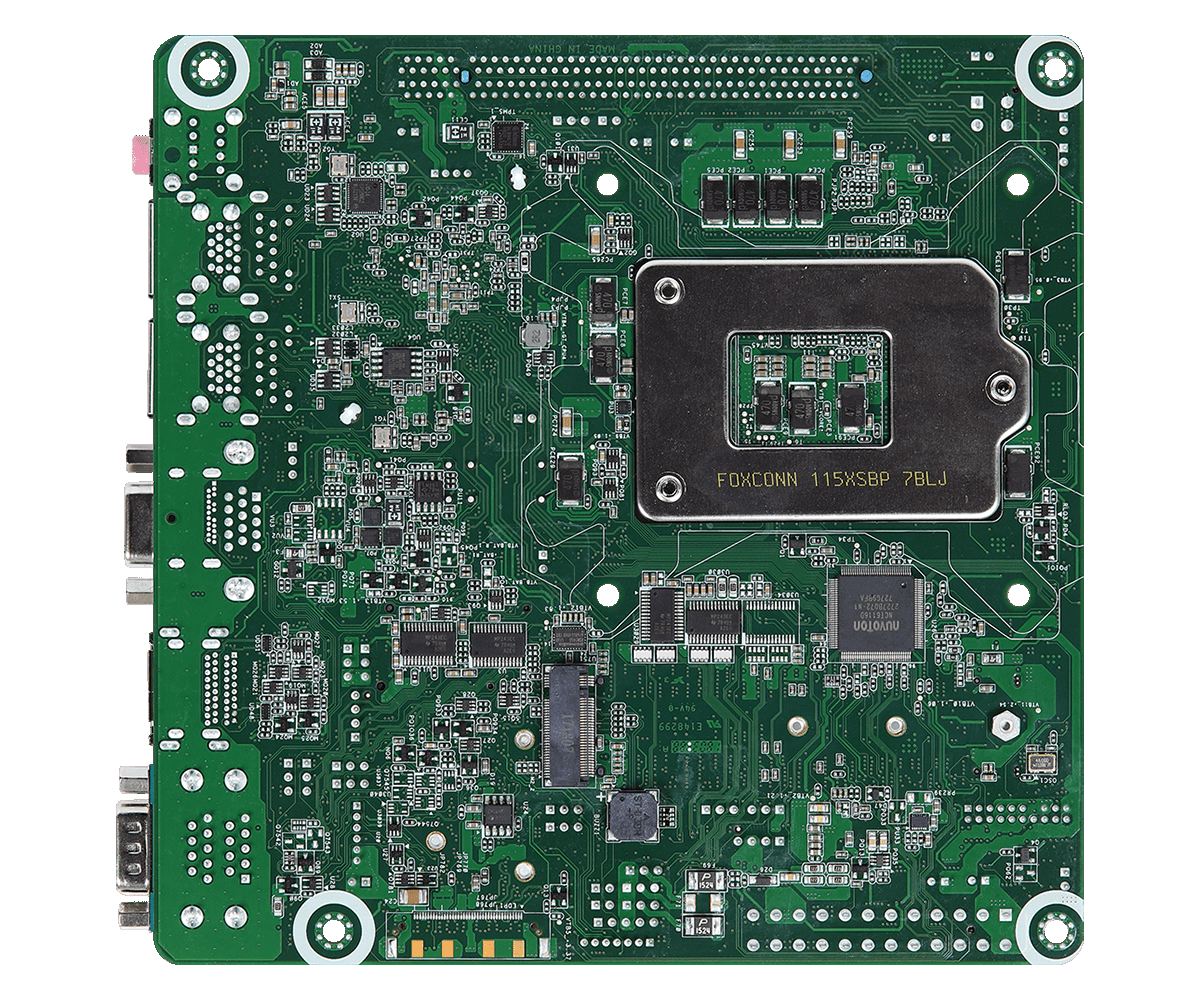

IMB-1210-L R2 Mini-ITX Motherboard

  • Intel® 9th/ 8th Gen (Coffee Lake-S) Core™ Processors with H310 chipset
  • 2 x 260-pin SO-DIMM up to 64GB* DDR4 2666MHz
  • 1 x PCIe x16 (Gen3), 4 x USB 3.1 Gen1, 4 x USB 2.0, 1 x mini-PCIe, 1 x M.2 Key E, 1 x M.2 Key M, 4 x COM, 4 x SATA3
  • 2 x Intel 1 Gigabit LAN
  • Supports dual display, 2 x DP 1.2, 1 x VGA, 1 x LVDS
  • TPM header
  • ATX PWR
Datasheet
Specification

Form Factor

Dimensions Mini-ITX (6.7-in x 6.7-in)

Processor System

CPU Intel® 9th/ 8th Gen (Coffee Lake-S) Core™ Processors, up to 65W
*The Performance of CPUs over 65W will be limited due to power design.
Chipset Intel® H310
Socket LGA1151
BIOS AMI SPI 128 Mbit

Memory

Technology Dual Channel DDR4 2666 MHz
Capacity 64GB*
* Intel Core i9/i7/i5 CPUs support up to 64GB (32GB per DIMM)
Intel Core i3/Pentium/Celeron CPUs support up to 32GB (16GB per DIMM)
Socket 2 x 260-pin SO-DIMM

Graphics

Controller Coffee Lake integrated graphics
DisplayPort DisplayPort 1.2, DP++
Max resolution up to 4096x2304@60Hz
VGA Max resolution up to 1920x1200@60Hz
LVDS Dual channel 24 bit up to 1920x1200@60Hz
MultiDisplay Dual Display

Expansion Slot

PCIe 1 x PCIe x16 (Gen3)
mini-PCIe 1 x Full/Half size with PCIe x1 and USB 2.0
M.2 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless

Audio

Interface Realtek ALC887, High Definition Audio. Line-out,Mic-in

Ethernet

Controller/ Speed LAN1: Intel® I210 with 10/100/1000 Mbps
LAN2: Intel® I219V with 10/100/1000 Mbps
Connector 2 x RJ-45

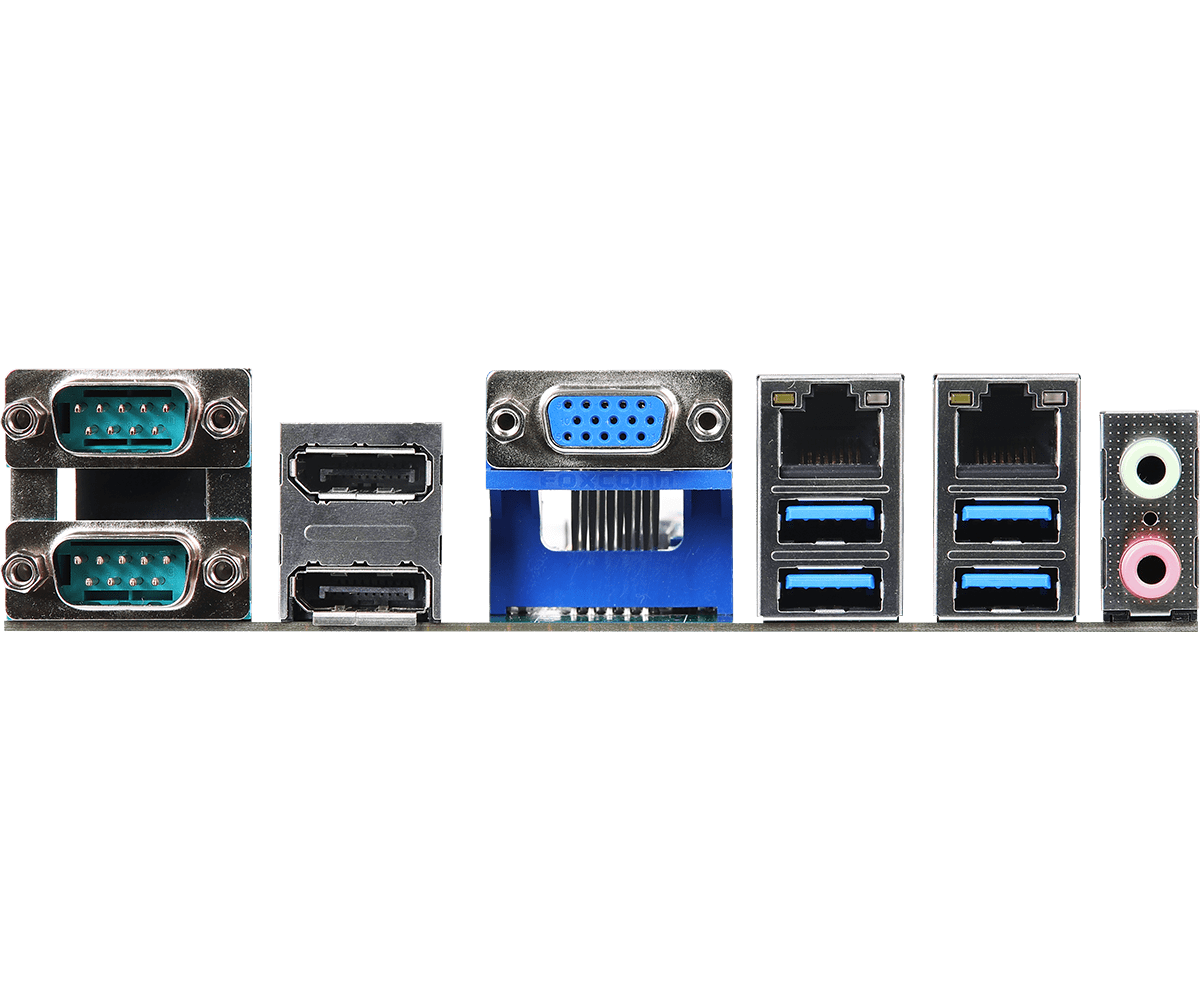

Rear I/O

DisplayPort 2 x DP 1.2
VGA 1
Ethernet 2 x 1 Gigabit LAN
USB 4 x USB 3.1 (Gen1)
Audio 2 (Mic-in, Line-out)
COM COM3(RS-232/422/485)
COM4(RS-232)

Internal Connector

USB 4 x USB 2.0 (2 x 2.54 pitch header)
COM COM1, 2(RS232)
GPIO 4 x GPI, 4 x GPO
TPM TPM Header
LVDS 1
Speaker Header 1

Storage

M.2 1 x M.2 (Key M, 2242/2260/2280) with shared SATA3 for SSD
SATA 4 x SATA3 (6Gb/s), SATA3_1 shared with M.2 Key M

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR ATX PWR (24+4-pin)
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 60ºC
Storage Temp -40° C ~ 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

Support

OS:

Description OS Date Download
Description Realtek audio driver ver:8911 OS Win 10 x 64 Date 2020-07-08 Download
Description VGA driver ver:25.20.100.6617 OS Win 10 x 64 Date 2020-05-08 Download
Description Intel Wireless Lan driver ver:20.50.0.4 OS Win 10 x 64 Date 2020-05-08 Download
Description COM Port driver ver:1.0.2011.1109 OS Win 10 x 64 Date 2020-05-08 Download
Description INF driver ver:10.1.17968.8131_Public OS Win 10 x 64 Date 2020-05-08 Download
Description Intel Management Engine driver ver:12.0.2.1087_SW OS Win 10 x 64 Date 2020-05-08 Download
Description SATA Floppy Image ver:16.0.1.1018_PV OS Win 10 x 64 Date 2020-05-08 Download
Description Intel Lan driver ver:23.5.2 OS Win 10 x 64 , Win 8.1 x 64 , Win 8 x 64 , Win 7 x 64 Date 2020-05-08 Download
Description Bluetooth driver ver:20.50.0.3 OS Win 10 x 64 Date 2020-05-08 Download
Description Intel Rapid Storage Technology driver and utility ver:16.0.1.1018_PV OS Win 10 x 64 Date 2020-05-08 Download
Version Update BIOS Under / How to Update Description Date Download
Version P1.70 Update BIOS Under / How to Update BIOS Description First release. Date 2020-09-08 Download
Version P1.70 Update BIOS Under / How to Update DOS Description First release. Date 2020-09-08 Download
Version P1.70 Update BIOS Under / How to Update Windows Description First release. Date 2020-09-08 Download

The format of our documents are in PDF files. If you have not installed Adobe Acrobat Reader, please get it from Adobe.

Description Language Date Download
Description User Manual Language English Date 2020-06-29 Download
Description Jumpers and headers setting guide Language English Date 2020-06-29 Download
Description Date Download
Download CPU Support List Date 2020-05-06 Download
