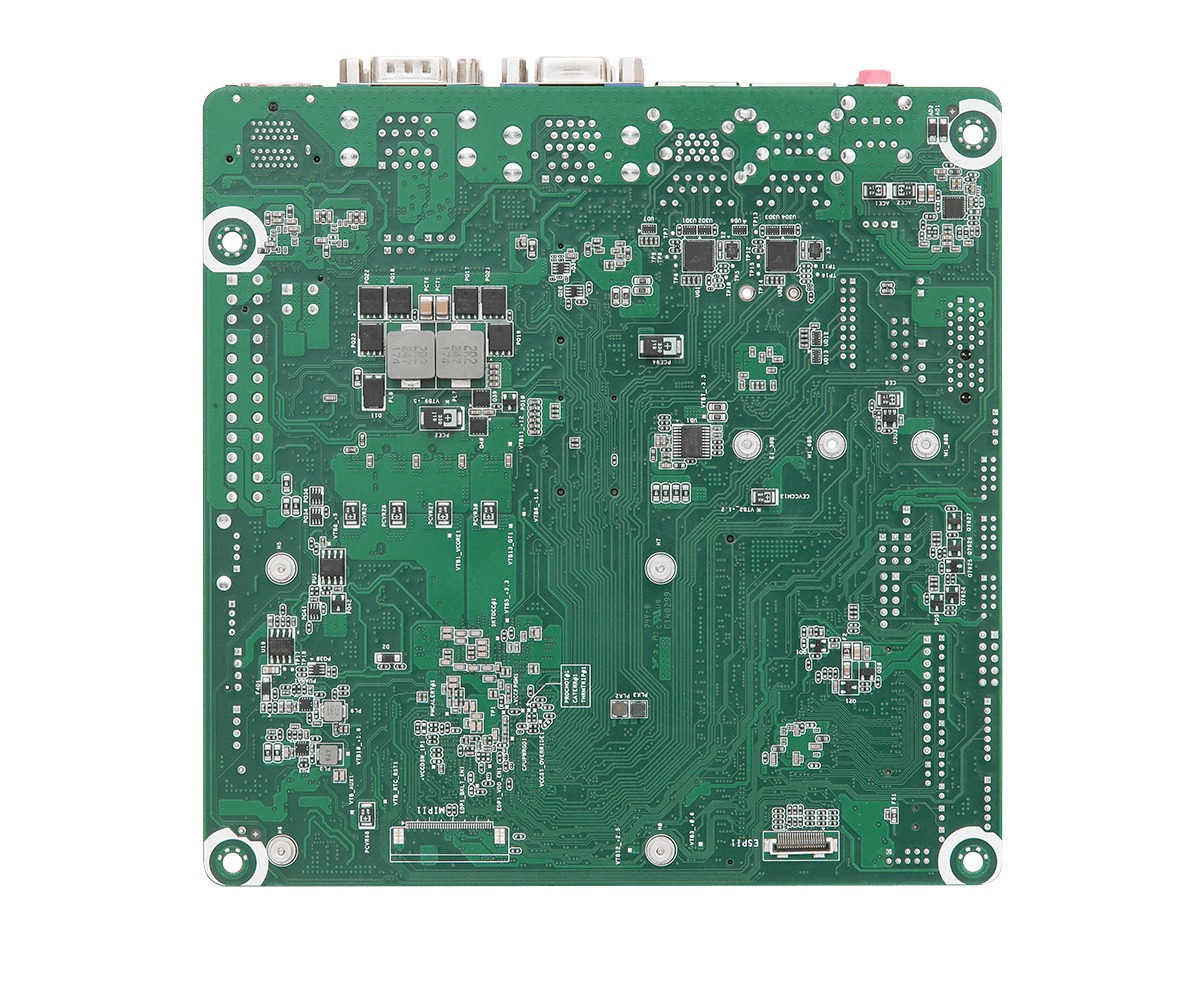

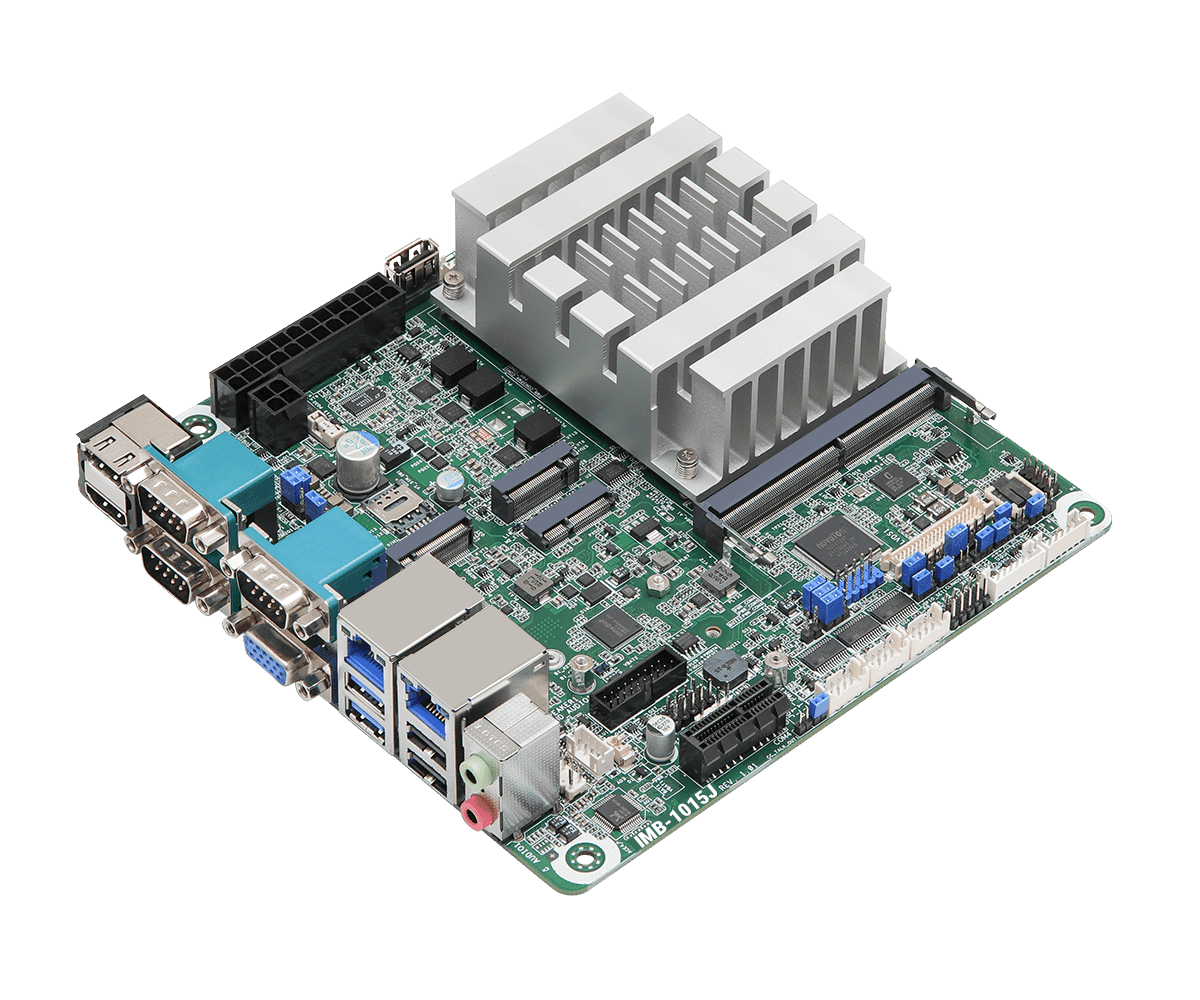

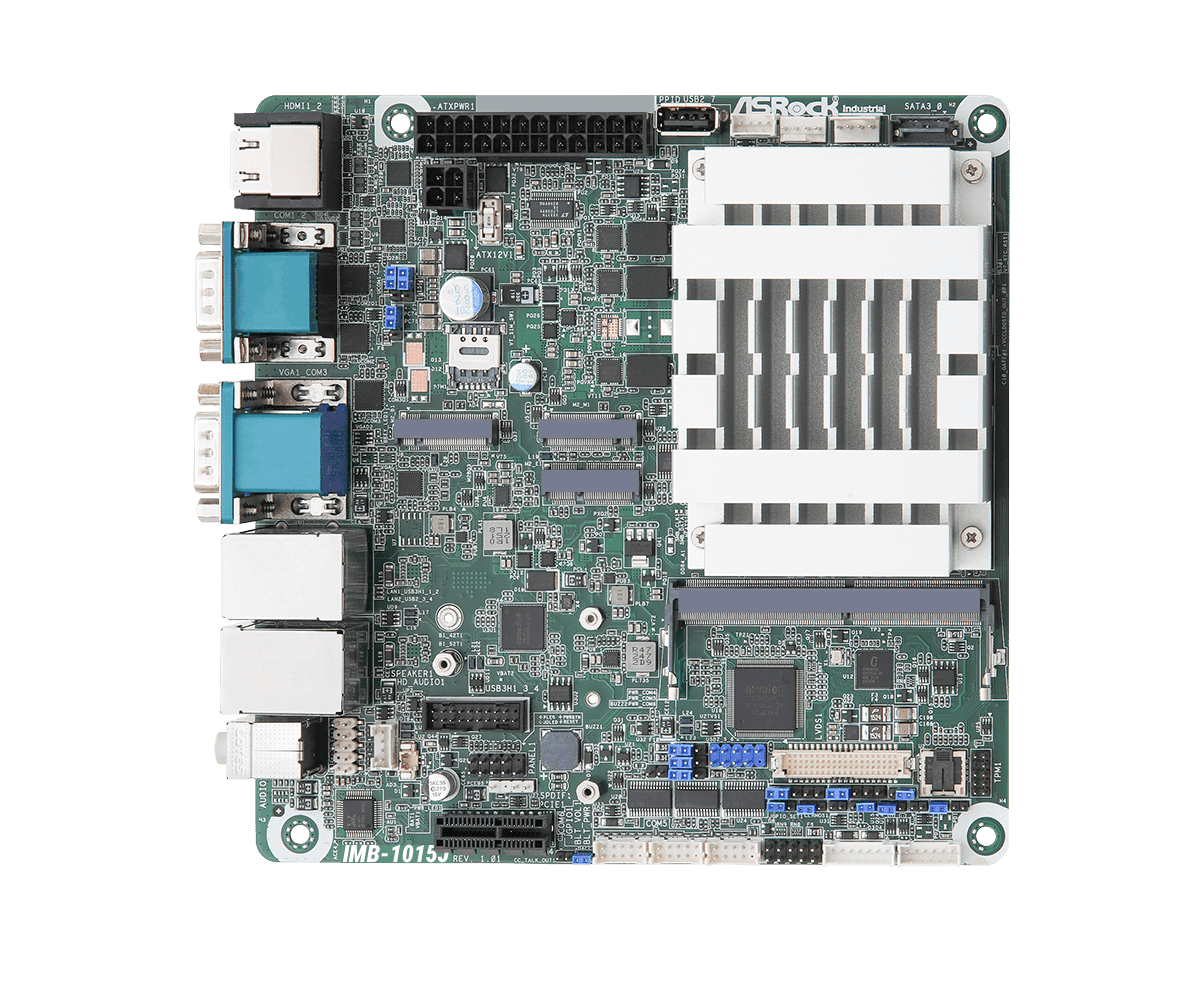

IMB-1015J Mini-ITX Motherboard
- Intel® Twin Lake N150 Processors
- 1 x 260-pin SO-DIMM DDR4 3200 MHz, up to 32GB
- 1 x PCIe x1 (Gen3), 4 x USB 3.2 Gen1, 5 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key B, 1 x M.2 Key M, 6 x COM, 1 x SATA3
- 2 x Realtek 2.5 Gigabit LAN
- Support Triple display, 2 x HDMI2.0b, 1 x VGA, 1 x LVDS or eDP
- TPM Header
- ATX-PWR (24+4-pin) and 12~28V DC-In co-design
Specification
Processor System
| CPU | Intel® Twin Lake Processors IMB-1015J (N150, QC, Max Speed Up to 3.6GHz, 6W) |
|---|---|
| BIOS | AMI SPI 256 Mbit |
Form Factor
| Dimensions | Mini-ITX (6.7-in x 6.7-in x 1.6-in, 17.0 cm x 17.0 cm x 4.1 cm) |
|---|
Memory
| Technology | Single Channel DDR4 3200 MHz |
|---|---|
| Capacity | 32GB |
| Socket | 1 x 260-pin SO-DIMM |
Graphics
| Controller | Intel® UHD Graphics |
|---|---|
| HDMI | HDMI 2.0b Max resolution up to 4096 x 2160@60Hz |
| VGA | Max resolution up to 1920 x 1200@60Hz |
| LVDS | Dual channel 24 bit up to 1920 x 1200@60Hz (Connector shared with eDP) |
| eDP | Max resolution up to 1920 x 1080@60Hz (Connector shared with LVDS) |
| MultiDisplay | Triple display |
Expansion Slot
| PCIe | 1 x PCIe x1 (Gen3) |
|---|---|
| M.2 | 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless 1 x M.2 (Key B, 3042/3052) with PCIe x1, USB 3.2 Gen1, USB 2.0 and SIM for 4G/5G |
| SIM Socket | 1x SIM socket connected to M.2 key B |
Audio
| Interface | Realtek ALC897 HD, High Definition Audio. Mic-in, Line-out |
|---|
Ethernet
| Controller/ Speed | LAN1: Realtek RTL8125BG with 10/100/1000/2500 Mbps LAN2: Realtek RTL8125BG with 10/100/1000/2500 Mbps |
|---|---|
| Connector | 2 x RJ-45 |

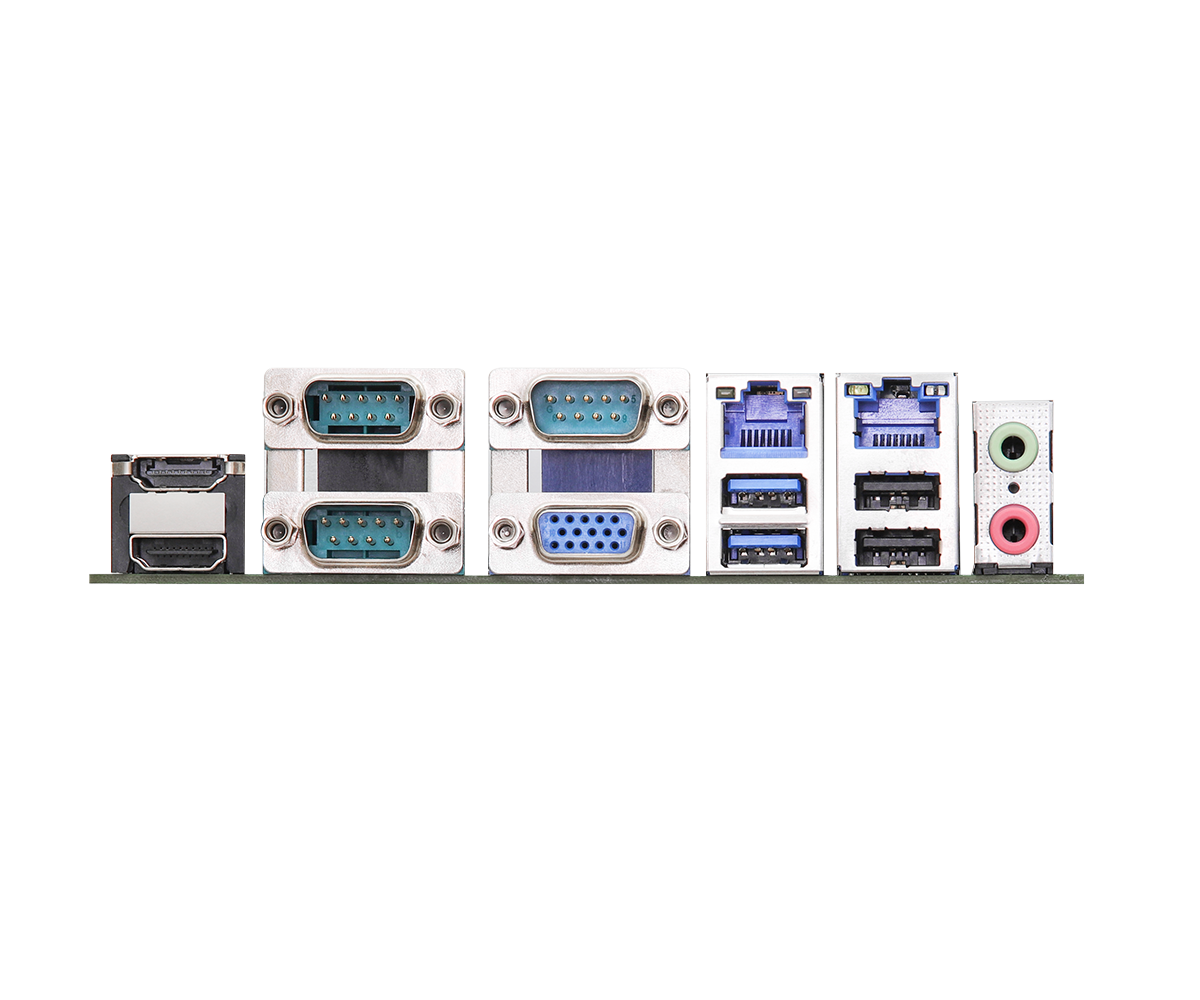

Rear I/O
| HDMI | 2 x HDMI 2.0b |
|---|---|
| VGA | 1 |
| Ethernet | 2 x 1 Gigabit LAN |
| USB | 2 x USB 3.2 Gen1 2 x USB 2.0 |
| Audio | 2 (Mic-In, Line-Out) |
| COM | COM1, COM2, COM3 (RS-232/422/485) |
Internal Connector
| USB | 2 x USB 3.2 Gen1 (1 x USB 3.2 header) 3 x USB 2.0 (1 x 2.54 pitch header, 1 x USB 2.0 Type-A vertical con) |
|---|---|
| COM | COM4 (RS-232) COM5 (RS-232 or TTL (optional)) COM6 (RS-232 or ccTalk (optional)) |
| GPIO | 4 x GPI, 4 x GPO |
| LVDS | 1 (Connector with LVDS/eDP signal, switch by BIOS) |
| SATA PWR Output | 1 |
| Speaker Header | 1 |
| MIPI Camera Header | 1 (optional) |
Security
| TPM | TPM Header Intel® PTT |
|---|
Storage
| M.2 | 1 x M.2 (Key M, 2242/2260/2280) with PCIe Gen3 x1 or SATA3 for SSD |
|---|---|
| SATA | 1 x SATA3 (6Gb/s) |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR | ATX-PWR (24+4-pin) and 12~28V DC-In co-design |
|---|---|
| Power On | AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
Environment
| Operating Temp | -20°C ~ 70°C |
|---|---|
| Storage Temp | -40°C ~ 85°C |
| Operating Humidity | 5% ~ 90% (non-condensing) |
| Storage Humidity | 5% ~ 90% (non-condensing) |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
