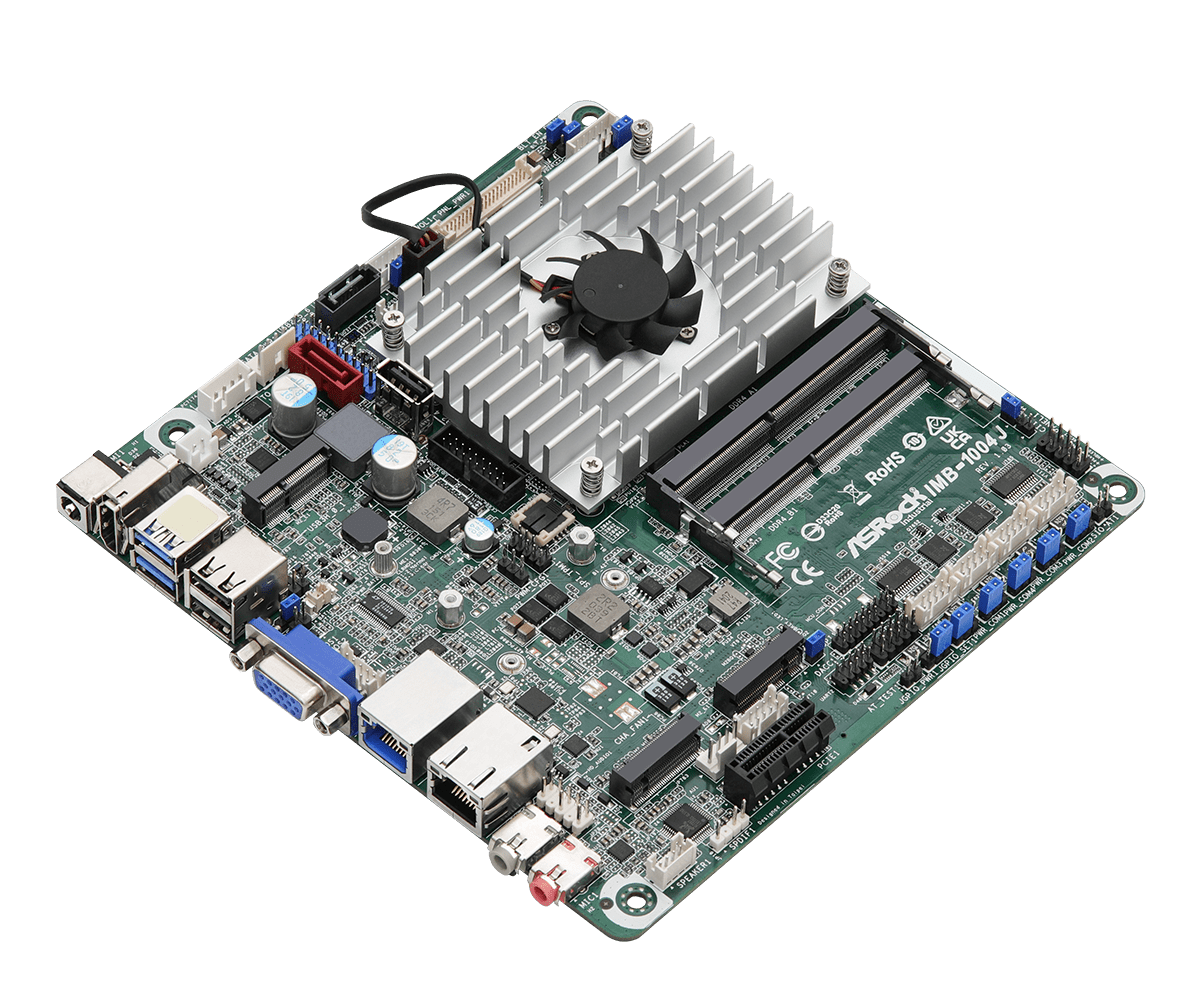

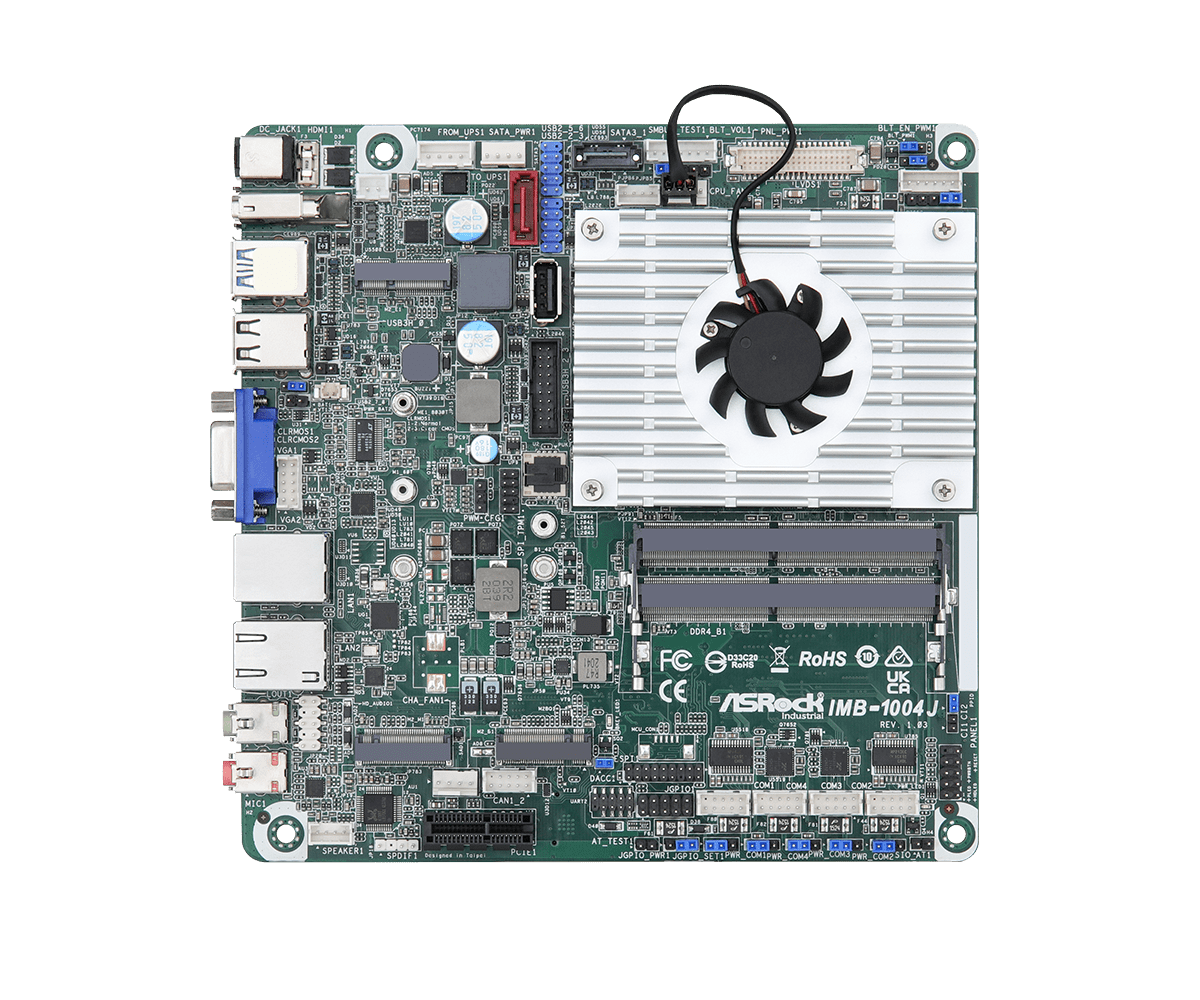

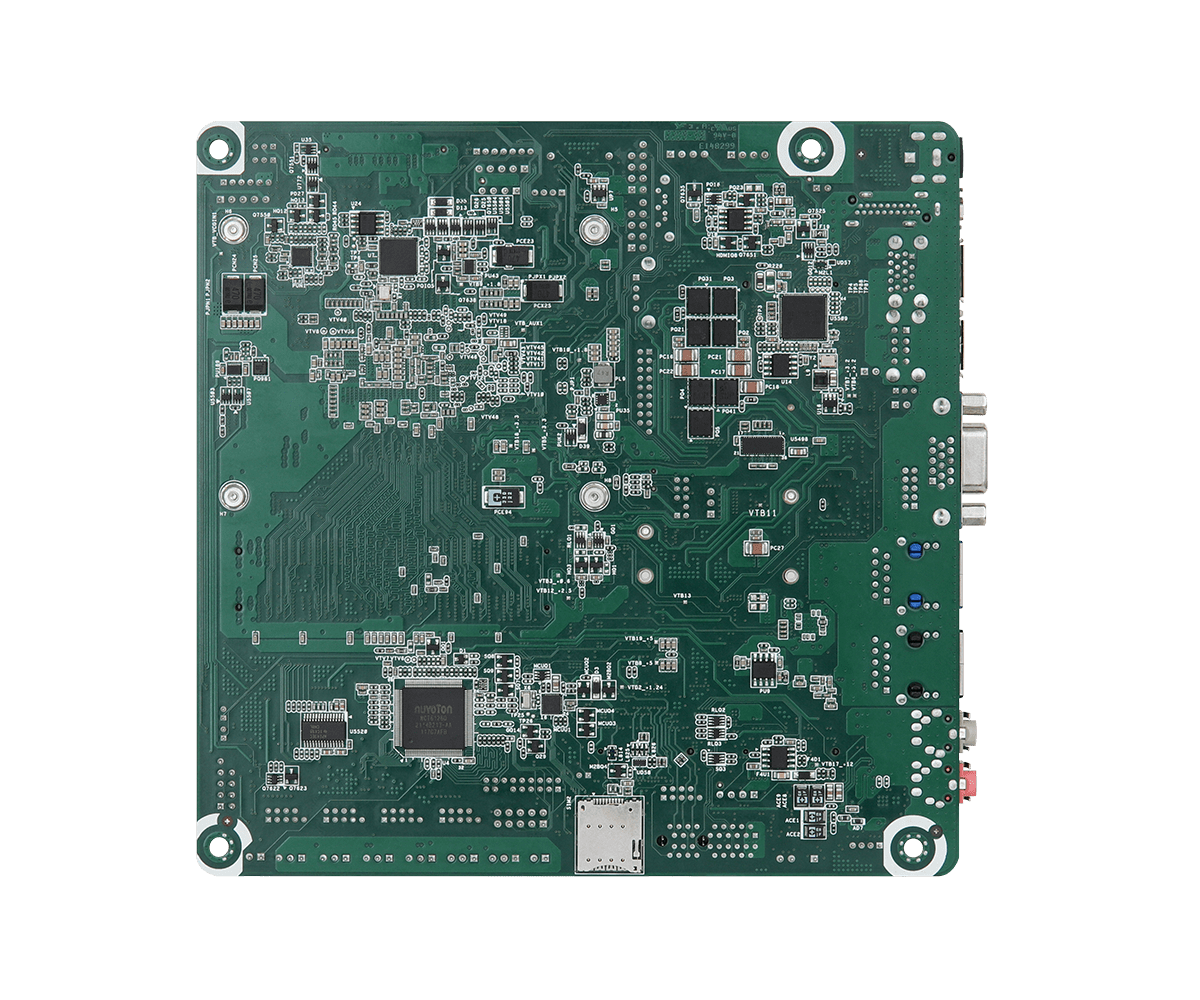

IMB-1004J Mini-ITX Motherboard

  • Intel® ElkHart Lake SoC Processors J6412
  • 2 x 260-pin SO-DIMM DDR4 3200 MHz, up to 32GB
  • 1 x PCIE x1 Gen3, 4 x USB 3.2 Gen1, 7 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key M, 1 x M.2 Key B, 4 x COM, 2 x SATA3
  • 1 x Realtek 2.5 Gigabit LAN, 1 x Realtek 1 Gigabit LAN
  • Support Triple display, 1 x LVDS or eDP, 1 x HDMI 2.0b, 1 x VGA
  • TPM Header
  • 12~28V DC-In
Datasheet
Specification

Form Factor

Dimensions Mini-ITX (6.7-in x 6.7-in x 1.5-in, 17.0 cm x 17.0 cm x 3.8 cm)

Processor System

CPU Intel® Elkhart Lake SoC Processors
J6412, QC, Max Speed Up to 2.6GHz, 10W
Chipset SoC
BIOS AMI SPI 256 Mbit

Memory

Technology Dual Channel DDR4 3200 MHz
Capacity 32GB
Socket 2 x 260-pin SO-DIMM

Graphics

Controller Intel® Gen 11 Graphics
HDMI HDMI 2.0b
Max resolution up to 4096 x 2160@60Hz
LVDS Dual channel 24 bit up to 1920 x 1080@60Hz
(Connector shared with eDP)
MultiDisplay Triple Display
VGA Max resolution up to 1920 x 1200@60Hz
eDP Max resolution up to 1920 x 1080@60Hz
(Connector shared with LVDS)

Expansion Slot

PCIe 1 x PCIe x1 (Gen3)
M.2 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0
1 x M.2 (Key B, 3042/3052) with PCIe x1/USB 3.2/USB 2.0 and SIM for 4G/5G
SIM Socket 1x SIM socket connected to M.2 key B

Audio

Interface Realtek ALC897 HD , High Definition Audio. Mic-In / Line-Out

Ethernet

Controller/ Speed LAN1: Realtek RTL8125BG with 10/100/1000/2500 Mbps
LAN2: Realtek RTL8111G/RTL8111H-CG with 10/100/1000 Mbps
Connector 2 x RJ-45

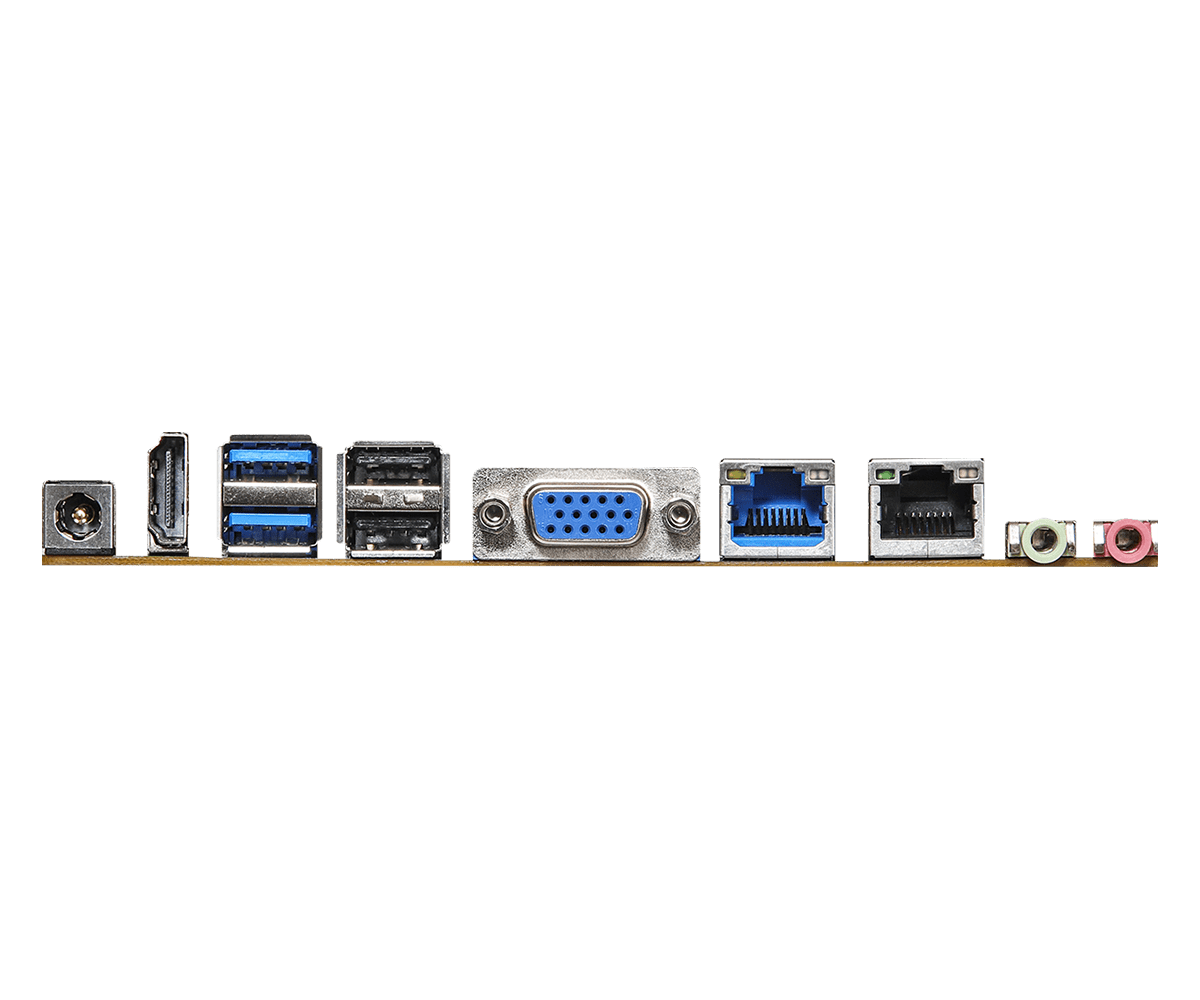

Rear I/O

HDMI 1 x HDMI2.0b
VGA 1
Ethernet 1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN
USB 2 x USB 3.2 (Gen1), 2 x USB 2.0
Audio 2 (Mic-In, Line-Out)
DC Jack 1

Internal Connector

USB 2 x USB 3.2 Gen1 (1 x USB 3.2 header )
4 x USB 2.0 (2 x 2.54 pitch header)
1 x USB 2.0 (Type A)
COM 2 x COM (RS-232)
2 x COM (RS-232/422/485)
GPIO 4 x GPI, 4 x GPO (support Time-Aware GPIO)
TPM TPM Header
LVDS 1 (Connector with LVDS/eDP signal, switch by BIOS)
VGA 1
SATA PWR Output 1
Speaker Header 1
CAN Bus 2 x CAN Bus (1 x 2.00 pitch header)

Storage

M.2 1 x M.2(Key M, 2242/2260/2280) with SATA3 and PCIex1 for SSD
SATA 2 x SATA3 (6Gb/s)

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR 12~28V DC-In with 4-pin wafer PWR cable or DC Jack
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 60ºC
Storage Temp -40° C ~ 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

Accessories

Gift Package 1 x I/O Shield (13G020440020AK)
1 x I/O Shield THIN (13G020440030AK)
1 x SCREW M2*2,D=5 (13G020302031AK)
2 x COM Cable (14G000000310AK)
1 x SATA Data Cable (14G00010107DAK)
1 x SATA Power Cable (14G000100410AK)
Bulk Package 1 x I/O Shield (13G020440020AK)
1 x I/O Shield THIN (13G020440030AK)
1 x SCREW M2*2,D=5 (13G020302031AK)

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
