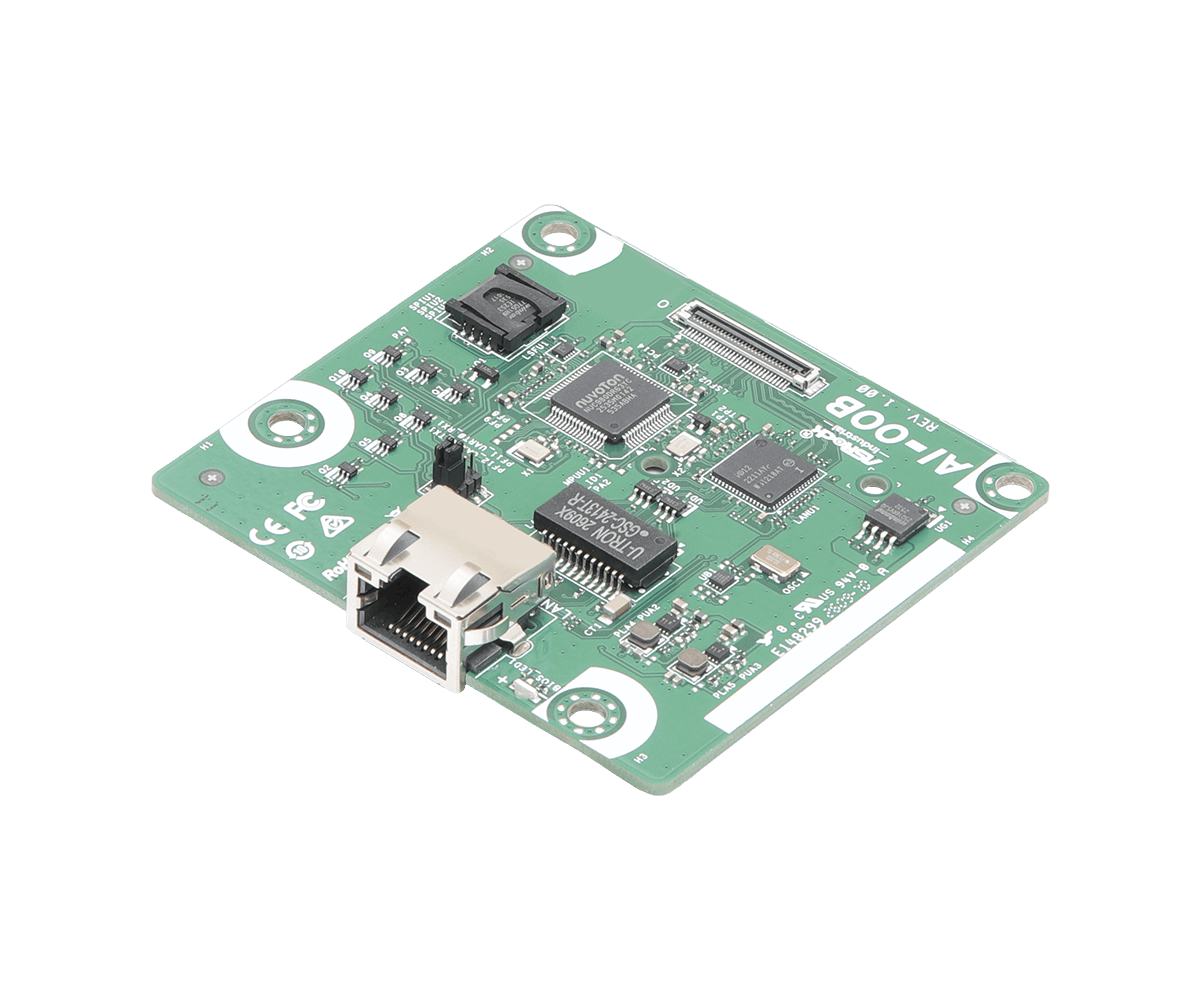

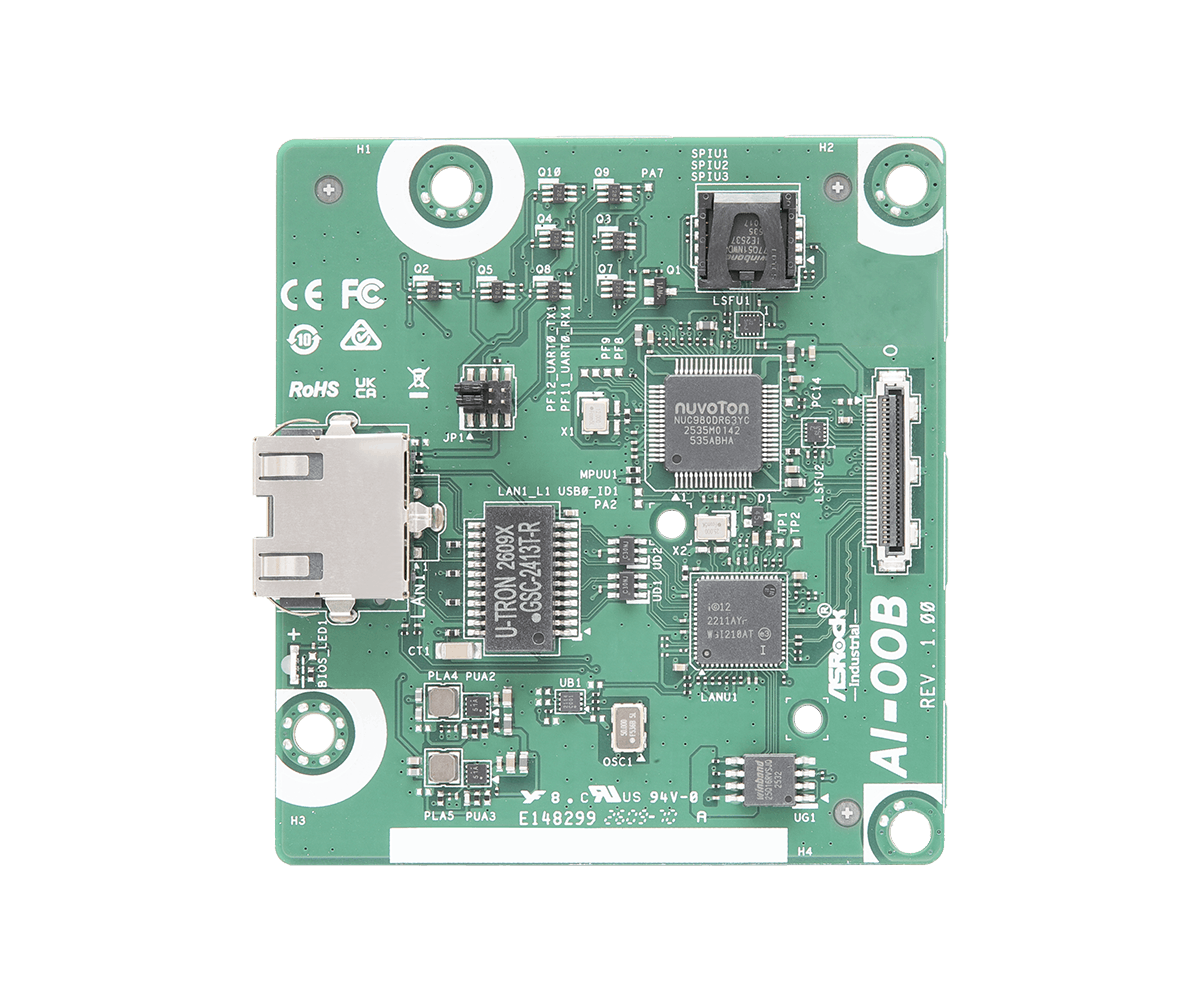

AI-OOB Out of Band Managament
- [ASRock Industrial Exclusive]
- Supports Remote Power On/Off/Scheduling
- Device availability monitoring via heartbeat agent
- Remote Clear CMOS
- Remote HW monitor
- Support Serial over LAN
- Support BIOS recovery
- 1x RJ45 port supports Intel® I210 Ethernet Connection via NC-SI
- 1 x Gigabit LAN
Overview
Specification
Specifications
| Form Factor | Customized |
|---|---|
| Function | Out-of-Band Management |
| Dimensions (W x L x H/mm) | 62 x 70 x 15 |
| Controller / Major IC | Embedded Micro-controller |
| Input Interface/Power | +3VSB RJ45(MDI) PCIe x1 SPI |
| Output Interface/Power | Remote Power Control UART I2C SPI GPIO |
| Output connector | 30-pin header 1 x RJ45 |
| Operating Temperature | -20ºC ~ 70ºC(I210-AT) -40ºC ~ 85ºC(I210-IT) |
| Storage Temperature | -40ºC ~ 85ºC |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
