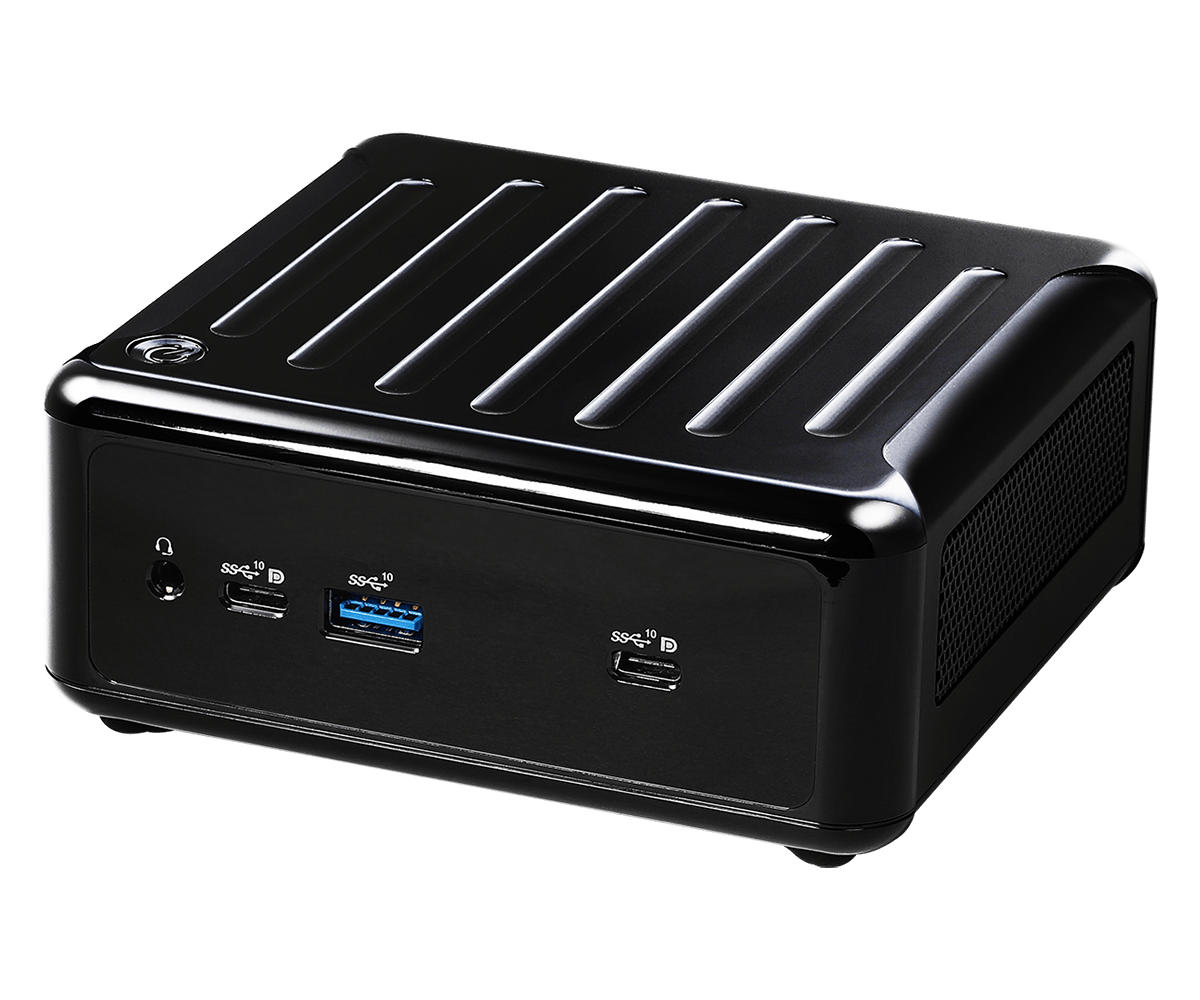

4X4 BOX-5300U Fanned Embedded BOX PC

  • AMD Ryzen™ 5000U-Series
  • 2 x 260-pin SO-DIMM up to 64GB DDR4 3200 MHz
  • 3 x USB 3.2 Gen2, 2 x USB 2.0, 1 x M.2 Key M, 1 x M.2 Key E(WiFi-6E), 1 x SATA3
  • 1 x Realtek 1 Gigabit LAN (support DASH), 1 x Realtek 2.5 Gigabit LAN
  • Supports Quad display, 1 x HDMI 2.0a, 3 x DP 1.2a (2 from Type C)
  • TPM 2.0 onboard IC
  • 19V/90W Power Adapter
  • 110.0 x 117.5 x 47.85mm, Fanned Barebone
Datasheet
Overview

Specification

Form Factor

Dimensions 110.0 x 117.5 x 47.85 mm

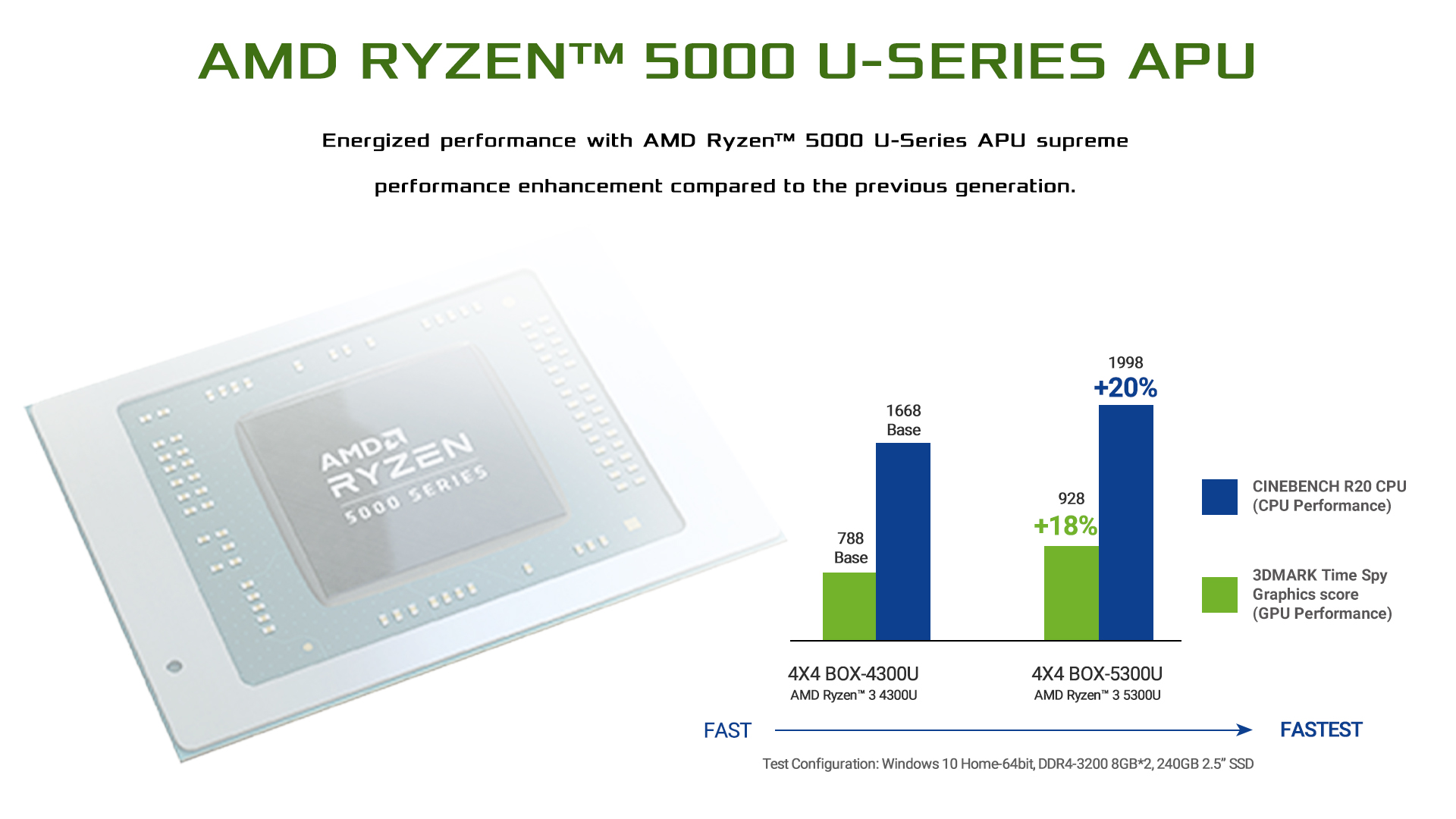

Processor System

CPU AMD Ryzen™ 3 5300U, 4Cores, Max Speed up to 3.8GHz
Chipset SoC
BIOS AMI SPI 128 Mbit

Memory

Technology Dual Channel DDR4 3200 MHz
Capacity 64 GB (32 GB per DIMM)
Socket 2 x 260-pin SO-DIMM

Graphics

Controller AMD Radeon™ Graphics
HDMI HDMI 2.0a
Max resolution up to 4096x2160@60Hz
DisplayPort DisplayPort 1.2a, DP++
Max resolution up to 4096x2160@60Hz
MultiDisplay Max 4 display (Included 2 outputs from Type C)

Expansion Slot

M.2/WLAN 1 x Wi-Fi 6E 802.11ax + BT 5.2
(M.2 Key E, 2230 PCIe x1, USB 2.0 for Wireless)
* WiFi throughput speed depends on actual environment and equipment
Bluetooth 5.2

Audio

Interface Realtek ALC233, High Definition Audio.

Ethernet

Controller/ Speed LAN1: Realtek RTL8125BG with 10/100/1000/2500 Mbps
LAN2: Realtek R8111FPV with 10/100/1000 Mbps,support DASH function
Connector 2 x RJ-45

Front I/O

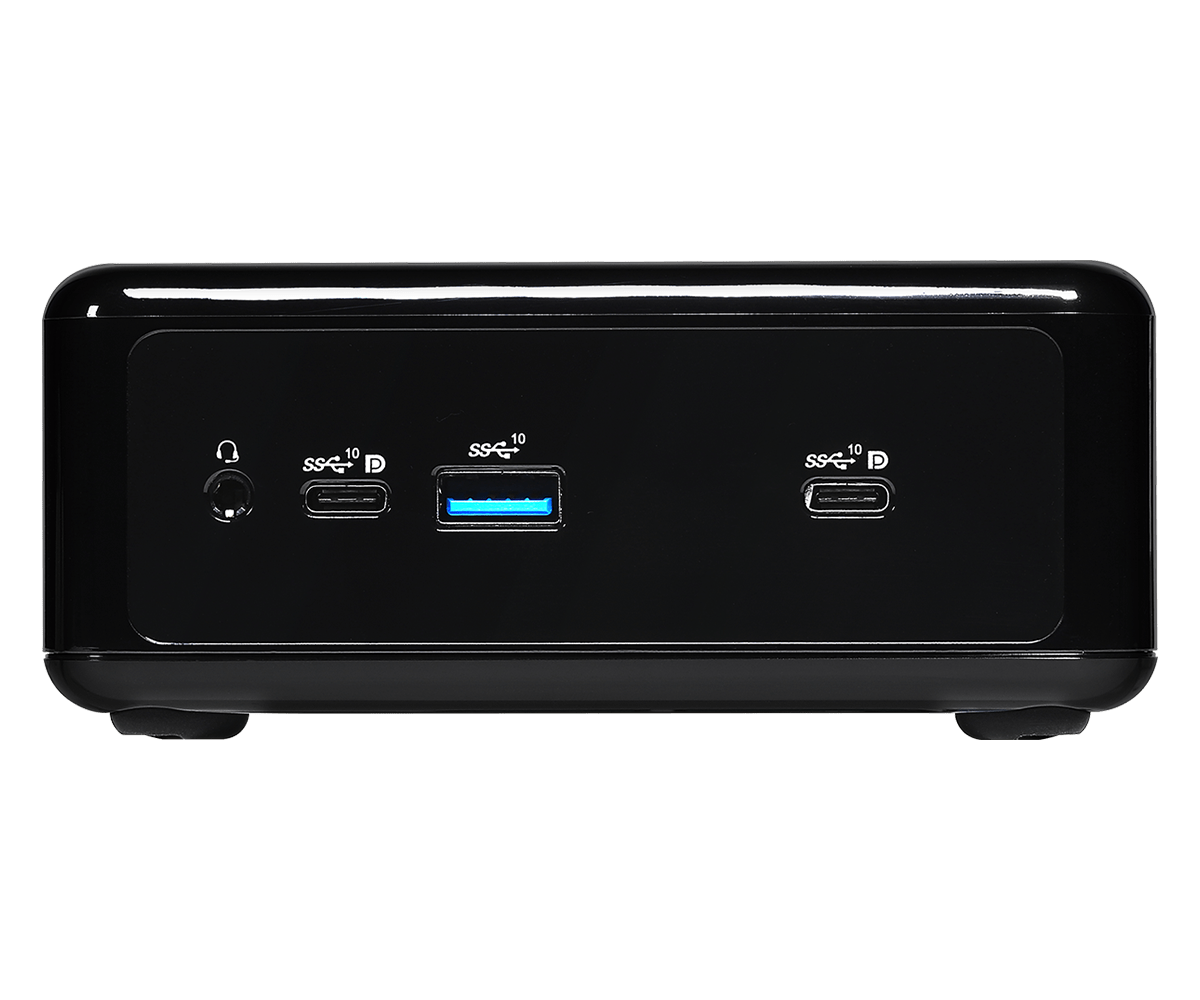

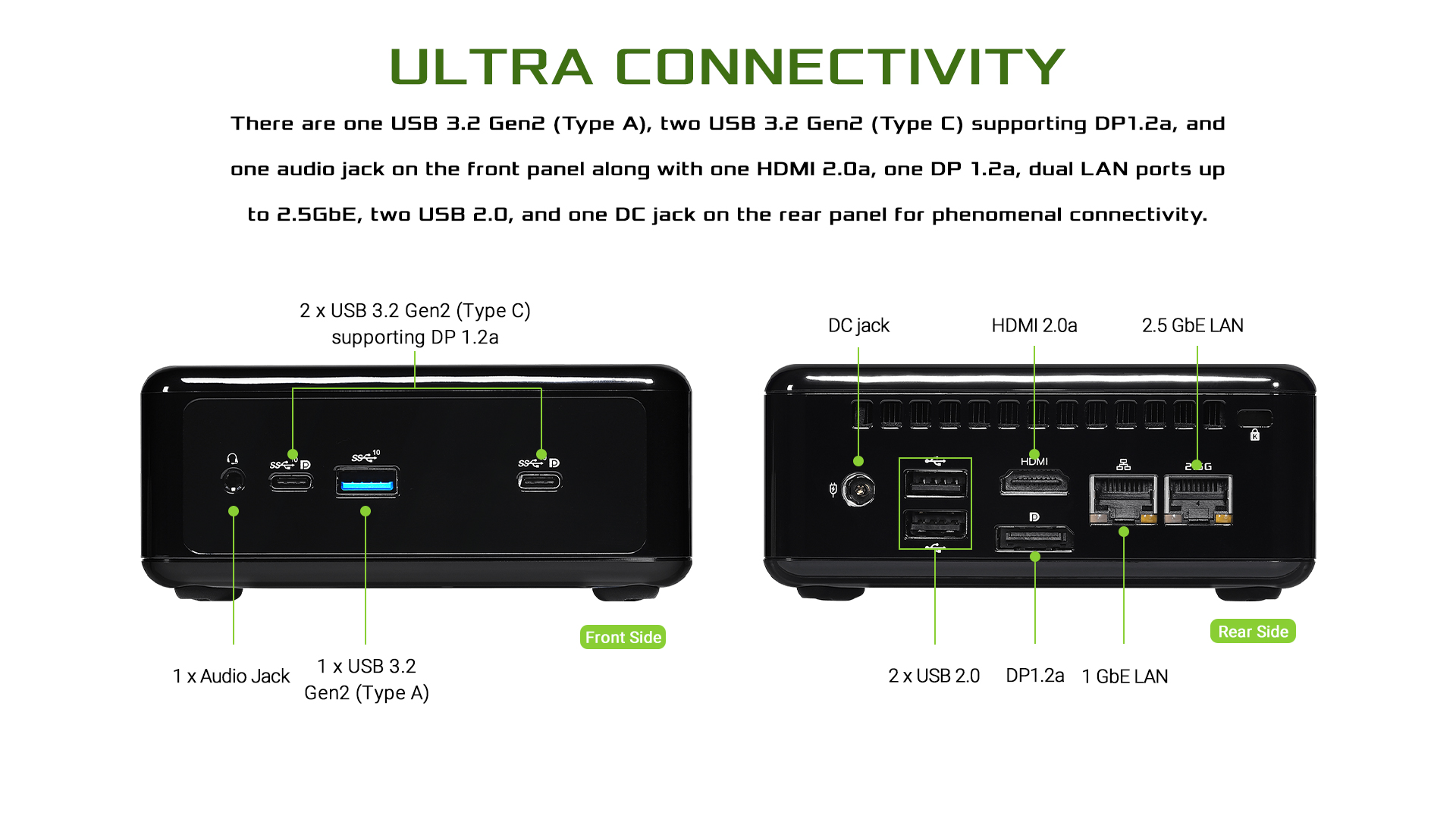

USB 1 x USB 3.2 Gen2 (Type A)
2 x USB 3.2 Gen2 (Type C, Supports DP 1.2a display output)
Audio 1 (headphone & microphone jack)

Rear I/O

HDMI 1 x HDMI 2.0a
DisplayPort 1 x DP 1.2a
Ethernet 1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN
USB 2 x USB 2.0
DC Jack 1

Storage

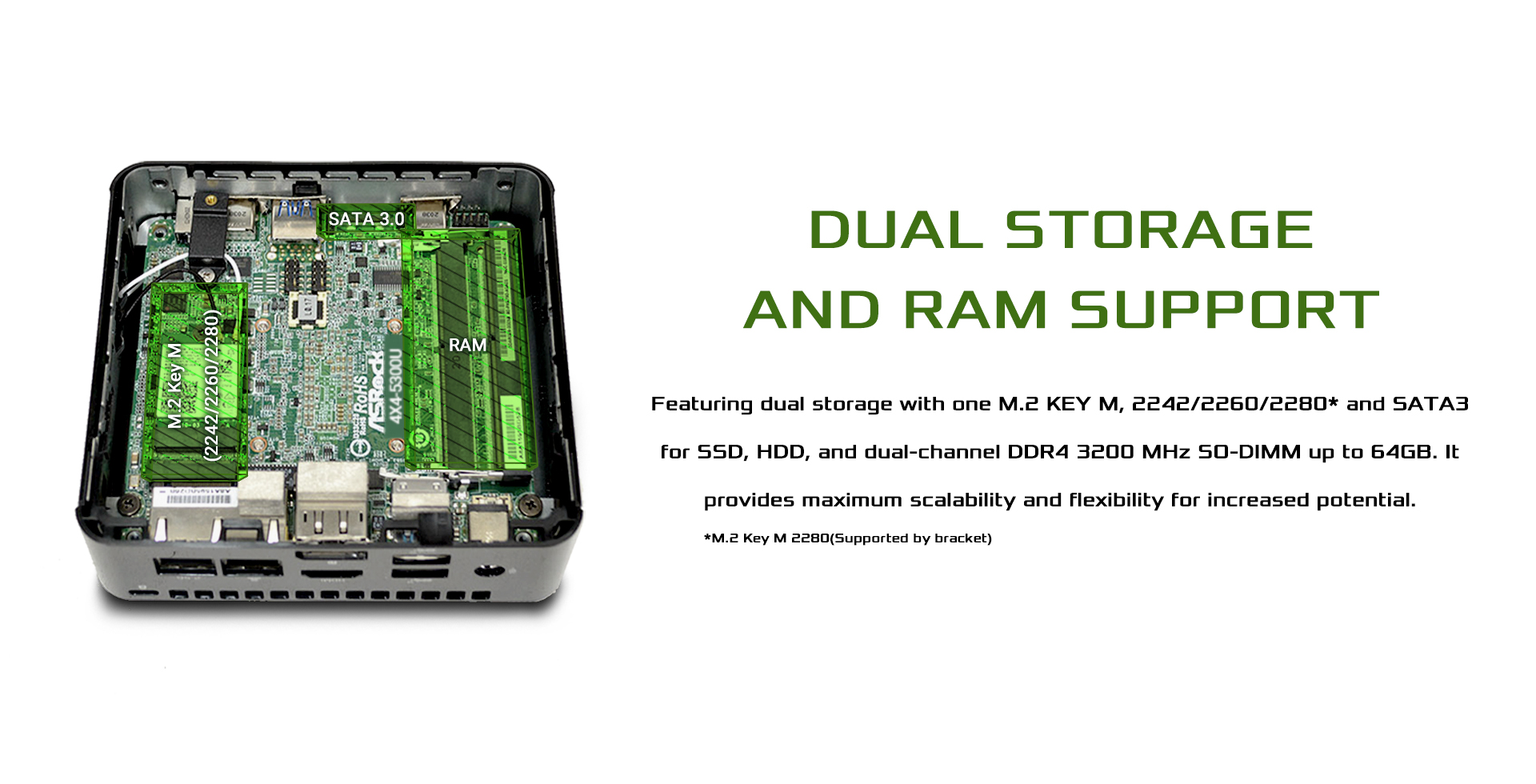

M.2 1 x M.2 (KEY M, 2242/2260/2280) with PCIe x4 and SATA3 for SSD
*M.2 Key M 2280(Supported by bracket)
SATA 1 x SATA3.0 (6.0 Gb/s)

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments 0,1,2....255sec

Power Requirements

Input PWR 1 x 19V/90W Power Adapter
Power On AT/ATX supported
-AT: Direct PWR on as power input ready
-ATX:Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 40ºC
Storage Temp -40° C ~ 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

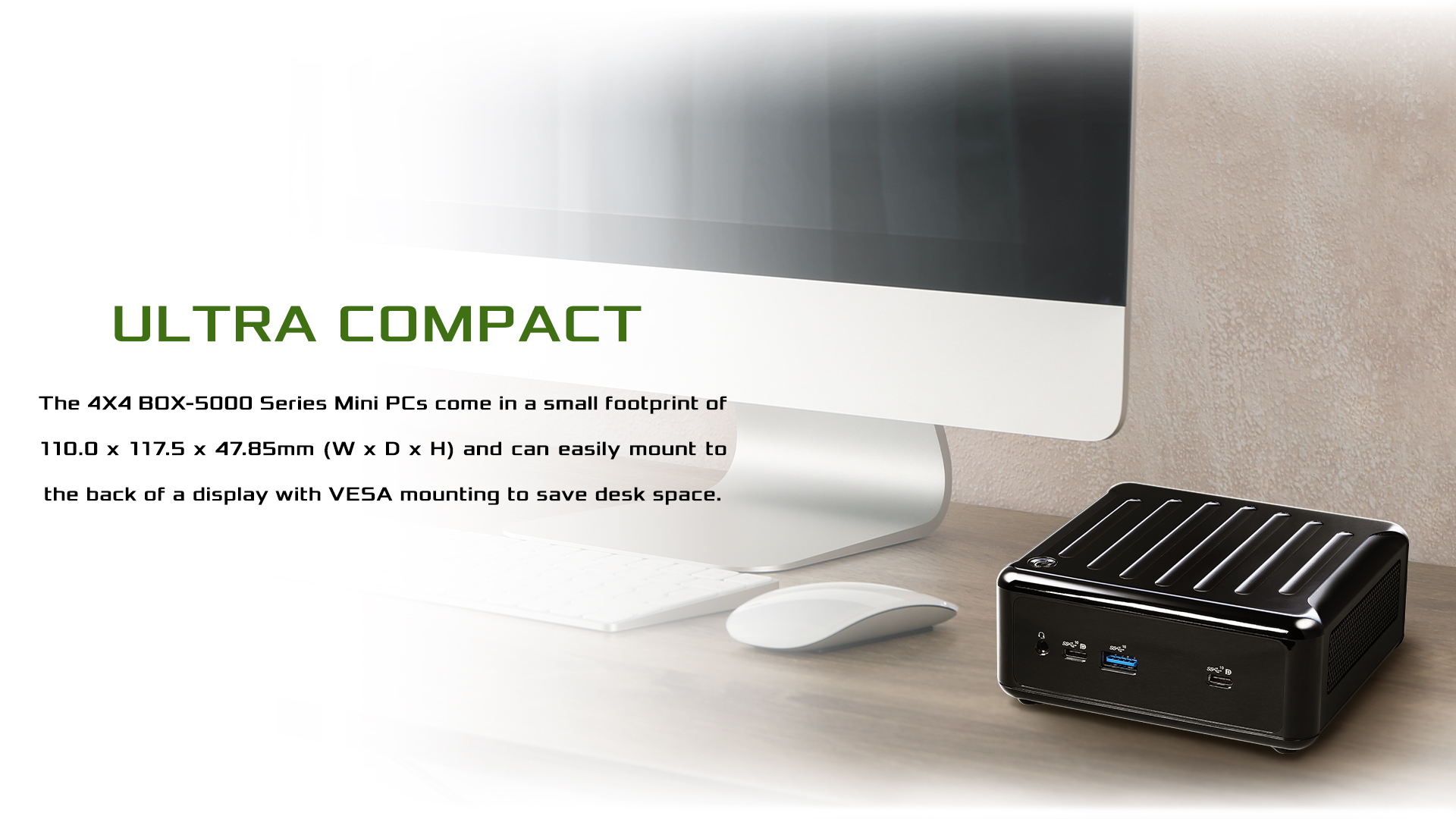

Mechanical

Construction Plastic
Mounting VESA mounting
Dimensions (W x H x D) 110.0 x 117.5 x 47.85 mm
Weight Net Weight: 1kg

Others

OS Support Windows 10/11
Certifications CE, FCC Class A
Packing List 1 x 19V/90W Power Adapter
1 x Screw Package
1 x VESA mounting bracket
1 x Bracket for M.2 2280 support
TPM TPM 2.0 onboard IC

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
