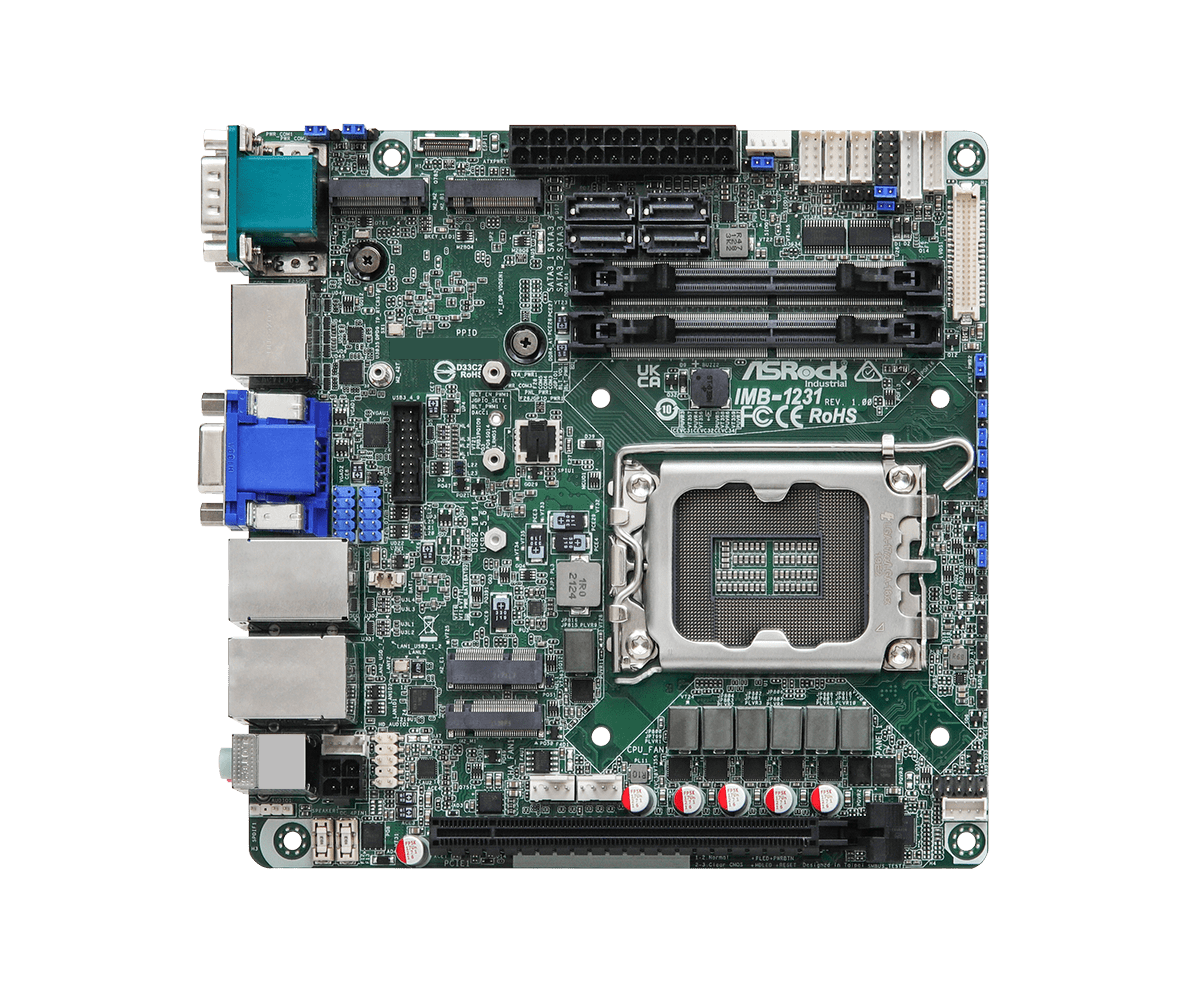

IMB-1231 Mini-ITX Motherboard

  • Intel® 12th Gen (Alder Lake-S) Core™ Processors with Q670 chipset
  • 2 x 260-pin SO-DIMM DDR4 3200 MHz , up to 64GB (32GB per DIMM)
  • 1 x PCIe x16 (Gen4), 4 x USB 3.2 Gen2, 2 x USB 3.2 Gen1, 4 x USB 2.0, 1 x M.2 Key B, 1 x M.2 Key E, 2 x M.2 Key M, 5 x COM, 4 x SATA3
  • 2 x Intel 2.5 Gigabit LAN
  • Supports Quad display, 1 x HDMI 2.0b, 2 x DP1.4a, 1 x LVDS or eDP, 1 x VGA
  • TPM 2.0 onboard IC
  • Supports Intel® vPro, AMT, RAID 0/1/5/10
  • ATX-PWR (24+4-pin) and +12V DC-In co-design
Datasheet
Specification

Form Factor

Dimensions Mini-ITX (6.7-in x 6.7-in x 1.5-in, 17.0 cm x 17.0 cm x 3.8 cm)

Processor System

CPU Intel® 12th Gen (Alder Lake-S) Core™ Processors, up to 65W
Chipset Intel® Q670
Socket LGA1700
BIOS AMI SPI 256 Mbit

Memory

Technology Dual Channel DDR4 3200 MHz
Capacity 64GB (32 GB per DIMM)
Socket 2 x 260-pin SO-DIMM

Graphics

Controller Intel® UHD Graphics
DisplayPort DisplayPort 1.4a, DP++
Max resolution up to 4096x2160@60Hz
HDMI HDMI 2.0b
Max resolution up to 4096x2160@60Hz
eDP Max resolution up to 1920 x 1200@60Hz
LVDS Dual channel 24 bit up to 1920x1200@60Hz
VGA Max resolution up to 1920 x 1200@60Hz
MultiDisplay Quad Display

Expansion Slot

M.2 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless
1 x M.2 (Key B, 3042/3052) with PCIe x1/USB 3.2 Gen1/USB 2.0 and SIM for 4G
PCIe 1 x PCIe x16 (Gen4, Support riser card x8/x8)
SIM Socket 1 x Socket connected to M.2 Key B

Audio

Interface Realtek ALC897, High Definition Audio. Line-out,Mic-in

Ethernet

Controller/ Speed LAN1: Intel® I225LM with 10/100/1000/2500 Mbps, support AMT/vPro
LAN2: Intel® I225LM with 10/100/1000/2500 Mbps
Connector 2 x RJ-45

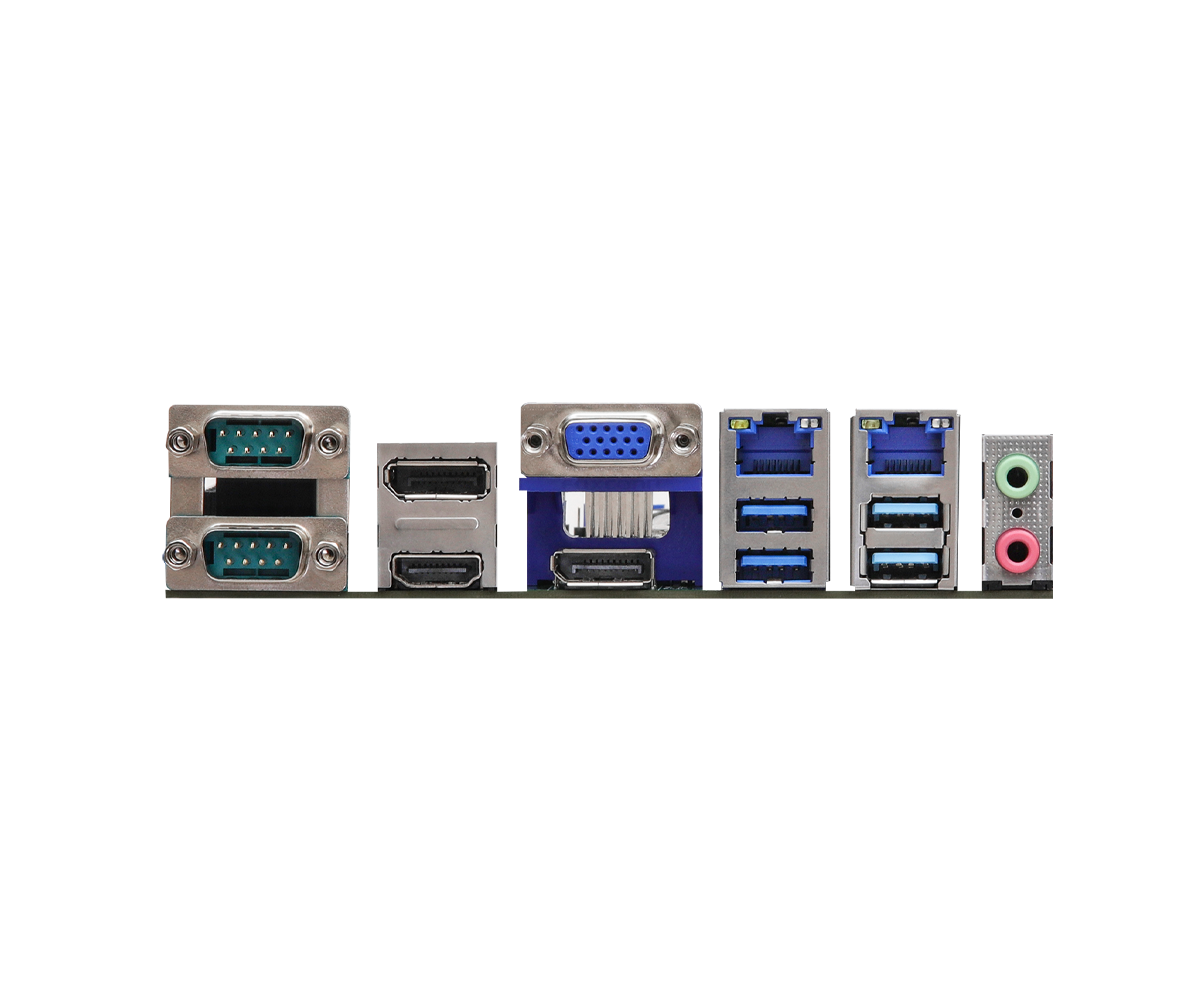

Rear I/O

HDMI 1 x HDMI 2.0b
DisplayPort 2 x DP 1.4a++
VGA 1
Ethernet 2 x 2.5 Gigabite LAN
USB 4 x USB 3.2 (Gen2)
Audio 2 (Mic-in, Line-out)
COM 2 x COM(RS-232/422/485)

Internal Connector

USB 2 x USB 3.2 Gen1 (1 x USB 3.2 header)
4 x USB 2.0 (2 x 2.54 pitch header)
COM 3 x COM(RS-232)
GPIO 4 x GPI, 4 x GPO
TPM TPM 2.0 onboard IC
LVDS 1
eDP 1
SATA PWR Output 1
Speaker Header 1

Storage

M.2 1 x M.2 (Key M, 2242/2260/2280) with PCIe Gen3 x4 for SSD
1 x M.2 (Key M, 2242) with PCIe Gen4 x4 and SATA3 for SSD*
*Recommend using M2X4-SATA-4P module to support extra 4 SATA ports (Support by special BIOS)
SATA 4 x SATA3 (6Gb/s)
RAID Intel® VMD RAID 0/1/5/10
**supported by identical interface (PCIe or SATA)
PCIe interface: M.2 Key B + M.2 Key M1/2 or 2*M.2 Key M
SATA interface: SATA port

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR ATX PWR (24+4-pin) and +12V DC-In co-design
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 60ºC
Storage Temp -40° C ~ 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
