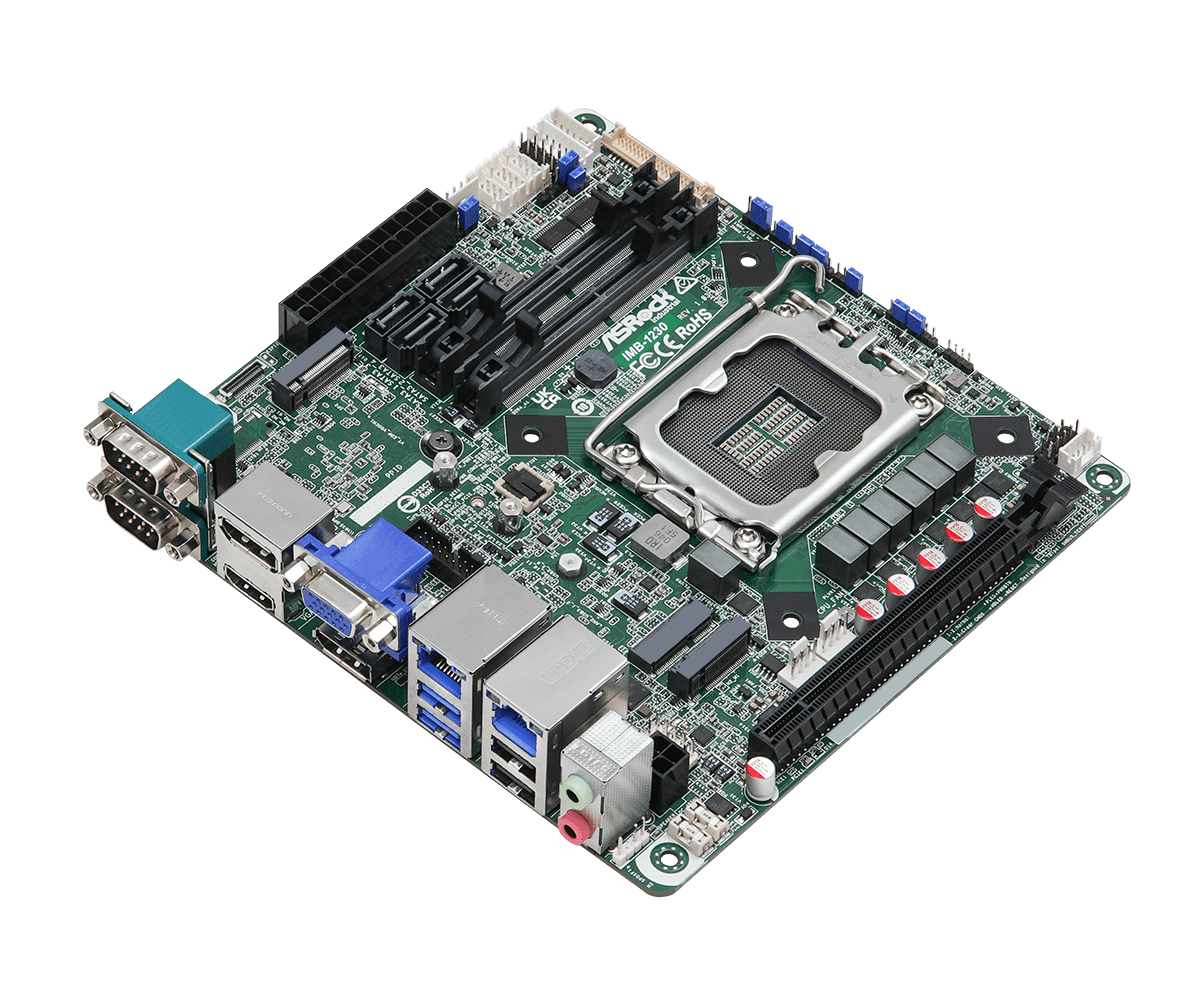

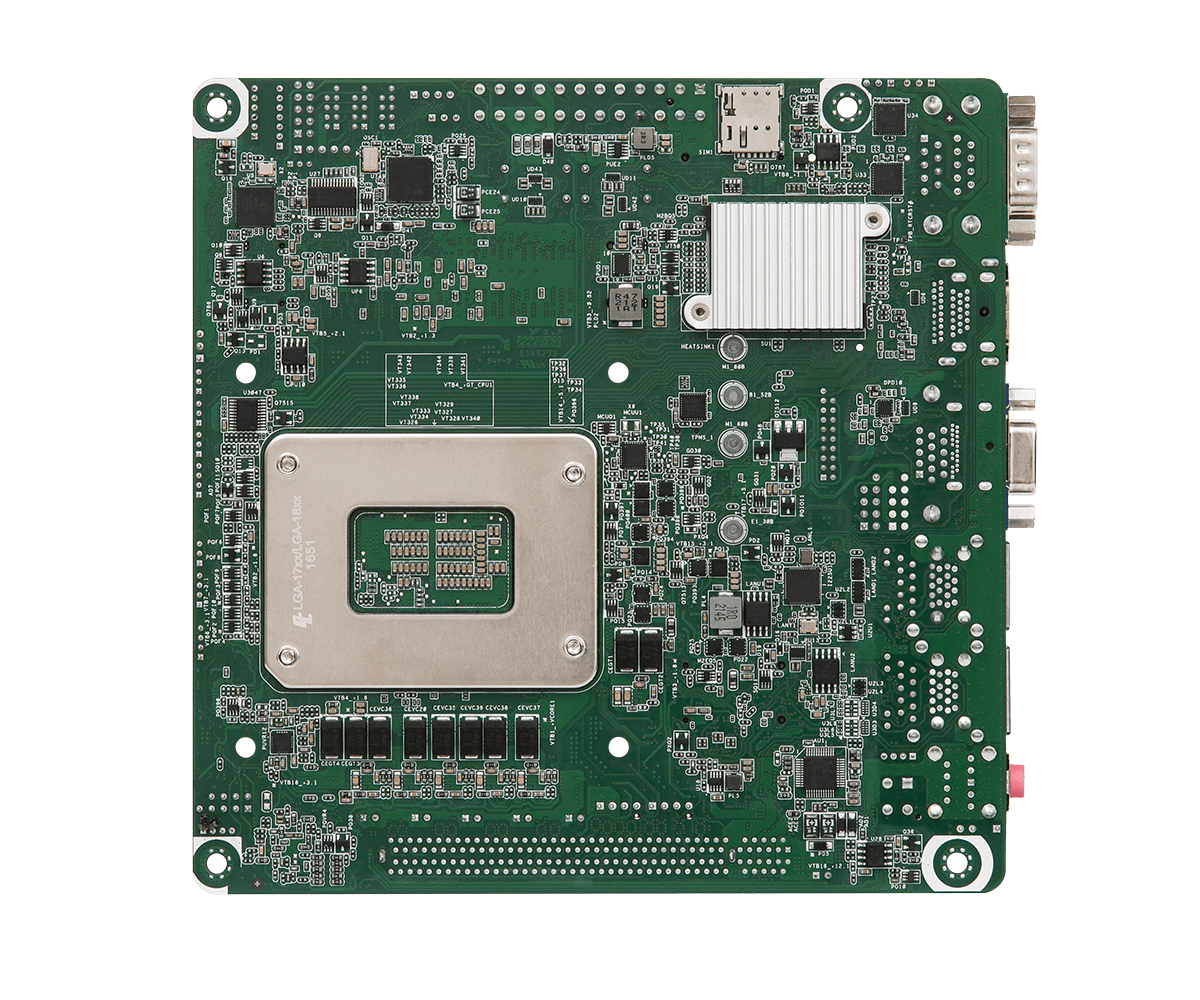

IMB-1230 Mini-ITX Motherboard
- Intel® 12th Gen (Alder Lake-S) Core™ Processors with H610 chipset
- 2 x 260-pin SO-DIMM DDR4 3200 MHz , up to 64GB (32GB per DIMM)
- 1 x PCIe x16 (Gen4), 2 x USB 3.2 Gen2, 1 x USB 3.2 Gen1, 5 x USB 2.0, 1 x M.2 Key B, 1 x M.2 Key E, 1 x M.2 Key M, 5 x COM, 4 x SATA3
- 2 x Intel 2.5 Gigabit LAN
- Supports Triple display, 1 x HDMI 2.0b, 2 x DP 1.4a, 1 x LVDS or eDP, 1 x VGA
- TPM 2.0 onboard IC
- ATX-PWR (24+4-pin) and +12V DC-In co-design
Specification
Form Factor
| Dimensions | Mini-ITX (6.7-in x 6.7-in x 1.5-in, 17.0 cm x 17.0 cm x 3.8 cm) |
|---|
Processor System
| CPU | Intel® 12th Gen (Alder Lake-S) Core™ Processors, up to 65W |
|---|---|
| Chipset | Intel® H610 |
| Socket | LGA1700 |
| BIOS | AMI SPI 256 Mbit |
Memory
| Technology | Dual Channel DDR4 3200 MHz |
|---|---|
| Capacity | 64GB (32 GB per DIMM) |
| Socket | 2 x 260-pin SO-DIMM |
Graphics
| Controller | Intel® UHD Graphics |
|---|---|
| DisplayPort | DisplayPort 1.4a, DP++ Max resolution up to 4096x2160@60Hz |
| HDMI | HDMI 2.0b Max resolution up to 4096x2160@60Hz |
| eDP | Max resolution up to 1920 x 1200@60Hz |
| LVDS | Dual channel 24 bit up to 1920x1200@60Hz |
| VGA | Max resolution up to 1920 x 1200@60Hz |
| MultiDisplay | Triple Display |
Expansion Slot
| M.2 | 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless 1 x M.2 (Key B, 3042/3052) with PCIe x1/USB 3.2 Gen1/USB 2.0 and SIM for 4G |
|---|---|
| PCIe | 1 x PCIe x16 (Gen4) |
| SIM Socket | 1 x Socket connected to M.2 Key B |
Audio
| Interface | Realtek ALC897, High Definition Audio. Line-out,Mic-in |
|---|
Ethernet
| Controller/ Speed | LAN1: Intel® I225LM with 10/100/1000/2500 Mbps LAN2: Intel® I225LM with 10/100/1000/2500 Mbps |
|---|---|
| Connector | 2 x RJ-45 |

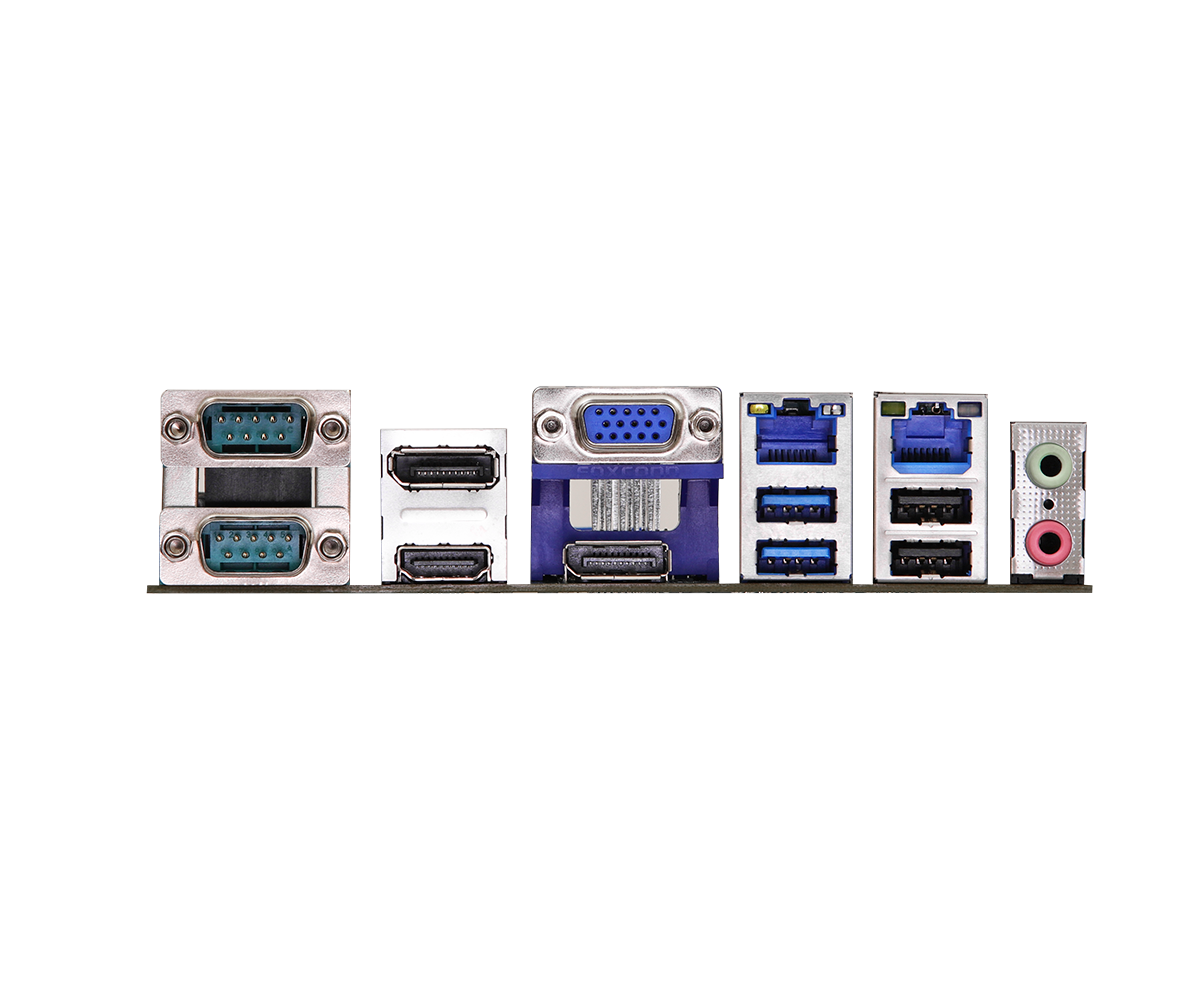

Rear I/O
| HDMI | 1 x HDMI 2.0b |
|---|---|
| DisplayPort | 2 x DP 1.4a++ |
| VGA | 1 |
| Ethernet | 2 x 2.5 Gigabite LAN |
| USB | 2 x USB 3.2 (Gen2) , 2 x USB 2.0 |
| Audio | 2 (Mic-in, Line-out) |
| COM | 2 x COM(RS-232/422/485) |
Internal Connector
| USB | 1 x USB 3.2 Gen1 (1 x USB 3.2 header) 3 x USB 2.0 (1 x 2.54 pitch header) |
|---|---|
| COM | 3 x COM(RS-232) |
| GPIO | 4 x GPI, 4 x GPO |
| TPM | TPM 2.0 onboard IC |
| LVDS | 1 |
| eDP | 1 |
| SATA PWR Output | 1 |
| Speaker Header | 1 |
Storage
| M.2 | 1 x M.2 (Key M, 2242/2260/2280) with PCIe Gen3 x4 for SSD |
|---|---|
| SATA | 4 x SATA3 (6Gb/s) |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR | ATX PWR (24+4-pin) and +12V DC-In co-design |
|---|---|
| Power On | AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
Environment
| Operating Temp | 0ºC ~ 60ºC |
|---|---|
| Storage Temp | -40° C ~ 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
Support
OS:
| Description | OS | Date | Download | ||||
|---|---|---|---|---|---|---|---|
| Description | SATA Floppy Image ver:19.0.0.1067.2 | OS | Win 11 x 64 , Win 10 x 64 | Date | 2022-06-23 | Download | |
| Description | Intel Rapid Storage Technology driver and utility ver:19.0.0.1067.2 | OS | Win 11 x 64 , Win 10 x 64 | Date | 2022-06-23 | Download | |
| Description | VGA Driver ver:30.0.101.1994 | OS | Win 11 x 64 , Win 10 x 64 | Date | 2022-06-23 | Download | |
| Description | Intel Management Engine driver ver:16.0.15.1620_CORP_SW_DCH | OS | Win 11 x 64 , Win 10 x 64 | Date | 2022-06-23 | Download | |
| Description | Intel WLAN Driver ver:22.70.2.1 | OS | Win 11 x 64 , Win 10 x 64 | Date | 2022-06-23 | Download | |
| Description | Intel Lan driver ver:v27.4 | OS | Win 11 x 64 , Win 10 x 64 | Date | 2022-06-23 | Download | |
| Description | Intel HID Event Filter ver:2.2.1.386 | OS | Win 11 x 64 , Win 10 x 64 | Date | 2022-06-23 | Download | |
| Description | Intel Bluetooth driver ver:22.70.1.1G | OS | Win 11 x 64 , Win 10 x 64 | Date | 2022-06-23 | Download | |
| Description | INF driver ver:10.1.18836.8283 | OS | Win 11 x 64 , Win 10 x 64 | Date | 2022-06-23 | Download | |
| Description | Realtek high definition audio driver ver:9239_FF00 | OS | Win 11 x 64 , Win 10 x 64 | Date | 2022-06-23 | Download |
| Version | Update BIOS Under / How to Update | Description | Date | Download | |||||
|---|---|---|---|---|---|---|---|---|---|
| Version | 1.10 | Update BIOS Under / How to Update | BIOS | Description | Enhance system compatibility | Date | 2022-08-18 | Download | |
| Version | 1.10 | Update BIOS Under / How to Update | DOS | Description | Enhance system compatibility | Date | 2022-08-18 | Download | |
| Version | 1.10 | Update BIOS Under / How to Update | Windows | Description | Enhance system compatibility | Date | 2022-08-18 | Download | |
| Version | 1.00 | Update BIOS Under / How to Update | BIOS | Description | First release | Date | 2022-07-07 | Download | |
| Version | 1.00 | Update BIOS Under / How to Update | DOS | Description | First release | Date | 2022-07-07 | Download | |
| Version | 1.00 | Update BIOS Under / How to Update | Windows | Description | First release | Date | 2022-07-07 | Download |
The format of our documents are in PDF files. If you have not installed Adobe Acrobat Reader, please get it from Adobe.
| Description | Language | Date | Download | ||||
|---|---|---|---|---|---|---|---|
| Description | User Manual | Language | English | Date | 2022-08-11 | Download | |
| Description | Jumpers and Headers Setting Guide | Language | English | Date | 2022-06-23 | Download |
| Description | Date | Download | |||
|---|---|---|---|---|---|
| Download | CPU Support List | Date | 2022-08-25 | Download |
