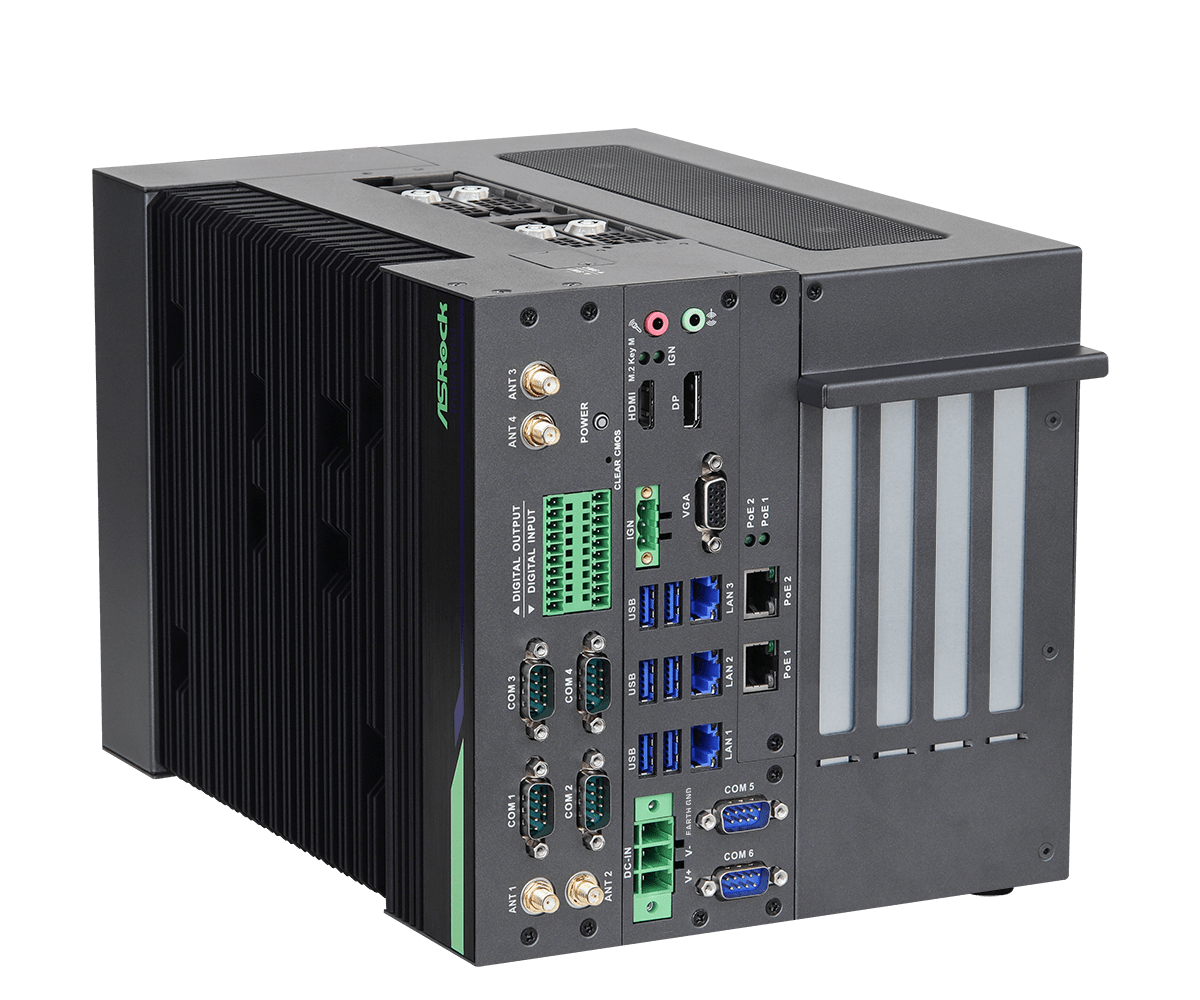

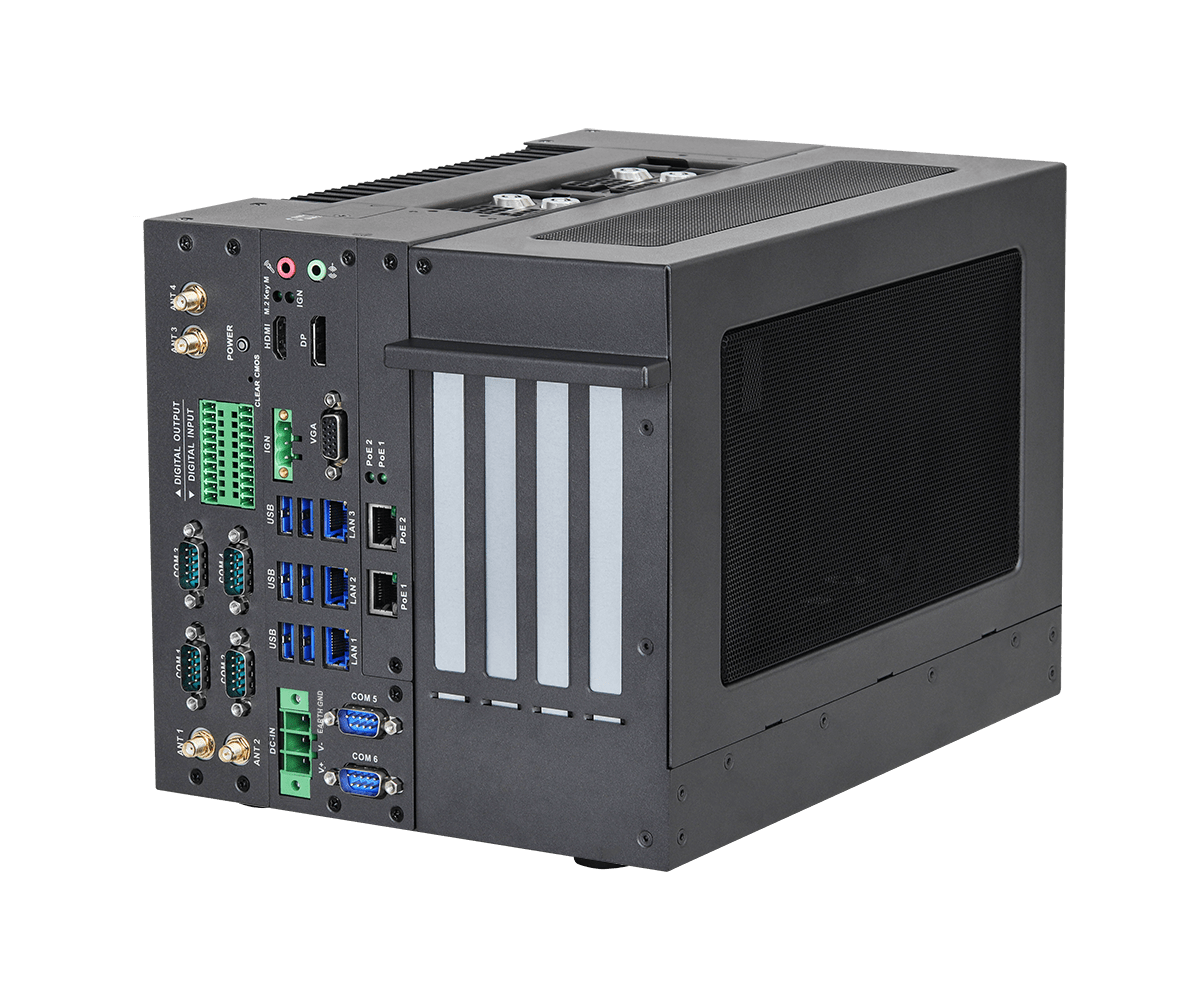

iEPF-9010S-EY4 Intelligent Edge Platform
- Intel® 12th Gen Core™ Processors with R680E Chipset
- 4 x 260-pin DDR4 SO-DIMM up to 128GB (32GB per DIMM)
- 1 x PCIe x16 (PCIe Gen4) or 2 x PCIe x8 (PCIe Gen4), 2 x PCIe x 4 (PCIe Gen4)
- 1 x M.2 Key M, 1 x M.2 Key B, 1 x M.2 Key E, 2 x Mini PCIe
- 6 x USB 3.2 Gen2x1, 6 x COM, Up to 4 x SATA3 (Default 1 piece), 8 x DI, 8 x DO
- 5 x Intel 2.5G LAN (2 support PoE, LAN 1 supports vPro)
- 1 x Displayport, 1 x HDMI 2.0b, 1 x VGA
- Support Wireless Time-Sensitive Networking (WTSN)
- Powerful Edge AI acceleration enabled by the most flexible mechanical, thermal, and power design, with support for 275mm x 138 mm x 60 mm (D x H x W) max. and up to 300W graphic card
- Supported NVIDIA GPU: RTX 4000 Ada, RTX 2000 Ada, RTX A2000, A2
- TAA Compliant
產品特色
-9010/P1.jpg)
-9010/P2.jpg)
-9010/P3.jpg)
-9010/Edge%20AIoT%20Developer%20Kit%20KV%20960x960.jpg)
-9010/case%20study.jpg)
-9010/Insight.tech%20Article.jpg)
-9010/Insight.tech%20Podcast.jpg)
產品規格
Processor System
| CPU | Intel® 12th Gen Core™, Pentium or Celeron Processors |
|---|---|
| Chipset | Intel® R680E |
| Socket | LGA 1700 |
Memory
| Technology | Dual Channel DDR4 2933MHz (ECC memory supported by R680E + Selected CPU) |
|---|---|
| Capacity | 128 GB (32 GB per DIMM) |
| Socket | 4 x 260-pin SO-DIMM |
Graphics
| Controller | Intel® UHD Graphics |
|---|---|
| DisplayPort | DisplayPort 1.4a , DP++ Max resolution up to 4096x2160@60Hz |
| VGA | Max resolution up to 1920x1200@60Hz |
| HDMI | HDMI 2.0b Max resolution up to 4096x2160@60Hz |
Expansion Slot
| PCIe | 1 x PCIe Gen4 x16 (single x16 or dual x8), PCIe x16 slot with default power cable can support up to 180W graphic card (275mm x 113mm x 60 mm (D x H x W, if remove the card holder, it can be limited on 275mm x 138mm x 60 mm) Graphic card can be up to 300W with optional VGA module 1 x PCIe Gen4 x8 (shared with dual x8) 2 x PCIe Gen4 x4 |
|---|---|
| mini-PCIe | 2 x Full/Half size with PCIe Gen3 x1 and USB 2.0 |
| RF& Antenna | 8 x SMA connector hole reserved |
| M.2 | 1 x M.2 (Key E, 2230) with CNVI/PCIe Gen3 x1 and USB 2.0 for Wi-Fi/BT module 1 x M.2 (Key B, 2280/3042/3052) with PCIe Gen3 x1 /USB 3.2 Gen1x1 for 4G / 5G |
| SIM Socket | 2 x Nano SIM Card slot (1 connected to Mini PCIe, 1 connected to M.2 Key B) |
Audio
| Interface | Realtek ALC897, High Definition Audio. |
|---|
Ethernet
| Controller/ Speed | 5 x Intel 2.5G LAN (2 support PoE, each port supports IEEE 802.3AF PoE, PoE output max.15.4W/port), (LAN 1 supports vPro) |
|---|---|
| Connector | 5 x RJ45 |

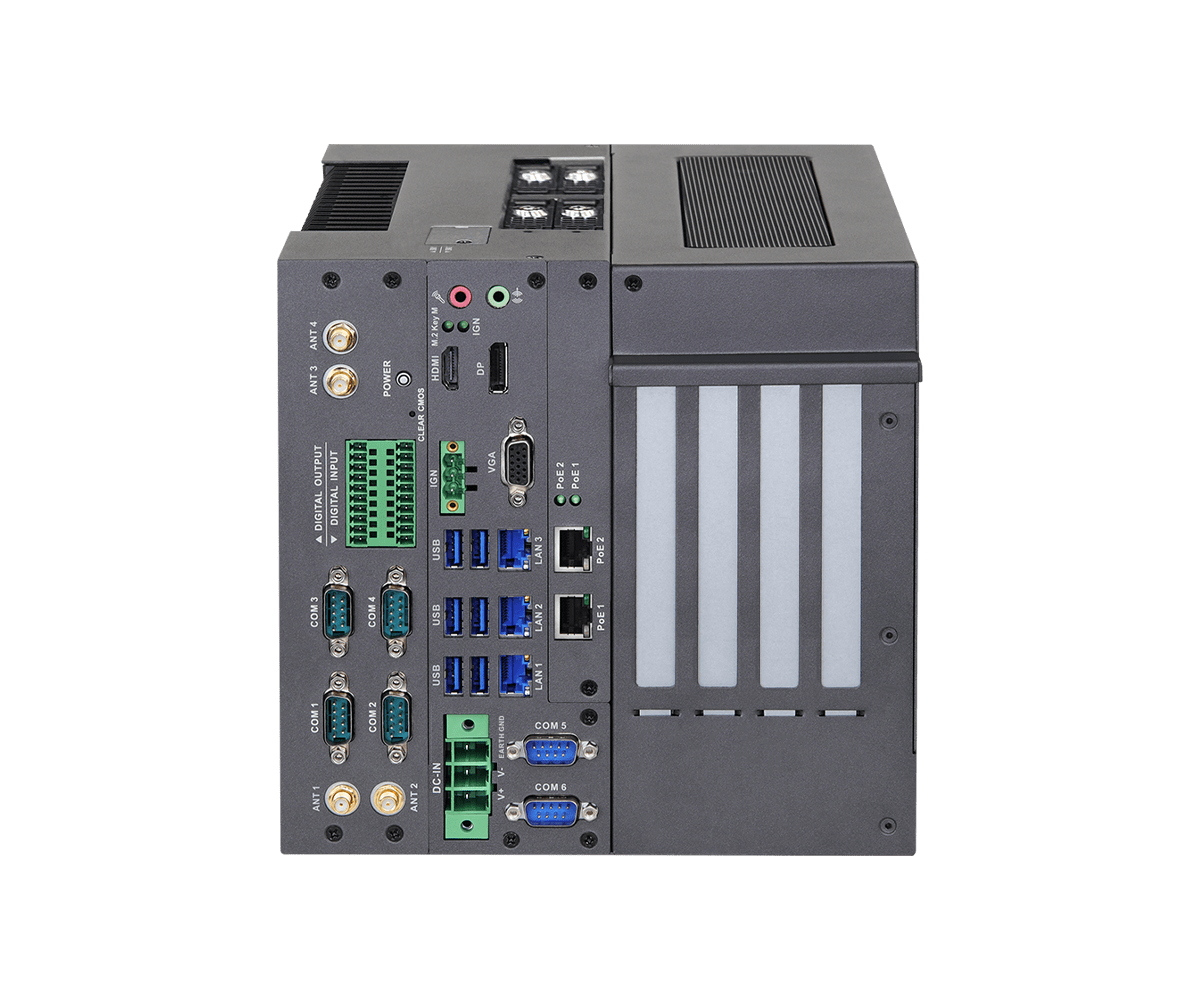

Front I/O
| DisplayPort | 1 |
|---|---|
| HDMI | 1 |
| VGA | 1 |
| USB | 6 x USB 3.2 Gen2x1, 1 x USB 2.0 internal connector w/ lock function |
| Audio | 1 x Mic-in, 1 x Line-out |
| COM | 4 x RS232/422/485 (COM1, COM2- optional Card w/ Isolation Protection, COM5- Isolation Protection, COM6) 2 x RS232 (COM3, COM4) |
| Ethernet | 5 x 2.5G LAN |
| DIO | 8DIs/8DOs |
Storage
| M.2 | 1 x M.2 (Key M, 2280) with Gen4/Gen3 x4 for NVMe SSD |
|---|---|
| SATA | 4 x SATA3 (6Gb/s), support RAID 0/1/5/10 Accommodate up to 4 x 2.5" HDD/SSD Tray (Default 1 piece, additional HDD trays are available as optional parts for order) |
| CFast | 1 x Type II socket (Shared with SATA3) |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR | 9V~36V VDC with Ignition control and remote power on/off switch. 80V Surge Protection, OVP, UVP, OCP and reverse protection Ignition Power Input w/ 13-mode condition |
|---|
Environment
| Operating Temp | 35W CPU: -40°C~75°C ( -40°F~167°F) 46W~65W CPU: -40°C~55°C ( -40°F~131°F) (with FAN inside, without Add-on Card) (w/ air flow 0.5~0.8 m/s) |
|---|---|
| Storage Temp | -40°C~85°C ( -40°F~185°F) |
| Humidity | ~95% @ 40°C (non-condensing) |
| Shock | Operating: 50 G, half sine 11ms duratio with SSD (More stringent than MIL-STD-810H) |
| Vibration | Operating: 5 Grms, 5-500 Hz, 3 axes with SSD (More stringent than MIL-STD-810H) |
| ESD | Contact +/-4kV, Air +/-8kV |
| EMC | EN61000-6-4/-2, CE & FCC Class A |
| Safety | LVD |
Mechanical
| Construction | Aluminum heatsink + Metal chassis |
|---|---|
| Mounting | Desk Mount |
| Dimensions | 209.8mm (W) x 290.8mm (D) x 207.7mm (H) (8.26" x 11.45" x 7.94") |
| Weight | 10kg |
Others
| OS Support | Windows 10 & Linux |
|---|---|
| SW Support | ACRN (https://projectacrn.org/) |
| TPM | TPM 2.0 |
| Real-Time Enablement | TSN, TCC support under YOCTO |
| Optional Items | If the system installs the 300W VGA-PWR Board, the VGA Power Output: VGA Loading <200W (with DC-IN +12V~+36V); VGA TDP<200W VGA Loading <350W (Peak) (with DC-IN +24V~+36V); VGA TDP<285W |
規格更改時恕不預先通知。品牌和產品名稱歸各自公司所有。不保證任何配置與產品實物規格相同。
支援下載
作業系統:
| 說明 | 資訊 | 作業系統 | 日期 | 下載 | |||||
|---|---|---|---|---|---|---|---|---|---|
| 說明 | VGA driver(v32.0.101.5972) | 資訊 | 作業系統 | Win 10 x 64 | Date | 2025-06-30 | 下載 | ||
| 說明 | Intel_CSME_Cor(v2351.5.49.0) | 資訊 | 作業系統 | Win 10 x 64 | Date | 2025-06-30 | 下載 | ||
| 說明 | INF driver(v10.1.19165.8332) | 資訊 | 作業系統 | Win 10 x 64 | Date | 2025-06-30 | 下載 | ||
| 說明 | Intel HID Event Filter ver:2.2.2.1 | 資訊 | 作業系統 | Win 10 x 64 | Date | 2025-06-26 | 下載 | ||
| 說明 | Intel Management Engine driver ver:16.1.25.2020v2_B0_Corporate | 資訊 | Size: 730Mib |
作業系統 | Win 10 x 64 | Date | 2024-01-18 | 下載 | |
| 說明 | Intel Rapid Storage Technology driver and utility (ver:19.5.1.1040.3) | 資訊 | Size: 49Mib |
作業系統 | Win 10 x 64 | Date | 2024-01-18 | 下載 | |
| 說明 | Intel PROSet ver:27.4 | 資訊 | 作業系統 | Win 10 x 64 | Date | 2024-01-18 | 下載 | ||
| 說明 | Intel I226 LAN Driver (v1.1.3.34) | 資訊 | Size: 1535Kib |
作業系統 | Win 10 x 64 | Date | 2024-01-18 | 下載 | |
| 說明 | VGA driver ver: 101.4314 | 資訊 | Size: 602Mib |
作業系統 | Win 10 x 64 | Date | 2024-01-18 | 下載 | |
| 說明 | Realtek high definition audio driver ver:9239_FF00 | 資訊 | Size: 317Mib |
作業系統 | Win 10 x 64 | Date | 2024-01-18 | 下載 | |
| 說明 | Intel Management Engine driver ver:16.0.15.1810_CORP | 資訊 | 作業系統 | Win 10 x 64 | Date | 2023-01-18 | 下載 | ||
| 說明 | INF driver ver:10.1.18836.8283 | 資訊 | 作業系統 | Win 10 x 64 | Date | 2022-06-23 | 下載 | ||
| 說明 | Intel HID Event Filter ver:2.2.1.384_20H1 | 資訊 | 作業系統 | Win 10 x 64 | Date | 2022-06-08 | 下載 |
| 版本 | 更新方式 / 如何更新 | 說明 | 資訊 | 日期 | 下載 | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 版本 | 1.90 | 更新方式 / 如何更新 | BIOS | 說明 | 1. Update Intel microcode 2. Update Intel ME version |
資訊 | Size: 10 MiB SHA1: 883CF1004590EED0AF87B67C0711659BEDA9B0C8 |
日期 | 2024-07-18 | 下載 | |
| 版本 | 1.90 | 更新方式 / 如何更新 | Windows | 說明 | 1. Update Intel microcode 2. Update Intel ME version |
資訊 | Size: 11 MiB SHA1: 70B10F8E4C63C26E1F4995DF0913E98DBAA2FD58 |
日期 | 2024-07-18 | 下載 | |
| 版本 | 1.70 | 更新方式 / 如何更新 | BIOS | 說明 | Improve M.2 compatibility | 資訊 | Size: 10 MiB SHA1: 90F13821E358D51284424B272AB434DBC53CD57F |
日期 | 2024-01-19 | 下載 | |
| 版本 | 1.70 | 更新方式 / 如何更新 | Windows | 說明 | Improve M.2 compatibility | 資訊 | Size: 11 MiB SHA1: AB62B3E1B34083A1351E81CF83C6BF2C9B99CDC3 |
日期 | 2024-01-19 | 下載 | |
| 版本 | 1.60 | 更新方式 / 如何更新 | BIOS | 說明 | Support Intel 14th Generation Processors | 資訊 | Size: 10 MiB SHA1: DEFA872C23275740353FF2F2F7213E9325E67C51 |
日期 | 2023-12-19 | 下載 | |
| 版本 | 1.60 | 更新方式 / 如何更新 | Windows | 說明 | Support Intel 14th Generation Processors | 資訊 | Size: 11 MiB SHA1: 1120DFFEBF0D882A2E94F1DF4651759CFB6C8C3D |
日期 | 2023-12-19 | 下載 | |
| 版本 | 1.40 | 更新方式 / 如何更新 | BIOS | 說明 | 1. Improve PCIE compatibility 2.Update VMD driver |
資訊 | Size: 10 MiB SHA1: DF1989D40E7B6CA7E0380AF7E50A448B9AC9D8F0 |
日期 | 2023-09-08 | 下載 | |
| 版本 | 1.40 | 更新方式 / 如何更新 | Windows | 說明 | 1. Improve PCIE compatibility 2.Update VMD driver |
資訊 | Size: 11 MiB SHA1: 02E21D862D0B55AA2628B2BA33360FF7DD4921CE |
日期 | 2023-09-08 | 下載 | |
| 版本 | 1.30 | 更新方式 / 如何更新 | BIOS | 說明 | First release | 資訊 | 日期 | 2023-02-08 | 下載 | ||
| 版本 | 1.30 | 更新方式 / 如何更新 | Windows | 說明 | First release | 資訊 | 日期 | 2023-02-08 | 下載 |
檔案格式為 PDF，如果您沒有安裝 Adobe Acrobat Reader，請至 Adobe下載。
| 說明 | 語言 | 日期 | 下載 | ||||
|---|---|---|---|---|---|---|---|
| 說明 | Quick Installation Guide | 語言 | English | 日期 | 2022-09-29 | 下載 | |
| 說明 | User Manual | 語言 | English | 日期 | 2024-02-05 | 下載 |
| 說明 | 日期 | 下載 | |||
|---|---|---|---|---|---|
| 下載 | CPU Support List | 日期 | 2023-02-21 | 下載 |
訂購資訊
訂購資訊
| 型號 | 料號 | 說明 | |||
|---|---|---|---|---|---|
| 型號 | 90PPG220-10000000 | 料號 | iEPF-9010S-EY4 | 說明 | W/O CPU, RAM, SSD, ADAPTER |
| 型號 | 90PPG220-11110000 | 料號 | iEPF-9010S-EY4-HOTSKU | 說明 | Intel i7-12700E CPU, Wide Temperature DDR4 3200MHz SODIMM 16GB 260P running on 2933MHz x2, Wide Temperature M.2 2280 PCIE Gen3x4 SSD 256GB x1, W/O Adapter |
