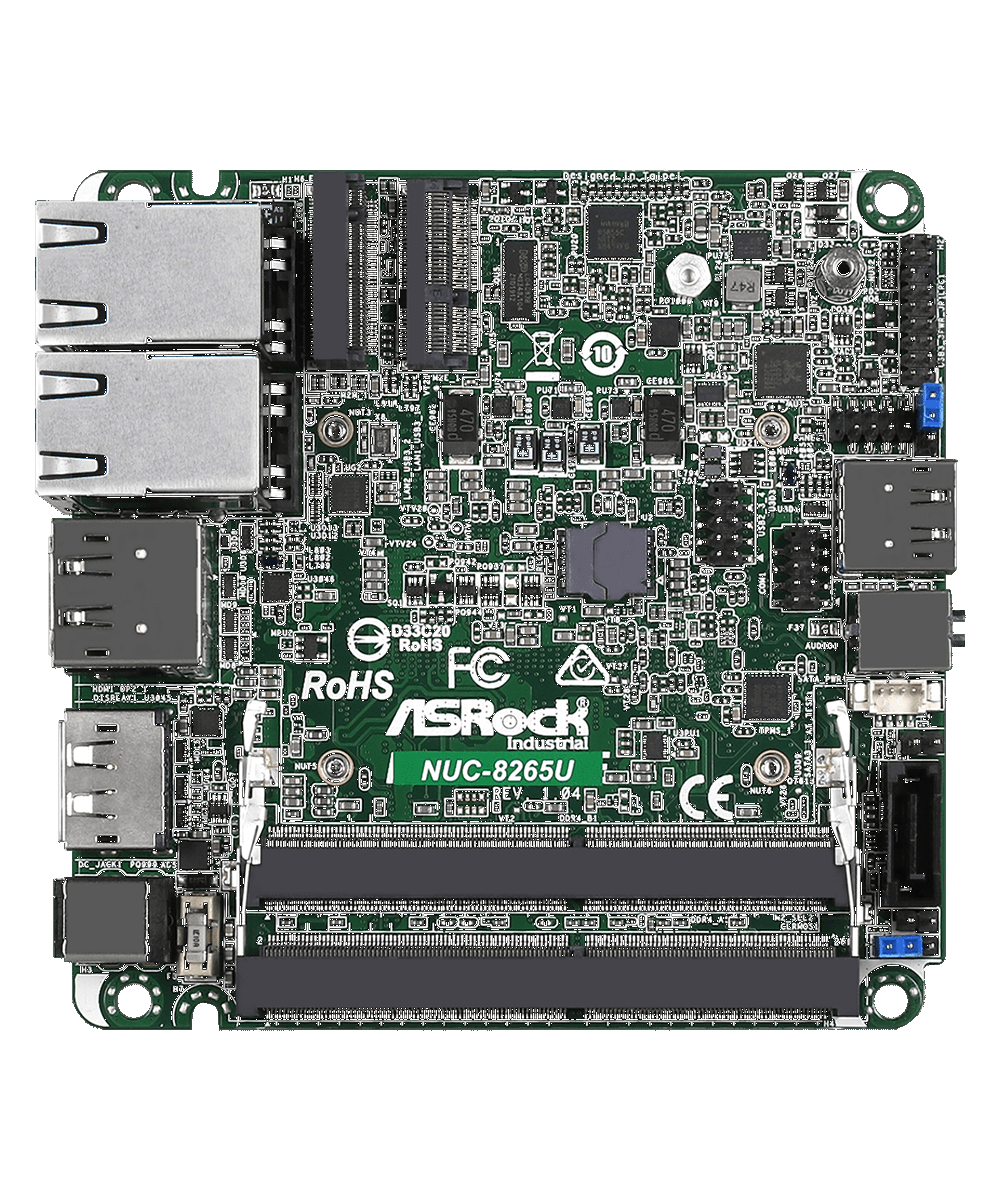

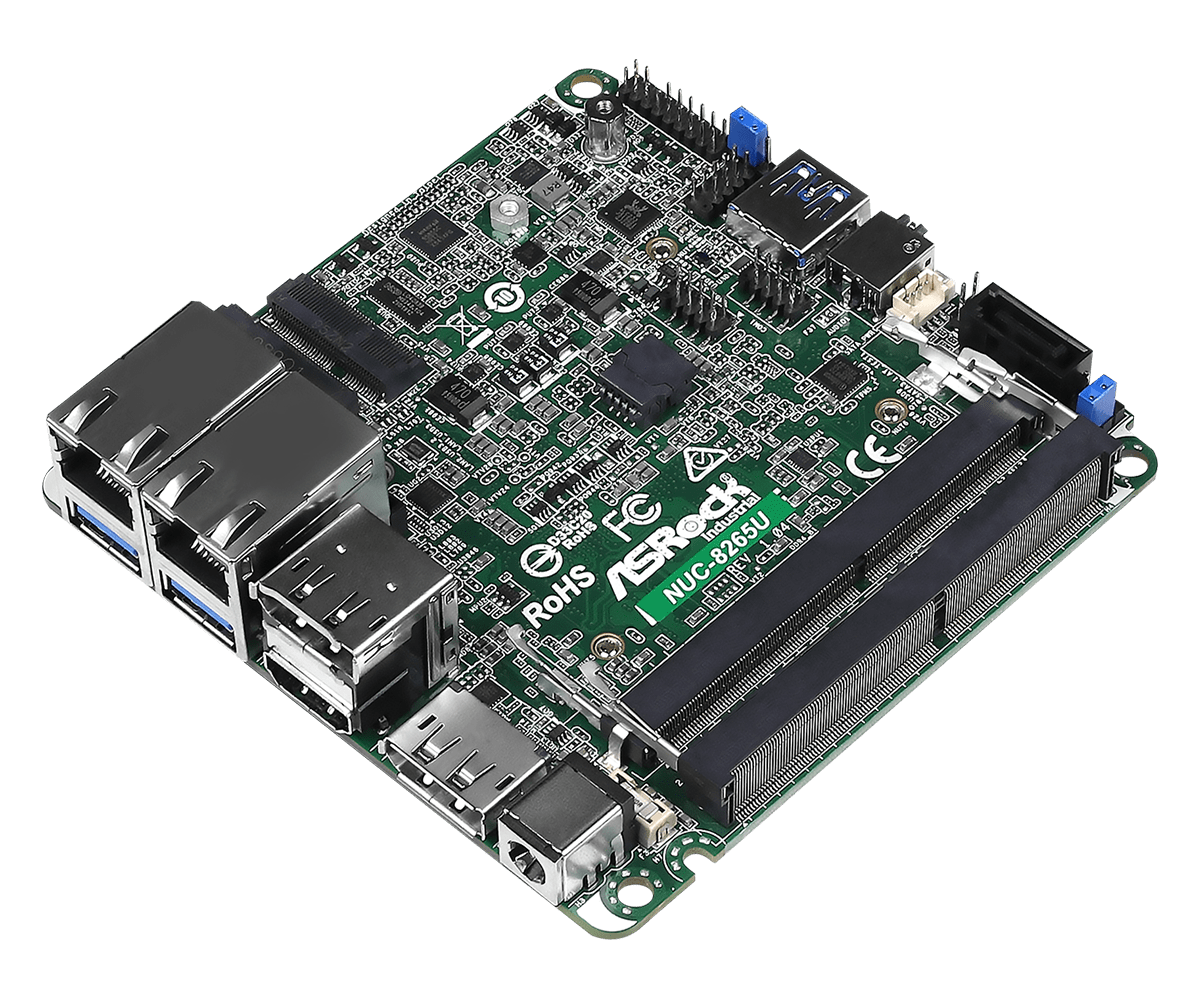

NUC-8265U NUC Motherboard

  • Intel® 8th Gen (Whiskey lake-U) Core™ MCP Processors
  • Supports Dual Channel DDR4 SO-DIMM 2400MHz, up to 32GB
  • 1 x HDMI, 2 x Displayport
  • Supports Triple Display
  • 3 x USB 3.1, 2 x USB 2.0
  • 1 x Intel LAN, 1 x Realtek LAN
  • Supports Intel® RAID 0/1
  • 12V DC-in
產品型錄
產品規格

Form Factor

Dimensions NUC (4.09-inx4.02-in)

Processor System

CPU Intel® 8th Gen (Whiskey lake-U) Core™ MCP Processors I5-8265U QC, 1.6GHz, 15 W
Chipset SoC
BIOS AMI SPI 128 Mbit

Memory

Technology Dual Channel DDR4 2400 MHz
Capacity 32 GB
Socket 2 x SO-DIMM

Graphics

HDMI Supports max resolution up to 4000 x 2000@30Hz
DisplayPort Supports max resolution up to 3840 x 2160@60Hz
MultiDisplay Triple Display

Expansion Slot

M.2 1 x Key E(2230) with PCIe x1 and USB 2.0 for Wireless

Audio

Interface Realtek ALC233, High Definition Audio, Line-out, Mic-in

Ethernet

Controller/ Speed LAN1: Intel® I219V with 10/100/1000 Mbps
LAN2: Realtek RTL8111G/RTL8111H-CG with 10/100/1000 Mbps
Connector 2 x RJ-45

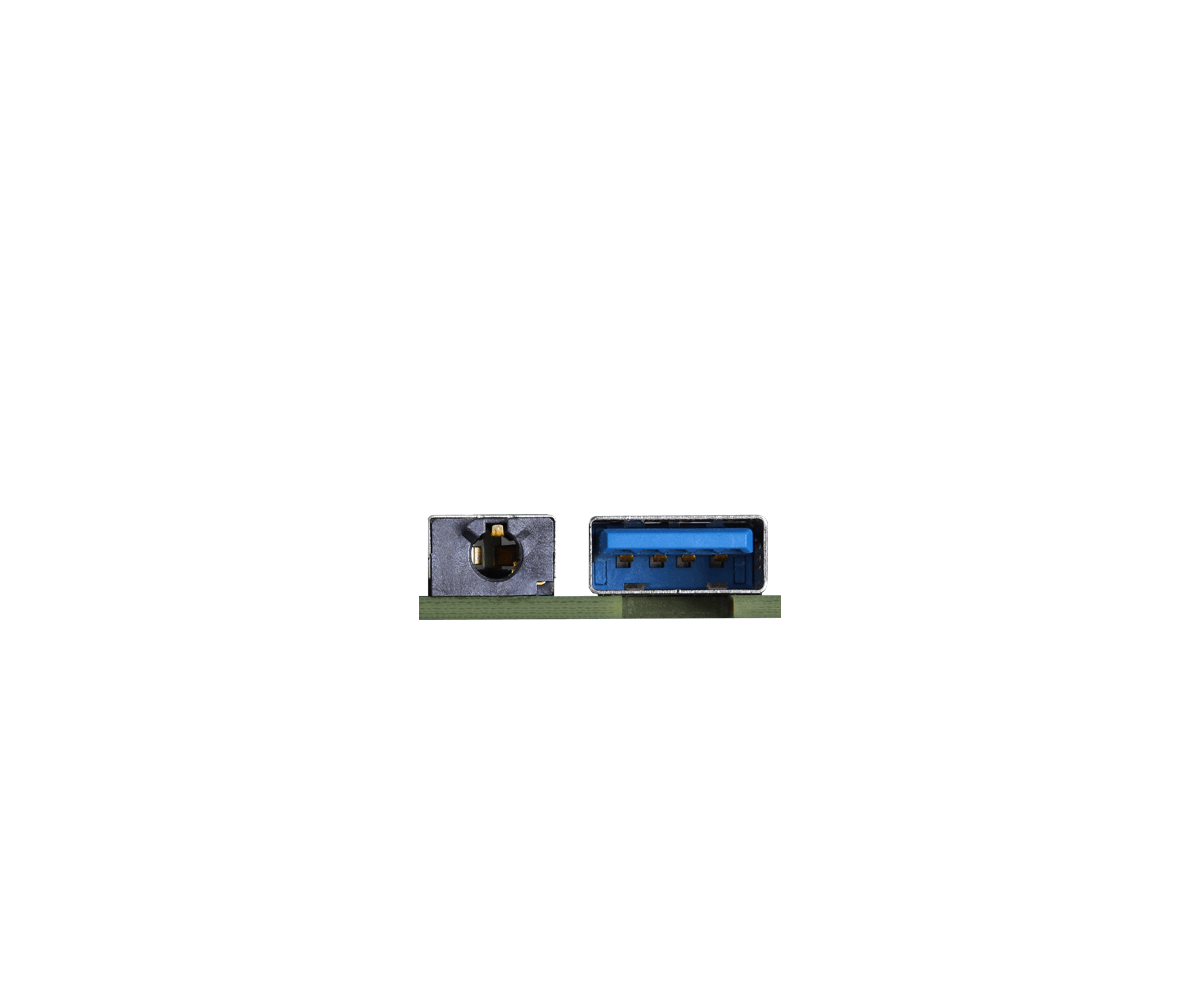

Front I/O

USB 1 x USB 3.1
Audio 1 (Mic-in or Line-out)

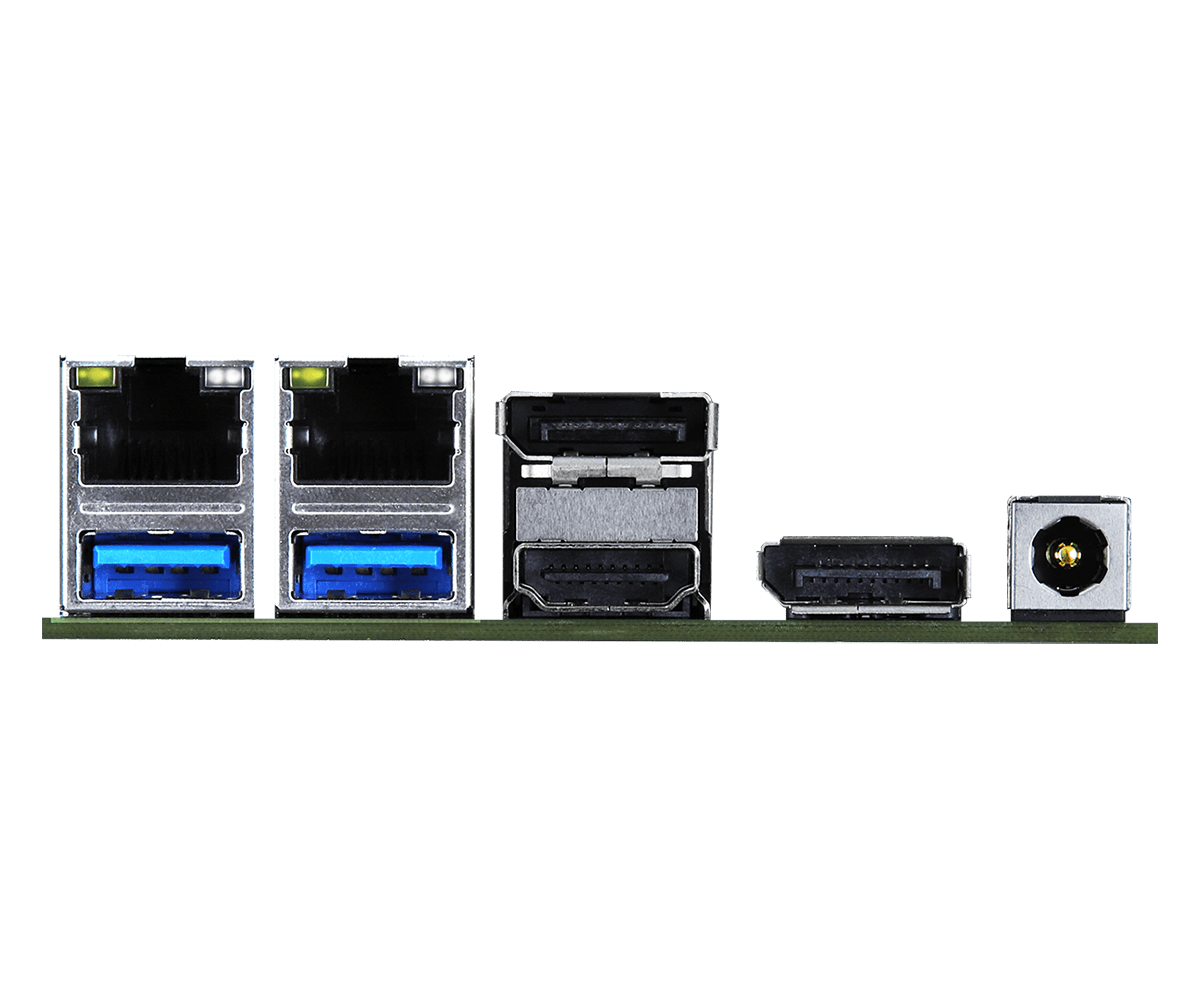

Rear I/O

HDMI 1 x HDMI 1.4
DisplayPort 2 x DP 1.2a
Ethernet 1
USB 2 x USB3.1
DC Jack 1

Internal Connector

USB 2 x USB 2.0 (1 x 2.00 pitch header)
COM 1 x COM (RS232/422/485)
TPM TPM 2.0 on board IC
SATA PWR Output 1

Storage

M.2 1 x M.2 (Key M, 2242/2260/2280) with PCIe x4 and SATA3 for SSD
*M.2 Key M 2280 (optional support, by bracket)
SATA 1 x SATA3 (6Gb/s)
RAID 1 x SATA3 (6.0 Gb/s)

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments 0,1,2....255sec

Power Requirements

Input PWR 12V DC-in(DC Jack)
Power On AT/ATX supported
-AT: Direct PWR on as power input ready
-ATX:Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 60ºC
Storage Temp -40° C ~ 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

Others

Longivity Support No

Accessories

Bulk Package 2 x SCREW M2,D=5 (13G020302031AK)
1 x BRACKET FOR M.2 W/2*SCREW (13G030007000AK)
1 x SATA Data/Power Cable (14G000103111AK)

規格更改時恕不預先通知。品牌和產品名稱歸各自公司所有。不保證任何配置與產品實物規格相同。

支援下載

作業系統:

說明 作業系統 日期 下載
說明 [Beta] Realtek Lan driver ver:10047_02232021 作業系統 Win 10 x 64 Date 2021-04-08 下載
說明 Intel Wireless Lan driver ver:20.110.0.3 作業系統 Win 10 x 64 Date 2020-06-16 下載
說明 VGA driver ver:25.20.100.6519 作業系統 Win 10 x 64 Date 2020-06-16 下載
說明 Intel Rapid Storage Technology driver and utility ver:17.0.0.1072 作業系統 Win 10 x 64 Date 2020-06-16 下載
說明 Intel Lan driver ver:23.2_PV 作業系統 Win 10 x 64 Date 2020-06-16 下載
說明 Realtek Lan driver ver:10031_10232018 作業系統 Win 10 x 64 Date 2020-06-16 下載
說明 Intel Management Engine driver ver:12.0.37.1429_Corp 作業系統 Win 10 x 64 Date 2020-06-16 下載
說明 INF driver ver:10.1.17765.8094_Public 作業系統 Win 10 x 64 Date 2020-06-16 下載
說明 Realtek high definition audio driver ver:8569 作業系統 Win 10 x 64 Date 2020-06-16 下載
版本 更新方式 / 如何更新 說明 日期 下載
版本 1.50 更新方式 / 如何更新 BIOS 說明 1. Update Intel microcode
2. Update Realtek Lan FW
3. Enhance system compitibility
日期 2021-06-18 下載
版本 1.50 更新方式 / 如何更新 DOS 說明 1. Update Intel microcode
2. Update Realtek Lan FW
3. Enhance system compitibility
日期 2021-06-18 下載
版本 1.50 更新方式 / 如何更新 Windows 說明 1. Update Intel microcode
2. Update Realtek Lan FW
3. Enhance system compitibility
日期 2021-06-18 下載
版本 1.20 更新方式 / 如何更新 BIOS 說明 First released. 日期 2020-05-06 下載
版本 1.20 更新方式 / 如何更新 DOS 說明 First released. 日期 2020-05-06 下載
版本 1.20 更新方式 / 如何更新 Windows 說明 First released. 日期 2020-05-06 下載

檔案格式為 PDF,如果您沒有安裝 Adobe Acrobat Reader,請至 Adobe下載。

說明 語言 日期 下載
說明 RAID Installation Guide 語言 English 日期 2020-11-09 下載
說明 Jumpers and headers setting guide 語言 English 日期 2020-06-16 下載
說明 User Manual 語言 English 日期 2020-06-16 下載
