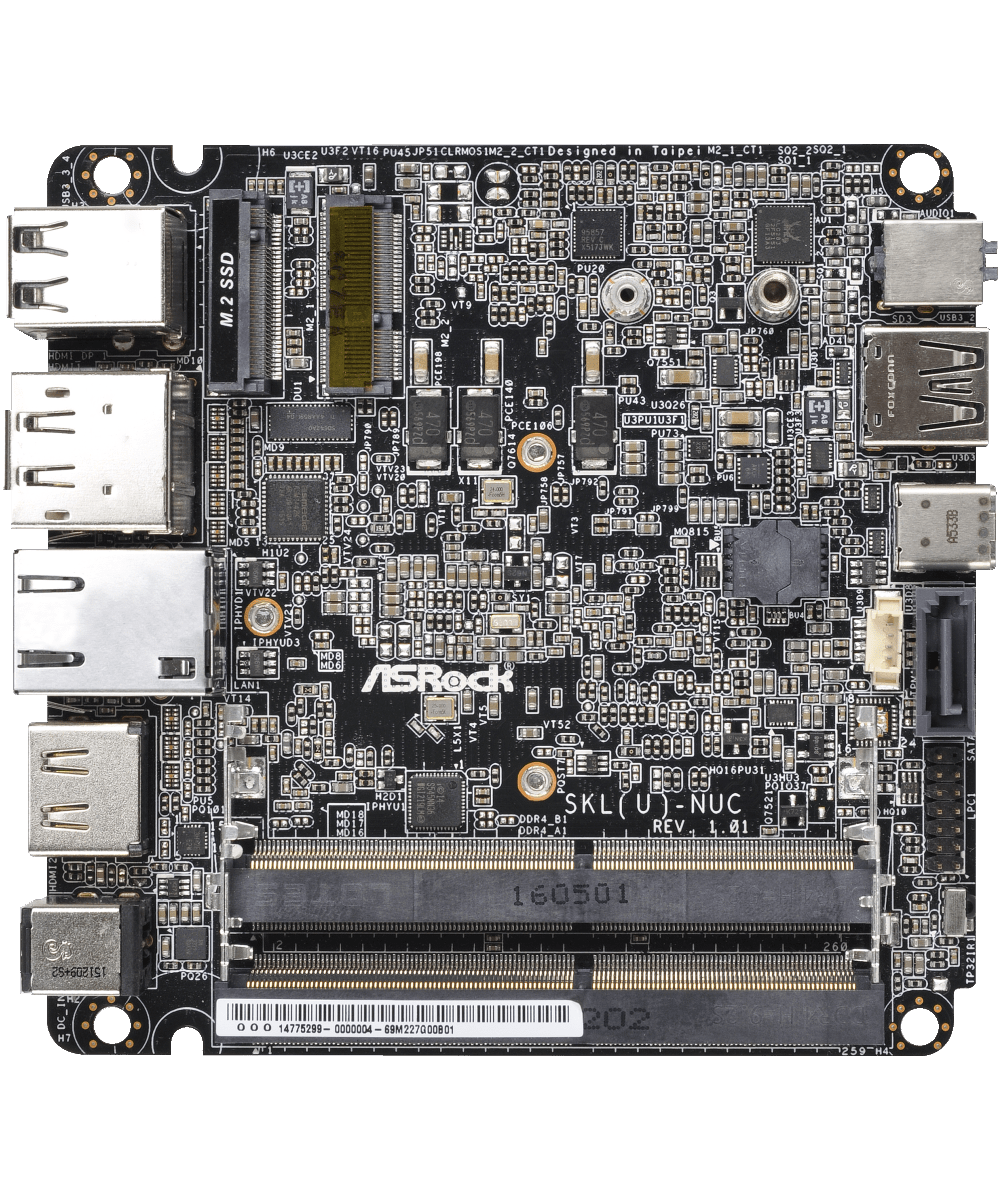

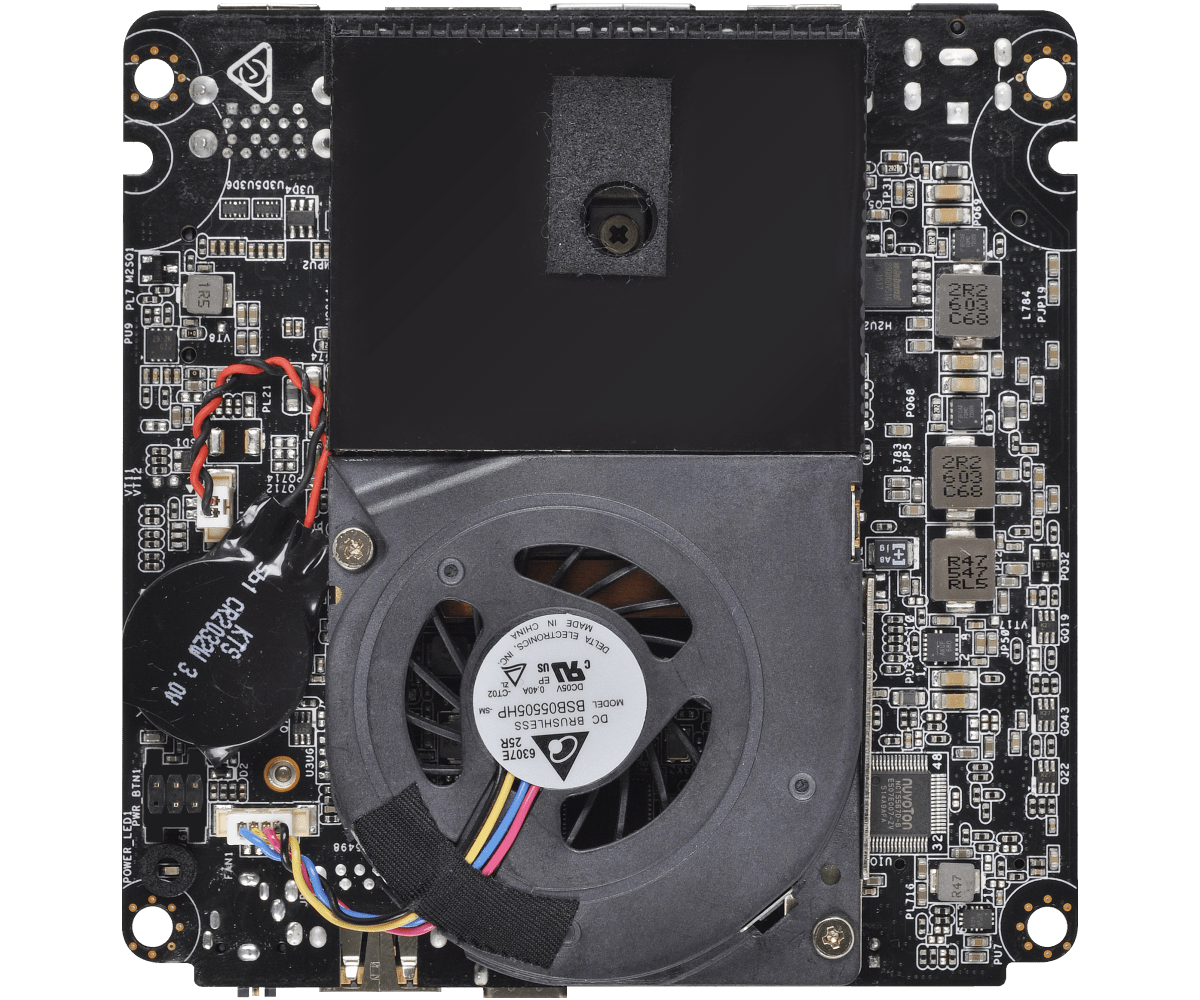

NUC-6100U NUC Motherboard

  • Intel® 6th Gen (Skylake-U) Core™ MCP Processors
  • 2 x 260-pin SO-DIMM up to 32GB DDR4 2133 MHz (16GB per DIMM)
  • 3 x USB 3.1 Gen1, 1 x USB 3.1 Gen1(TypeC), 1x IR , 1 x M.2 Key E, 1 x M.2 Key M, 1 x SATA3
  • 1 x Intel 1 Gigabit LAN
  • Support Dual display, (HDMI2+ DP or HDMI1+HDMI2)
  • 19V DC-in
產品型錄
產品規格

Form Factor

Dimensions NUC(4.09-inx4.02-in)

Processor System

CPU Intel® 6th Gen (Skylake-U) Core™ MCU Processors
i3-6100U, DC, 2.30GHz,15W
Chipset MCP
BIOS AMI SPI 128 Mbit

Memory

Technology Dual Channel DDR4 2133 MHz
Capacity 32GB (16 GB per DIMM)
Socket 2 x 260-pin SO-DIMM

Graphics

Controller Intel® HD Graphics 520
HDMI HDMI1: HDMI 2.0
Max resolution up to 4096x2160 @60Hz
HDMI2: HDMI 1.4b
Max resolution up to 4096x2160 @30Hz
DisplayPort DisplayPort 1.2a , DP++
Max resolution up to 4096x2160@60Hz
MultiDisplay Dual Display, supports HDMI 2 + DP or HDMI 1 + HDMI 2

Expansion Slot

M.2 1 x Key E(2230) with PCIex1 and USB2.0 for Wireless

Audio

Interface Realtek ALC283HD , High Definition Audio. Line-out,Mic-in.

Ethernet

Controller/ Speed 1 x Intel® I219V with 10/100/1000 Mbps
Connector 1 x RJ-45

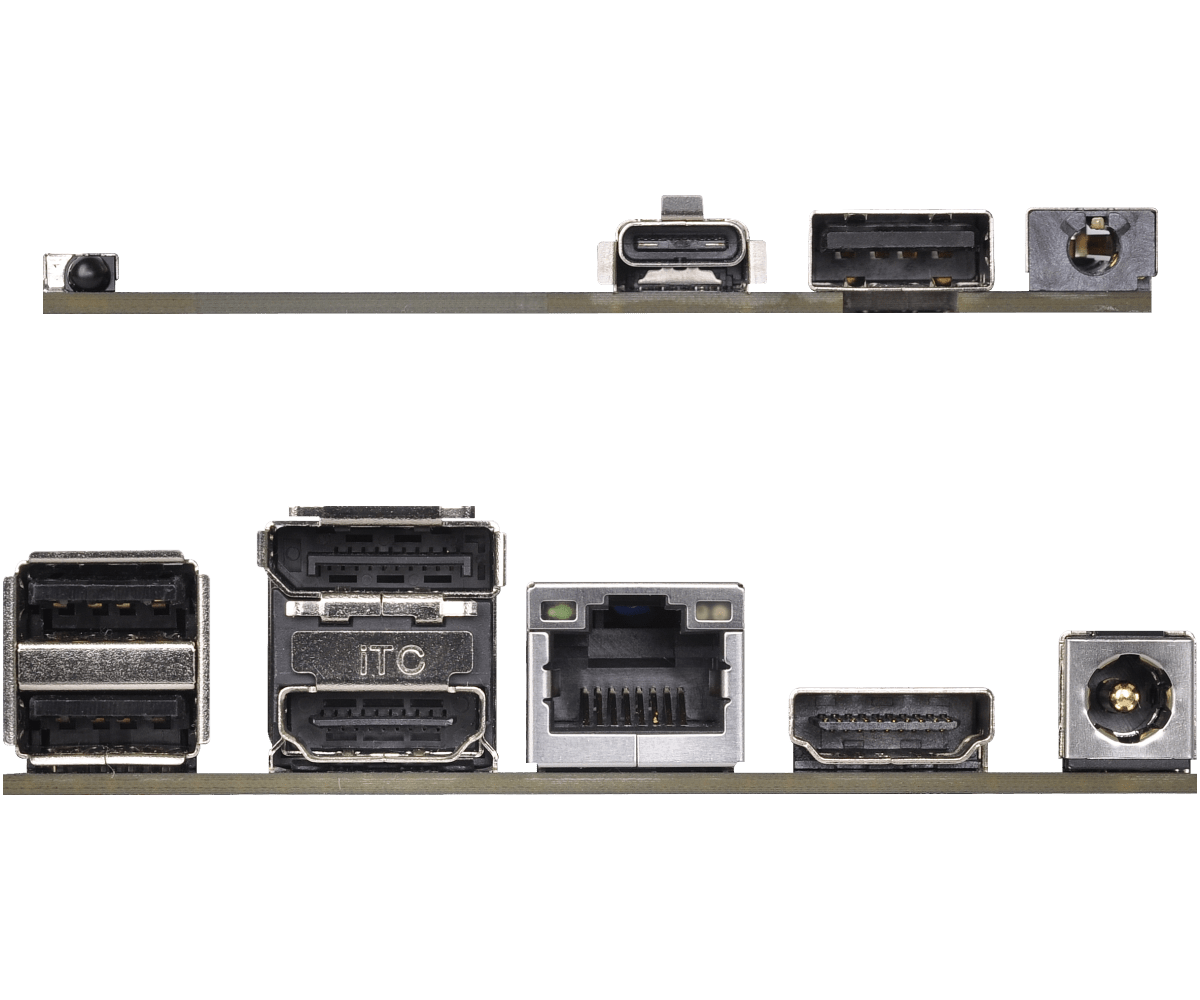

Front I/O

USB 1 x USB3.0 (TypeC)
1 x USB3.0
Audio 1 (Mic-in or Line-out)

Rear I/O

HDMI 1 x HDMI 2.0 + 1 x HDMI 1.4b
DisplayPort 1 x DP1.2a, DP++
Ethernet 1 x Gigabit LAN
USB 2 x USB 3.0
DC Jack 1

Internal Connector

SATA PWR Output 1

Storage

M.2 1 x M.2 ( Key M.2 2260/2280) with PCIE x 4 and SATA3
SATA 1 x SATA3 (6Gb/s)

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR 19V DC-in(DC Jack)
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 60ºC
Storage Temp -40° C ~ 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

Others

Longivity Support No

規格更改時恕不預先通知。品牌和產品名稱歸各自公司所有。不保證任何配置與產品實物規格相同。

支援下載

作業系統:

說明 作業系統 日期 下載
說明 VGA driver ver:15.40.24.4454 作業系統 Win 7 Date 2020-05-08 下載
說明 Intel USB 3.0 driver ver:4.0.5.55 作業系統 Win 7 x 64 , Win 7 Date 2020-05-08 下載
說明 SATA Floppy Image ver:14.6.0.1029 作業系統 Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-08 下載
說明 INF driver ver:10.1.1.18 作業系統 Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-08 下載
說明 CIR receiver driver ver:2.11.1009 作業系統 Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 7 x 64 Date 2020-05-08 下載
說明 VGA driver ver:15.40.24.64.4454 作業系統 Win 10 x 64 , Win 8.1 x 64 , Win 8 x 64 , Win 7 x 64 Date 2020-05-08 下載
說明 Intel USB 3.0 Adaptation driver ver:1.0.0.42 作業系統 Win 8 x 64 Date 2020-05-08 下載
說明 Intel Rapid Storage Technology driver and utility ver:14.8.0.1042 作業系統 Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-08 下載
說明 Intel Lan driver ver:20.7 作業系統 Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-08 下載
說明 Realtek high definition audio driver ver:7647 作業系統 Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-08 下載
說明 Intel Wireless Lan driver ver:18.33.0.2 作業系統 Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-08 下載
說明 Intel USB 3.0 Adaptation driver ver:1.0.1.45 作業系統 Win 8.1 x 64 Date 2020-05-08 下載
說明 Asmedia USB 3.0/3.1 XHCI driver ver:1.16.34.2 作業系統 Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-08 下載
說明 Intel Dynamic Platform and Thermal Framework (Intel DPTF) driver ver:8.1.10605.221 作業系統 Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 7 x 64 Date 2020-05-08 下載
說明 Intel Bluetooth driver ver:18.1.1601.06 作業系統 Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 7 x 64 , Win 7 Date 2020-05-08 下載
說明 Intel Management Engine driver ver:11.7.0.1045 作業系統 Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-08 下載
版本 更新方式 / 如何更新 說明 日期 下載
版本 1.00 更新方式 / 如何更新 BIOS 說明 First released. 日期 2020-05-06 下載
版本 1.00 更新方式 / 如何更新 DOS 說明 First released. 日期 2020-05-06 下載
版本 1.00 更新方式 / 如何更新 Windows 說明 First released. 日期 2020-05-06 下載

檔案格式為 PDF,如果您沒有安裝 Adobe Acrobat Reader,請至 Adobe下載。

說明 語言 日期 下載
說明 Jumpers and headers setting guide 語言 English 日期 2020-05-06 下載
說明 User Manual 語言 English 日期 2020-05-06 下載
