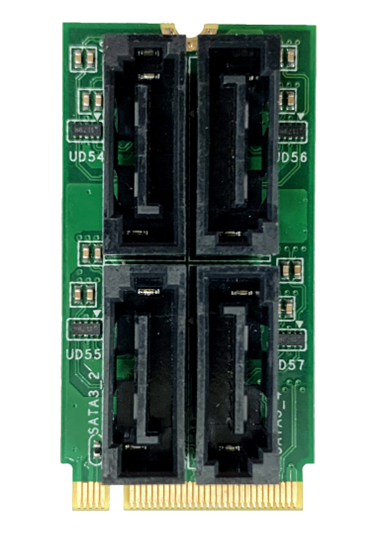

M2X4-SATA-4P

M2X4-SATA-4P

  • [ASRock Industrial Exclusive] Only apply on ASRockind Comet Lake models or future platform
  • PCI Express 3.0 to four SATA III ports
  • Supports AHCI, Port-Multiplier
  • Supports error reporting, recovery and correction
  • Supports Native Command Queuing
產品型錄
產品規格

Form Factor

Function M.2 to four SATA III Ports
Dimensions 22 x 42 x 9.3 (W x L x H/mm)

Environment

Operating Temp 0ºC ~ 60ºC
Storage Temp -40° C ~ 85° C

Input Interface

Interface PCI Express 3.0 x4 (Flexible I/O needed)

Output Interface

Interface SATA3

Controller

Major ICs N/A (Through Flexible I/O lanes direct support)

Output Connector

Connector 4 Port SATA (7-Pin)

規格更改時恕不預先通知。品牌和產品名稱歸各自公司所有。不保證任何配置與產品實物規格相同。

支援下載

檔案格式為 PDF,如果您沒有安裝 Adobe Acrobat Reader,請至 Adobe下載。

說明 語言 日期 下載
說明 Jumpers and headers setting guide 語言 English 日期 2020-09-28 下載
