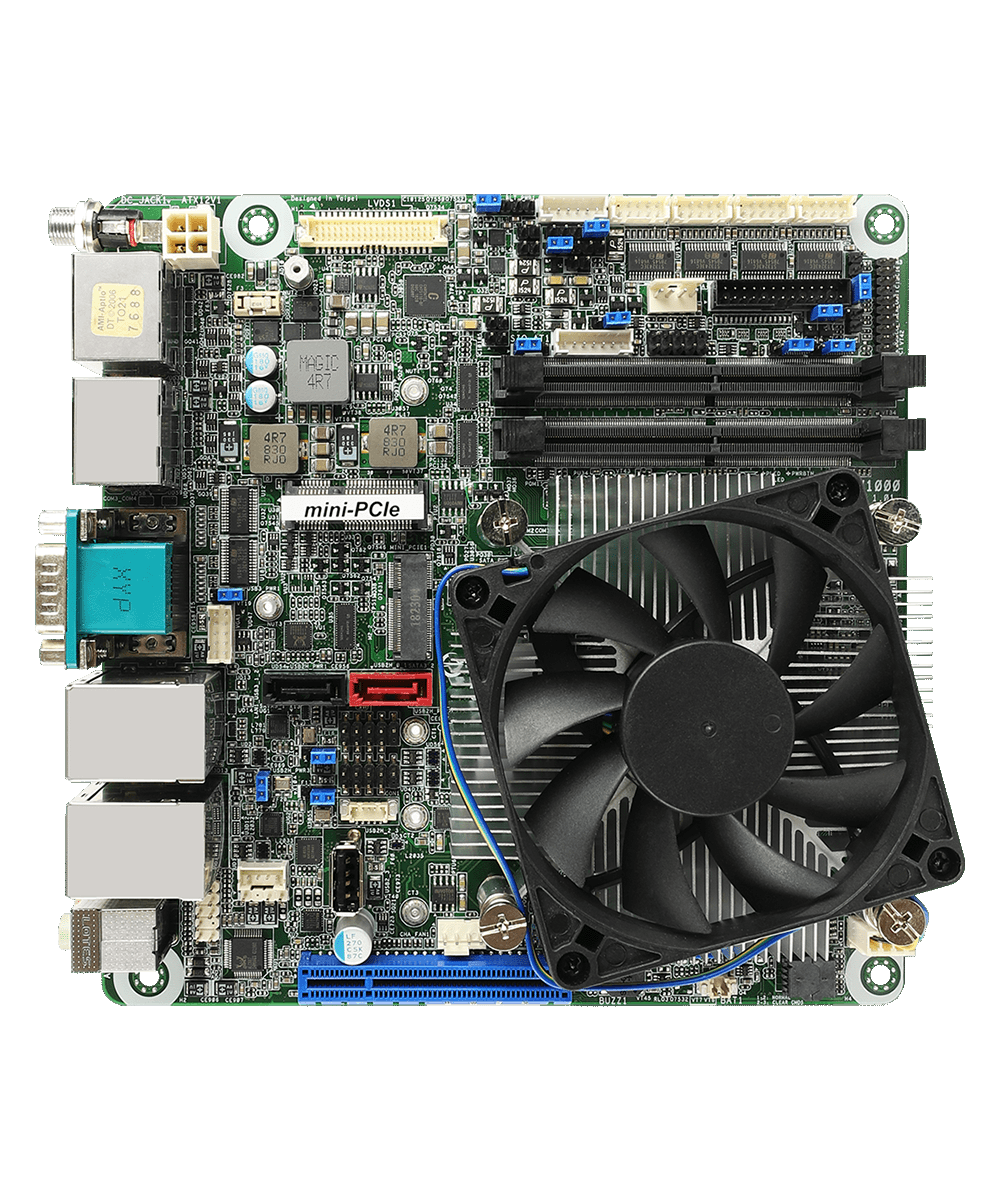

IMB-V1000 Mini-ITX Motherboard

  • AMD Ryzen™ Embedded V1000 SoC processors
  • 2 x 260-pin SO-DIMM up to 32GB DDR4 3200 MHz (16GB per DIMM)
  • 1 x PCIe x8 (Gen3), 2 x USB 3.2 Gen2, 7 x USB 2.0, 1 x M.2 Key M, 1 x M.2 Key E, 1 x mini-PCIe, 6 x COM, 2 x SATA3
  • 2 x Realtek Gigabit LAN
  • Supports Quad display,4 x DisplayPort 1.2a
  • TPM 2.0 onboard IC
  • 12V/19~28V DC-In/ ATX PWR (4-pin)
產品型錄
產品規格

Form Factor

Dimensions Mini-ITX (6.7-in x 6.7-in)

Processor System

CPU AMD Ryzen™ Embedded V1000 SoC processors
-IMB-V1000P (V1807B, QC, 3.35GHz, 35-54W)
-IMB-V1000M (V1605B, QC, 2GHz, 12-25W)
-IMB-V1000V (V1202B, DC, 2.3GHz, 12-25W)
Chipset SoC
BIOS AMI SPI 64 Mbit

Memory

Technology Dual Channel DDR4 3200 MHz (V1807B)
Dual Channel DDR4 2400 MHz (V1605B/ V1202B)
Capacity 32 GB (16 GB per DIMM)
Socket 2 x 260-pin SO-DIMM

Graphics

Controller AMD Radeon™ Vega 11 Graphics (IMB-V1000P)
AMD Radeon™ Vega 8 Graphics (IMB-V1000M)
AMD Radeon™ Vega 3 Graphics (IMB-V1000V)
DisplayPort DisplayPort 1.2a
Max resolution up to 3840x2160@60Hz
VGA Max resolution up to 1920x1200@60Hz
LVDS Dual channel 48 bit up to 1920 x 1200@60Hz
eDP eDP 1.3
Max resolution up to 3840x2160@60Hz
MultiDisplay Quad Display

Expansion Slot

PCIe 1 x PCIe x8 (Gen3)
mini-PCIe 1 x Full/Half size with PCIe x1 and USB 2.0
M.2 1 x M.2 (Key E, 2230) with PCIe x1 and shared USB 2.0 for Wireless

Audio

Interface Realtek ALC887, High Definition Audio. Line-out,Mic-in,Line-in

Ethernet

Controller/ Speed 2 x Realtek R8111G/RTL8111H-CG with 10/100/1000 Mbps
Connector 2 x RJ-45

Rear I/O

DisplayPort 4 x DP 1.2a
Ethernet 2 x 1 Gigabit LAN
USB 2 x USB 3.2 Gen2 2 x USB 2.0
Audio 2 (Mic-in, Line-out)
COM 2 x COM (RS-232/422/485)

Internal Connector

USB 5 x USB 2.0 (2 x 2.54 pitch header, 1 x USB 2.0 Type-A vertical con)
COM 4 x COM (RS-232, COM6 shared with ccTalk)
GPIO 8 x GPI, 8 x GPO (shared with LPT header)
TPM TPM 2.0 onboard IC
LVDS 1(Shared with DP1)
eDP 1(Shared with DP0)
VGA 1(Shared with DP3)
SATA PWR Output 1
Speaker Header 1

Storage

M.2 1 x M.2 (Key M, 2242/2260/2280) with PCIe x2 and SATA for SSD
SATA 2 x SATA3 (6.0Gb/s), Red header shared with M.2 Key M SATA signal

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR 12V or 19~28V DC-In with 4-pin plug PWR cable or DC Jack
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 60ºC
Storage Temp -40° C ~ 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

Accessories

Gift Package 1 x SCREW M2,D=5.3 (13G020302010AK)
2 x SCREW FOR WIFI CARD (13G020305011AK)
1 x I/O Shield (13G020513000AK)
1 x SATA Data Cable (14G00010107DAK)
1 x COM Cable (14G000000340AK)
Bulk Package 1 x SCREW M2,D=5.3 (13G020302010AK)
2 x SCREW FOR WIFI CARD (13G020305011AK)
1 x I/O Shield (13G020513000AK)

規格更改時恕不預先通知。品牌和產品名稱歸各自公司所有。不保證任何配置與產品實物規格相同。

支援下載

作業系統:

說明 作業系統 日期 下載
說明 [Beta] Realtek Lan driver ver:10047_02232021 作業系統 Win 10 x 64 Date 2021-04-08 下載
說明 Realtek high definition audio driver ver:9088_FF00 作業系統 Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2021-01-29 下載
說明 Realtek Lan driver ver:10031_10232018 作業系統 Win 10 x 64 Date 2020-05-08 下載
說明 Realtek Teaming driver ver:2.0.3.0 作業系統 Win 10 x 64 Date 2020-05-08 下載
說明 VGA driver ver:18.50.33.01.190522a 作業系統 Win 10 x 64 Date 2020-05-08 下載
版本 更新方式 / 如何更新 說明 日期 下載
版本 1.20 更新方式 / 如何更新 BIOS 說明 Update audio codec 日期 2021-03-08 下載
版本 1.20 更新方式 / 如何更新 Windows 說明 Update audio codec 日期 2021-03-08 下載

檔案格式為 PDF,如果您沒有安裝 Adobe Acrobat Reader,請至 Adobe下載。

說明 語言 日期 下載
說明 Jumpers and headers setting guide 語言 English 日期 2020-05-06 下載
說明 User Manual 語言 English 日期 2020-05-06 下載
